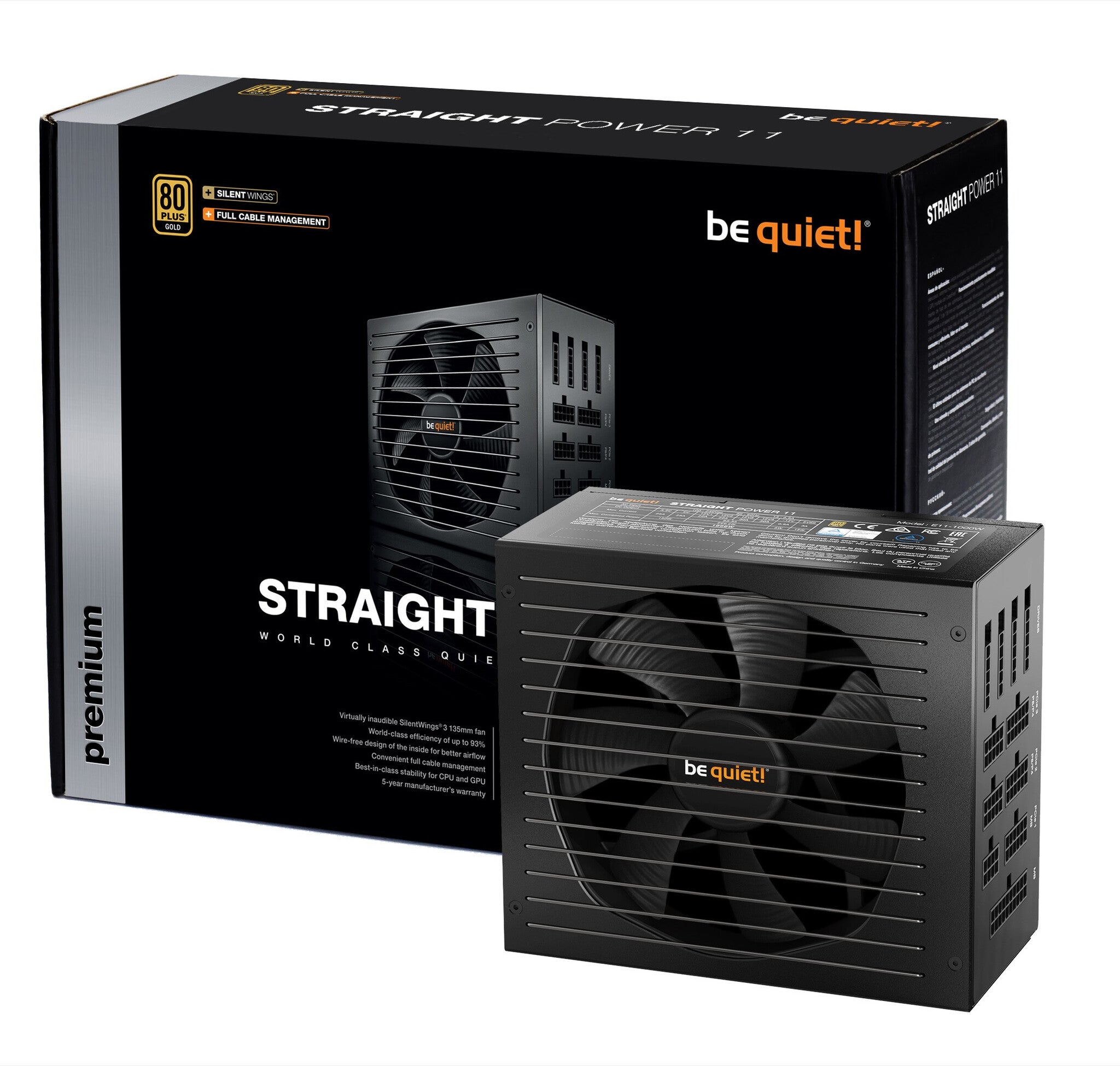

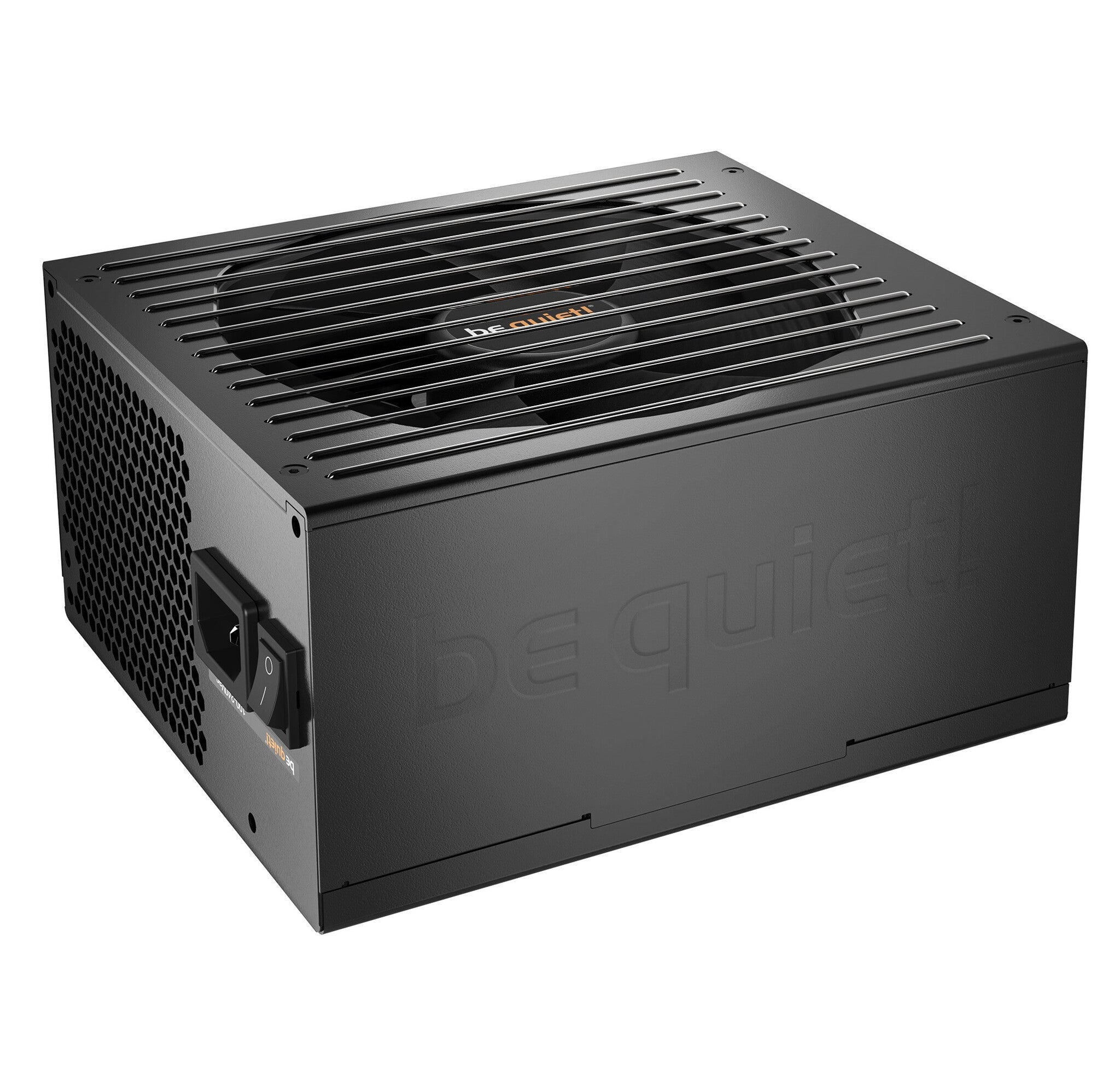

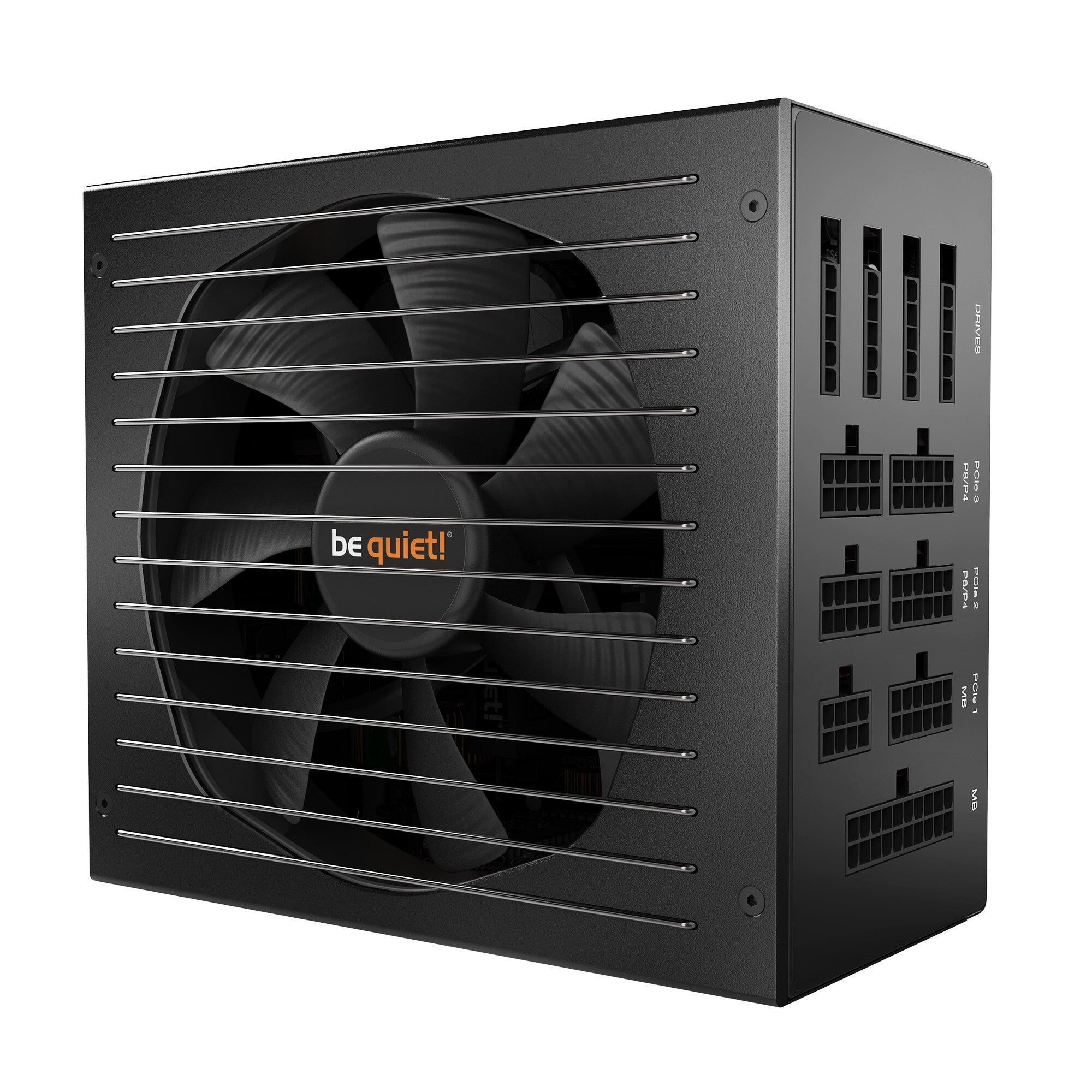

Straight Power 11, 1000 W, ATX 12V 2.4, EPS 12V 2.92, 100 - 240 V, 50/60 Hz, active PFC, SilentWings 3 135mm, ATX 20+4-pin, 6x PCIe 6+2-pin, 11x SATA, 4x PATA, FDD, Black
World Class Quiet and Efficiency
be quiet! Straight Power 11 1000W raises the bar for systems that demand virtually inaudible operation without power quality compromises. This PSU is clearly the best choice for super silent systems.

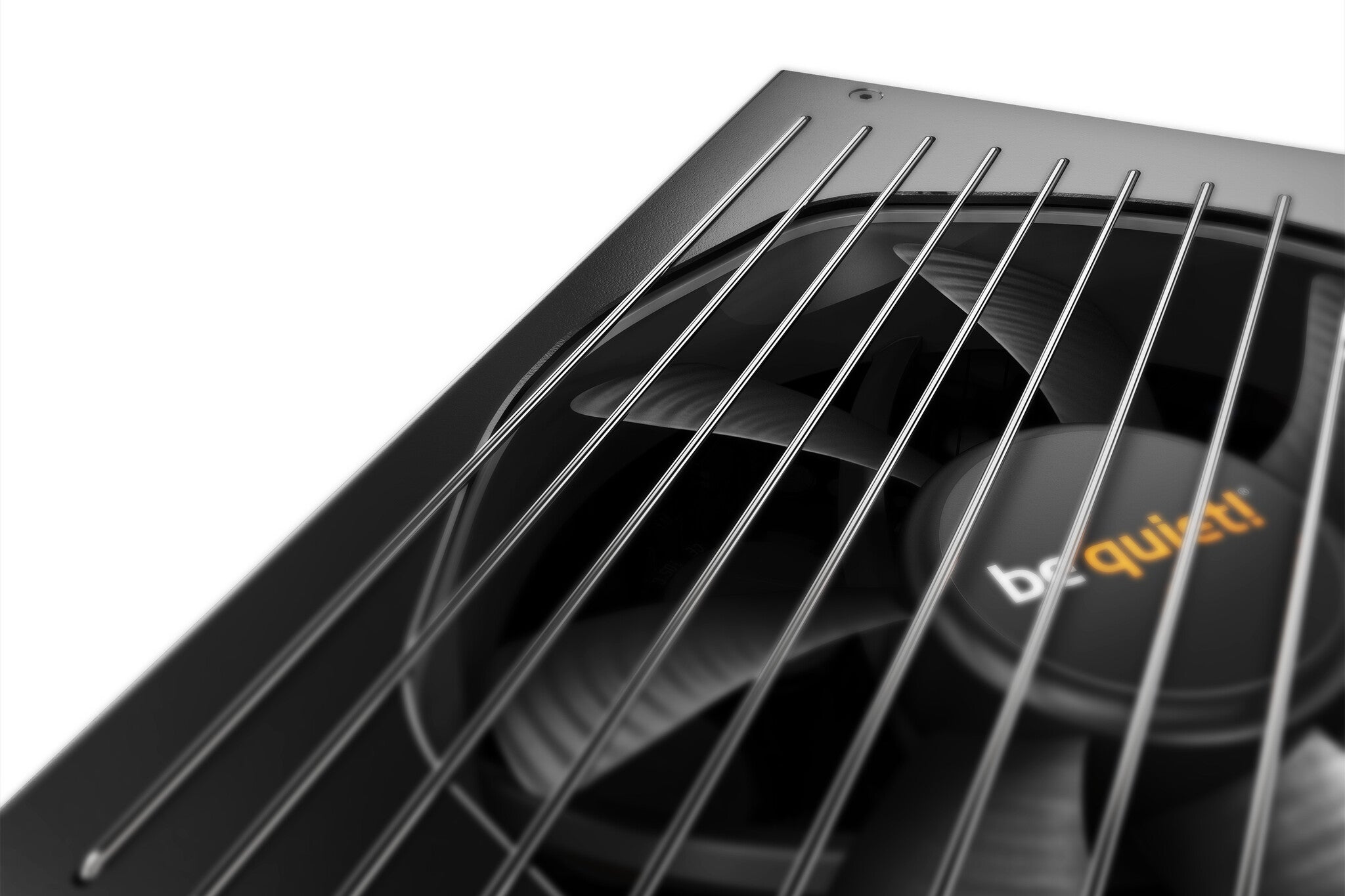

SILENT WINGS 3 FAN
Provides virtually inaudible operation
The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.
FUNNEL-SHAPED FAN OPENING
Higher cooling performance
The fan inlet of the Straight Power 11 1000W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.

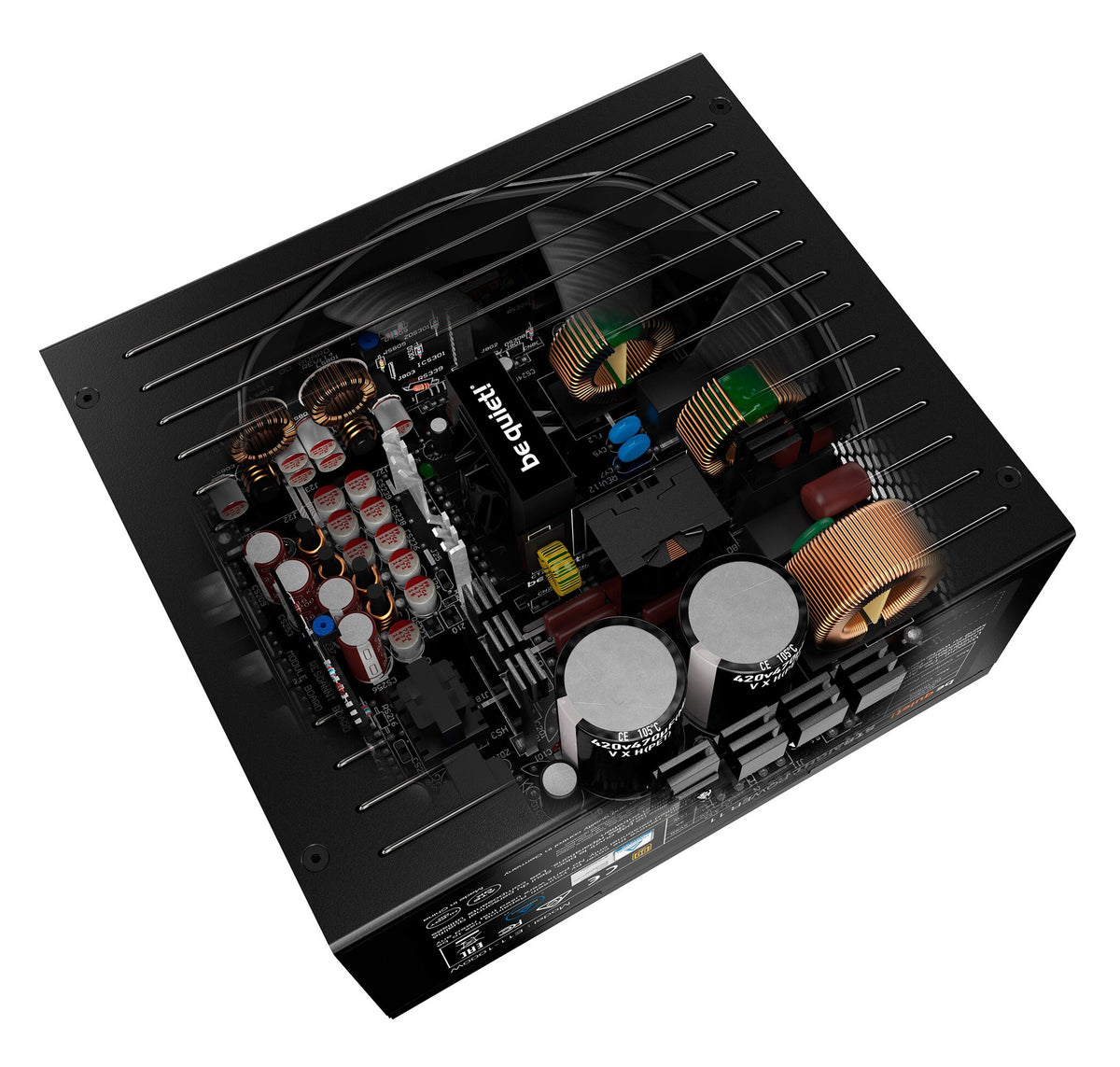

WIRE-FREE DESIGN INSIDE THE PSU
Pushing the longevity of components to a maximum
An absolute innovation: The Straight Power 11 1000W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

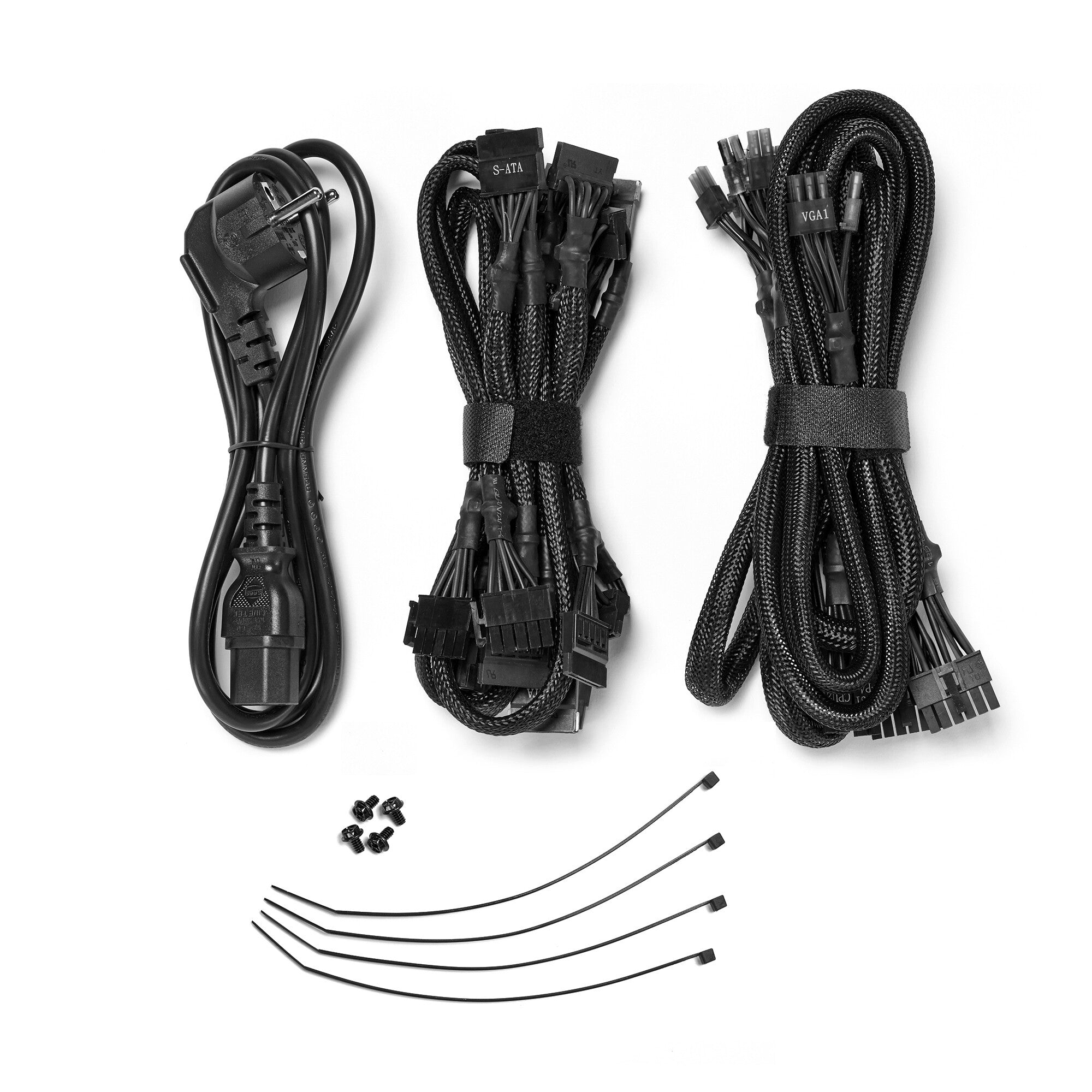

MODULAR CABLES
Utmost convenience and compatibility
Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.
80 PLUS® GOLD CERTIFIED
Impressively high efficiency
Straight Power 11 1000W is certified with 80 PLUS Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system.
HIGH-CLASS TECHNOLOGIES
Compatibility for the systems of tomorrow
The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Straight Power 11 1000W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
19.8 ms |
| Efficiency |
93% |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V3) |
30 A |
| Max output current (+12V4) |
30 A |
| Max output current (+12V2) |
22 A |
| Max output current (+12V1) |
22 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
6 W |
| Combined power (+5V) |
150 W |
| Combined power (+12V) |
999.6 W |
| Combined power (+3.3V) |
150 W |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.99 |
| Input current |
13 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Peak power |
1070 W |
| Total power |
1000 W |
| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| Floppy disk drive connector |
Yes |
| CPU power cable length |
70 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
60 cm |
| PCI Express power connectors (6+2 pin) |
6 |
| SATA power cable length |
550 mm |
| Number of SATA power connectors |
11 |
| Number of PATA power connectors |
4 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Certification |
CE, FCC, TÜV, cTUVus, RCM, BSMI, CU |
| Bearing technology |
FDB |
| Silent mode |
Yes |
| EPS version |
2.92 |
| ATX version |
2.4 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Illumination |
No |
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
1.85 kg |
| Height |
86 mm |
| Depth |
170 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package weight |
3.57 kg |
| Package height |
102 mm |
| Package depth |
328 mm |
| Package width |
248 mm |
| Manual |
Yes |
| Technical details |
|---|
| Sustainability certificates |
RoHS, ENERGY STAR |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Cable management |
Yes |
| Noise level (full-load mode, 100%) |
32.1 dB |
| Noise level (quiet mode, 50%) |
11.8 dB |
| Noise level (silent mode, |
11.15 dB |
| Cable ties included |
Yes |
| Screws included |
Yes |
