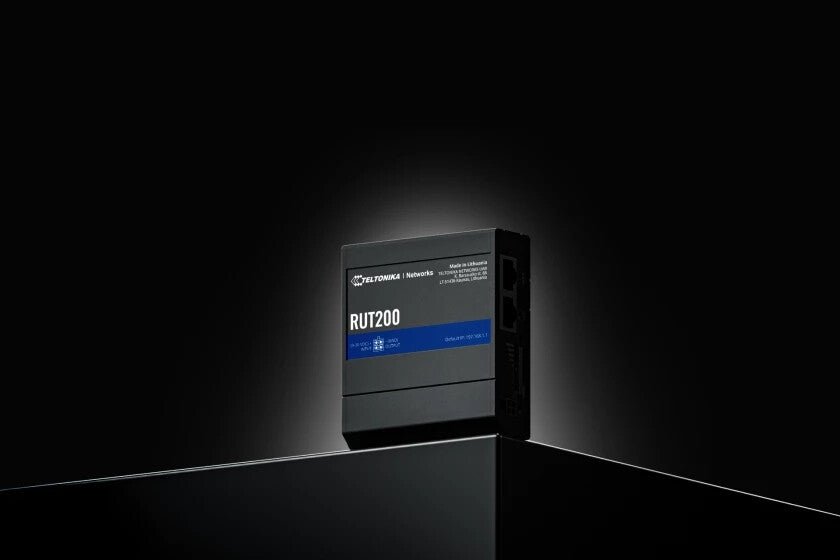

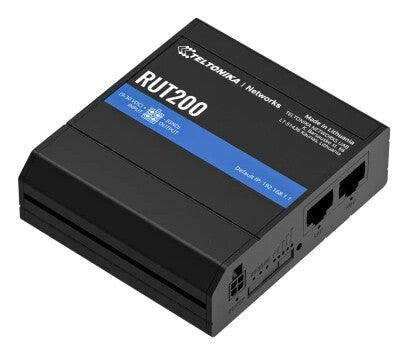

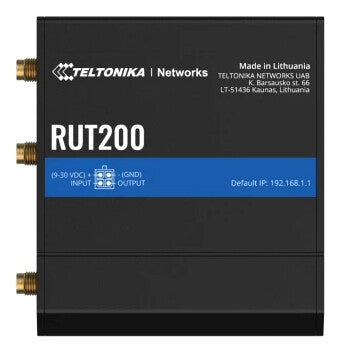

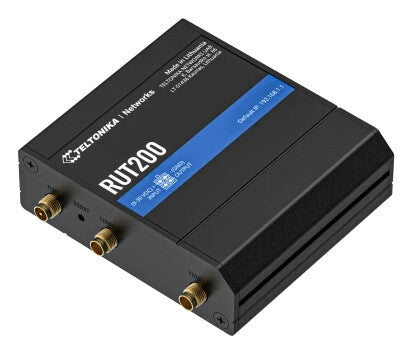

RUT200
INDUSTRIAL CELLULAR ROUTER
RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.
WAN connection | |
---|---|
WAN connection type | RJ-45 |
3G/4G USB modem compatibility | No |
SIM card slot | Yes |
DSL WAN | No |
Ethernet WAN | Yes |
Wireless LAN features | |
---|---|
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
Network | |
---|---|
Static route | Yes |
Dynamic DNS (DDNS) | Yes |
Port forwarding | Yes |
Auto MDI/MDI-X | Yes |
Networking standards | IEEE 802.3, IEEE 802.3u |
Cabling technology | 10/100Base-T(X) |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet LAN interface type | Fast Ethernet |
Ethernet LAN | Yes |
Mobile network | |
---|---|
Short Message Service (SMS) | Yes |
SIM card type | MiniSIM |
4G LTE category | 4 |
4G standard | LTE |
Mobile network generation | 4G |

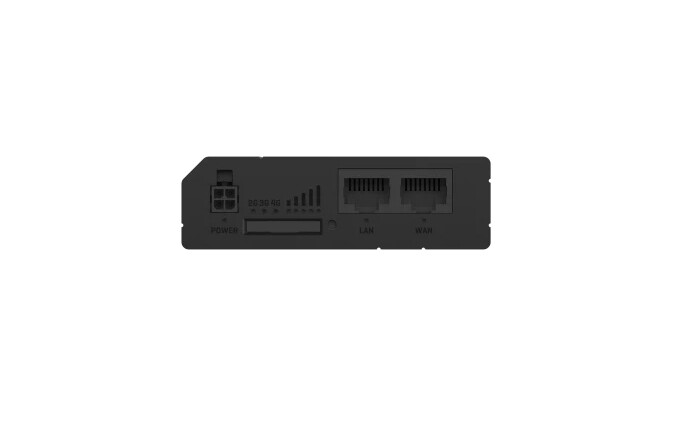

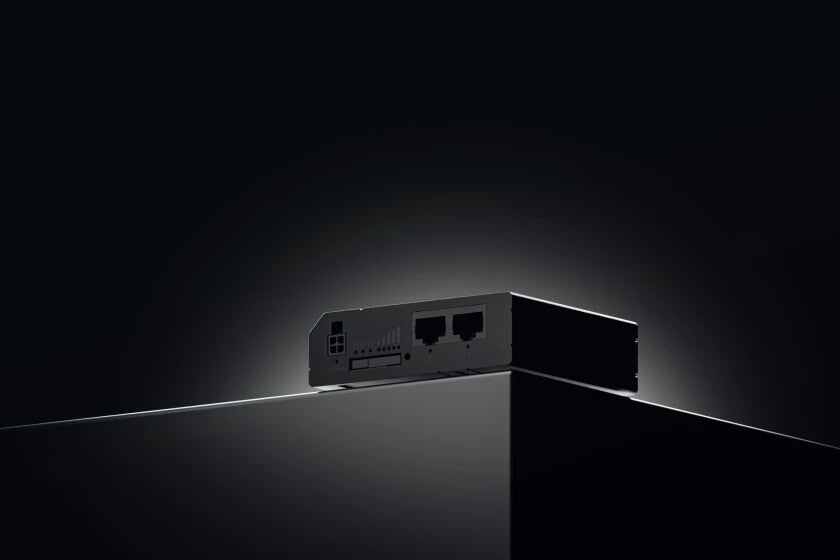

Ports & interfaces | |
---|---|
DC-in jack | Yes |
USB port | No |
Ethernet LAN (RJ-45) ports | 2 |
Management features | |
---|---|
Reset button | Yes |
Wake-on-LAN ready | Yes |
Quality of Service (QoS) support | Yes |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
Web-based management | Yes |
Security | |
---|---|
Network address translation (NAT) | Yes |
DMZ support | Yes |
System event log | Yes |
MAC address filtering | Yes |
Filtering | Yes |
DoS attack prevention | Yes |
Firewall | Yes |
Security algorithms | AES-CCMP, TKIP, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK |
Protocols | |
---|---|
Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
Universal Plug and Play (UPnP) | Yes |
Design | |
---|---|
LED indicators | LAN, Power |
International Protection (IP) code | IP30 |
Housing material | Aluminium, Plastic |
Product colour | Black |
Product type | Portable router |
Packaging content | |
---|---|
Quick start guide | Yes |
Antenna included | Yes |
AC adapter included | Yes |

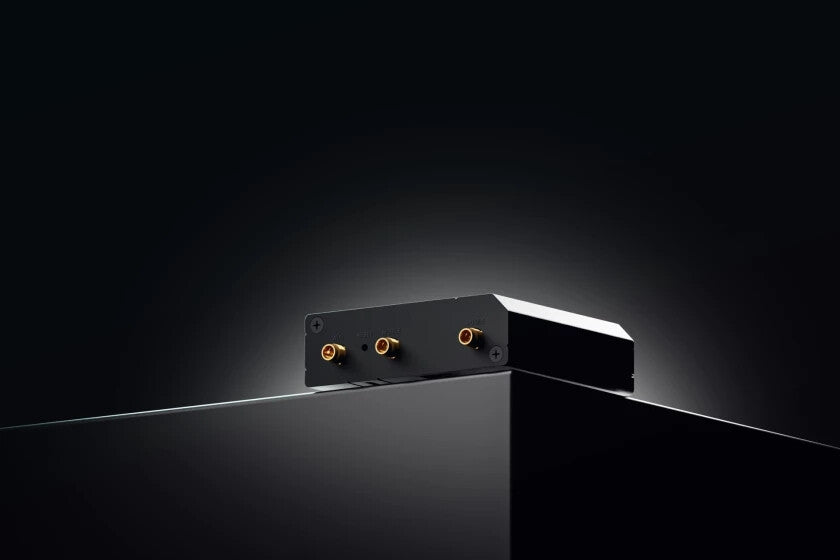

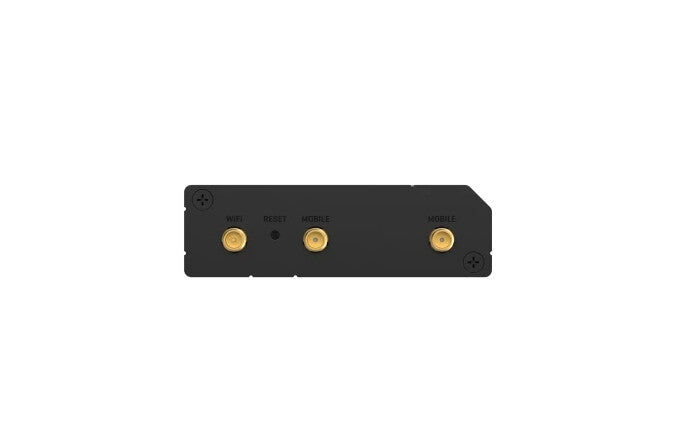

Antenna | |
---|---|
Antennas quantity | 3 |
Antenna connector type | SMA/RP-SMA |
Antenna design | External |
Features | |
---|---|
Certification | CB |
Firmware upgradeable | Yes |
Operating system installed | RutOS |
Flash memory | 16 MB |
Internal memory | 128 MB |
Processor frequency | 580 MHz |
Processor manufacturer | MediaTek |
Built-in processor | Yes |
Power | |
---|---|
Power over Ethernet (PoE) | Yes |
Power supply | 9 W |
Power source type | DC |
Operational conditions | |
---|---|
Operating temperature (T-T) | -40 - 75 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
---|---|
Width | 83 mm |
Depth | 74 mm |
Height | 25 mm |
Weight | 125 g |
Packaging data | |
---|---|
Number of products included | 1 pc(s) |
