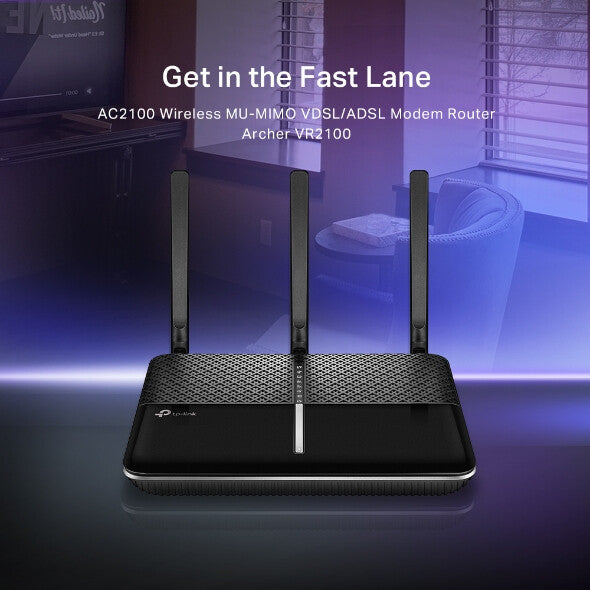

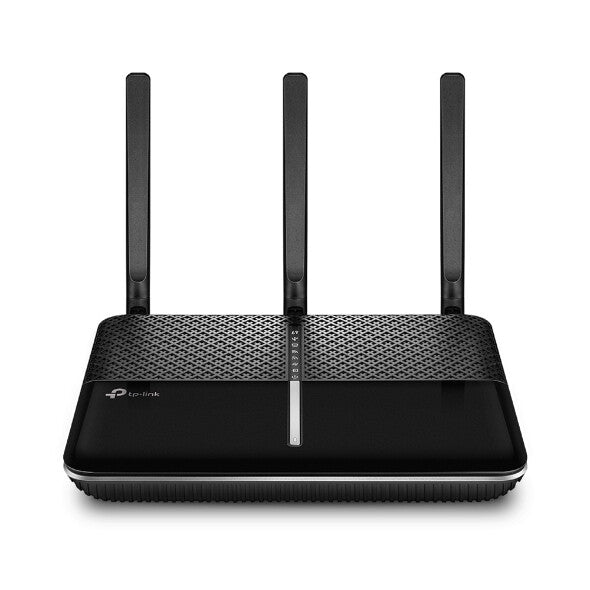

Super VDSL - the Future of Internet Access
The Archer VR2100 features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350 Mbps, 3.5x faster than its VDSL2 predecessor. The integrated DSL port also supports all standard DSL connections.*
*The Archer VR2100 is compatible with VDSL2, ADSL2+, ADSL2 and ADSL.
Versatile Connectivity
The Archer VR2100 is built to connect you to the internet, no matter your situation. The Ethernet WAN port supports wired connection to cable or fiber modem, letting you take full charge of its wireless capabilities as a router. In case your internet goes down, attach a 3/4G adapter to USB 3.0 port to serve as a backup option so you can get back online in no time.
Enjoy the Network at Full Speed
The Archer VR2100 makes full use of its dual band Wi-Fi abilities, reaching speeds of up to 1733 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band. Enjoy a total speed of up to 2.1 Gbps to eliminate latency and buffering from your HD streams and lag from online games.
Two dedicated Wi-Fi networks support more devices and reduce wireless interference to create stable connections.
4×4 MU-MIMO - Efficient Wi-Fi for Every Device
MU-MIMO technology serves up to four devices at once, reducing wait time, increasing
Wi-Fi throughput for every device, and making each stream more efficient.
Supports TP-Link OneMesh™ for Whole-Home Coverage
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
Lightning-Fast Wired Connections
One USB 3.0 port provides data transfers up to 10× faster than a traditional USB 2.0 port. Connect external storage devices and share files, photos, and videos at high-speed. As well as 4 Gigabit LAN ports help wired devices achieve peak performance for HD streaming and gaming.
Easy Setup and Management
Set up the Archer VR2100 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
WAN connection | |
---|---|
WAN connection type | RJ-45 |
3G/4G USB modem compatibility | Yes |
SIM card slot | No |
DSL WAN | Yes |
Ethernet WAN | Yes |
Wireless LAN features | |
---|---|
WLAN data transfer rate (second band) | 300 Mbit/s |
WLAN data transfer rate (first band) | 1733 Mbit/s |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
WLAN data transfer rate (max) | 1733 Mbit/s |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Network | |
---|---|
VPN Passthrough | Yes |
VPN tunnels quantity | 10 |
USB sharing | Yes |
Number of guest networks (2.4 GHz) | 1 |
Number of guest networks (5 GHz) | 1 |
Static route | Yes |
Dynamic DNS (DDNS) | Yes |
Port forwarding | Yes |
Port triggering | Yes |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
DSL features | |
---|---|
VDSL2 | Yes |
VDSL | Yes |
ADSL2+ | Yes |
ADSL2 | Yes |
ADSL | Yes |

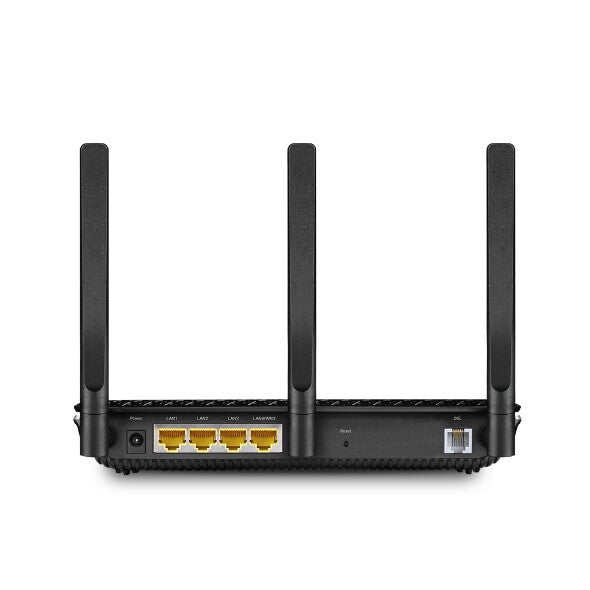

Ports & interfaces | |
---|---|
DC-in jack | Yes |
Memory card slot(s) | No |
RJ-11 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB port | Yes |
Ethernet LAN (RJ-45) ports | 3 |
Management features | |
---|---|
MU-MIMO technology | Yes |
WPS push button | Yes |
Reset button | Yes |
Web-based management | Yes |
Security | |
---|---|
Network address translation (NAT) | Yes |
DMZ support | Yes |
Filtering | Yes |
Parental control | Yes |
Access Control List (ACL) | Yes |
Guest access | Yes |
Firewall | Yes |
Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Protocols | |
---|---|
Supported network protocols | IPv4, IPv6 |
Universal Plug and Play (UPnP) | Yes |
DHCP server | Yes |
DHCP client | Yes |
Design | |
---|---|
On/off switch | Yes |
LED indicators | LAN, Power, Status, WLAN |
Wall mountable | Yes |
Product colour | Black |
Product type | Tabletop router |
Packaging content | |
---|---|
Quick installation guide | Yes |
AC adapter included | Yes |
Cables included | LAN (RJ-45), Phone (RJ-11) |
Antenna | |
---|---|
Antennas quantity | 4 |
Antenna design | Internal & external |
Features | |
---|---|
Certification | CE, RCM, RoHS |
Firmware upgradeable | Yes |
Power | |
---|---|
Output current | 1.5 A |
Output voltage | 12 V |
Power source type | DC |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
System requirements | |
---|---|
Mac compatibility | Yes |
Mac operating systems supported | macOS |
Linux operating systems supported | Yes |
Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP |
Weight & dimensions | |
---|---|
Width | 216 mm |
Depth | 164 mm |
Height | 36.8 mm |
Packaging data | |
---|---|
Package weight | 1.17 kg |
Package height | 71 mm |
Package depth | 240 mm |
Package width | 318 mm |
