Access 4G+ Speed
Anywhere, Anytime

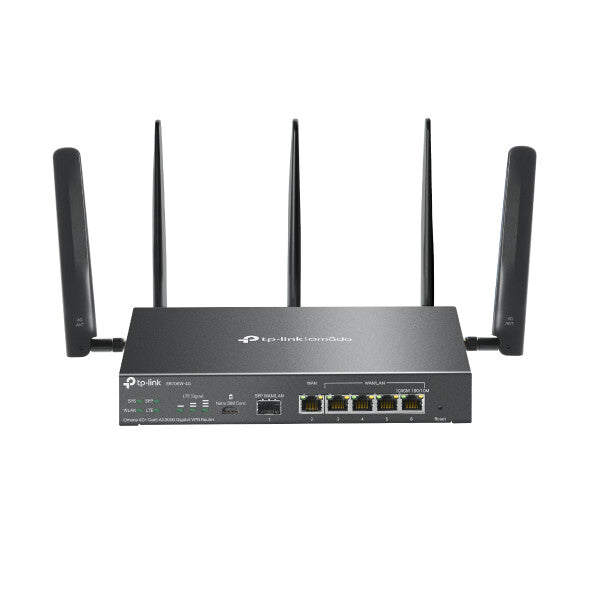

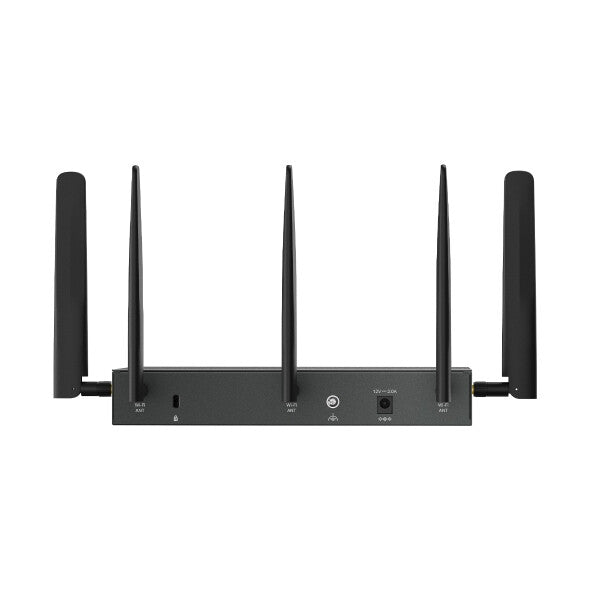

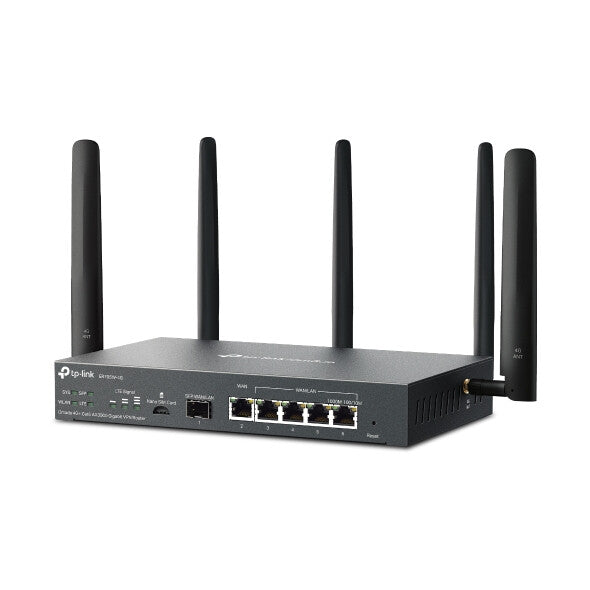

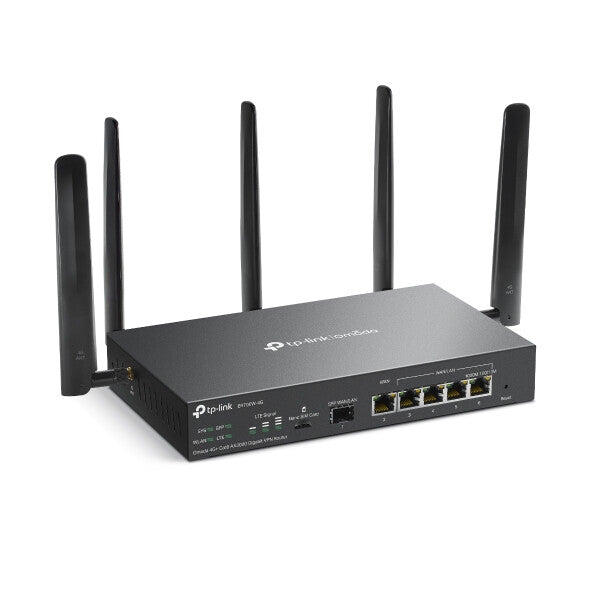

Omada 4G+ Cat6 AX3000 Gigabit VPN Router
- 4G+ Cat6 up to 300 Mbps
- 2402 Mbps + 574 Mbps*
- 6× Gigabit Ethernet Ports
- 1× Nano SIM Card Slot
- IPSec/SSL/ WireGuard /OpenVPN/L2TP VPN
- Centralized Management
- Load Balancing
- Omada App
Always-Online with AX3000 WiFi 6
- Dual Band
- HE160
- OFDMA
- 1024 QAM
WAN connection | |
---|---|
3G/4G USB modem compatibility | No |
SIM card slot | Yes |
DSL WAN | No |
Ethernet WAN | Yes |
Wireless LAN features | |
---|---|
WLAN data transfer rate (max) | 2402 Mbit/s |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Network | |
---|---|
VPN Passthrough | Yes |
Dynamic DNS (DDNS) | Yes |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Mobile network | |
---|---|
SIM card type | NanoSIM |
4G bands supported | 800,850,900,1800,2100,2300,2500,2600 MHz |
4G standard | LTE-TDD & LTE-FDD |
3G standards | HSDPA, HSUPA, WCDMA |
Mobile network generation | 4G |
Ports & interfaces | |
---|---|
USB port | No |
Ethernet LAN (RJ-45) ports | 5 |
Management features | |
---|---|
MIMO | Yes |
MU-MIMO technology | Yes |
Reset button | Yes |
Bandwidth control | Yes |
Security | |
---|---|
NAT functionality | • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering†• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP |
Network address translation (NAT) | Yes |
URL filtering | Yes |
Access Control List (ACL) | Yes |
Protocols | |
---|---|
DHCP server | Yes |
General | |
---|---|
Product Family | Omada |
Design | |
---|---|
LED indicators | LAN, LTE, Status, System, WAN |
Product colour | Black |
Product type | Desktop/pole router |
Antenna | |
---|---|
Antennas quantity | 5 |
Antenna design | External |
Features | |
---|---|
Flash memory | 128 MB |
Internal memory type | DDR4 |
Internal memory | 512 MB |
Power | |
---|---|
Power source type | AC |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
---|---|
Width | 226 mm |
Depth | 131 mm |
Height | 35 mm |
