WAN connection | |
---|---|
WAN connection type | RJ-11/RJ-45 |
3G/4G USB modem compatibility | No |
SIM card slot | No |
DSL WAN | Yes |
Ethernet WAN | Yes |
Wireless LAN features | |
---|---|
Modulation | 1024-QAM |
WLAN data transfer rate (second band) | 1201 Mbit/s |
WLAN data transfer rate (first band) | 574 Mbit/s |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
WLAN data transfer rate (max) | 1201 Mbit/s |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Network | |
---|---|
VPN support | OpenVPN, PPTP VPN, IPSec VPN |
VPN tunnels quantity | 16 |
Wireless radio | Yes |
Dynamic DNS (DDNS) | Yes |
Port forwarding | Yes |
Port triggering | Yes |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
DSL features | |
---|---|
VDSL2 | Yes |
ADSL2+ | Yes |
ADSL2 | Yes |
ADSL | Yes |

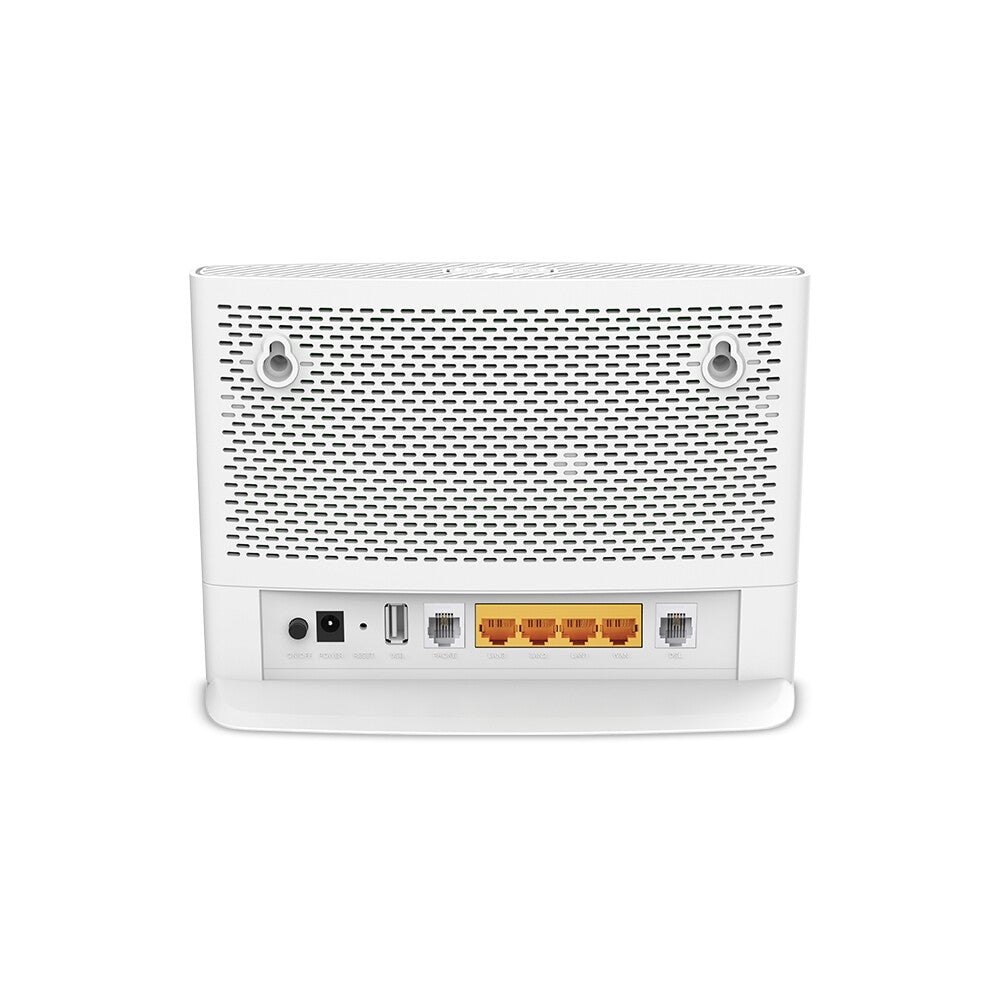

Ports & interfaces | |
---|---|
DC-in jack | Yes |
RJ-11 ports quantity | 2 |
USB 2.0 ports quantity | 1 |
USB port | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Management features | |
---|---|
MU-MIMO technology | Yes |
WPS push button | Yes |
Reset button | Yes |
Quality of Service (QoS) support | Yes |
Security | |
---|---|
NAT functionality | NAT Forwarding |
Protocols | |
---|---|
Supported network protocols | IPv4, IPv6 |
DHCP server | Yes |
DHCP client | Yes |
Design | |
---|---|
On/off switch | Yes |
Indication light | Yes |
Wall mountable | Yes |
Product colour | White |
Product type | Tabletop router |
Packaging content | |
---|---|
Quick installation guide | Yes |
AC adapter included | Yes |
Cables included | LAN (RJ-45), Phone (RJ-11) |
Antenna | |
---|---|
Antenna design | Internal |
Power | |
---|---|
External power adapter | Yes |
Output current | 2 A |
Output voltage | 12 V |
Power source type | DC |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 60 °C |
Storage relative humidity (H-H) | 5 - 90% |
System requirements | |
---|---|
Mac compatibility | Yes |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
Weight & dimensions | |
---|---|
Width | 199.7 mm |
Depth | 148.6 mm |
Height | 67.5 mm |
Packaging data | |
---|---|
Number of products included | 1 pc(s) |
