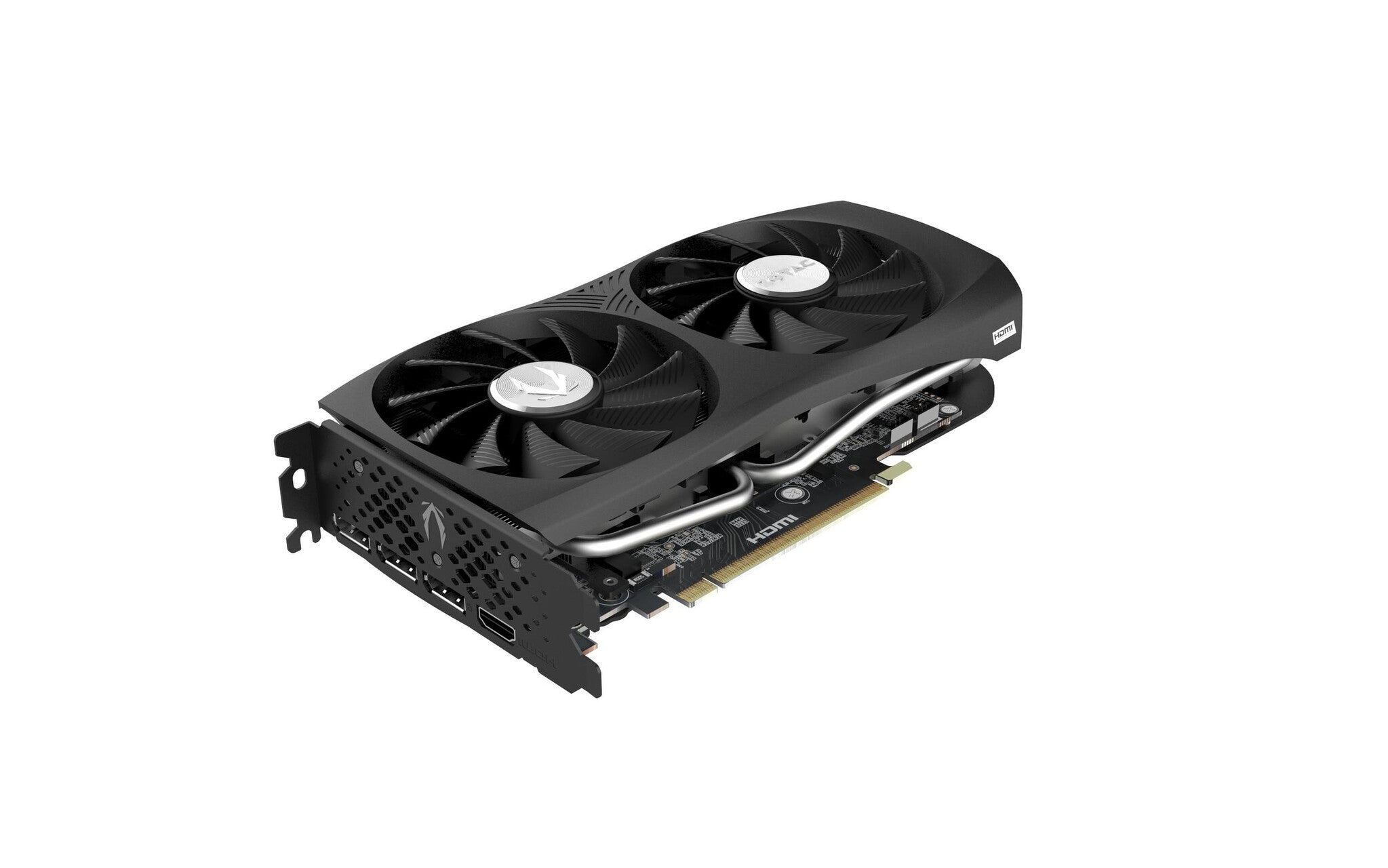

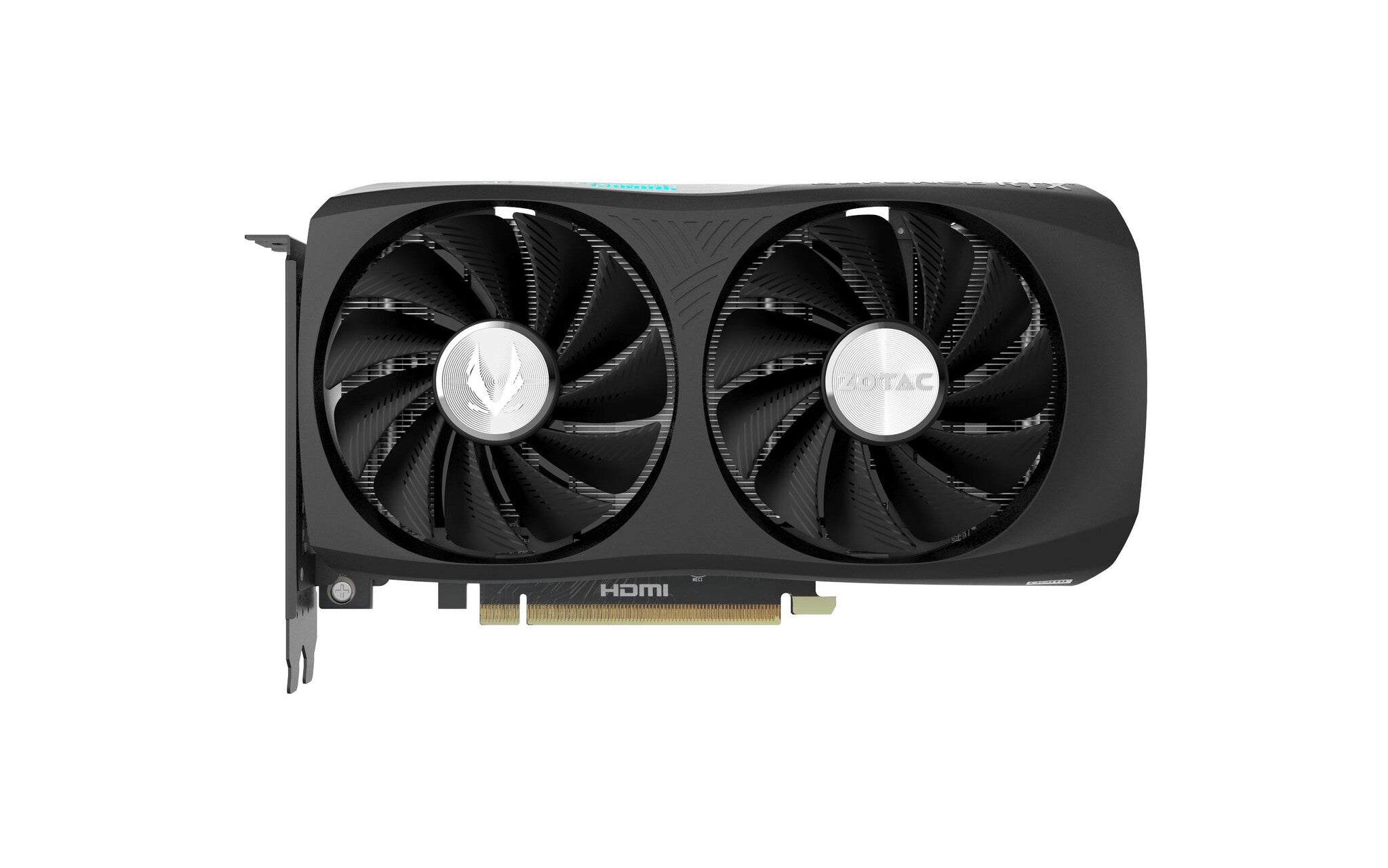

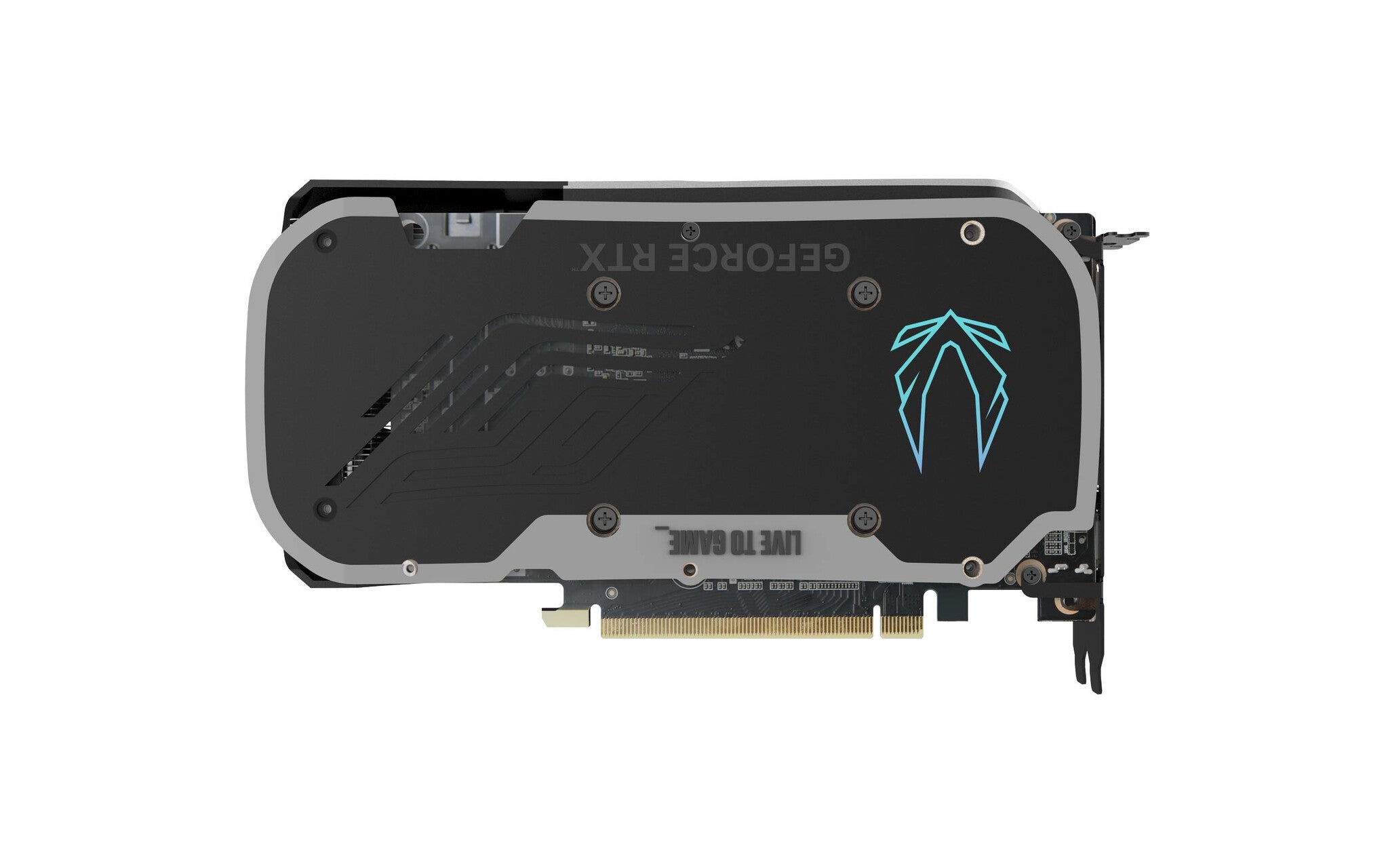

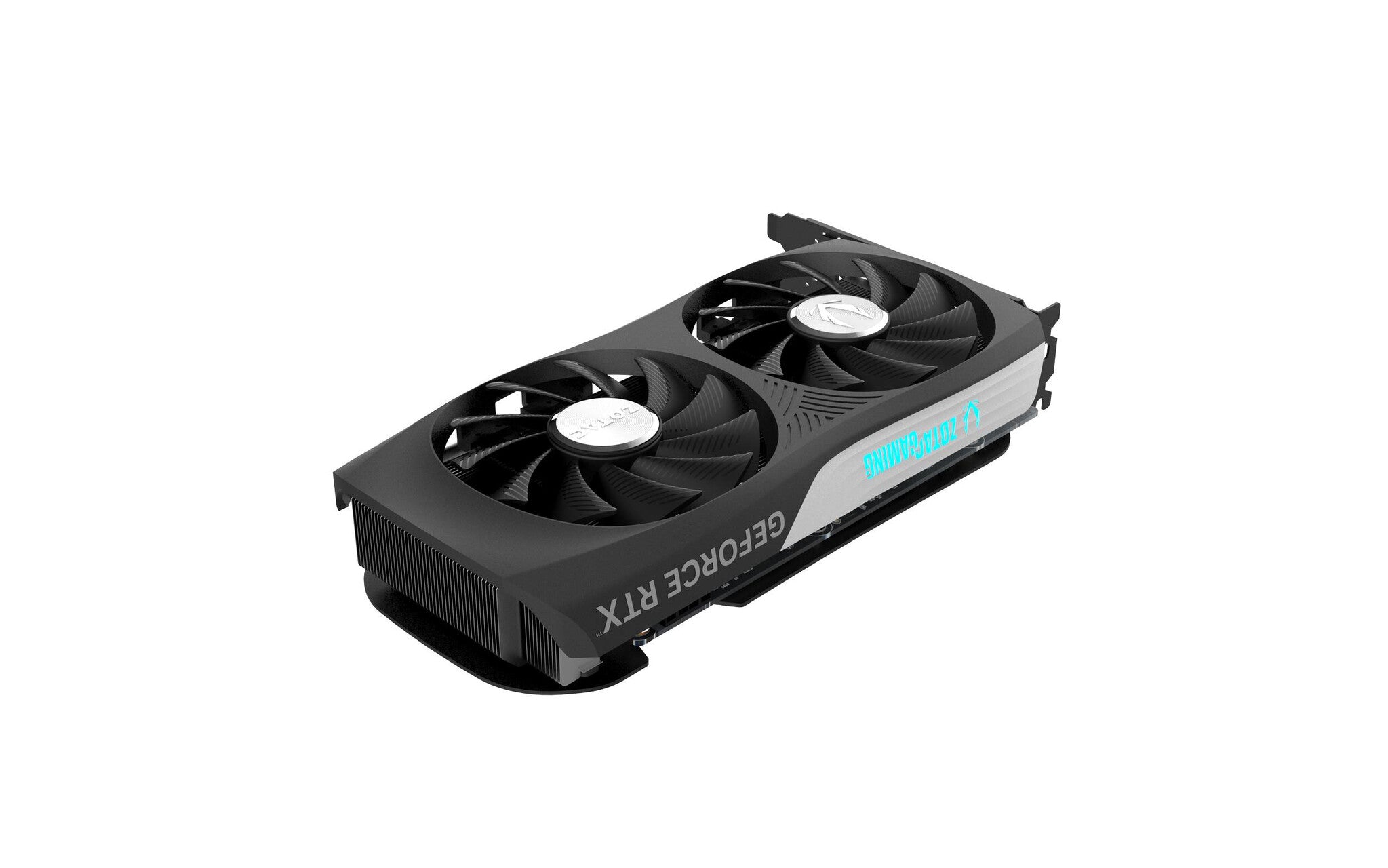

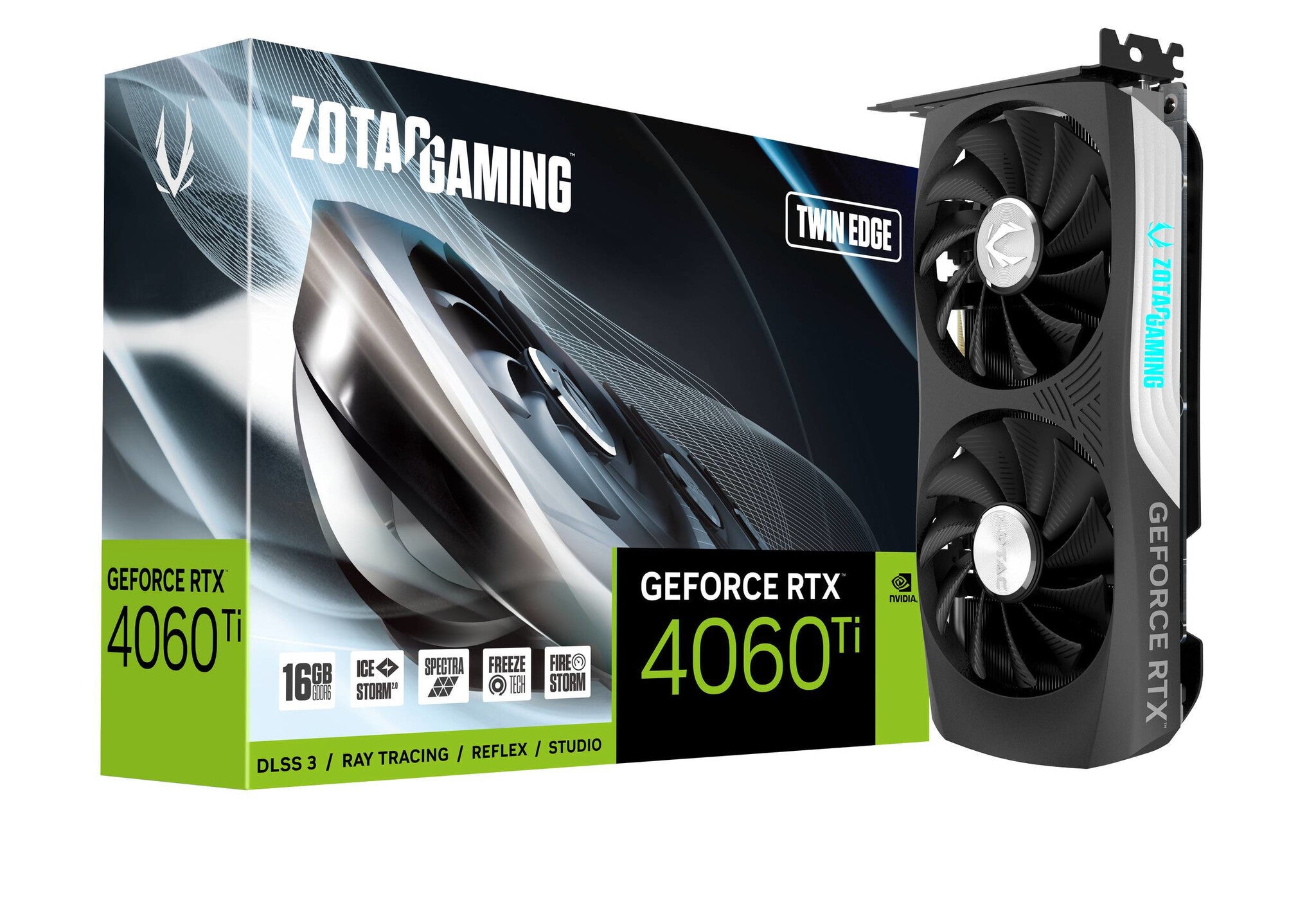

With a reduced 2.2 slot size, the Twin Edge has wide PC case compatibility, and is an excellent choice for those who want to build a SFF gaming PC capable of smooth framerates and performance in the latest title releases.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed | 2535 MHz |
CUDA cores | 4352 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4060 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 18 Gbit/s |
Memory bus | 128 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 16 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1a |

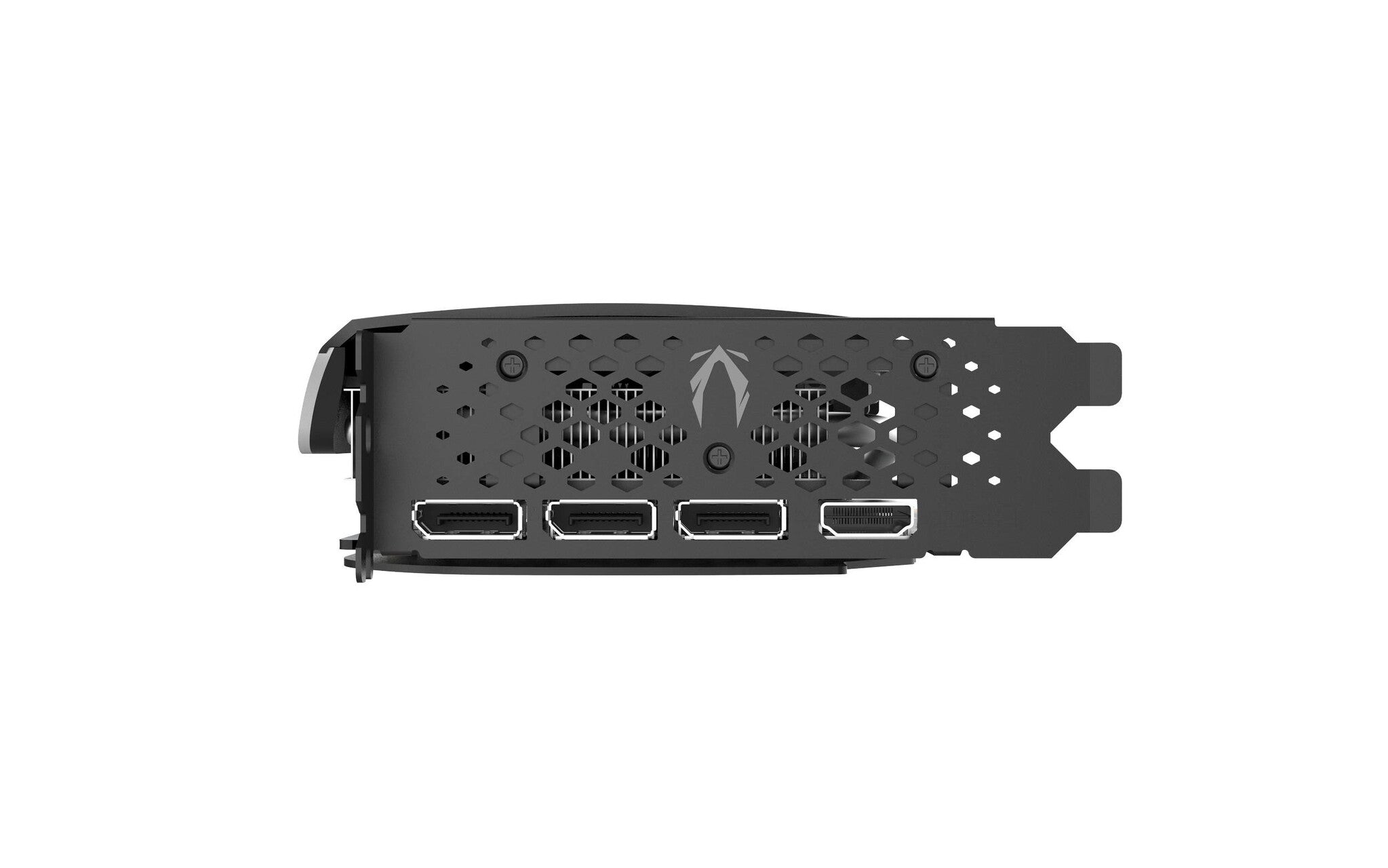

DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x8 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
HDCP version | 2.3 |
OpenGL version | 4.6 |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black |
Illumination | Yes |
Illumination colour | Multi |
Number of slots | 2.2 |
Number of fans | 2 fan(s) |
Cooling technology | Zotac IceStorm 2.0 |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 8-pin |
Power consumption (max) | 165 W |
Minimum system power supply | 500 W |
System requirements | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Weight & dimensions | |
---|---|
Depth | 225.5 mm |
Height | 123.2 mm |
Width | 40.1 mm |
Packaging data | |
---|---|
Package type | Box |
Package height | 283 mm |
Package depth | 83 mm |
Package width | 218 mm |
Manual | Yes |
