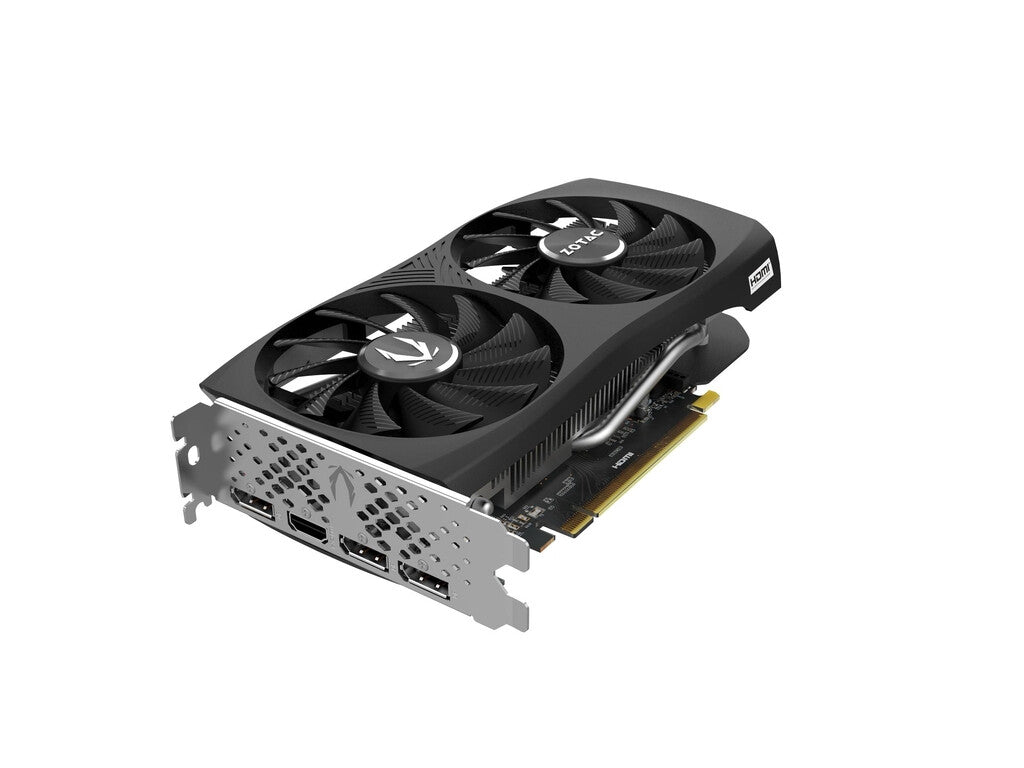

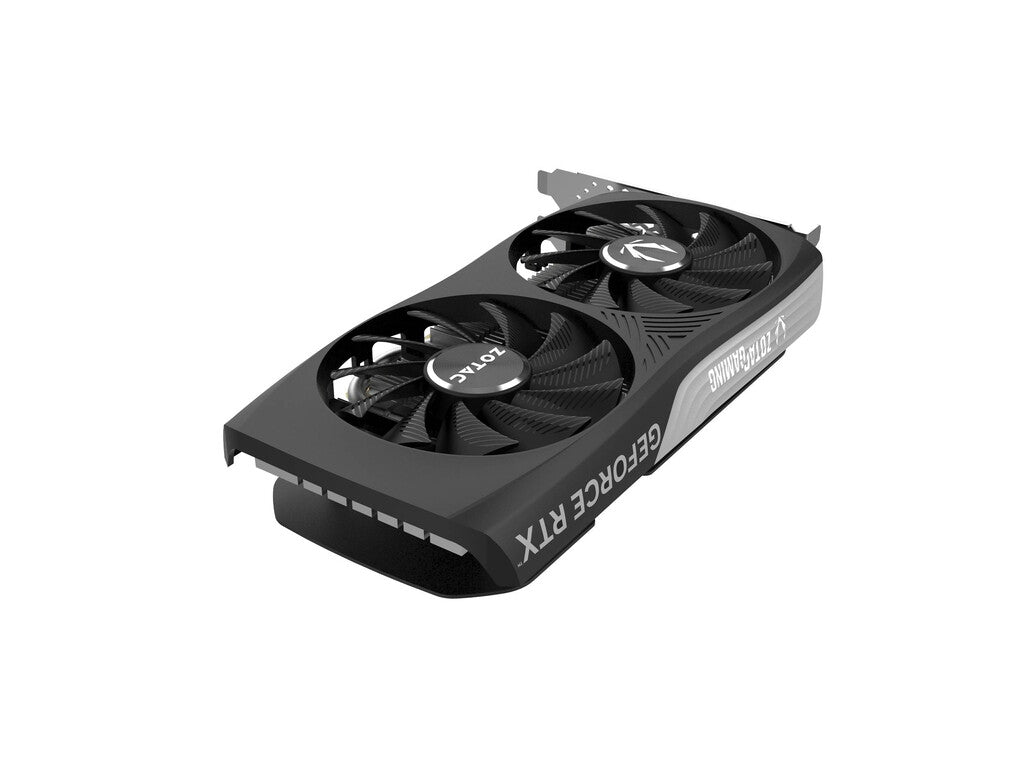

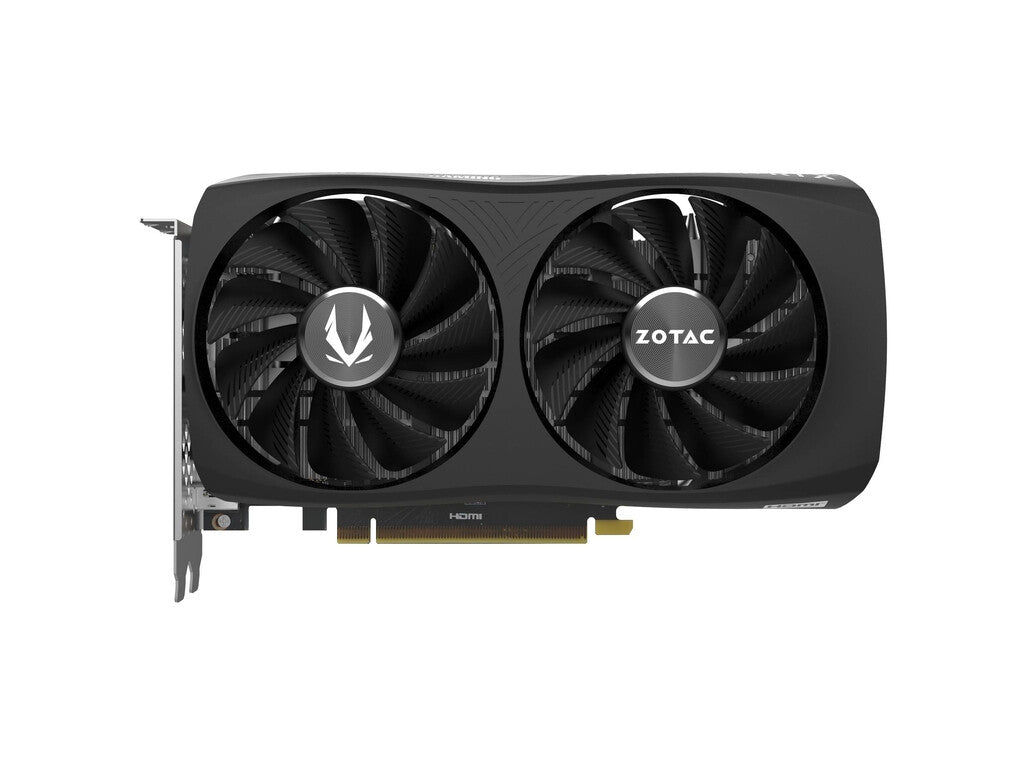

The ZOTAC GAMING GeForce RTX 4060 8GB Twin Edge OC is a compact and capable graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced 2 slot size, it's an excellent choice for those who want to build a SFF gaming PC capable of smooth framerate and 1080p performance in the latest title releases.
RAY TRACING
Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3
The performance multiplier, powered by AI.
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
WIDE CASE COMPATIBILITY
The compact design of the ZOTAC GAMING GeForce RTX 4060 family of GPUs make it easier for gamers looking to upgrade. With a slim 2.2-slot width and up to 8.9inch / 225.5mm short length, most PC cases available can easily accommodate with a simple drop-in installation.
STANDARD 8-PIN POWER
A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 500W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making it a more appealing upgrade choice.
ADVANCED COOLING
Refined in every aspect, IceStorm 2.0 is our advanced cooling system made to push the limit of GPU performance in even the most graphically demanding PC games.
COMPOSITE HEATPIPES
Made of composite layers consisting of a thicker envelope and a grooved wick with a multi-channel working fluid, each heat pipe is more efficient at transferring heat.
AIR FLOW
With ample ventilation paths, airflow can maneuver and exhaust from almost every side to minimize trapped heat.
NOISE REFINED
ZOTAC GAMING brings new noise-reducing features to the GeForce RTX 40 Series to enhance immersion when gaming.

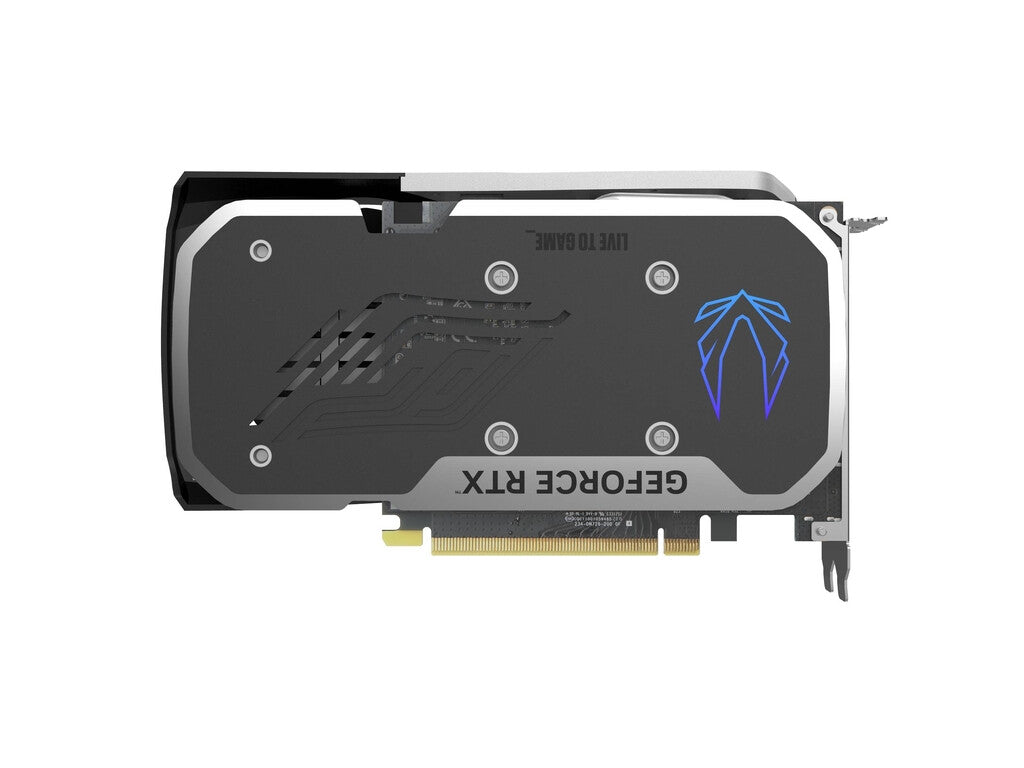

STRONG BACKSIDE
The ZOTAC GAMING GeForce RTX 4060 family’s rigidity is achieved with a metal backplate, giving it a strong foundation in durability.
*Available on select models
SPECTRA RGB LIGHTING
ZOTAC GAMING’s SPECTRA system enables vibrant RGB LED.
NEW. SIMPLE. INTUITIVE.
The all-new ZOTAC GAMING FireStorm Utility for 40 Series features an entirely re-designed interface that makes complex fine-tuning tasks easier to do. The new software comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings and SPECTRA RGB lighting effects.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed | 2475 MHz |
CUDA cores | 3072 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4060 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 17 Gbit/s |
Memory bus | 128 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 8 GB |
Ports & interfaces | |
---|---|

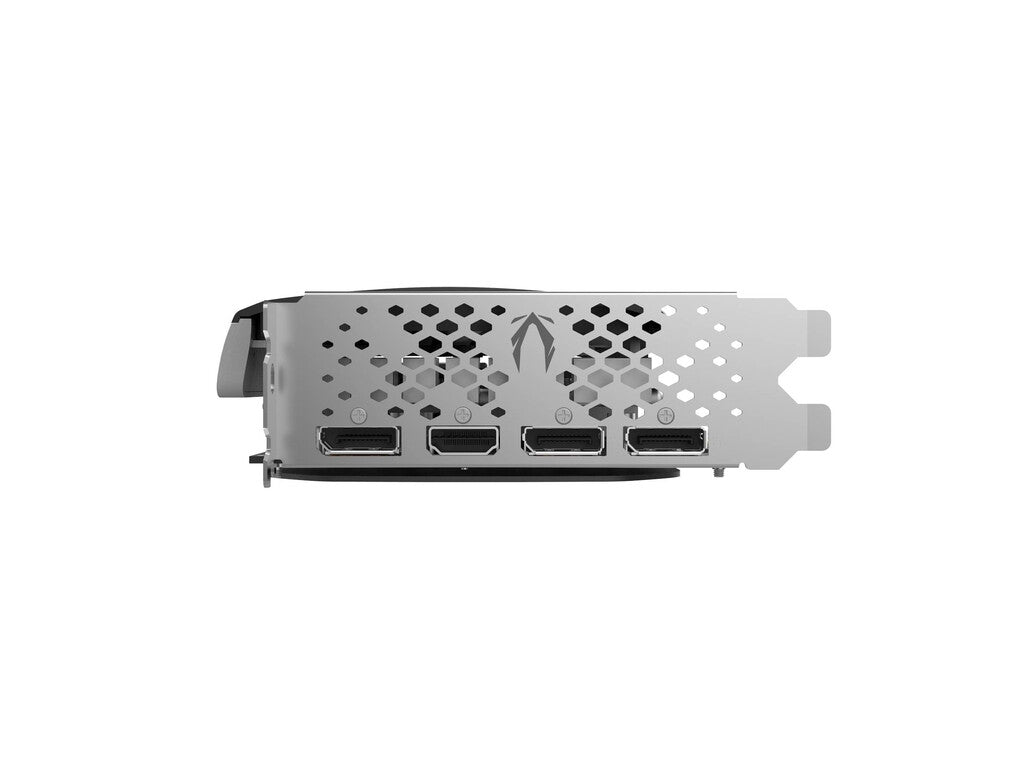

DisplayPort version | 1.4a |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x8 4.0 |
Performance | |
---|---|
Dual Link DVI | No |
HDCP | Yes |
HDCP version | 2.3 |
OpenGL version | 4.6 |
Shader model version | No |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Number of slots | 2 |
Number of fans | 2 fan(s) |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 115 W |
Supplementary power connectors | 1x 8-pin |
Minimum system power supply | 500 W |
System requirements | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Weight & dimensions | |
---|---|
Depth | 122.7 mm |
Height | 43.1 mm |
Width | 221.4 mm |
Packaging data | |
---|---|
Package type | Box |
Package height | 283 mm |
Package depth | 83 mm |
Package width | 218 mm |
Manual | Yes |
