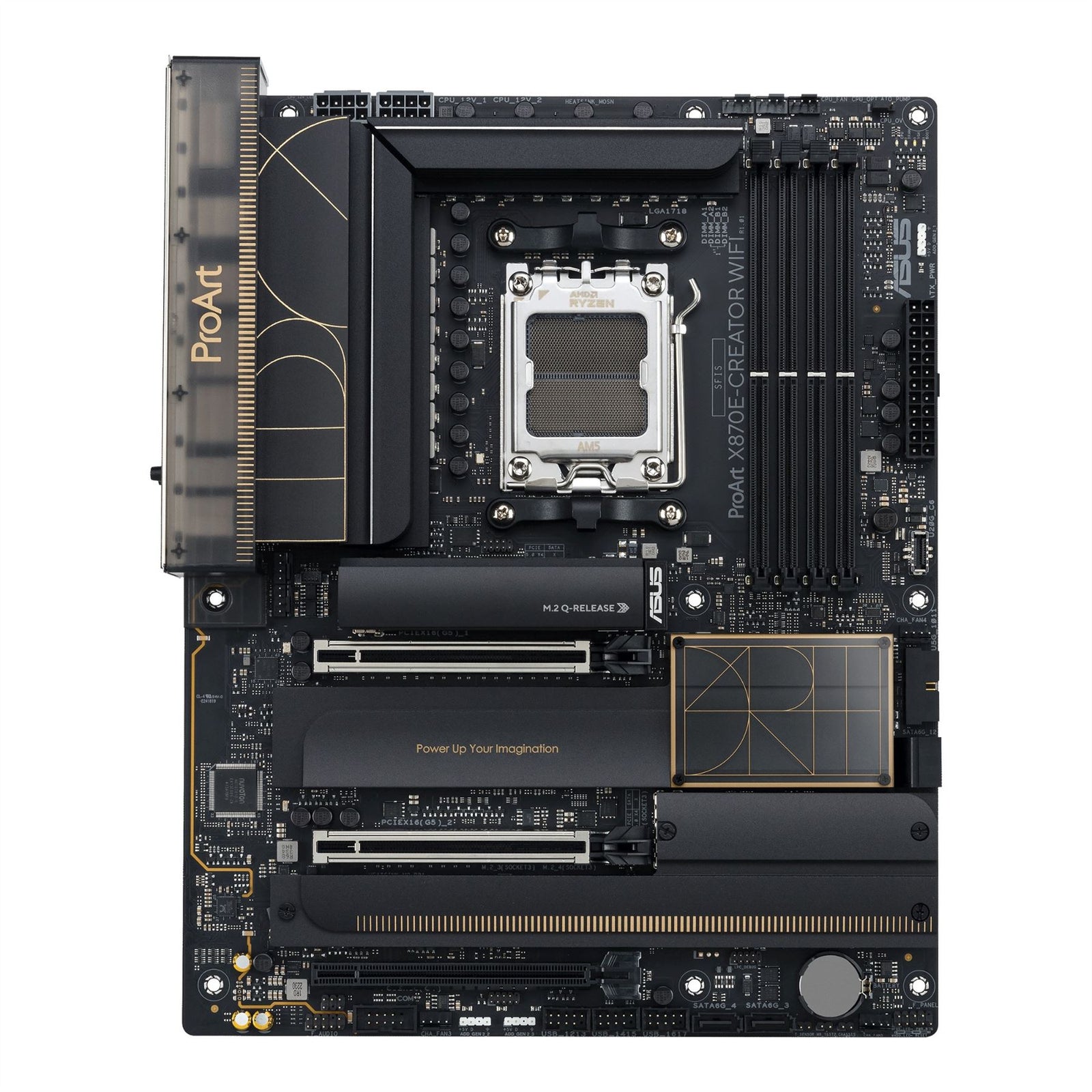

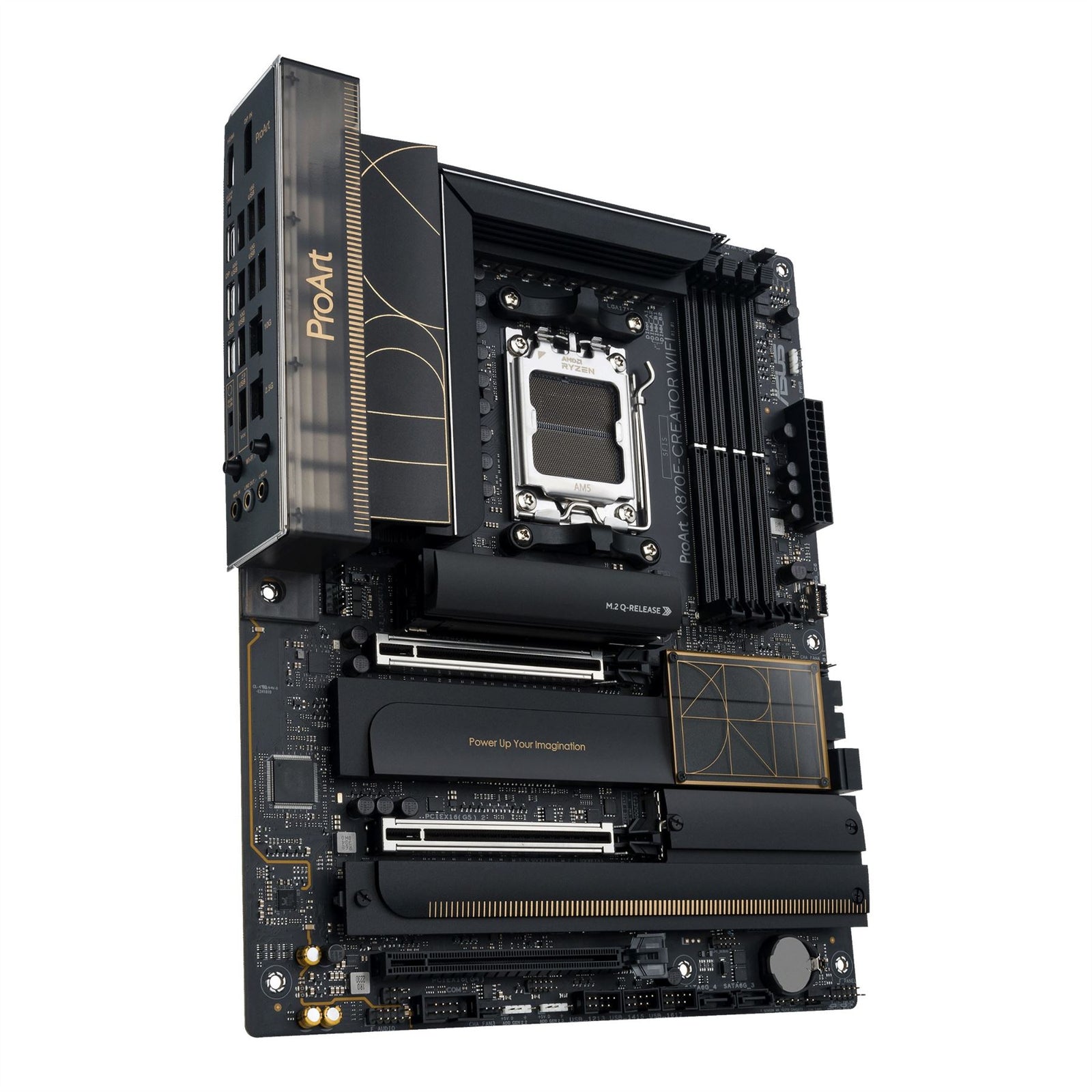

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX

Key Features

• Motherboard Form Factor:
• Processor Manufacturer:
• Processor Socket:
• Compatible Processors:
• Number of Memory Slots:
• Compatible Memory Types:

Overview

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.​

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​

All You Need for Maximum Productivity
Dual USB4® Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.​

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of COM connectors	1
Number of chassis fan connectors	5
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
USB 3.2 Gen 2x2 connectors	1
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Supported processor sockets	Socket AM5
Parallel processing technology support	Not supported
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
RAID levels	0, 1, 10, 5
Supported processor sockets	Socket AM5
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Supported processor sockets	Socket AM5
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	192 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10, 5
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	1
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB4 Gen 2x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Windows operating systems supported	Windows 11
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Supported processor sockets	Socket AM5
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek S1220A
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Software
Windows operating systems supported	Windows 11
Weight & dimensions
Width	305 mm
Depth	244 mm
Packaging content
Cables included	DisplayPort, SATA

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX

Key Features

• Motherboard Form Factor:
• Processor Manufacturer:
• Processor Socket:
• Compatible Processors:
• Number of Memory Slots:
• Compatible Memory Types:

Overview

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.​

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​

All You Need for Maximum Productivity
Dual USB4® Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.​

Ultrafast Networking​
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7
The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.​
**Specifications vary by model.

PCIe 5.0 Support
Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four Onboard M.2 Slots
ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

Quick-charging Your USB Devices
USB 20Gbps Type-C front-panel connector with Quick Charge 4+​
This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.​

The Core of Your Powerful Workstation
Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight-Layer PCB Design
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.

ProCool II Connectors
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

Intelligent AI Solutions

AI Overclocking
Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II
Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II
Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

Performance Boost

Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The new Overclocking Load Guard also has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.

PBO Enhancement
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning PBO parameters, this AMD algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.​

Memory
The ProArt X870E-Creator WiFi enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.

DDR5 Strength
For those who want to fly past stock DDR5 speeds*, the ProArt X870E-Creator WiFi is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

ASUS Enhanced Memory Profile (AEMP)
This exclusive firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.​

Easy PC DIY

PCIe® Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.​

M.2 Q-Release
The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

New M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.​

M.2 Q-Slide
A new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.​

Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

The Power of Minimalist Design
A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Everything You Need to Optimize Workflow​

Customize Your Personal Settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.​

Color Management​
One of the most important things for creators is color. The top right corner allows easy access to the Color Management feature. This includes the Screen Color Picker and Image Color Extractor that make it simple to get a detailed color analysis and color information, and you can use the Color Palette to build your personal color preferences. You will also find color trends and color palettes created by the professionals at the ASUS Design Center.​

WorkSmart
To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.​

Security Control and Remote Management
Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.

USB Port Management
Enable or disable the USB port, or set it to Read Only to prevent data leaks.​

Software Blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.

Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.​

Upgraded UEFI BIOS
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.​

ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.

ASUS GlidEx
A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.

Trusted Stability
ProArt X870E-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

Three Months of Free Adobe Creative Cloud
Enjoy all things AI at Adobe. Get complimentary membership to Adobe Creative Cloud all Apps and Adobe Substance 3D with the purchase of selected ASUS products.

In Search of Sustainable Solution
ASUS is on a mission to create a sustainable future where all can flourish on the planet we call home.​
Every step counts, and as part of ASUS’s commitment to creating a more sustainable future, ASUS has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council® (FSC®) in the packaging of motherboards.​
Join us on our journey as we make the world a better place.​

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of COM connectors	1
Number of chassis fan connectors	5
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Supported processor sockets	Socket AM5
Parallel processing technology support	Not supported
On-board graphics card	No
HDMI version	2.1
Cooling type	Passive
Back-to-BIOS button	Yes
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
RAID levels	0, 1, 5, 10
Supported processor sockets	Socket AM5
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	192 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8000 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
DisplayPorts quantity	1
USB4 Gen 2x2 ports quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Power source type	ATX
Windows operating systems supported	Windows 11
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Supported processor sockets	Socket AM5
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek S1220A
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Back-to-BIOS button	Yes
Power
Power source type	ATX
Software
Windows operating systems supported	Windows 11
Weight & dimensions
Width	305 mm
Depth	244 mm
Packaging content
Quick installation guide	Yes
Cables included	DisplayPort, SATA
Other features
mSATA ports quantity	0
Quick installation guide	Yes
Back-to-BIOS button	Yes

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.

All You Need for Maximum Productivity

Thunderbolt™ Connectivity
Get immersed in your creations with two Thunderbolt™ 5 and one Thunderbolt™ 4 ports for connecting to all your compatible content-creation gadgets, enjoying up to 80 Gbps of bi-directional bandwidth, and up to 120 Gbps with Bandwidth Boost. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port*.
*DP In cable not included.

Ultrafast Networking​

10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5G internet streaming or uploading and 10G for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7
The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels on the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

PCIe 5.0 Support
The ProArt Z890-CREATOR WIFI offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Five Onboard M.2 Slots
ProArt Z890-CREATOR WIFI features one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

PCIe 5.0 Expansion Slots
Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

Seamless Dual-PC Sharing with Thunderbolt™ Share
Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share—the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.
*A certified Thunderbolt™ or USB4® cable is required to meet minimum bandwidth requirements. Cable not included.

The Core of Your Powerful Workstation

Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt Z890-CREATOR WIFI features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).

Eight-Layer PCB Design
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.

ProCool II Connectors
These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Superior Chokes & Capacitors
These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Digi+ VRM Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

Intelligent AI Solutions

AI Overclocking
Maximized CPU performance and predictions for ideal CPU and cooling settings push your system to its limits.

AI Cooling II
Balance the thermals and acoustics of any build with a single click.

AI Networking II
Optimize network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
* Availability of ASUS AI Advisor may vary by region.

Performance Boost

NPU Boost
The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%*.
* Results were with an Intel® Core™ Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G). Individual results may vary.

Memory
The ProArt Z890-CREATOR WIFI enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.

DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility and system stability.
Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.*
*Results may vary. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.

PCIe® Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

M.2 Q-Release
The new M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

M.2 Q-Slide
A new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.

New M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

The Power of Minimalist Design

A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Everything You Need to Optimize Workflow​

Customize Your Personal Settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.

Color Management​
One of the most important things for creators is color. The top right corner allows easy access to the Color Management feature. This includes the Screen Color Picker and Image Color Extractor that make it simple to get a detailed color analysis and color information, and you can use the Color Palette to build your personal color preferences. You will also find color trends and color palettes created by the professionals at the ASUS Design Center.

WorkSmart
To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.​

Security Control and Remote Management
Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.

USB Port Management
Enable or disable the USB port, or set it to Read Only to prevent data leaks.

Software Blacklist
For added security, a software blacklist is available to help prevent the use of high-risk applications.

Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.​

Upgraded User Experience
BIOS Q-Dashboard and ASUS DriverHub make it easy to set up and maintain your PC, while ASUS GlideX delivers a variety of display and control options.

ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.

ASUS GlidEx
A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.

Trusted Stability
ProArt Z890-CREATOR WIFI is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

Three Months of Free Adobe Creative Cloud​
Enjoy all things AI at Adobe. Get complimentary membership to Adobe Creative Cloud all Apps and Adobe Substance 3D with the purchase of selected ASUS products.

In Search of Sustainable Solution
ASUS is on a mission to create a sustainable future where all can flourish on the planet we call home.​
Every step counts, and as part of ASUS’s commitment to creating a more sustainable future, ASUS has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council® (FSC®) in the packaging of motherboards.​
Join us on our journey as we make the world a better place.​

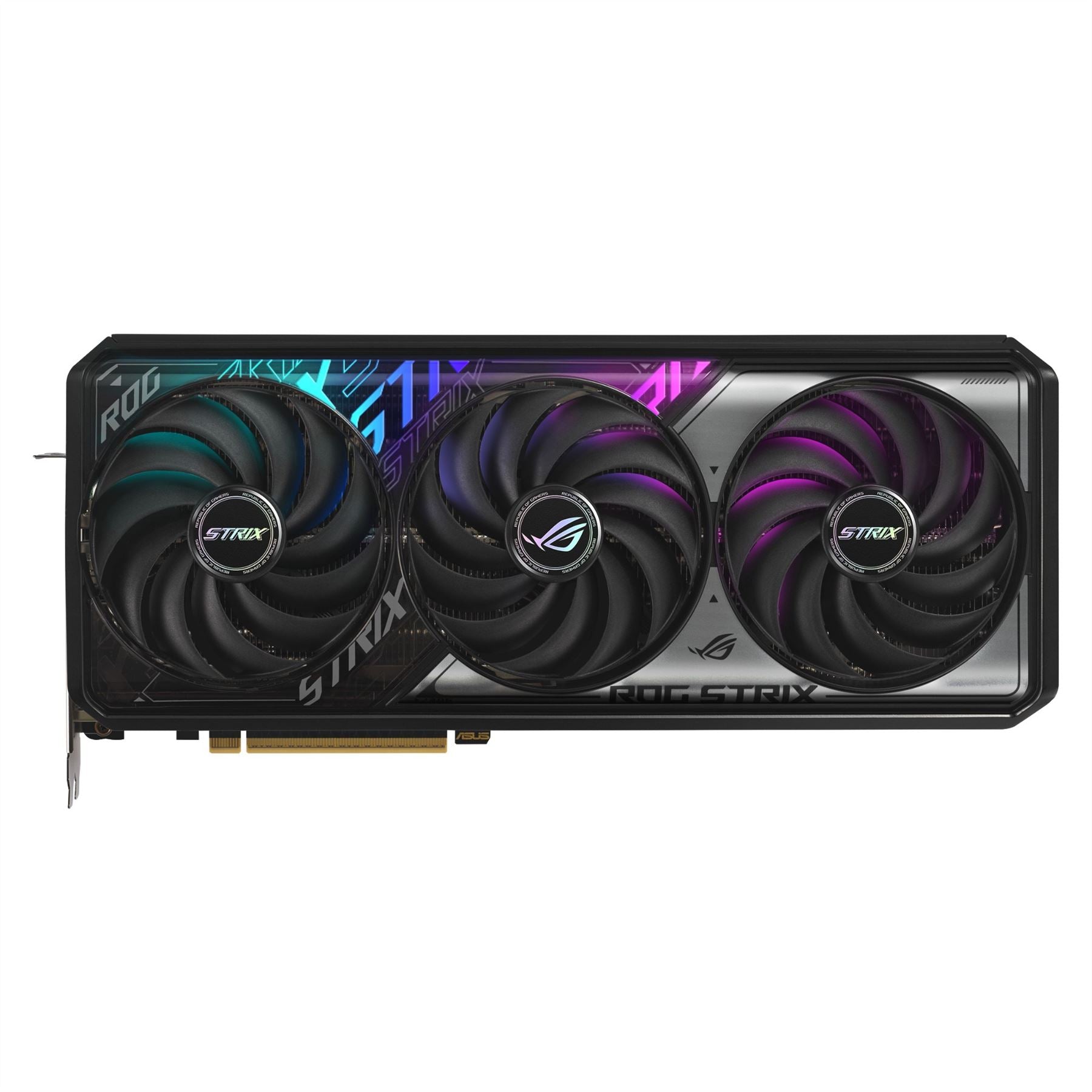

ASUS ROG -STRIX-RTX5070-O12G-GAMING NVIDIA GeForce RTX 5070 12 GB GDDR7

Key Features

• Graphics Processor:
• Interface Type:
• Memory Type:
• Memory Bus:
• Maximum Resolution:
• Ports:

Overview

ROG Strix GeForce RTX™ 5070
FIND YOUR EDGE
The premium performance ROG Strix GeForce RTX 5070, featuring advanced cooling system with axial-tech fan, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.

Cooling Expertise
Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology
The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.

MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2655 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	6144
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5070
Processor frequency (OC mode)	2685 MHz
Memory
Discrete graphics card memory	12 GB
Data transfer rate	28 Gbit/s
Memory bus	192 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	2
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	6144
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
NPU performance up to	1044 TOPs
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Multicolour
Number of slots	3.2
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	750 W
Weight & dimensions
Number of slots	3.2
Weight	1.59 kg
Height	147.3 mm
Depth	64 mm
Length	332 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Multicolour
TV tuner integrated	No
System requirements
Minimum system power supply	750 W
Packaging data
Package type	Box
Package width	420 mm
Package height	126 mm
Package depth	226 mm
Package weight	2.54 kg

ASUS ROG -STRIX-RTX5070TI-O16G-GAMING NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7

Key Features

• Graphics Processor:
• Interface Type:
• Memory Type:
• Memory Bus:
• Maximum Resolution:
• Ports:

Overview

ROG Strix GeForce RTX� 5070 Ti
FIND YOUR EDGE
The premium performance ROG Strix GeForce RTX 5070 Ti, featuring advanced cooling system with axial-tech fan, vapor chamber, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.

Cooling Expertise
Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology
The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.

Vapor Chamber
A vapor chamber and heatsink soaks up heat from the graphics card, helping to ensure premium performance in a variety of scenarios.

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.

MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2602 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8960
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5070 Ti
Processor frequency (OC mode)	2625 MHz
Memory
Discrete graphics card memory	16 GB
Data transfer rate	28 Gbit/s
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
HDMI ports quantity	2
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	8960
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
NPU performance up to	1492 TOPs
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Product colour	Multicolour
Number of slots	3.2
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	850 W
Weight & dimensions
Number of slots	3.2
Weight	1.67 kg
Height	147.3 mm
Depth	64 mm
Length	332 mm
Technical details
Cooling type	Active
Product colour	Multicolour
TV tuner integrated	No
System requirements
Minimum system power supply	850 W
Packaging data
Package type	Box
Package width	420 mm
Package height	126 mm
Package depth	226 mm
Package weight	2.64 kg
Manual	Yes
Packaging content
Manual	Yes

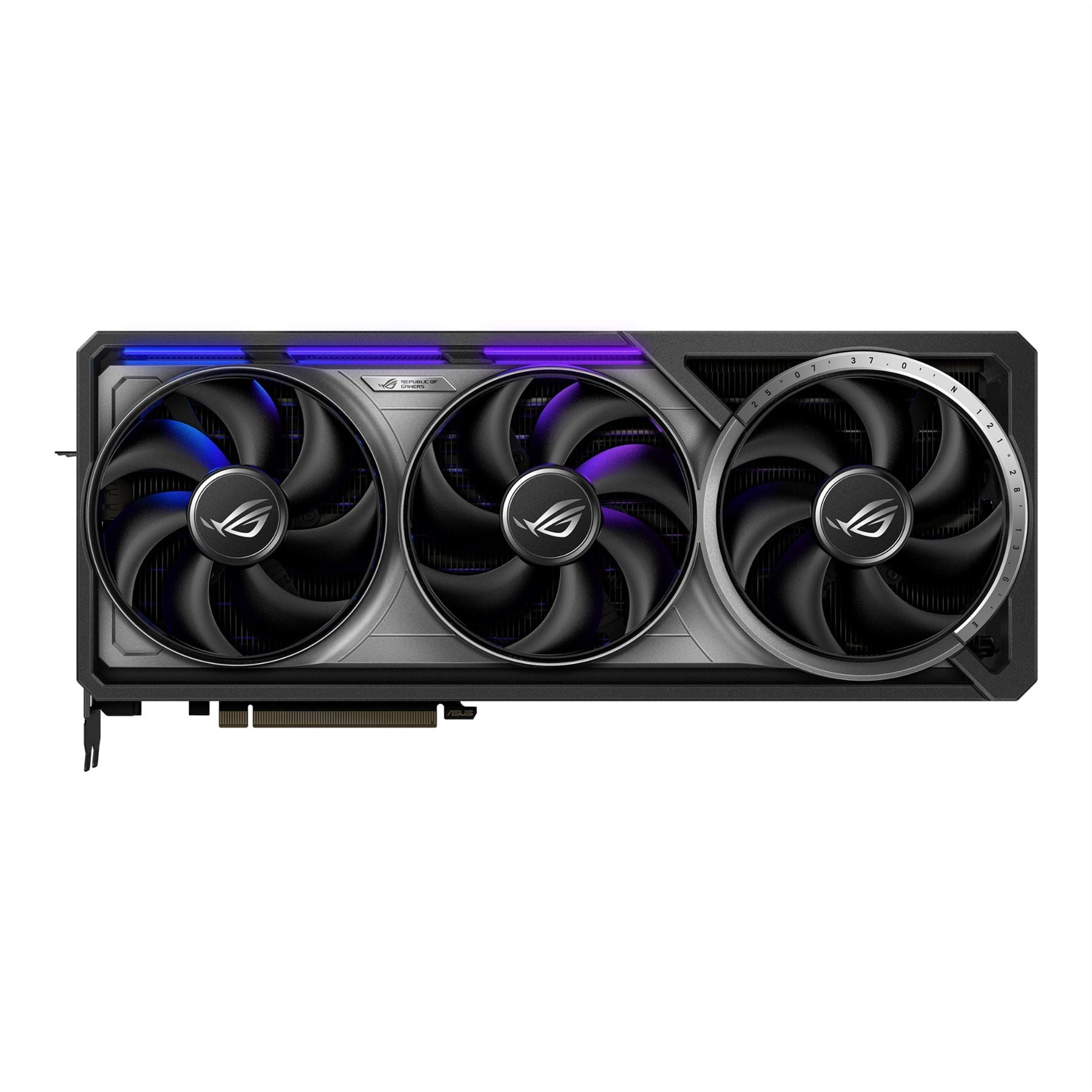

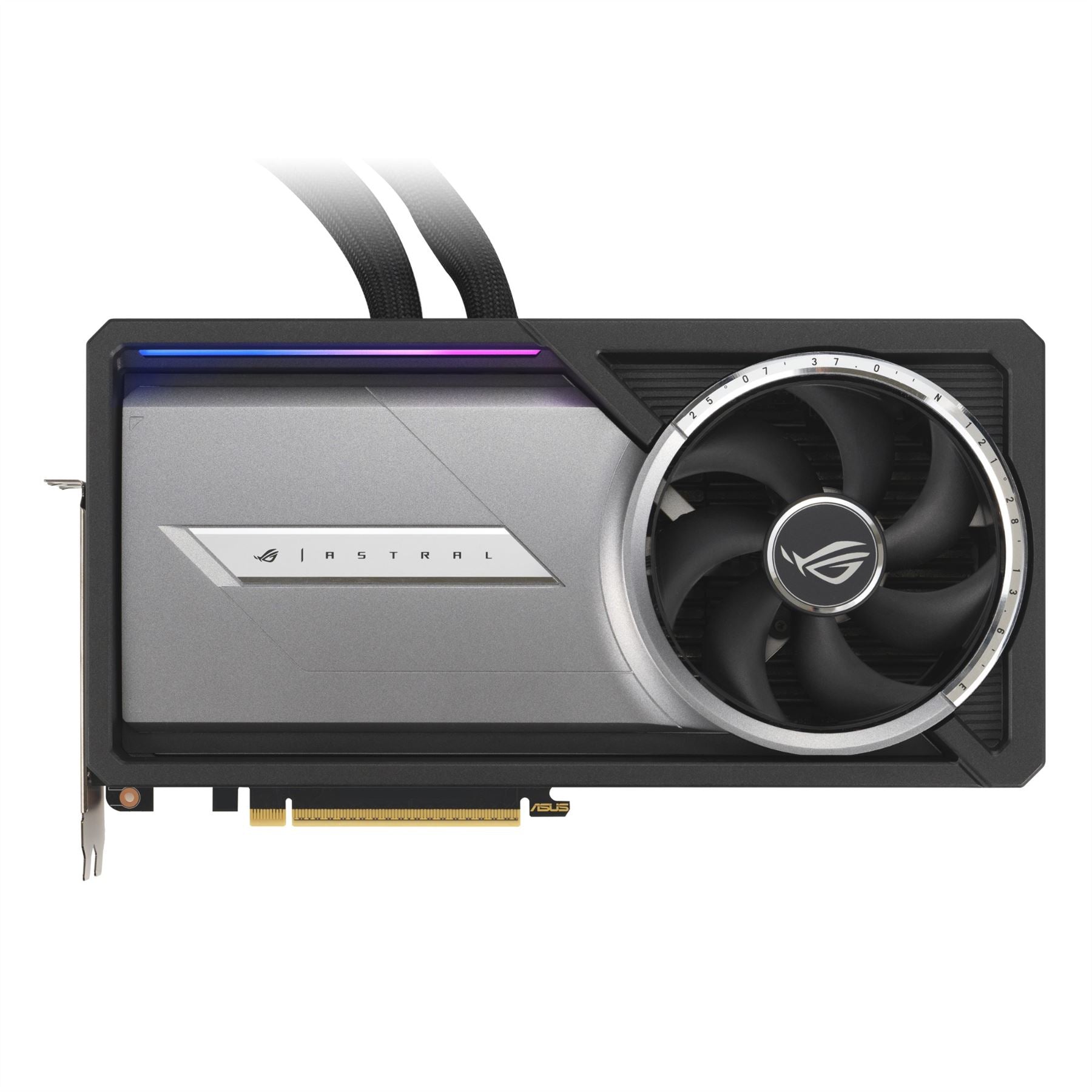

ASUS ROG Astral - -LC-RTX5090-O32G-GAMING NVIDIA GeForce RTX 5090 32 GB GDDR7

Key Features

• Graphics Processor:
• Interface Type:
• Memory Type:
• Memory Bus:
• Maximum Resolution:
• Ports:

Overview

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2580 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	21760
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5090
Memory
Discrete graphics card memory	32 GB
Data transfer rate	28 Gbit/s
Memory bus	512 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	2
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	21760
Performance
NVIDIA G-SYNC	Yes
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
Design
Number of fans	4 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Product colour	Black/ Grey
Number of slots	2.5
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	1000 W
Weight & dimensions
Number of slots	2.5
Height	153.7 mm
Depth	48 mm
Radiator width	40 cm
Radiator depth	6.5 cm
Radiator height	12 cm
Length	288.5 mm
Technical details
Cooling type	Active
Product colour	Black/ Grey
TV tuner integrated	No
System requirements
Minimum system power supply	1000 W
Packaging data
Package type	Box
Package width	460 mm
Package height	236 mm
Package depth	242 mm
Manual	Yes
Packaging content
Manual	Yes

ROG Astral LC GeForce RTX™ 5090
Fluid Force
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos/ and it is a testament to an unending dedication to exploring and defining new frontiers. The ROG Astral LC GeForce RTX 5090 delivers pinnacle cooling performance via a premium 360mm AIO cooler/ full-coverage copper plate and integrated fan. Meanwhile/ powerful 80-amp MOSFETs deliver high overclocking potential while maintaining quiet operation.

Cooling Expertise
360mm Radiator
An extra-thick 360x38mm radiator combines forces with a trio of high-end fans to ensure excellent heat dissipation.

Full-Coverage Cold Plate
The full-coverage cold plate covers all the heat-generating components on the PCB/ empowering the radiator to efficiently cool the graphics card/ resulting in up to 30% better performance versus pure air cooling.

On-Board Cooling
Heat produced by power-delivery components is dispelled by an axial-tech fan and a low-profile heatsink under the shroud. This combination exhausts hot air quietly and efficiently.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module/ a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation/ ensuring optimal performance and longevity for graphics cards under heavy loads.

Premium Power Delivery
Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance/ stability and higher overclocking potential.

ASUS GPU Guard & Bracket
To handle larger graphics processors/ ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks/ while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture/ dust or debris.

Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass/ ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals/ resulting in less environmental impact/ lower manufacturing power consumption and a more reliable product overall.

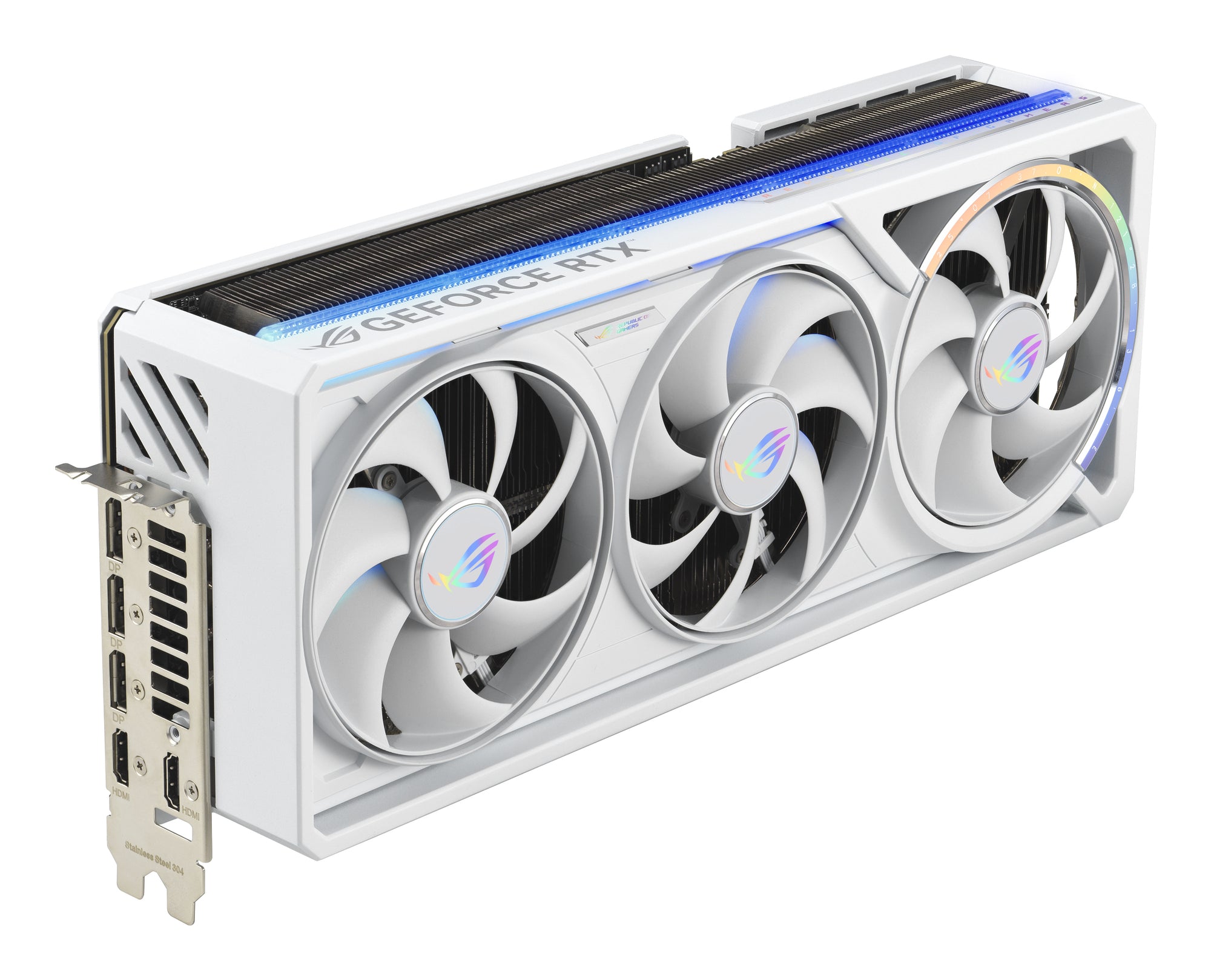

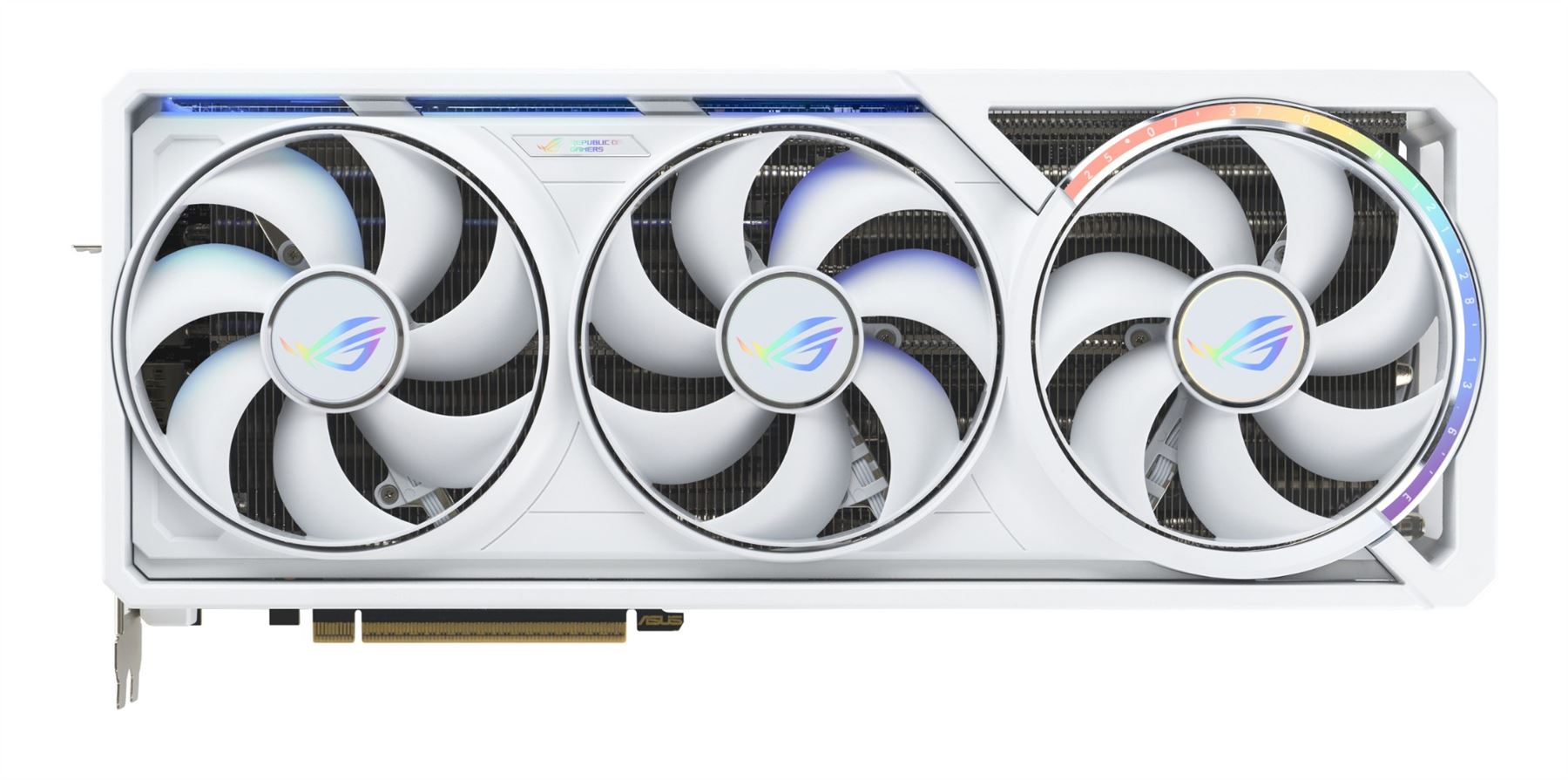

ASUS ROG Astral - -RTX5080-O16G-WHITE NVIDIA GeForce RTX 5080 16 GB GDDR7

Key Features

• Graphics Processor:
• Interface Type:
• Memory Type:
• Memory Bus:
• Maximum Resolution:
• Ports:

Overview

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2760 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	10752
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5080
Processor frequency (OC mode)	2790 MHz
Memory
Discrete graphics card memory	16 GB
Memory bandwidth (max)	30 GB/s
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
HDMI version	2.1b
HDMI ports quantity	2
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	10752
Performance
NVIDIA G-SYNC	Yes
Virtual Reality (VR) ready	Yes
NVIDIA Ansel	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
HDCP version	2.3
NPU performance up to	1899 TOPs
Design
Number of fans	4 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White
Number of slots	3.8
Cooling technology	ASUS Axial-tech
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	850 W
Weight & dimensions
Number of slots	3.8
Weight	2.86 kg
Height	149.3 mm
Depth	76 mm
Length	357.6 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White
TV tuner integrated	No
System requirements
Minimum system power supply	850 W
Packaging data
Package type	Box
Package width	420 mm
Package height	126 mm
Package depth	226 mm
Package weight	4.3 kg

The Final Frontier
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos/ and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit/ the ROG Astral GeForce RTX 5080 White Edition introduces ROG's first quad-fan graphics card/ coupled with a patented vapor chamber/ increased heatsink fin density/ a phase-change GPU thermal pad/ towering default clock speeds/ boosted power delivery/ and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

Engineered for Excellence
Driven by a passion for innovation and the pursuit of precision/ we crafted the ROG Astral. Inspired by the universe's wonders/ it blends art and technology/ achieving stellar cooling and unmated performance.

Cooling Expertise
Quad-Fan Force
A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots/ enabling unprecedented clock speeds.

Optimized Fin Spacing
The addition of a fourth fan permits more densely packed heatsink fins/ increasing cooling potential.

Patented Vapor Chamber
A patented vapor chamber designed with milled pathways allows heatpipes to sink in without flattening/ boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by over 10%.

MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module/ a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation/ ensuring optimal performance and longevity for graphics cards under heavy loads.

Unmatched Reliability

Premium Power Delivery
Powerful 50-amp MOSFETs with extra power phases to deliver over 25% more headroom than the standard design. This helps ensure enhanced performance/ stability and higher overclocking potential.

ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks/ while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture/ dust or debris.

Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass/ ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals/ resulting in less environmental impact/ lower manufacturing power consumption and a more reliable product overall.

Ultra Rigid Metal Case
A high-quality diecast frame/ shroud/ and backplate tightly brace the PCB for rigidity/ and a 304 stainless steel I/O bracket plus bundled graphics card holder ensures stable mounting.

Game Friendly
GPU Tweak III: Effortless GPU Monitoring and Tuning

FanConnect II
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly synced with the card and tuned with a curve that is based on CPU and GPU temperatures/ delivering extra intake or exhaust for demanding 3D tasks.

Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at medium temperatures.

RTX. It's On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Creators
Your Creative AI-dvantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing/ 3D rendering/ and graphic design. Experience RTX accelerations in top creative apps/ world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability/ and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

The Final Frontier
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

TRANSCEND THE LIMITS

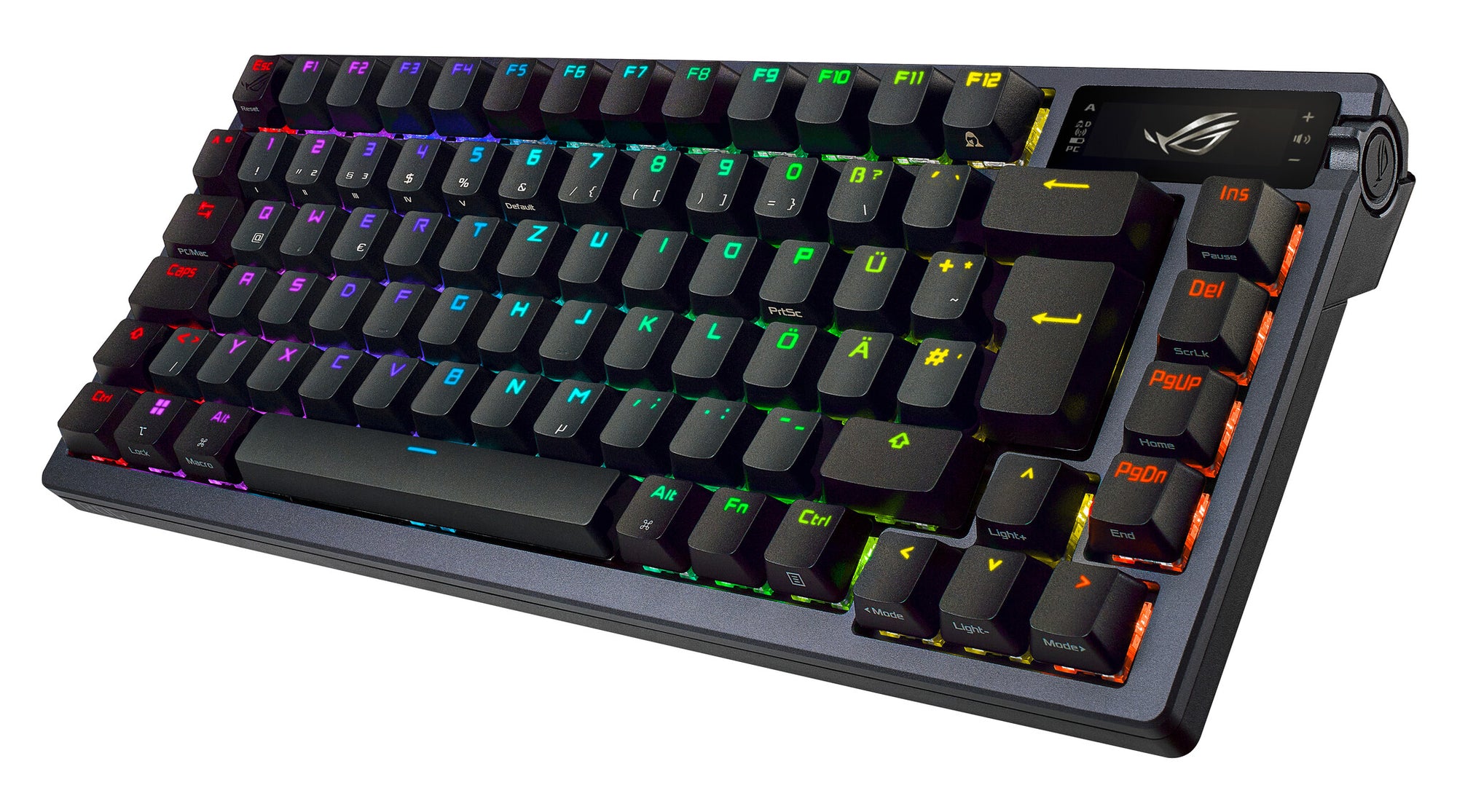

ROG Azoth is a 75% gaming keyboard bristling with DIY features traditionally found on premium custom keyboards. A metal top cover with silicone gasket mount and three-layer dampening, hot-swappable, pre-lubed ROG NX mechanical switches and keyboard stabilizer, ROG PBT doubleshot keycaps and bundled switch lube kit combine to create unprecedented typing experiences. ROG Azoth also has an OLED display with intuitive controls, versatile tri-mode connectivity with SpeedNova wireless technology in 2.4 GHz mode, three adjustable tilt positions, and MacOS support.

OLED Display & Three-Way Control Knob

This sophisticated 2-inch OLED panel can set to show keyboard status, including Caps Lock, connection mode and PC/Mac mode indicators. It can also show battery level, multimedia info, custom animations, as well as system parameters such as CPU temperature.

Intuitively make adjustments and tweak settings with the three-way control knob & side button and OLED display.

Versatile Tri-Mode Connection
ROG SpeedNova wireless technology offers up to 2,000+ hours of stable, uninterrupted near-zero-latency gameplay in 2.4 GHz RF mode (RGB and OLED off). Alternatively, you can use Bluetooth mode to connect to up to three devices at the same time, or charge and play simultaneously in wired USB mode.

A Typing Feel Like No Other

Silicone Gaskets
Silicone gasket mount design gives the Azoth a more cushioned and pleasant typing feel than traditional mechanical keyboards.

Silicone Pad
Durable 3.5 mm-thick silicone pad to absorb noise

PORON® Foam
PORON® foam to absorb case ping and hollowness

Silicone Foam
Silicone foam-lined base case completely eliminates echoes and ensures a flat surface for the PORON® foam

ROG NX Mechanical Switch
ROG-exclusive gaming switch -
Tuned for great keystroke feel and consistency with fast actuation.

The switches have lubricated stems and base housings that offer a smoother click feel and eliminate spring bouncing noises respectively.

LINEAR & SWIFT
ROG NX Red Mechanical Switches provide a 1.8mm actuation point for fast input. Initial actuation force of 40gf helps prevent accidental keystrokes, and it extends to 55gf for perfect rebound feedback. As a result, keystrokes are instantaneous and have a smooth and linear feel.

ULTRA TACTILE
ROG NX Brown Mechanical Switches have a 2mm actuation point, as preferred by traditional brown switch users. The tactile force of 58gf combined with a click ratio of 33% gives every keystroke an obvious, more pronounced tactile response.

CLICKY & TACTILE
ROG NX Blue Mechanical Switches feature a 2.3mm actuation point, standard 16% click ratio, and an enthusiast-preferred 65gf tactile force — all to provide firm and superb feedback with each keystroke.

Better Typing Experience

ROG Keyboard Stabilizer
This pre-lubed keyboard stabilizer has been specially tuned with gamers in mind; it produces less friction, allowing long keys such as Spacebar, Shift and Enter to deliver keystrokes that stay true to the original switch feel.
* ROG Azoth is also compatible with costar stabilizers.

ROG PBT Doubleshot Keycaps
ROG PBT doubleshot keycaps provide a unique and premium feel, as well as offer long-lasting durability. Key design has been optimized with mid-height keycaps (similar to Cherry profile keycaps) and a shorter stem to reduce key wobble, and provide a more comfortable user experience.
* Keycap material may vary by region.

Extra Tuning
The Spacebar has extra lubing and modification for enhanced acoustics and feel.

Ergonomic Design
The Azoth includes two pairs of keyboard feet of different heights, giving it three tilt angles to suit your preference.

Hands-On with your Custom Keyboard

Hot-Swappable Switches*
Swap and install your preferred switch type for a unique, customized feel.
*Even though the switches are hot swappable, it is not recommended to swap out switches when the keyboard is on to prevent short circuiting the keyboard.

DIY Switch Lube Kit
The ROG Azoth includes a complete set of tools for DIY switch lubing. The kit includes a switch opener, keycap puller, switch puller, lube station, brush, and bottle of Krytox™ GPL-205-GD0 lubricant.

ON-THE-FLY MACRO RECORDINGS
Record macros on the fly and map them to fully programmable keys.

ONBOARD MEMORY
Save up to six profiles, including up to five custom schemes, and use them anytime, anywhere.

100% ANTI-GHOSTING & N-KEY ROLLOVER
Every keystroke is registered accurately, no matter how many keys are pressed.

MACOS SUPPORT
Easily toggle MacOS mode to remap the keys for use with MacBooks and Macs.
