"Pure Wings 2 – Outstanding Reliability and Silent Cooling.
The Pure Wings 2 80mm fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems.
Combining outstanding reliability, quiet operation, and a great price-for-performance ratio, Pure Wings 2 80mm is unique in its class. They are the ultimate reason to put well-known be quiet! silent cooling in your PC."
VERY QUIET OPERATION
Achieves a great price-for-performance ratio
The Pure Wings 2 80mm fan operates at only 18.2dB(A) even at maximum speed. The perfect choice for silent home and office PCs as well as gaming and multimedia systems.
SILENCE-OPTIMIZED FAN BLADES
For even better cooling
Thanks to its surface-optimized fan blades the airflow is enhanced, noise-generating turbulences are minimized and the air pressure is increased. This feature is the key to effective cooling.
RIFLE BEARING TECHNOLOGY
Gives the fan a very long lifespan
The Pure Wings 2 80mm is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 80000 h |
| Maximum air pressure | 1.85 mmH2O |
| Airflow | 44.45 m³/h |
| Maximum airflow | 26.3 cfm |
| Noise level (high speed) | 18.2 dB |
| Rotational speed (max) | 1900 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 8 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Certification | CE, TÜV, UL |
| Product colour | Black |
| Power | |
|---|---|
| Maximum current | 0.11 A |
| Voltage | 12 V |
| Power consumption (typical) | 1.68 W |
| Weight & dimensions | |
|---|---|
| Cable length | 0.46 m |
| Weight | 72 g |
| Height | 25 mm |
| Depth | 80 mm |
| Width | 80 mm |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
The Pure Wings 2 80mm PWM fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems.
Combining outstanding reliability, quiet operation, and a great price-for-performance ratio, Pure Wings 2 80mm PWM is unique in its class. They are the ultimate reason to put well-known be quiet! silent cooling in your PC.
VERY QUIET OPERATION
Achieves a great price-for-performance ratio
The Pure Wings 2 80mm PWM fan operates at only 19.2dB(A) even at maximum speed. The perfect choice for silent home and office PCs as well as gaming and multimedia systems.
SILENCE-OPTIMIZED FAN BLADES
For even better cooling
Thanks to its surface-optimized fan blades the airflow is enhanced, noise-generating turbulences are minimized and the air pressure is increased. This feature is the key to effective cooling.
VARIABLE FAN SPEED FUNCTION
Varies the fan speed and noise level of the fan
Pulse Width Modulation (PWM) allows compatible 4-pin controllers - including those built into many motherboards - to intelligently vary the speed and thus the noise level of the fan. With PWM your system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.
RIFLE BEARING TECHNOLOGY
Gives the fan a very long lifespan
The Pure Wings 2 80mm PWM is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.
| Performance | |
|---|---|
| Maximum air pressure | 1.85 mmH2O |
| Airflow | 44.45 m³/h |
| Maximum airflow | 26.3 cfm |
| Noise level (high speed) | 19.2 dB |
| Rotational speed (max) | 1900 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 8 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Product colour | Black |
| Power | |
|---|---|
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package height | 115 mm |
| Package depth | 27 mm |
| Package width | 82 mm |
| Cable length | 0.46 m |
| Weight | 72 g |
| Height | 25 mm |
| Depth | 80 mm |
| Width | 80 mm |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Products per pallet | 1 pc(s) |
| Harmonized System (HS) code | 84733080 |
Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 120mm are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 80000 h |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Rifle bearing |
| Maximum air pressure | 1.45 mmH2O |
| Airflow | 84.8 m³/h |
| Maximum airflow | 49.9 cfm |
| Noise level (high speed) | 25.5 dB |
| Rotational speed (max) | 1600 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan current | 0.1 A |
| Fan power consumption | 2.4 W |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Weight & dimensions | |
|---|---|
| Package weight | 174 g |
| Package height | 27 mm |
| Package depth | 155 mm |
| Package width | 122 mm |
| Cable length | 0.46 m |
| Weight | 148 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS, Triman, UKCA, WEEE |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 11.7 kg |
| Shipping (inner) case height | 33 cm |
| Shipping (inner) case length | 42.7 cm |
| Shipping (inner) case width | 35.5 cm |
| Products per shipping (inner) case | 60 pc(s) |
Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 140mm are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 80000 h |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Rifle bearing |
| Maximum air pressure | 0.96 mmH2O |
| Airflow | 97.5 m³/h |
| Maximum airflow | 57.4 cfm |
| Noise level (high speed) | 21.9 dB |
| Rotational speed (max) | 1200 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan current | 0.06 A |
| Fan power consumption | 3.6 W |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Weight & dimensions | |
|---|---|
| Package weight | 211 g |
| Package height | 27 mm |
| Package depth | 174 mm |
| Package width | 142 mm |
| Cable length | 0.46 m |
| Weight | 178 g |
| Height | 25 mm |
| Depth | 140 mm |
| Width | 140 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS, Triman, UKCA, WEEE |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 16.7 kg |
| Shipping (inner) case height | 37 cm |
| Shipping (inner) case length | 48.2 cm |
| Shipping (inner) case width | 39.5 cm |
| Products per shipping (inner) case | 72 pc(s) |
Performant, Progressive, Quiet
Pure Wings 3 140mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 80000 h |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.44 mmH2O |
| Airflow | 122.6 m³/h |
| Maximum airflow | 72.2 cfm |
| Noise level (high speed) | 30.5 dB |
| Rotational speed (max) | 1800 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan current | 0.12 A |
| Fan power consumption | 6 W |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Weight & dimensions | |
|---|---|
| Package weight | 221 g |
| Package height | 27 mm |
| Package depth | 174 mm |
| Package width | 142 mm |
| Cable length | 0.46 m |
| Weight | 188 g |
| Height | 25 mm |
| Depth | 140 mm |
| Width | 140 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS, Triman, UKCA, WEEE |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 17.5 kg |
| Shipping (inner) case height | 37 cm |
| Shipping (inner) case length | 48.2 cm |
| Shipping (inner) case width | 39.5 cm |
| Products per shipping (inner) case | 72 pc(s) |
Performant, Progressive, Quiet
Pure Wings 3 120mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 80000 h |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.41 mmH2O |
| Airflow | 101.2 m³/h |
| Maximum airflow | 59.6 cfm |
| Noise level (high speed) | 30.9 dB |
| Rotational speed (max) | 2100 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan current | 0.13 A |
| Fan power consumption | 3.6 W |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Weight & dimensions | |
|---|---|
| Package weight | 176 g |
| Package height | 27 mm |
| Package depth | 155 mm |
| Package width | 122 mm |
| Cable length | 0.46 m |
| Weight | 149 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | Triman |
| Compliance certificates | CE, RoHS, UKCA, WEEE |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 11.8 kg |
| Shipping (inner) case height | 33 cm |
| Shipping (inner) case length | 42.7 cm |
| Shipping (inner) case width | 35.5 cm |
| Products per shipping (inner) case | 60 pc(s) |
Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 80000 h |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 0.96 mmH2O |
| Airflow | 97.5 m³/h |
| Maximum airflow | 57.4 cfm |
| Noise level (high speed) | 21.9 dB |
| Rotational speed (max) | 1200 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan current | 0.06 A |
| Fan power consumption | 3.6 W |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Weight & dimensions | |
|---|---|
| Package weight | 213 g |
| Package height | 27 mm |
| Package depth | 174 mm |
| Package width | 142 mm |
| Cable length | 0.46 m |
| Weight | 180 g |
| Height | 25 mm |
| Depth | 140 mm |
| Width | 140 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS, Triman, UKCA, WEEE |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 16.9 kg |
| Shipping (inner) case height | 37 cm |
| Shipping (inner) case length | 48.2 cm |
| Shipping (inner) case width | 39.5 cm |
| Products per shipping (inner) case | 72 pc(s) |
Compact and Silent Energy
be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
POWERFUL, RELIABLE AND STABLE
A strong partner for Mini ITX and compact gaming PCs
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.
QUIET OPERATION FOR COMPACT SYSTEMS
Optimized for low-noise operation
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
SFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.
MODULAR AND FLAT CABLES
Highly compatible and convenient
Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.
SUPER VERSATILE INSTALLATION
Adapts to your individual requirements
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16.8 ms |
| Efficiency | 92% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 22 A |
| Max output current (+12V) | 50 A |
| Max output current (+3.3V) | 22 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 110 W |
| Combined power (+12V) | 600 W |
| Combined power (+3.3V) | 110 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.99 |
| Input current | 10 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Peak power | 650 W |
| Total power | 600 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power cable length | 40 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 40 cm |
| PCI Express power connectors (6+2 pin) | 4 |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 3 |
| Motherboard power cable length | 30 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Certification | CE, CB, TÜV, FCC, cTUVus, RCM |
| Bearing technology | Sleeve |
| Silent mode | Yes |
| ATX version | 2.4 |
| Supported motherboard form factors | Mini-ITX |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | SFX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 1.16 kg |
| Height | 64 mm |
| Depth | 130 mm |
| Width | 125 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.04 kg |
| Package height | 80 mm |
| Package depth | 220 mm |
| Package width | 205 mm |
| Manual | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 21.5 kg |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 240 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case width | 430 mm |
| Other features | |
|---|---|
| Noise level (full-load mode, 100%) | 28.7 dB |
| Noise level (quiet mode, 50%) | 14.5 dB |
| Noise level (silent mode, | 9.9 dB |
| Cable ties included | Yes |
| Screws included | Yes |
SFX Power 3 300W, the compact PSU from be quiet! that gives you more for your mini or media PC. It provides enough power to support powerful PCIe graphics cards while offering the ideal combination of power, quietness and reliability. That makes it the perfect choice for compact PC systems that perform beyond the ordinary.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 26.8 ms |
| Efficiency | 88.1% |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 16 A |
| Max output current (+12V1) | 25 A |
| Max output current (+3.3V) | 16 A |
| Combined power (+5V) | 85 W |
| Combined power (+12V) | 300 W |
| Combined power (+3.3V) | 85 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.98 |
| Maximum input current (@220V) | 2 A |
| Maximum input current (@110V) | 5 A |
| Input current | 5/2 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Peak power | 350 W |
| Total power | 300 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 60 cm |
| CPU power cable length | 40 cm |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power cable length | 40 cm |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power cable length | 300,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 300,450,600 mm |
| Number of SATA power connectors | 3 |
| Motherboard power cable length | 35 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Safety | CE, CB, TÜV, CU |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | Rifle |
| Noise level | 29.4 dB |
| EPS version | 2.92 |
| ATX version | 3.42 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | SFX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Cooling type | Active |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 840 g |
| Height | 64 mm |
| Depth | 100 mm |
| Width | 125 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.19 kg |
| Package height | 207 mm |
| Package depth | 75 mm |
| Package width | 197 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP, RoHS, WEEE |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Shipping (inner) case length | 45.7 cm |
| Shipping (inner) case width | 26.5 cm |
| Shipping (inner) case height | 23.3 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case gross weight | 7.91 kg |
SFX Power 3 450W, the compact PSU from be quiet! that gives you more for your mini or media PC. It provides enough power to support powerful PCIe graphics cards while offering the ideal combination of power, quietness and reliability. That makes it the perfect choice for compact PC systems that perform beyond the ordinary.
STRONG 12V RAIL
For a stable PCIe graphics support
2 PCIe connectors provide power for a demanding and powerful graphics card. Safety protections defend against overcurrents, over- and undervoltages, short circuits and overloads, thus keeping your valuable components safe.
450 WATTS CONTINUOUS POWER OUTPUT
Ensures a steady and reliable operation
The SFX Power 3 can deliver 450W of continuous power. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
QUIET AND EFFICIENT OPERATION
For mini or media PCs
The high-quality temperature-controlled 80mm fan allows quiet operations of max. 33.8dB(A). The 80 PLUS Bronze certification with an efficiency rating of up to 89.3% is convincing evidence of this PSU’s power saving operation.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Hold time | 21 ms |
| Efficiency | 85.9% |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 16 A |
| Max output current (+12V1) | 37.5 A |
| Max output current (+3.3V) | 16 A |
| Combined power (+5V) | 85 W |
| Combined power (+12V) | 450 W |
| Combined power (+3.3V) | 85 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.98 |
| Maximum input current (@220V) | 2.5 A |
| Maximum input current (@110V) | 6 A |
| Input current | 6/2.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Peak power | 500 W |
| Total power | 450 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 60 cm |
| PCI Express power cable length | 55 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power cable length | 300,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 300,450,600 mm |
| Number of SATA power connectors | 3 |
| Motherboard power cable length | 35 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Safety | CE, CB, TÜV, CU |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | Rifle |
| Noise level | 33.8 dB |
| EPS version | 2.92 |
| ATX version | 3.42 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | SFX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Cooling type | Active |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 890 g |
| Height | 64 mm |
| Depth | 100 mm |
| Width | 125 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.24 kg |
| Package height | 207 mm |
| Package depth | 75 mm |
| Package width | 197 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP, RoHS, WEEE |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Shipping (inner) case length | 45.7 cm |
| Shipping (inner) case width | 26.5 cm |
| Shipping (inner) case height | 23.3 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case gross weight | 8.19 kg |
Exceptional airflow, maximum space

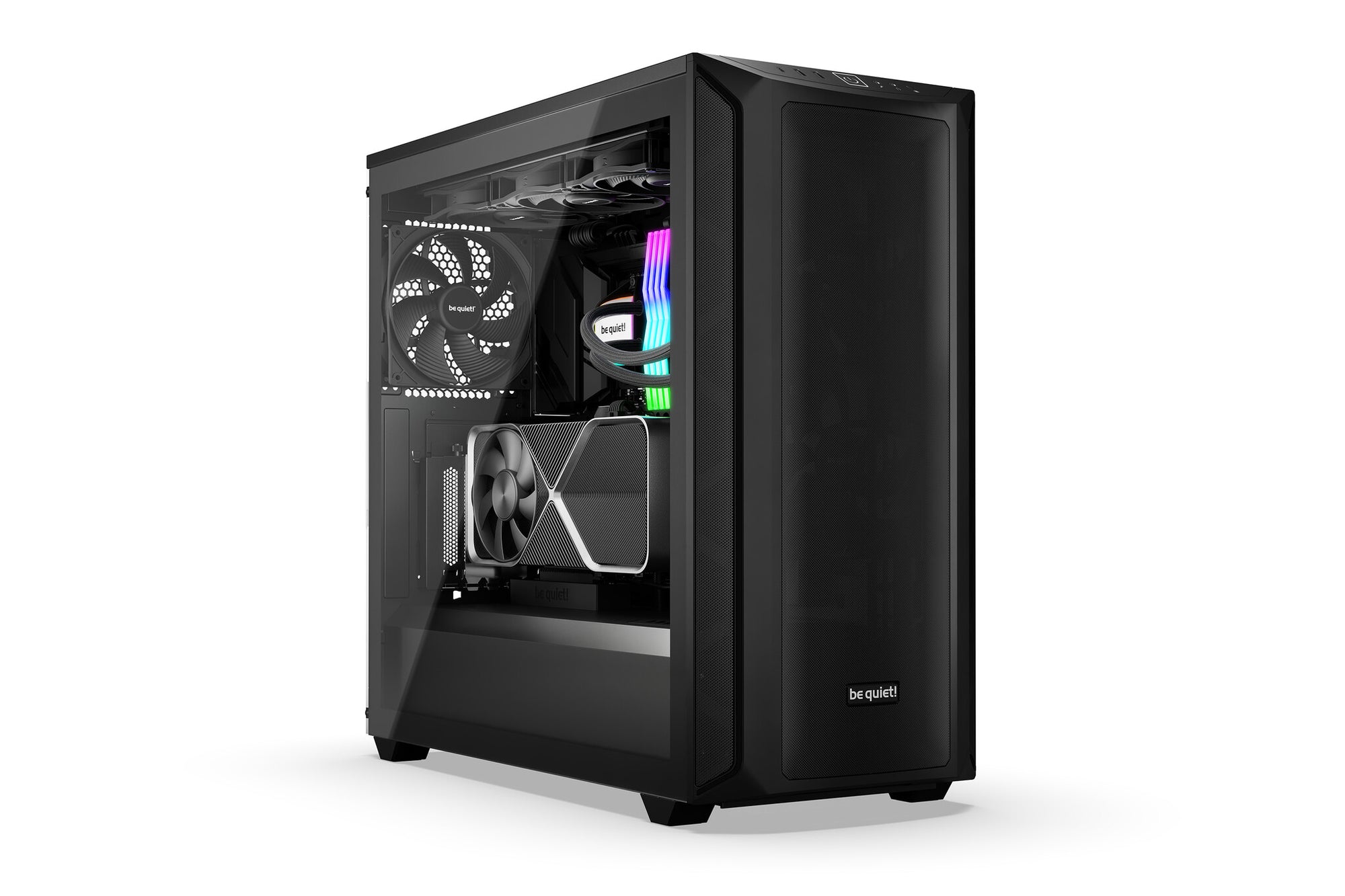

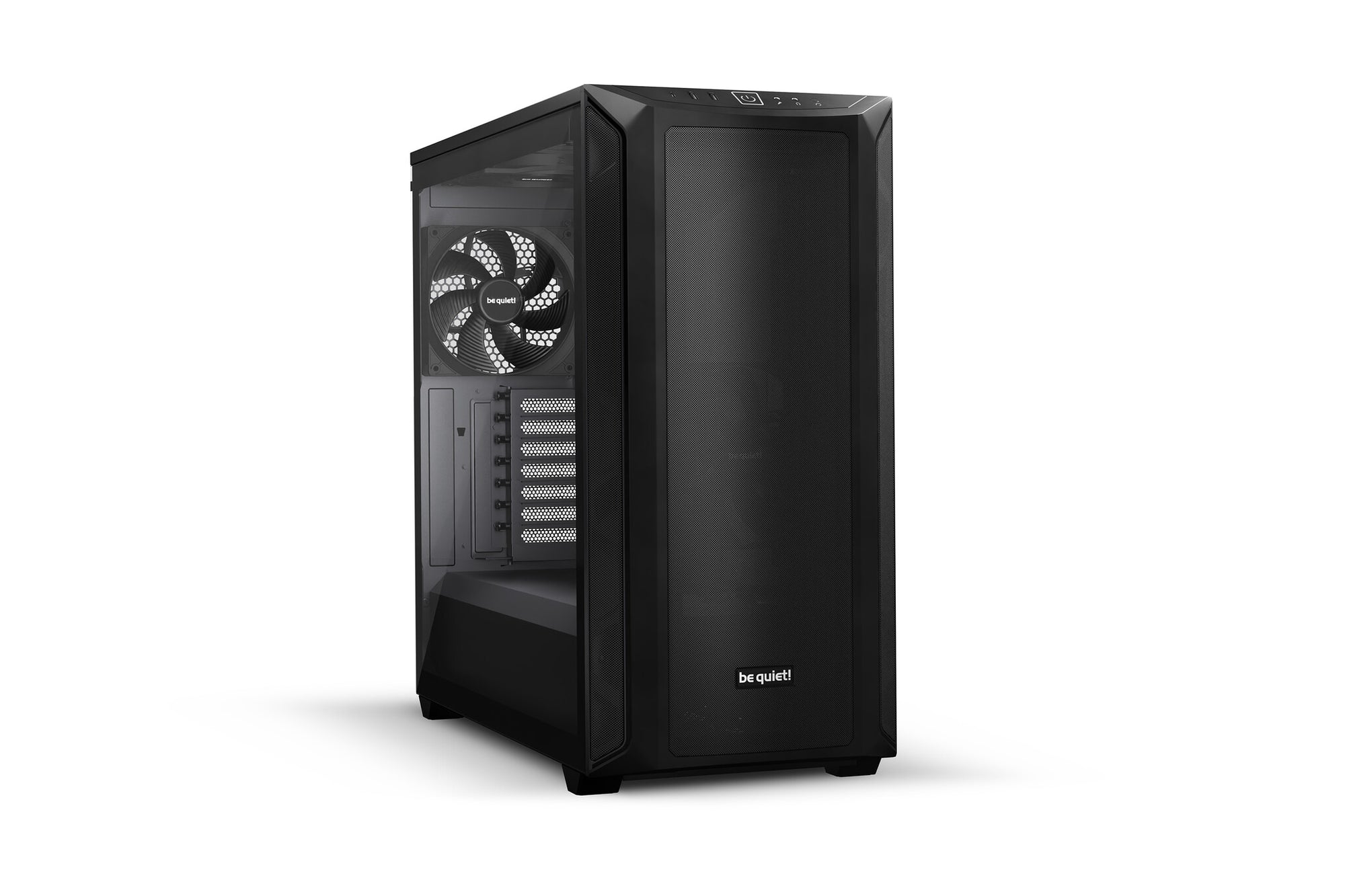

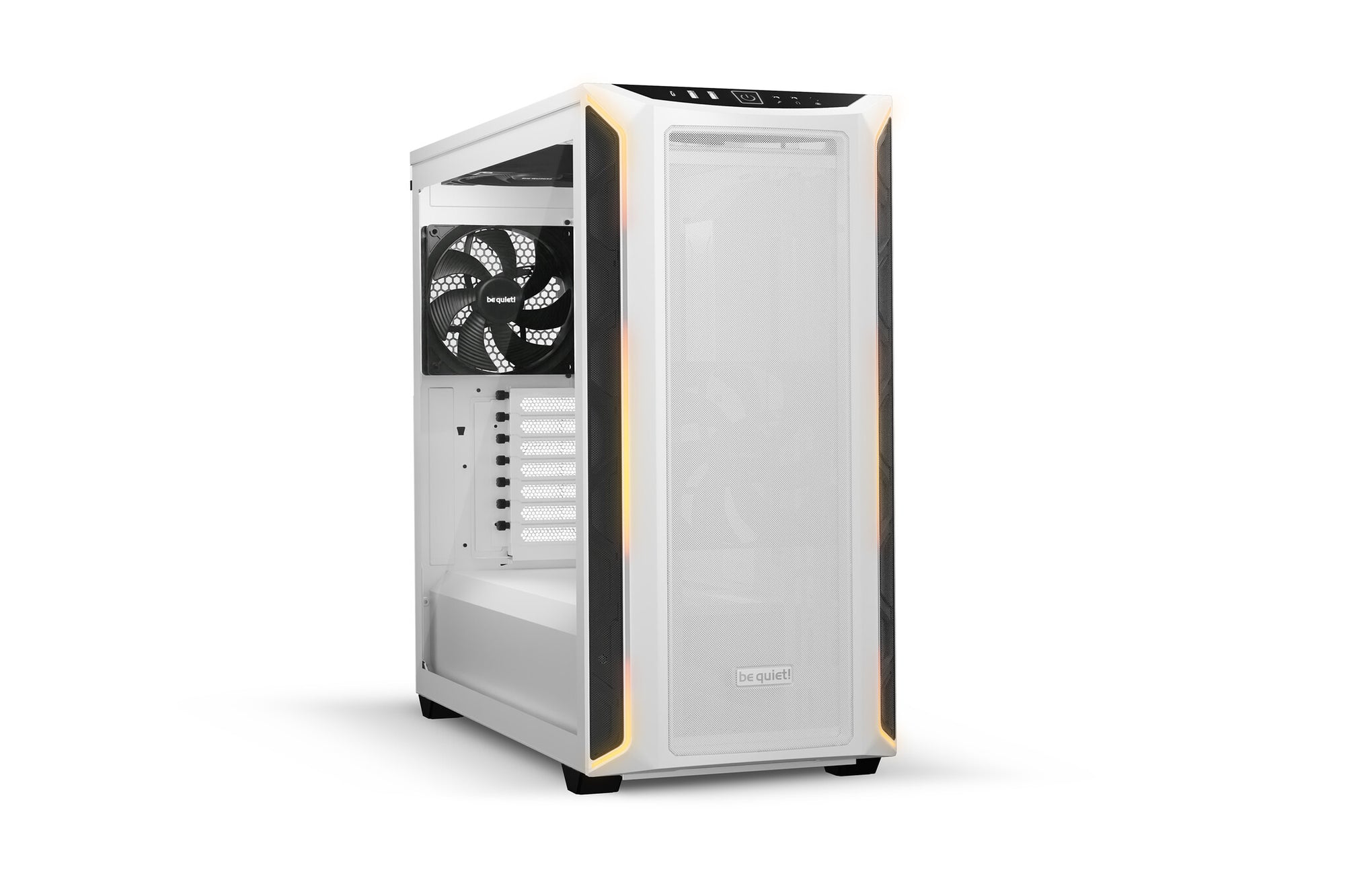

Shadow Base 800 is an airflow-optimized full-tower that offers silent operation with enough space for extensive components such as graphics cards, 420mm radiators or E-ATX motherboards. Shadow Base 800 with its vast capacity lets you unfold your creativity in PC building.
| Design | |
|---|---|
| Maximum PSU length | 30.5 cm |
| Maximum graphics card length | 43 cm |
| Maximum CPU cooler height | 18 cm |
| On/off button | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Liquid cooling capability | Yes |
| Fan speed | 0 - 1200 RPM |
| Maximum airflow | 57.4 cfm |
| Maximum air pressure | 0.96 mmH2O |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans installed | 1x 140 mm |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, REACH, RoHS, Triman, UKCA, WEEE |
| Weight & dimensions | |
|---|---|
| Weight | 11.7 kg |
| Height | 522 mm |
| Depth | 550 mm |
| Width | 247 mm |
| Packaging data | |
|---|---|
| Package weight | 13.2 kg |
| Package height | 628 mm |
| Package depth | 575 mm |
| Package width | 319 mm |
Exceptional airflow, maximum space

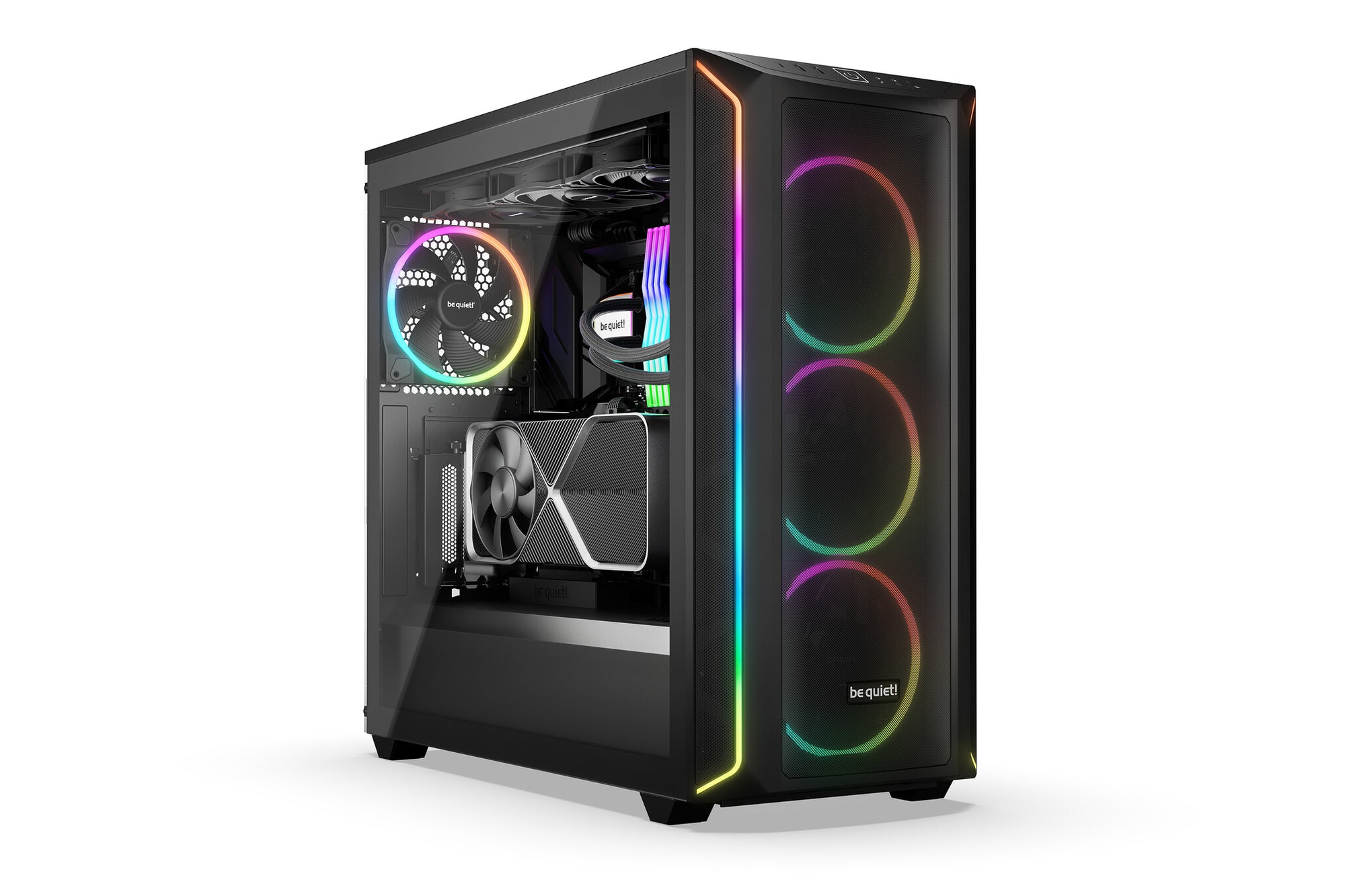

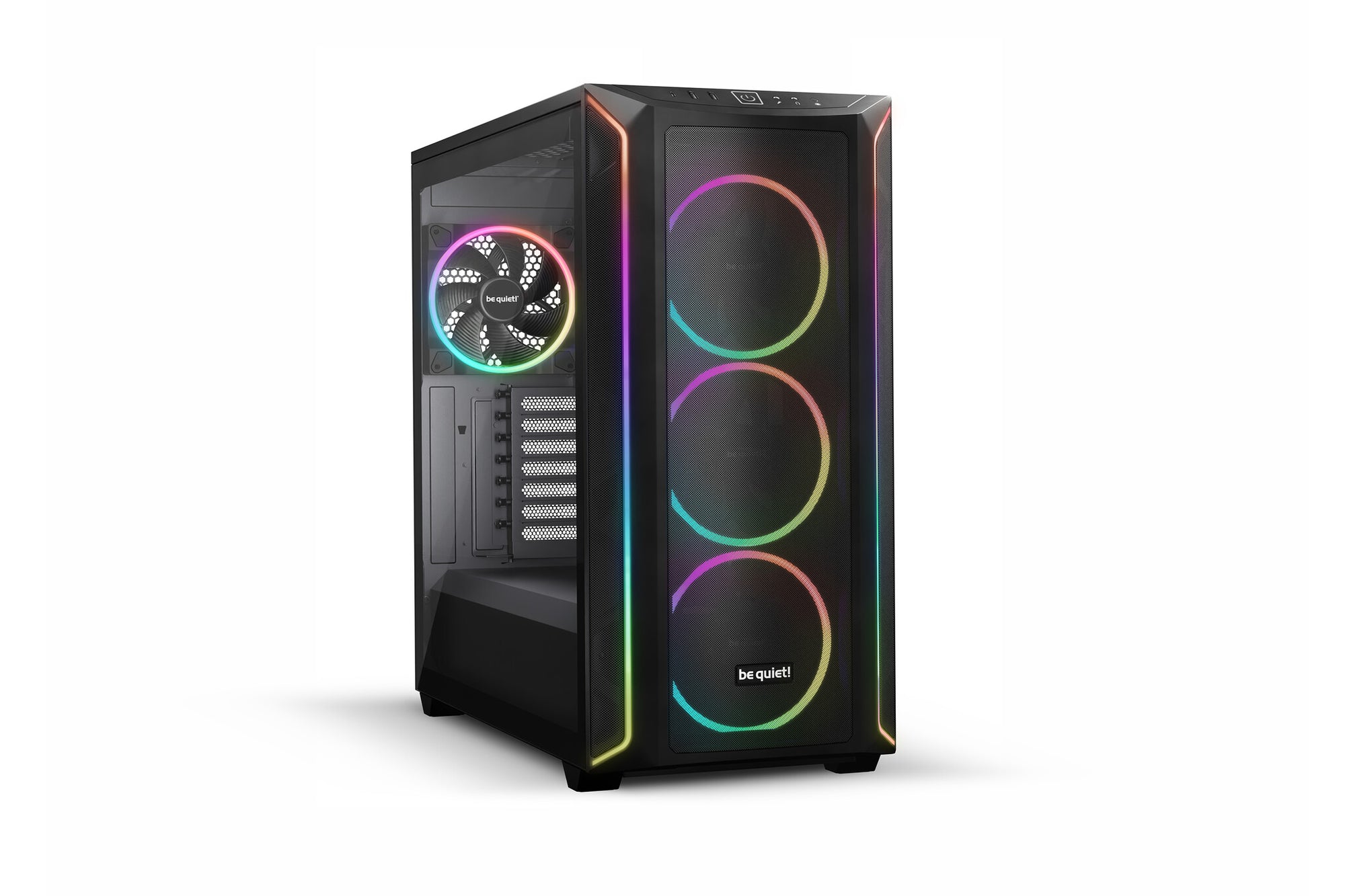

Shadow Base 800 DX Black is an airflow-optimized midi-tower with ARGB LEDs at the front that offers silent operation with enough space for extensive components such as graphics cards, 420mm radiators or E-ATX motherboards. Shadow Base 800 DX Black with its vast capacity and ARGB illumination lets you unfold your creativity in PC building.
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
Airflow all the way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 DX Black with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
PURE WINGS 3 FANS
Performant, yet quiet operation
With its 3 pre-installed Pure Wings 3 140mm PWM fans, Shadow Base 800 DX Black provides enough airflow to cool the most demanding components. Despite their performance, Pure Wings 3 offer quiet operation. Even at maximum speed, the fans operate at only 21.9dB(A).
SIZE MATTERS
Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Shadow Base 800 DX Black sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.
ELEGANT ARGB ILLUMINATION
LED strips at the front
ARGB LEDs at the front panel offer multiple colors and modes to individualize the look of the case. You can optionally synchronize lighting with your motherboard or an ARGB controller.
NEAT INTERIOR
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 DX Black, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.
MODERN I/O PORT
State-of-the-art connectivity for your system
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors complement the I/O panel and make it a multi-purpose interface for any type of hardware.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
| Design | |
|---|---|
| Maximum PSU length | 30.5 cm |
| Maximum graphics card length | 43 cm |
| Maximum CPU cooler height | 18 cm |
| On/off button | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Front |
| Illumination colour | Multi |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 140,240,360,120,280,420 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Liquid cooling capability | Yes |
| Fan speed | 0 - 1200 RPM |
| Maximum airflow | 57.4 cfm |
| Maximum air pressure | 0.96 mmH2O |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans installed | 1x 140 mm |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, REACH, RoHS, Triman, UKCA, WEEE |
| Weight & dimensions | |
|---|---|
| Weight | 11.8 kg |
| Height | 522 mm |
| Depth | 550 mm |
| Width | 247 mm |
| Packaging data | |
|---|---|
| Package weight | 13.2 kg |
| Package height | 628 mm |
| Package depth | 575 mm |
| Package width | 319 mm |
| LED controller | Yes |

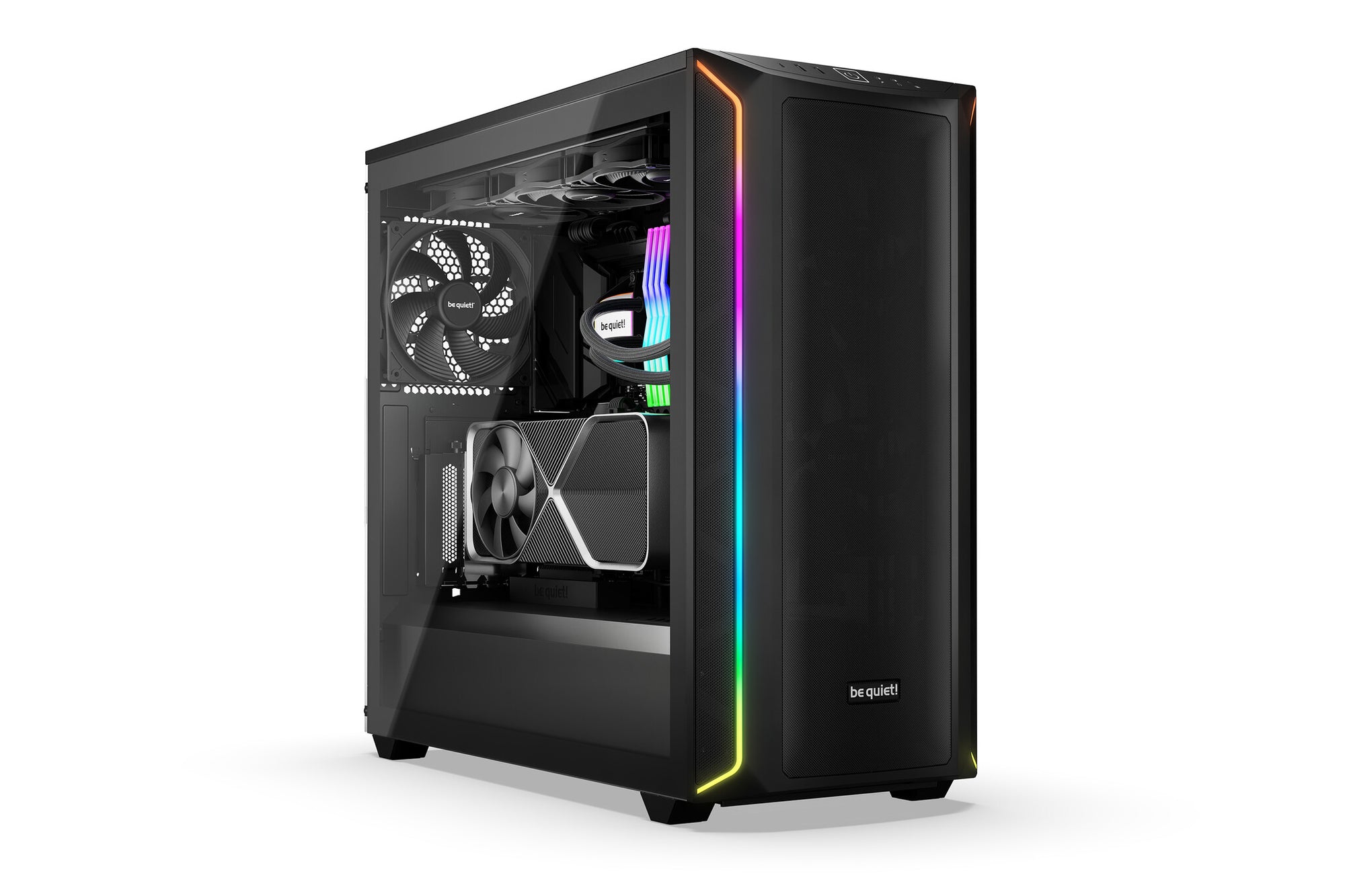

Exceptional airflow, maximum space
Shadow Base 800 DX Black is an airflow-optimized midi-tower with ARGB LEDs at the front that offers silent operation with enough space for extensive components such as graphics cards, 420mm radiators or E-ATX motherboards. Shadow Base 800 DX Black with its vast capacity and ARGB illumination lets you unfold your creativity in PC building.
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
Airflow all the way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 DX Black with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
PURE WINGS 3 FANS
Performant, yet quiet operation
With its 3 pre-installed Pure Wings 3 140mm PWM fans, Shadow Base 800 DX Black provides enough airflow to cool the most demanding components. Despite their performance, Pure Wings 3 offer quiet operation. Even at maximum speed, the fans operate at only 21.9dB(A).
SIZE MATTERS
Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Shadow Base 800 DX Black sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.
ELEGANT ARGB ILLUMINATION
LED strips at the front
ARGB LEDs at the front panel offer multiple colors and modes to individualize the look of the case. You can optionally synchronize lighting with your motherboard or an ARGB controller.
NEAT INTERIOR
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 DX Black, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.
MODERN I/O PORT
State-of-the-art connectivity for your system
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors complement the I/O panel and make it a multi-purpose interface for any type of hardware.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
| Design | |
|---|---|
| Maximum PSU length | 30.5 cm |
| Maximum graphics card length | 43 cm |
| Maximum CPU cooler height | 18 cm |
| On/off button | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Front |
| Illumination colour | Multi |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 140,240,360,120,280,420 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Liquid cooling capability | Yes |
| Fan speed | 0 - 1200 RPM |
| Maximum airflow | 57.4 cfm |
| Maximum air pressure | 0.96 mmH2O |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans installed | 1x 140 mm |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 1x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, REACH, RoHS, Triman, UKCA, WEEE |
| Weight & dimensions | |
|---|---|
| Weight | 11.8 kg |
| Height | 522 mm |
| Depth | 550 mm |
| Width | 247 mm |
| Packaging data | |
|---|---|
| Package weight | 13.2 kg |
| Package height | 628 mm |
| Package depth | 575 mm |
| Package width | 319 mm |
| LED controller | Yes |
Impressive lighting, exceptional airflow
Shadow Base 800 FX Black is an airflow-optimized case that offers impressive ARGB illumination and provides enough space for extensive components such as huge graphics cards and E-ATX motherboards. Shadow Base 800 FX with its vast capacity and ARGB illumination lets you unfold your creativity in PC building.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.
PERFECT AIRFLOW
Thanks to 4 PWM fans
With optimization for maximum airflow, the Light Wings 140mm PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the fan provides the performance that is needed, even in demanding configurations. The fans are connected to a combined PWM and ARGB hub for up to 8 ARGB devices.
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
Airflow all the way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 FX Black with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
SIZE MATTERS
Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Shadow Base 800 FX Black sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.
NEAT INTERIOR
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 FX Black, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.
MODERN I/O PORT
State-of-the-art connectivity for your system
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors and an ARGB controller button complement the I/O panel and make it a multi-purpose interface for any type of hardware.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
| Design | |
|---|---|
| Maximum PSU length | 30.5 cm |
| Maximum graphics card length | 43 cm |
| Maximum CPU cooler height | 18 cm |
| On/off button | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans, Front |
| Illumination colour | Multi |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 140,240,360,120,280,420 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Liquid cooling capability | Yes |
| Fan speed | 0 - 1700 RPM |
| Maximum airflow | 41.51 cfm |
| Maximum air pressure | 1.66 mmH2O |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, REACH, RoHS, Triman, UKCA, WEEE |
| Weight & dimensions | |
|---|---|
| Weight | 12.3 kg |
| Height | 522 mm |
| Depth | 550 mm |
| Width | 247 mm |
| Packaging data | |
|---|---|
| Package weight | 13.8 kg |
| Package height | 628 mm |
| Package depth | 575 mm |
| Package width | 319 mm |
| LED controller | Yes |
Impressive lighting, exceptional airflow
Shadow Base 800 FX Black is an airflow-optimized case that offers impressive ARGB illumination and provides enough space for extensive components such as huge graphics cards and E-ATX motherboards. Shadow Base 800 FX with its vast capacity and ARGB illumination lets you unfold your creativity in PC building.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.
PERFECT AIRFLOW
Thanks to 4 PWM fans
With optimization for maximum airflow, the Light Wings 140mm PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the fan provides the performance that is needed, even in demanding configurations. The fans are connected to a combined PWM and ARGB hub for up to 8 ARGB devices.
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
Airflow all the way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 FX Black with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
SIZE MATTERS
Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Shadow Base 800 FX Black sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.
NEAT INTERIOR
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 FX Black, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.
MODERN I/O PORT
State-of-the-art connectivity for your system
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors and an ARGB controller button complement the I/O panel and make it a multi-purpose interface for any type of hardware.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
| Design | |
|---|---|
| Maximum PSU length | 30.5 cm |
| Maximum graphics card length | 43 cm |
| Maximum CPU cooler height | 18 cm |
| On/off button | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans, Front |
| Illumination colour | Multi |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | White |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 140,240,360,120,280,420 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Liquid cooling capability | Yes |
| Fan speed | 0 - 1700 RPM |
| Maximum airflow | 41.51 cfm |
| Maximum air pressure | 1.66 mmH2O |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, REACH, RoHS, Triman, UKCA, WEEE |
| Weight & dimensions | |
|---|---|
| Weight | 12.3 kg |
| Height | 522 mm |
| Depth | 550 mm |
| Width | 247 mm |
| Packaging data | |
|---|---|
| Package weight | 13.8 kg |
| Package height | 628 mm |
| Package depth | 575 mm |
| Package width | 319 mm |
| LED controller | Yes |
The be quiet! Shadow Rock 3 offers an impressive cooling performance of 190W TDP and silent operation. It is the perfect choice for design-oriented consumers who need performance beyond the standard for a good price.
| Performance | |
|---|---|
| Bearing type | Rifle bearing |
| Noise level (high speed) | 24.4 dB |
| Noise level (low speed) | 11.5 dB |
| Rotational speed (max) | 1600 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 5 |
| Fins material | Aluminium |
| Number of fins | 30 |
| Number of fans | 1 fan(s) |
| Base plate material | Copper |
| Product colour | Black, Grey |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 190 W |
| Rated current | 0.2 A |
| Rated voltage | 12 V |
| Power supply | 2.4 W |
| Weight & dimensions | |
|---|---|
| Package weight | 1.18 kg |
| Package height | 200 mm |
| Package depth | 161 mm |
| Package width | 145 mm |
| Cable length | 0.22 m |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 710 g |
| Height | 163 mm |
| Depth | 121 mm |
| Width | 130 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Other features | |
|---|---|
| Mean time to failure (MTTF) | 80000 h |
| Heatsink dimensions (W x D x H) | 130 x 96 x 163 mm |
| Thermal grease | Yes |
| Number of fans supported | 1 |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 15 kg |
| Master (outer) case height | 420 mm |
| Master (outer) case length | 451 mm |
| Master (outer) case width | 335 mm |
| Products per pallet | 12 pc(s) |
| Harmonized System (HS) code | 84733080 |

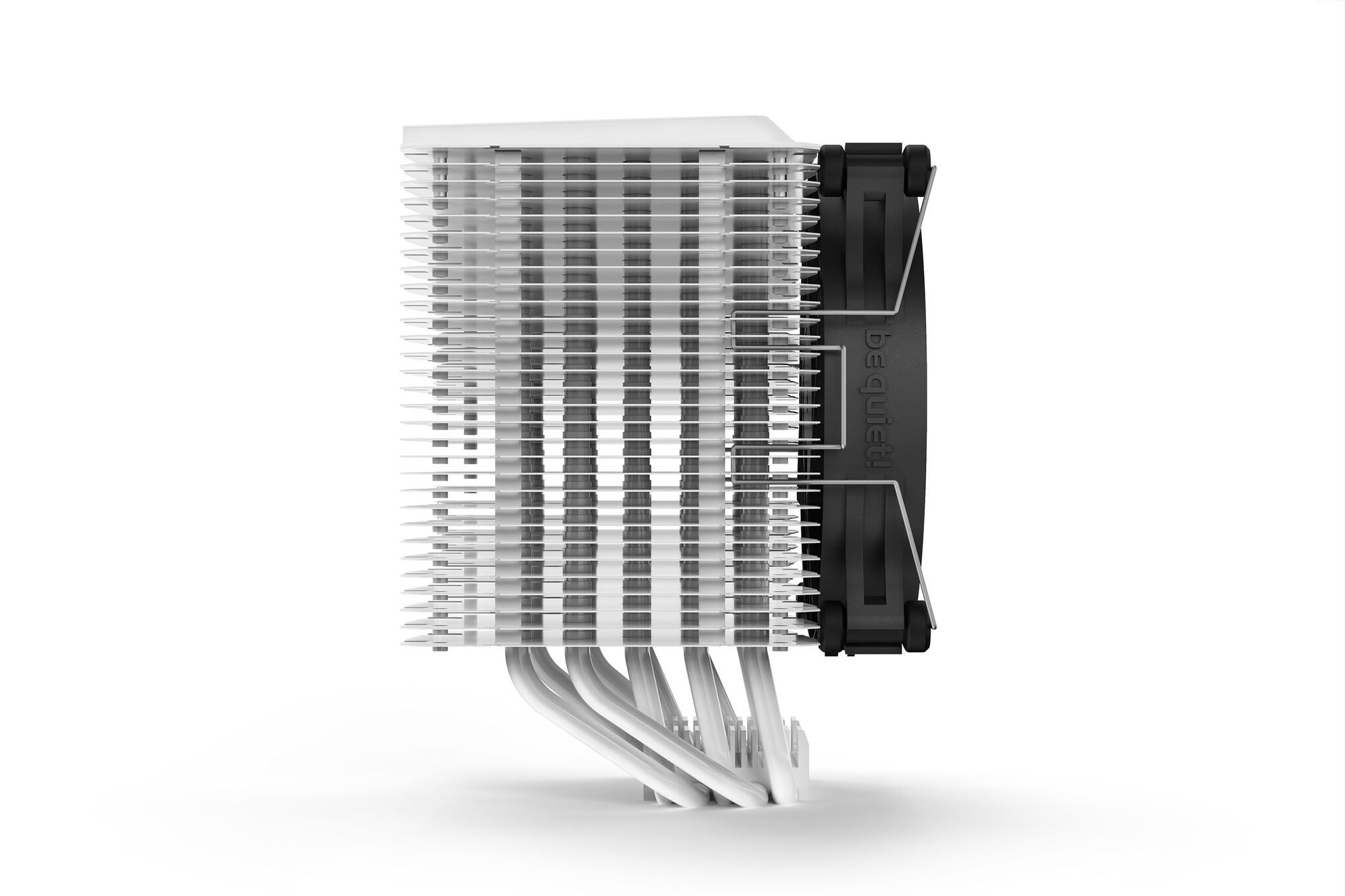

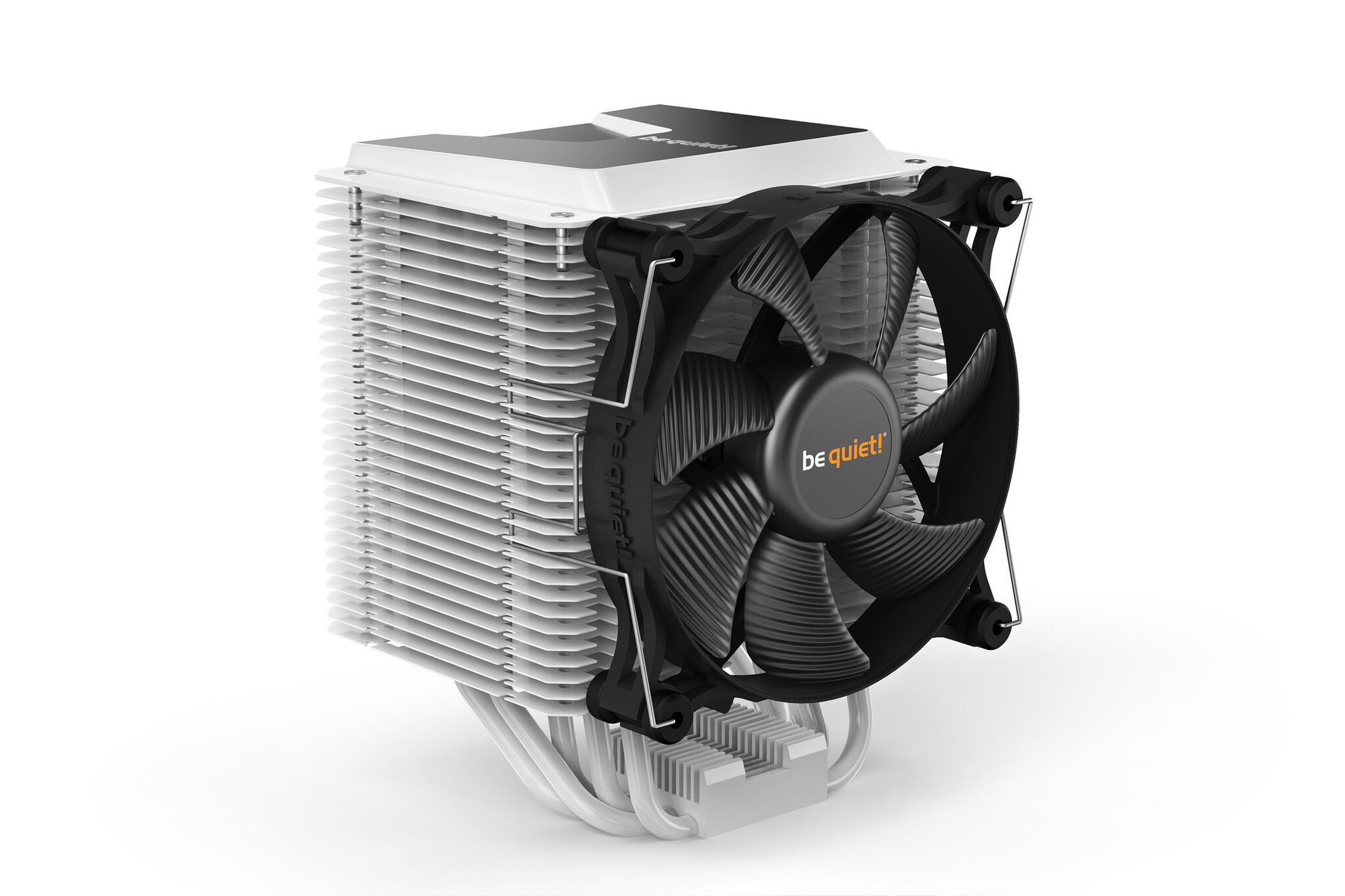

The be quiet! Shadow Rock 3 White offers an impressive cooling performance of 190W TDP and silent operation. It is the perfect choice for design-oriented consumers who need performance beyond the standard for a good price.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 80000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Noise level (high speed) | 24.4 dB |
| Noise level (low speed) | 11.5 dB |
| Rotational speed (max) | 1600 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 5 |
| Fins material | Aluminium |
| Number of fins | 30 |
| Number of fan blades | 7 |
| Number of fans | 1 fan(s) |
| Base plate material | Copper |
| Product colour | White |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 190 W |
| Rated current | 0.2 A |
| Rated voltage | 12 V |
| Power supply | 2.4 W |
| Weight & dimensions | |
|---|---|
| Package weight | 1.18 kg |
| Package height | 200 mm |
| Package depth | 161 mm |
| Package width | 145 mm |
| Cable length | 0.22 m |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 710 g |
| Height | 163 mm |
| Depth | 121 mm |
| Width | 130 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Other features | |
|---|---|
| Heatsink dimensions (W x D x H) | 130 x 96 x 163 mm |
| Thermal grease | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 15 kg |
| Shipping (inner) case height | 42 cm |
| Shipping (inner) case length | 45.1 cm |
| Shipping (inner) case width | 33.5 cm |
| Products per shipping (inner) case | 12 pc(s) |
| Harmonized System (HS) code | 84733080 |
SHADOW ROCK LP
Exceptional Cooling, Significant Quiet
Fitting everything you want into a HTPC or Small Form Factor PC can be tough, quietly cooling those cramped components is far tougher. Shadow Rock LP is the ultra-compact CPU cooler from be quiet! that solves that problem.
Featuring four 6mm heat pipes, a Pure Wings 2 120mm PWM fan with airflow-optimized fan blades as well as an user-friendly mounting solution, Shadow Rock LP generates only 25.5dB(A) noise under maximum load yet boasts generous 130W TDP cooling capacity.
Shadow Rock LP is a space-saving wonder that brings be quiet!’s premium cooling technology to restricted spaces at a very attractive price point.
HIGH COOLING EFFICIENCY
Quiet and reliable cooling of your components
Shadow Rock LP offers a high cooling capacity of 130W TDP and is especially perfect for use in compact systems.
HIGH-PERFORMANCE HEAT PIPES
Offering fast and reliable heat transfer
Four 6mm heat pipes carry the heat efficiently and quickly to optimum locations on the cooling fins. This way the cooler achieves the best possible mixture of premium cooling performance in a restricted space and remarkably quiet operation.
WHISPER-SILENT PURE WINGS 2 FAN
Even at 100% fan speed, overall noise is a mere 25.5dB(A)
The Pure Wings 2 120mm PWM fan supports the best balance of perfect cooling and quiet operation. Nine silence-optimized fan blades generate high airflow characteristics that reduce noise-generating turbulences. The fan’s durable rifle-bearing technology contributes to a long lifespan of up to 80,000 hours.
EASY ACCESS, EVEN IN COMPACT PC ENCLOSURES
Highly convenient and compact design
Low-profile is a space-saving design that allows you easy access to components even in the very tight confines of compact PCs. This cooler also makes it possible to mount it from atop the motherboard, which adds further convenience.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 80000 h |
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 1.25 mmH2O |
| Airflow | 87 m³/h |
| Maximum airflow | 51.4 cfm |
| Noise level (high speed) | 25.5 dB |
| Noise level (low speed) | 14.8 dB |
| Rotational speed (max) | 1500 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 4 |
| Fins material | Aluminium |
| Number of fins | 88 |
| Number of fan blades | 9 |
| Number of fans | 1 fan(s) |
| Material | Aluminium, Copper |
| Product colour | Black, Copper, Silver |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 130 W |
| Rated current | 0.2 A |
| Voltage | 12 V |
| Power supply | 2.4 W |
| Weight & dimensions | |
|---|---|
| Package weight | 820 g |
| Package height | 170 mm |
| Package depth | 160 mm |
| Package width | 140 mm |
| Cable length | 0.22 m |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 395 g |
| Height | 75.4 mm |
| Depth | 134 mm |
| Width | 122 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
SHADOW ROCK TF 2
Compact Cooling, Significantly Quiet
Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.
HIGH-PERFORMANCE HEATPIPES
Offering the system an impressive cooling performance
Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.
DIRECT CONNECTION OF BASE PLATE AND FINS
For highly effective cooling power
An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.
EXTREMELY SILENCE-OPTIMIZED OPERATION
Even at 100% fan speed the overall noise is merely 24.4dB(A)
Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the nine airflow-optimized fan blades and durable rifle-bearing technology.
SMALL, DIAGONALLY ARRANGED FINS
Produce the perfect airflow
The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.
SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept
The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem.
| Performance | |
|---|---|
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.1 mmH2O |
| Airflow | 113.8 m³/h |
| Maximum airflow | 67.8 cfm |
| Noise level (high speed) | 24.4 dB |
| Noise level (low speed) | 11.9 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 1400 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter | 13.5 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 5 |
| Fins material | Aluminium |
| Number of fins | 57 |
| Number of fan blades | 9 |
| Number of fans | 1 fan(s) |
| Material | Aluminium, Copper |
| Product colour | Black, Copper, Silver |
| Power | |
|---|---|
| Rated current | 0.11 A |
| Rated voltage | 12 V |
| Power supply | 1.32 W |
| Weight & dimensions | |
|---|---|
| Package weight | 1.09 kg |
| Package height | 130 mm |
| Package depth | 203 mm |
| Package width | 178 mm |
| Cable length | 0.2 m |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Weight | 680 g |
| Height | 112 mm |
| Depth | 165 mm |
| Width | 137 mm |
| Packaging content | |
|---|---|
| Thermal pad included | Yes |
| Screws included | Yes |
| Other features | |
|---|---|
| Heatsink dimensions (W x D x H) | 165 x 137 x 87 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
World-class quiet and solid cooling
be quiet! Shadow Wings 2 120mm PWM offers whisper-quiet operation and reliable cooling at low revolutions per minute. It is especially recommended for use in very silent PC builds.
Shadow Wings 2 fans are the perfect choice for all who appreciate maximum silence for their PC case.
| Performance | |
|---|---|
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 0.82 mmH2O |
| Airflow | 65 m³/h |
| Maximum airflow | 38.5 cfm |
| Noise level (high speed) | 15.9 dB |
| Rotational speed (max) | 1100 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Certification | CE, TÜV, UL |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.12 A |
| Safety current | 0.12 Ah |
| Rated voltage | 12 V |
| Voltage | 6 - 12 V |
| Power supply | 1.44 W |
| Weight & dimensions | |
|---|---|
| Package weight | 156 g |
| Package height | 28 mm |
| Package depth | 155 mm |
| Package width | 120 mm |
| Cable length | 0.5 m |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 132 g |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case gross weight | 10.7 kg |
| Master (outer) case height | 290 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case width | 320 mm |
| Harmonized System (HS) code | 84733080 |

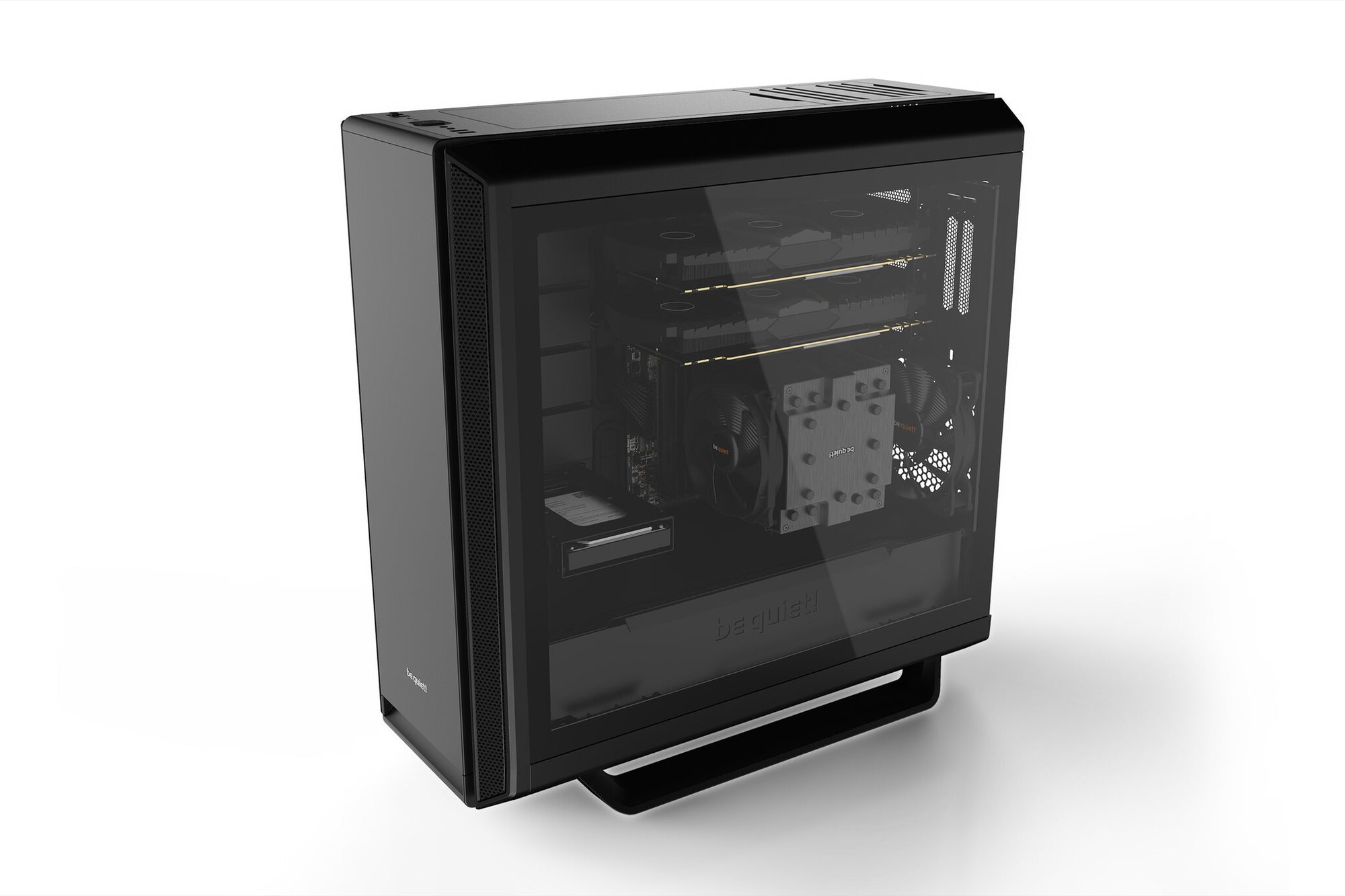

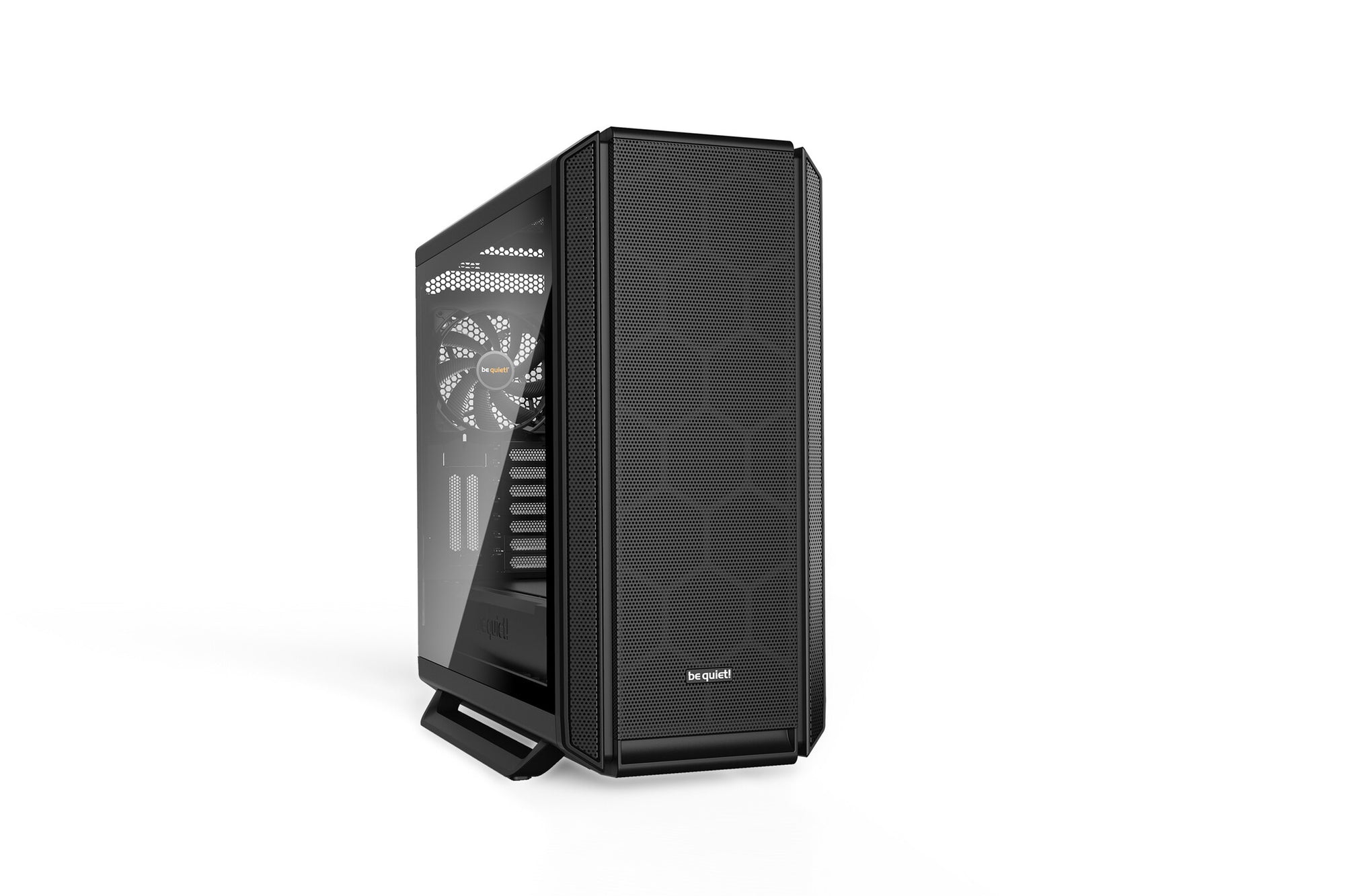

EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE
The be quiet! Silent Base 802 Window Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.
INTERCHANGEABLE TOP COVER
Optimized for air or water cooling
The first of 2 included top covers perfectly rounds off the design of the Silent Base 802 Window Black and ensures a silent operation. For all who strive for extremely powerful cooling and especially with water-cooled systems, the highly air-permeable top cover is the right choice.
INTERCHANGEABLE FRONTPANEL
Ensures maximum performance or whisper-quiet operation
The airflow front panel provides maximum performance for sophisticated configurations with highest demands for low temperatures. The standard front panel is the perfect choice for silent systems and regular PC configurations. Both panels are included.
THREE PREINSTALLED
PURE WINGS 2
Whisper-quiet operation
3 preinstalled Pure Wings 2 140mm fans with airflow-optimized fan blades ensure perfect airflow and solid cooling no matter if you chose a high airflow or a silence optimized configuration.
SUPERB NOISE DAMPENING
Extra thick insulation for maximum stability and silence
The front and sides are equipped with extra thick dampening mats of up to 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket, motherboard tray and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.
SMART I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of the latest hardware. The integrated 4-step fan controller allows the setting of the speed of up to 6 fans manually or connect all to one PWM signal.
VERSATILE MOTHERBOARD TRAY
Designed to fit individual requirements
The motherboard tray is decoupled and can be installed alongside the left panel in an inverted layout. It is also removable for use as a test bench.
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm or 420mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
| Design | |
|---|---|
| Certification | CE, RoHS |
| Maximum PSU length | 28.8 cm |
| Maximum graphics card length | 44.9 cm |
| Maximum CPU cooler height | 18.5 cm |
| On/off button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of expansion slots | 9 |
| Number of 2.5" bays | 7 |
| Number of 3.5" bays | 3 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Liquid cooling capability | Yes |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 13.2 kg |
| Height | 553 mm |
| Depth | 539 mm |
| Width | 281 mm |
| Packaging data | |
|---|---|
| Package weight | 14.9 kg |
| Package height | 615 mm |
| Package depth | 651 mm |
| Package width | 323 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Screws included | Yes |
| Stand included | Yes |
Silent Loop 2 120mm is the very high-performance and whisper-quiet all-in-one water cooling unit for demanding systems. The wealth of technical features and illumination effects make the Silent Loop 2 120mm not only a very silent and performant water cooler, but also an eye-catcher in any PC case.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 300000 h |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 2200 RPM |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 36.4 dB |
| Fan noise level (min) | 16.6 dB |
| Pulse-width modulation (PWM) support | Yes |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of fans | 2 fan(s) |
| Base plate material | Copper |
| Radiator material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 9 - 12 V |
| Fan voltage | 12 V |
| Fan current | 0.37 A |
| Fan power consumption | 1.92 W |
| Weight & dimensions | |
|---|---|
| Package weight | 1.66 kg |
| Package height | 137 mm |
| Package depth | 307 mm |
| Package width | 217 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 910 g |
| Height | 154 mm |
| Depth | 77 mm |
| Tube length | 40 cm |
| Radiator height | 15.4 cm |
| Radiator depth | 2.7 cm |
| Radiator width | 12 cm |
| Width | 120 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Compliance certificates | CE, RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| RGB controller included | Yes |
| LED controller interface | 3-pin |
| Mounting kit | Yes |
| Cables included | Pulse Width Modulation (PWM) Y-cable |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | Germany |
| Thermal grease | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 14.7 kg |
| Shipping (inner) case height | 46.5 cm |
| Shipping (inner) case length | 57.5 cm |
| Shipping (inner) case width | 32.5 cm |
| Products per shipping (inner) case | 8 pc(s) |
| Harmonized System (HS) code | 84733080 |
Silent Loop 2 240mm is the extremely high-performance and whisper-quiet all-in-one water cooling unit for demanding systems with slightly overclocked CPUs. The wealth of technical features and illumination effects make the Silent Loop 2 240mm not only a very silent and performant water cooler, but also an eye-catcher in any PC case.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 300000 h |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 2200 RPM |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 38.3 dB |
| Fan noise level (min) | 16.8 dB |
| Pulse-width modulation (PWM) support | Yes |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of fans | 2 fan(s) |
| Base plate material | Copper |
| Radiator material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 9 - 12 V |
| Fan voltage | 12 V |
| Fan current | 0.37 A |
| Fan power consumption | 1.92 W |
| Weight & dimensions | |
|---|---|
| Package weight | 1.94 kg |
| Package height | 137 mm |
| Package depth | 322 mm |
| Package width | 205 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.05 kg |
| Height | 274 mm |
| Depth | 52 mm |
| Tube length | 40 cm |
| Radiator height | 27.4 cm |
| Radiator depth | 2.7 cm |
| Radiator width | 12 cm |
| Width | 120 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| RGB controller included | Yes |
| LED controller interface | 3-pin |
| Mounting kit | Yes |
| Cables included | Pulse Width Modulation (PWM) Y-cable |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | Germany |
| Thermal grease | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 17 kg |
| Shipping (inner) case height | 44 cm |
| Shipping (inner) case length | 33.8 cm |
| Shipping (inner) case width | 43.5 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Harmonized System (HS) code | 84733080 |
Silent Loop 2 360mm is the immensely high-performance and whisper-quiet all-in-one water cooling unit for demanding systems with heavily overclocked CPUs. The wealth of technical features and illumination effects make the Silent Loop 2 360mm not only a very silent and performant water cooler, but also an eye-catcher in any PC case.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 300000 h |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 2200 RPM |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 39.8 dB |
| Fan noise level (min) | 17.7 dB |
| Pulse-width modulation (PWM) support | Yes |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of fans | 3 fan(s) |
| Base plate material | Copper |
| Radiator material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 9 - 12 V |
| Fan voltage | 12 V |
| Fan current | 0.37 A |
| Fan power consumption | 1.92 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.34 kg |
| Package height | 137 mm |
| Package depth | 448 mm |
| Package width | 205 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.33 kg |
| Height | 394 mm |
| Depth | 52 mm |
| Tube length | 40 cm |
| Radiator height | 39.4 cm |
| Radiator depth | 2.7 cm |
| Radiator width | 12 cm |
| Width | 120 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Compliance certificates | CE, RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| RGB controller included | Yes |
| LED controller interface | 3-pin |
| Mounting kit | Yes |
| Cables included | Pulse Width Modulation (PWM) Y-cable |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | Germany |
| Thermal grease | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 11 kg |
| Shipping (inner) case height | 44 cm |
| Shipping (inner) case length | 46.7 cm |
| Shipping (inner) case width | 29.2 cm |
| Products per shipping (inner) case | 4 pc(s) |
| Harmonized System (HS) code | 84733080 |
