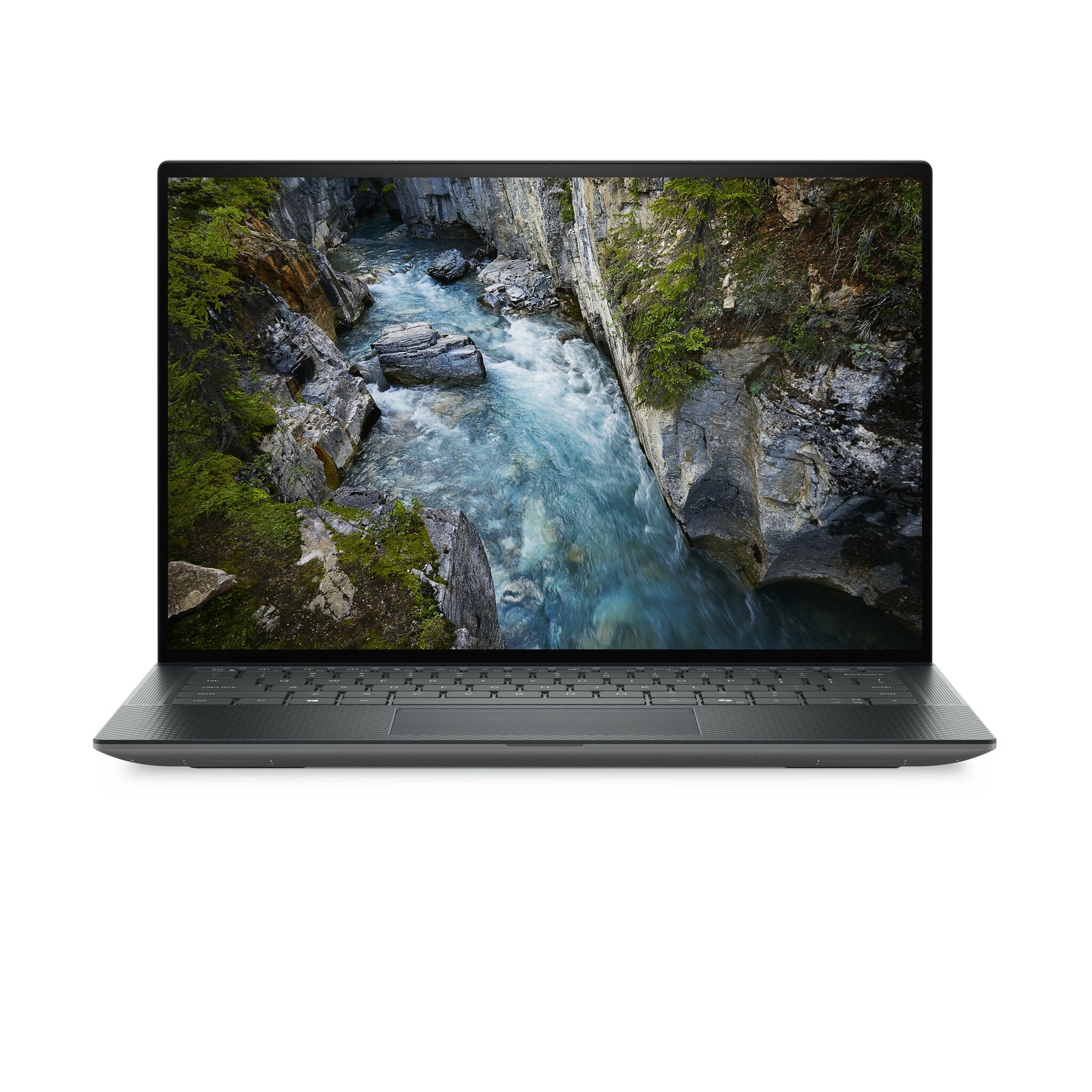

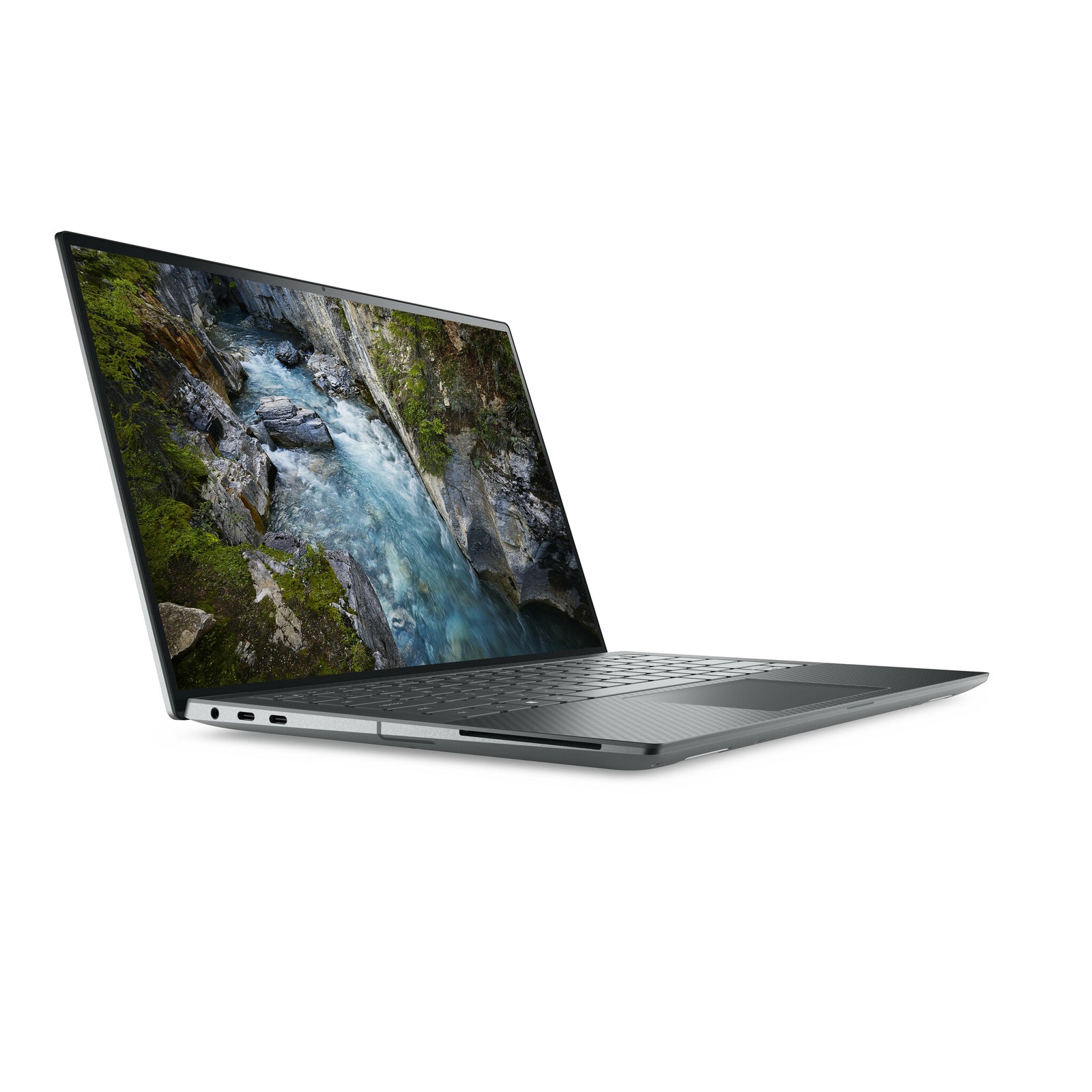

Great for 2D CAD, Design and Creative Applications
Intelligently optimised and high-performing, the 3581 is a powerful entry-level mobile workstation.
Built for Design
Enjoy seamless productivity while multi-tasking across office applications, collaboration tools, and professional software.
Dell Optimiser for Precision
Intelligence built around you
Automatically personalise and boost the performance of your Precision and its entire ecosystem with Dell Optimiser, an AI-based optimization software that learns and responds to the way you work.
Personalised performance with the world’s most intelligent PCs
Intelligence and machine learning elevate productivity by automating performance features beyond your PC, across your entire ecosystem.Intelligent Collaboration: Get the world’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software.
Safe, secure and manageable
With Dell Optimiser, AI and machine learning gather and analyze data locally on the system–only event data and service heartbeat are sent to help Dell understand if the app is working appropriately. Optimization and data collection follow a stringent process to ensure your privacy and security-using data to improve your PC experience continually. No personal data is sent and used without your explicit consent.
Sustainably-made
Made from sustainable materials like recycled carbon fiber and renewable castor-oil; precisions are registered EPEAT Gold . It also ships to you in both a recycled and recyclable container.
Independent Software Vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly.
Windows 11 Pro - designed for hybrid work.
The most productive and secure version of Windows yet—but simple for IT.
Dell PC as a Service
Accelerate anywhere work experiences by modernizing how you deploy, manage and support devices with PC as a Service. Leverage both the built-in protections of the industry's most secure commercial PCs and software protections for advanced threats to help ensure a trusted workspace under a predictable price per month.
| Design | |
|---|---|
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel density | 141 ppi |
| Display brightness | 400 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Processor boost frequency | 5.2 GHz |
| Processor model | i7-13800H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Non-ECC | Yes |
| Memory data transfer rate | 4800 MT/s |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 35 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Speakers manufacturer | Waves |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 2.07 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Keyboard number of keys | 100 |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Danish, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery weight | 280 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 15.2 V |
| Battery capacity | 64 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Smart card reader | Yes |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.47 cm |
| Height (front) | 2.27 cm |
| Depth | 233.3 mm |
| Width | 357.8 mm |
| Weight | 1.79 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 3000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 343 kg of CO2e |
| Total carbon emissions (Standard deviation) | 70 kg of CO2e |
| Carbon emissions (Manufacturing) | 294 kg of CO2e |
| Carbon emissions (Logistics) | 13 kg of CO2e |
| Carbon emissions (Use) | 34 kg of CO2e |
| Carbon emissions (End-of-Life) | 2 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 309 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
| Design | |
|---|---|
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel density | 141 ppi |
| Display brightness | 400 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Processor boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Non-ECC | Yes |
| Memory data transfer rate | 4800 MT/s |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 35 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A500 |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Speakers manufacturer | Waves |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 2.07 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Keyboard number of keys | 100 |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | German |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery weight | 280 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 15.2 V |
| Battery capacity | 64 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Smart card reader | Yes |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.47 cm |
| Height (front) | 2.27 cm |
| Depth | 233.3 mm |
| Width | 357.8 mm |
| Weight | 1.79 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 3000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 343 kg of CO2e |
| Total carbon emissions (Standard deviation) | 70 kg of CO2e |
| Carbon emissions (Manufacturing) | 294 kg of CO2e |
| Carbon emissions (Logistics) | 13 kg of CO2e |
| Carbon emissions (Use) | 34 kg of CO2e |
| Carbon emissions (End-of-Life) | 2 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 309 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
| Design | |
|---|---|
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel density | 141 ppi |
| Display brightness | 400 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Processor boost frequency | 5.2 GHz |
| Processor model | i7-13800H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Non-ECC | Yes |
| Memory data transfer rate | 4800 MT/s |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Card reader integrated | No |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 35 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Speakers manufacturer | Waves |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 2.07 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Keyboard number of keys | 100 |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | German |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery weight | 280 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 15.2 V |
| Battery capacity | 64 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Smart card reader | Yes |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.47 cm |
| Height (front) | 2.27 cm |
| Depth | 233.3 mm |
| Width | 357.8 mm |
| Weight | 1.79 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 3000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 343 kg of CO2e |
| Total carbon emissions (Standard deviation) | 70 kg of CO2e |
| Carbon emissions (Manufacturing) | 294 kg of CO2e |
| Carbon emissions (Logistics) | 13 kg of CO2e |
| Carbon emissions (Use) | 34 kg of CO2e |
| Carbon emissions (End-of-Life) | 2 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 309 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
Power your creative zone 14" mobile workstation featuring 4-sided InfinityEdge display, up to 12 Gen Intel Core i9 and professional graphics from Intel or NVIDIA.
| Design | |
|---|---|
| Product type | Mobile workstation |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Intel vPro Platform Eligibility | Yes |
| Display | |
| HD type | Full HD+ |
| Pixel density | 161 ppi |
| Panel type | WLED |
| LED backlight | Yes |
| Display brightness | 500 cd/m� |
| Display response rise/fall | 35 ms |
| Pixel pitch | 0.1572 x 0.1572 mm |
| Contrast ratio (typical) | 1200:1 |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Anti-glare screen | Yes |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor generation | 12th gen Intel Core i7 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Processor cache | 24 MB |
| Processor model | i7-12800H |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Memory | |
| Memory form factor | On-board |
| Internal memory | 16 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory clock speed | 5200 MHz |
| Maximum internal memory | 16 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC, SD, SDHC |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| Audio | |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Speaker power | 8 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| MIMO | Yes |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Thunderbolt 4 ports quantity | 4 |
| Intel Thunderbolt 4 | Yes |
| Performance | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Software | |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system installed | Windows 10 Pro |
| Windows 11 free upgrade | Yes |
| Technical details | |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Discrete graphics card memory | 4 GB |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel vPro Platform Eligibility | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 72 Wh |
| Battery recharge time | 4 h |
| Battery voltage | 15.4 V |
| Fast charging | Yes |
| Battery weight | 285 g |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 20,5 V |
| USB charging current | 6.5 A |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 �C |
| Storage temperature (T-T) | -40 - 65 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Weight & dimensions | |
| Width | 310.6 mm |
| Depth | 210.3 mm |
| Height (front) | 7.49 mm |
| Height (rear) | 1.11 cm |
| Weight | 1.48 kg |
| Other features | |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Ambient light sensor | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| On-board graphics card | Yes |
| Anti-glare screen | Yes |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
Power your creative zone 14" mobile workstation featuring 4-sided InfinityEdge display, up to 12 Gen Intel Core i9 and professional graphics from Intel or NVIDIA.
| Design | |
|---|---|
| Product type | Mobile workstation |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Intel vPro Platform Eligibility | Yes |
| Introduction year | 2022 |
| Display | |
| HD type | Full HD+ |
| Pixel density | 161 ppi |
| Panel type | WLED |
| LED backlight | Yes |
| Display brightness | 500 cd/m� |
| Display response rise/fall | 35 ms |
| Pixel pitch | 0.1572 x 0.1572 mm |
| Contrast ratio (typical) | 1200:1 |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Anti-glare screen | Yes |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor generation | 12th gen Intel Core i7 |
| Configurable TDP-down | 35 W |
| Processor cache | 24 MB |
| Processor model | i7-12800H |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 14 |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Memory | |
| Memory form factor | On-board |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory clock speed | 5200 MHz |
| Maximum internal memory | 32 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC, SD, SDHC |
| Total storage capacity | 1000 GB |
| Total SSDs capacity | 1000 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| Audio | |
| Audio chip | Realtek ALC711-VD |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Speaker power | 8 W |
| Built-in subwoofer | Yes |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Thunderbolt 4 ports quantity | 4 |
| Intel Thunderbolt 4 | Yes |
| Performance | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Software | |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system installed | Windows 10 Pro |
| Windows 11 free upgrade | Yes |
| Technical details | |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Discrete graphics card memory | 4 GB |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel vPro Platform Eligibility | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 72 Wh |
| Battery recharge time | 4 h |
| Battery voltage | 15.4 V |
| Fast charging | Yes |
| Battery weight | 285 g |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 20,5 V |
| USB charging current | 6.5 A |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 �C |
| Storage temperature (T-T) | -40 - 65 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Weight & dimensions | |
| Width | 310.6 mm |
| Depth | 210.3 mm |
| Height (front) | 7.49 mm |
| Height (rear) | 1.11 cm |
| Weight | 1.48 kg |
| Other features | |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Ambient light sensor | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| On-board graphics card | Yes |
| Anti-glare screen | Yes |
| Harmonized System (HS) code | 84713000 |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
Power your creative zone
14" mobile workstation featuring 4-sided InfinityEdge display, up to 13th Gen Intel® Core™ i9 processor and NVIDIA professional graphics.
Intelligent performance for constant creativity Create without interruption
Up to 13th Gen Intel® Core™ i9 processors (45W), 14 core (6P +8E)Stay cool, calm and creative:Advanced thermals feature dual opposing output fans and user selectable thermal tables.
No idea is too big
Store your work confidently with up to 4TB of storage and up to 64GB of 6400MT/s DDR5 memory.
Dell Optimizer
Intelligence built around you
Automatically personalise and boost the performance of your system and its entire ecosystem with Dell Optimizer, an AI-based optimization software that learns and responds to the way you work.
Personalised Performance
Intelligence and machine learning elevate productivity by automatically personalizing performance features across your entire ecosystem, making them the Dell’s most intelligent PCs.
Intelligent Collaboration
Get the Dell’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software.
Safe, secure and manageable
We ensure optimization and data collection follows a stringent process to keep your information safe. Any data we do gather is analyzed locally on your system to improve your personal PC experience.
Redefine reality
Create fully-immersive AR and VR content with next generation NVIDIA® RTX professional graphics and powerful performance normally found only in tower workstations.
Independent Software Vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications.
Premium Panel Guarantee
The Dell Premium Panel Guarantee allows a free panel replacement during the Limited Hardware Warranty period even if only one bright pixel is found.
Design and create your masterpieces
Built for design and creative applications like Design – 2D, 3D CAD Graphic design, video and photo editing, animation, Education, Financial analysis, Application development, Architecture, Interior and exterior design
Work where you're most inspired with security you can count on
The Windows Hello-compatible IR Camera with proximity sensor recognizes you and automatically locks and unlocks to increase privacy and productivity.The fingerprint reader built into the power button uses biometrics to log you in quickly and ensures that only you have access to your sensitive data and private work.Chassis Intrusion Sensor identifies when the chassis or BIOS have been compromised.The EMZA IR camera detects onlookers, while SafeScreen dims the PC when you look away to keep sensitive data private.
Windows 11 Pro - designed for hybrid work.
The most productive and secure version of Windows yet—but simple for IT.
Advancing Sustainability
The entire portfolio of Precision workstations is EPEAT registered and most meet the highest standards in sustainability criteria, making them EPEAT GoldResponsible packagingPrecision Mobile Workstations ship in packaging made from 100% recycled or renewable materials and is 100% recyclable .Recycle your old deviceHelp us in our mission to make our products with at least 50% recycled or renewable content. Send your e-waste (any brand) to us for recycling or reuse in support of a circular economy.
We’ve got your business covered
ProDeploy Client Suite
Greater speed, less effort and more control.ProSupport:24x7 access to in-region advanced technology experts.
ProSupport Plus
All the capabilities of ProSupport with so much more.
Dell PC as a Service
Accelerate anywhere work experiences by modernizing how you deploy, manage and support devices with PC as a Service. Leverage both the built-in protections of the industry's most secure commercial PCs and software protections for advanced threats to help ensure a trusted workspace under a predictable price per month.
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Display response rise/fall | 35 ms |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel pitch | 0.1578 x 0.1578 mm |
| Pixel density | 161 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WVA |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor threads | 20 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Processor boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 16 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera | Yes |
| Network | |
|---|---|
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 4 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Hall sensor | Yes |
| Ambient light sensor | Yes |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Bundled software | Windows System Driver |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 285 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 15.4 V |
| Battery capacity | 72 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging current | 6.5 A |
| USB charging voltage | 20,5 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height (rear) | 1.11 cm |
| Height (front) | 7.49 mm |
| Depth | 210.3 mm |
| Width | 310.6 mm |
| Weight | 1.48 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 390 kg of CO2e |
| Total carbon emissions (Standard deviation) | 84 kg of CO2e |
| Carbon emissions (Manufacturing) | 334 kg of CO2e |
| Carbon emissions (Logistics) | 13 kg of CO2e |
| Carbon emissions (Use) | 41 kg of CO2e |
| Carbon emissions (End-of-Life) | 2 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 349 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
Power your creative zone
14" mobile workstation featuring 4-sided InfinityEdge display, up to 13th Gen Intel® Core™ i9 processor and NVIDIA professional graphics.
Intelligent performance for constant creativity
Create without interruption:Up to 13th Gen Intel® Core™ i9 processors (45W), 14 core (6P +8E)Stay cool, calm and creative:Advanced thermals feature dual opposing output fans and user selectable thermal tables.No idea is too big:Store your work confidently with up to 4TB of storage and up to 64GB of 6400MT/s DDR5 memory.
Dell Optimizer
Intelligence built around you: Automatically personalise and boost the performance of your system and its entire ecosystem with Dell Optimizer, an AI-based optimization software that learns and responds to the way you work.Personalised Performance: Intelligence and machine learning elevate productivity by automatically personalizing performance features across your entire ecosystem, making them the Dell’s most intelligent PCs.Intelligent Collaboration: Get the Dell’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features – all in one software.Safe, secure and manageable: We ensure optimization and data collection follows a stringent process to keep your information safe. Any data we do gather is analyzed locally on your system to improve your personal PC experience.
Redefine reality
Create fully-immersive AR and VR content with next generation NVIDIA® RTX professional graphics and powerful performance normally found only in tower workstations.
Independent Software Vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications.
Premium Panel Guarantee
The Dell Premium Panel Guarantee allows a free panel replacement during the Limited Hardware Warranty period even if only one bright pixel is found.
Design and create your masterpieces
Built for design and creative applications like: Design – 2D, 3D CADGraphic design, video and photo editing, animation, Education, Financial analysis, Application development, Architecture, Interior and exterior design
Work where you're most inspired with security you can count on
The Windows Hello-compatible IR Camera with proximity sensor recognizes you and automatically locks and unlocks to increase privacy and productivity. The fingerprint reader built into the power button uses biometrics to log you in quickly and ensures that only you have access to your sensitive data and private work. Chassis Intrusion Sensor identifies when the chassis or BIOS have been compromised. The EMZA IR camera detects onlookers, while SafeScreen dims the PC when you look away to keep sensitive data private.
Windows 11 Pro - designed for hybrid work.
The most productive and secure version of Windows yet—but simple for IT.
Advancing Sustainability
The entire portfolio of Precision workstations is EPEAT registered and most meet the highest standards in sustainability criteria, making them EPEAT GoldResponsible packagingPrecision Mobile Workstations ship in packaging made from 100% recycled or renewable materials and is 100% recyclable .Recycle your old deviceHelp us in our mission to make our products with at least 50% recycled or renewable content. Send your e-waste (any brand) to us for recycling or reuse in support of a circular economy.
We’ve got your business covered
ProDeploy Client Suite: Greater speed, less effort and more control.Pro Support: 24-7 access to in-region advanced technology experts.ProSupport Plus: All the capabilities of ProSupport with so much more.
Dell PC as a Service
Accelerate anywhere work experiences by modernizing how you deploy, manage and support devices with PC as a Service. Leverage both the built-in protections of the industry's most secure commercial PCs and software protections for advanced threats to help ensure a trusted workspace under a predictable price per month.
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Display response rise/fall | 35 ms |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel pitch | 0.1578 x 0.1578 mm |
| Pixel density | 161 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WVA |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor threads | 20 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Processor boost frequency | 5.2 GHz |
| Processor model | i7-13800H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera | Yes |
| Network | |
|---|---|
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 4 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Hall sensor | Yes |
| Ambient light sensor | Yes |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Bundled software | Windows System Driver |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 285 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 15.4 V |
| Battery capacity | 72 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging current | 6.5 A |
| USB charging voltage | 20,5 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height (rear) | 1.11 cm |
| Height (front) | 7.49 mm |
| Depth | 210.3 mm |
| Width | 310.6 mm |
| Weight | 1.48 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 390 kg of CO2e |
| Total carbon emissions (Standard deviation) | 84 kg of CO2e |
| Carbon emissions (Manufacturing) | 334 kg of CO2e |
| Carbon emissions (Logistics) | 13 kg of CO2e |
| Carbon emissions (Use) | 41 kg of CO2e |
| Carbon emissions (End-of-Life) | 2 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 349 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Display response rise/fall | 35 ms |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel pitch | 0.1578 x 0.1578 mm |
| Pixel density | 161 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WVA |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor threads | 20 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Processor boost frequency | 5.2 GHz |
| Processor model | i7-13800H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera | Yes |
| Network | |
|---|---|
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 4 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Hall sensor | Yes |
| Ambient light sensor | Yes |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | German |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Bundled software | Windows System Driver |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 285 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 15.4 V |
| Battery capacity | 72 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging current | 6.5 A |
| USB charging voltage | 20,5 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Height (rear) | 1.11 cm |
| Height (front) | 7.49 mm |
| Depth | 210.3 mm |
| Width | 310.6 mm |
| Weight | 1.48 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 390 kg of CO2e |
| Total carbon emissions (Standard deviation) | 84 kg of CO2e |
| Carbon emissions (Manufacturing) | 334 kg of CO2e |
| Carbon emissions (Logistics) | 13 kg of CO2e |
| Carbon emissions (Use) | 41 kg of CO2e |
| Carbon emissions (End-of-Life) | 2 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 349 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
Intelligent performance. Outstanding user experience.
The world's smallest and most powerful 14" mobile workstation
Intelligent performance
Processor
Featuring the unique combined AI-engine of CPU, integrated Intel® Arc graphics GPU, and dedicated low-power AI engine NPU with Intel® AI Boost, and Intel vPro® options.
Graphics
Up to NVIDIA RTX™ 3000 Ada graphics, plus faster integrated Intel Arc graphics.
Scalable memory
Up to 64GB of 7467 MT/s, LPDDR5x dual channel memory.
Storage capabilities
1x M.2 2280 slot with PCIe Gen 4x4 support (up to 4TB).
Battery
Long battery life with 72 Whr long Life cycle option.
Connectivity
Flexible connectivity with WiFi 7 options.
Outstanding user experience
Experience
The 5490 is set with a large trackpad, dual array mics, four premium speakers, and optional Touch screen with Active Pen support.
Capture
HD IR camera complete with ambient light sensor and Windows Hello.
View
Expansive and stunning the 5490 has a 16:10 display with up to QHD+, 100% sRGB, 500nits brightness, and PremierColor. Complete with ComfortView Plus options to reduce blue light emissions.
Power to create your masterpieces
Built for work and design with creative applications like:Design - 2D, 3D CAD, Content creation Production, Photo, video and audio editing, Web Design, Graphic Design
AI at your fingertips
Next-level computing
Intel® Core™ Ultra processors enable AI-powered efficiency with AI accelerators within the world’s most intelligent commercial PCs featuring Intel® AI Boost, with vPro options and Copilot in Windows 11. Enjoy power-efficient performance for business workloads with this new CPU, GPU, and NPU three tier multi-processing architecture.
Time saver
Effortlessly jumpstart your workflow with the Copilot Hardware Key on your device, saving you time by providing quick access to the tools you need to start your workday.
AI-accelerated apps
Apps using AI run fast and smooth thanks to the dedicated NPU, so you can enjoy efficient Collaboration: Use up to 38% less power when using AI-enhanced collaboration tools during Zoom calls
Creativity
132% faster performance when running on-device AI photo editing on Adobe.
Security
Detect malware with less than 1% CPU utilisation using CrowdStrike.
Intelligent collaboration
Users enjoy smoother collaboration with AI-boosts that make Windows Studio Effects even better, with features like smart framing and noise suppression that don’t impact overall system performance.
Personalised performance
Dell Optimizer automatically responds to your workstyle with advance privacy features and built-in AI that optimises audio connectivity, productivity and configurability, all in one software.
Independent Software Vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly.
Security
Windows Hello Compatible IR camera recognises you, increasing privacy and productivity.Fingerprint reader Uses biometrics to log you in to Dell Safeguard and response.Detect and prevent cyber attacks Dell Safe Data Prevent data breaches.SecureWorks responds to security incidents with Safe-mute. Dell Peripheral manager intelligent mic muting and video disabling.
VR and AI Compatibility
VR and AI capabilities allow you to experience fully-immersive content. Powerful enough for gaming, education, entertainment, and exploring the digital world. Precision 5490 has next generation professional graphics and powerful performance normally found only in tower workstations.
Advancing sustainability
Designed with sustainable materials
This Precision workstation incorporates up to 35% post-consumer recycled plastic content in various components including the LCD bezel, cable covers and keyboard frame .
Elevated Standards
Meeting environmental standards demonstrates how our products adhere to energy-efficiency and other extensive climate-related standards. This workstation is certified ENERGY STAR ® 8.0, TCO certified Generation 9, and EPEAT Gold registered with Climate+ .
Innovative packaging
This workstation ships in packaging made with 100% recycled or renewable materials that is also 100% recyclable.
Dell APEX PC-as-a-Service
Accelerate anywhere work experiences with customisable plans to help you deploy, manage, support devices. Leverage both the built-in protections of our secure commercial PCs and software protections for advanced threats to help ensure a trusted workplace for a predictable price per month.
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel density | 161 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WVA |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 16 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor threads | 22 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Processor boost frequency | 4.8 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor model | 155H |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Neural processor unit (NPU) | |
|---|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| AI datatype support on NPU | FP16, FP32, Int8 |
| Windows Studio effects support | Yes |
| Sparsity support | Yes |
| Maximum frequency NPU | 1.4 GHz |
| Neural processor unit (NPU) | Intel AI Boost |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Memory data transfer rate | 7467 MT/s |
| Maximum internal memory | 16 GB |
| Memory form factor | On-board |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card family | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 1000 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 4 |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 4 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Hall sensor | Yes |
| Ambient light sensor | Yes |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office Licence Included - 30 day Trial Offer Only |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery weight | 285 g |
| Fast charging | Yes |
| Battery recharge time | 4 h |
| Battery voltage | 15.4 V |
| Battery capacity | 72 Wh |
| Number of battery cells | 4 |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, TCO |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height (rear) | 1.9 cm |
| Height (front) | 7.49 mm |
| Depth | 210.3 mm |
| Width | 310.6 mm |
| Weight | 1.49 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 115 |
| Carbon emissions (Manufacturing) | 87 |
| Carbon emissions (Logistics) | 6 |
| Carbon emissions (Use) | 20 |
| Carbon emissions (End-of-Life) | 2 |
| Total carbon emissions (w/o Use phase) | 95 |
| PAIA version | GaBi verison1 |
| Packaging content | |
|---|---|
| Cables included | AC |
Intelligent performance. Outstanding user experience.
The world's smallest and most powerful 14" mobile workstation
Intelligent performance
Processor
Featuring the unique combined AI-engine of CPU, integrated Intel® Arc graphics GPU, and dedicated low-power AI engine NPU with Intel® AI Boost, and Intel vPro® options.
Graphics
Up to NVIDIA RTX™ 3000 Ada graphics, plus faster integrated Intel Arc graphics.
Scalable memory
Up to 64GB of 7467 MT/s, LPDDR5x dual channel memory.
Storage capabilities
1x M.2 2280 slot with PCIe Gen 4x4 support (up to 4TB).
Battery
Long battery life with 72 Whr long Life cycle option.
Connectivity
Flexible connectivity with WiFi 7 options.
Outstanding user experience
Experience
The 5490 is set with a large trackpad, dual array mics, four premium speakers, and optional Touch screen with Active Pen support.
Capture
HD IR camera complete with ambient light sensor and Windows Hello.
View
Expansive and stunning the 5490 has a 16:10 display with up to QHD+, 100% sRGB, 500nits brightness, and PremierColor. Complete with ComfortView Plus options to reduce blue light emissions.
Power to create your masterpieces
Built for work and design with creative applications like:Design - 2D, 3D CAD, Content creation, Production, Photo, video and audio editing, Web Design, Graphic Design
AI at your fingertips
Next-level computing
Intel® Core™ Ultra processors enable AI-powered efficiency with AI accelerators within the world’s most intelligent commercial PCs featuring Intel® AI Boost, with vPro options and Copilot in Windows 11. Enjoy power-efficient performance for business workloads with this new CPU, GPU, and NPU three tier multi-processing architecture.
Time saver
Effortlessly jumpstart your workflow with the Copilot Hardware Key on your device, saving you time by providing quick access to the tools you need to start your workday.AI-accelerated apps: Apps using AI run fast and smooth thanks to the dedicated NPU, so you can enjoy efficient
Collaboration
Use up to 38% less power when using AI-enhanced collaboration tools during Zoom calls.
Creativity
132% faster performance when running on-device AI photo editing on Adobe.
Security
Detect malware with less than 1% CPU utilisation using CrowdStrike.
Intelligent collaboration
Users enjoy smoother collaboration with AI-boosts that make Windows Studio Effects even better, with features like smart framing and noise suppression that don’t impact overall system performance.
Personalised performance
Dell Optimizer automatically responds to your workstyle with advance privacy features and built-in AI that optimises audio connectivity, productivity and configurability, all in one software.
Independent Software Vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly .
Security
Windows Hello Compatible IR camera recognises you, increasing privacy and productivity.Fingerprint reader Uses biometrics to log you in to Dell Safeguard and response. Detect and prevent cyber attacks Dell Safe Data Prevent data breaches. SecureWorks responds to security incidents with Safe-mute. Dell Peripheral manager intelligent mic muting and video disabling.
VR and AI Compatibility
VR and AI capabilities allow you to experience fully-immersive content. Powerful enough for gaming, education, entertainment, and exploring the digital world. Precision 5490 has next generation professional graphics and powerful performance normally found only in tower workstations.
Advancing sustainability
Designed with sustainable materialsThis Precision workstation incorporates up to 35% post-consumer recycled plastic content in various components including the LCD bezel, cable covers and keyboard frame .Elevated StandardsMeeting environmental standards demonstrates how our products adhere to energy-efficiency and other extensive climate-related standards. This workstation is certified ENERGY STAR ® 8.0, TCO certified Generation 9, and EPEAT Gold registered with Climate+ .Innovative packagingThis workstation ships in packaging made with 100% recycled or renewable materials that is also 100% recyclable.
Dell APEX PC-as-a-Service
Accelerate anywhere work experiences with customisable plans to help you deploy, manage, support devices. Leverage both the built-in protections of our secure commercial PCs and software protections for advanced threats to help ensure a trusted workplace for a predictable price per month.
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Pixel density | 161 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WVA |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 35.6 cm (14") |
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 16 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor threads | 22 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Processor boost frequency | 5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor model | 165H |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Neural processor unit (NPU) | |
|---|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| AI datatype support on NPU | FP16, FP32, Int8 |
| Windows Studio effects support | Yes |
| Sparsity support | Yes |
| Maximum frequency NPU | 1.4 GHz |
| Neural processor unit (NPU) | Intel AI Boost |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Memory data transfer rate | 7467 MT/s |
| Maximum internal memory | 32 GB |
| Memory form factor | On-board |
| Internal memory type | LPDDR5x-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card family | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 4 |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera | Yes |
| Network | |
|---|---|
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 4 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Hall sensor | Yes |
| Ambient light sensor | Yes |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office Licence Included - 30 day Trial Offer Only |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery weight | 285 g |
| Fast charging | Yes |
| Battery recharge time | 4 h |
| Battery voltage | 15.4 V |
| Battery capacity | 72 Wh |
| Number of battery cells | 4 |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 130 W |
| Security | |
|---|---|
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, TCO |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height (rear) | 1.9 cm |
| Height (front) | 7.49 mm |
| Depth | 210.3 mm |
| Width | 310.6 mm |
| Weight | 1.49 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 115 |
| Carbon emissions (Manufacturing) | 87 |
| Carbon emissions (Logistics) | 6 |
| Carbon emissions (Use) | 20 |
| Carbon emissions (End-of-Life) | 2 |
| Total carbon emissions (w/o Use phase) | 95 |
| PAIA version | GaBi verison1 |
| Packaging content | |
|---|---|
| Cables included | AC |
Gateway to ultimate productivity 15" workstation with 4-sided InfinityEdge display, Dell Optimizer for Precision and up to 12th Gen Intel Core i9 and NVIDIA RTX A2000 graphics.
| Design | |
|---|---|
| Product type | Mobile workstation |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Intel vPro Platform Eligibility | Yes |
| Introduction year | 2022 |
| Display | |
| HD type | UHD+ |
| Pixel density | 290 ppi |
| Panel type | WLED |
| LED backlight | Yes |
| Display brightness | 500 cd/m� |
| Display response rise/fall | 60 ms |
| Pixel pitch | 0.09 x 0.09 mm |
| Contrast ratio (typical) | 1600:1 |
| Touchscreen | Yes |
| Display resolution | 3840 x 2400 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Maximum refresh rate | 60 Hz |
| RGB colour space | Adobe RGB |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Processor | |
| Processor generation | 12th gen Intel Core i7 |
| Configurable TDP-down | 35 W |
| Processor cache | 24 MB |
| Processor model | i7-12700H |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 14 |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe, PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC, SD, SDHC |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 8 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | NVIDIA RTX A2000 |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| Audio | |
| Audio chip | Realtek ALC3281 |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
| Front camera HD type | HD |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Thunderbolt 4 ports quantity | 2 |
| Intel Thunderbolt 4 | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Software | |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system installed | Windows 10 Pro |
| Windows 11 free upgrade | Yes |
| Technical details | |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Discrete graphics card memory | 8 GB |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel vPro Platform Eligibility | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity | 86 Wh |
| Battery recharge time | 3 h |
| Battery voltage | 11.4 V |
| Fast charging | Yes |
| Battery weight | 340 g |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 6.5 A |
| AC adapter output voltage | 20 V |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 �C |
| Storage temperature (T-T) | -40 - 65 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Weight & dimensions | |
| Width | 344.4 mm |
| Depth | 230.1 mm |
| Height (front) | 1.85 cm |
| Height (rear) | 1.17 cm |
| Weight | 2.1 kg |
| Packaging data | |
| Cables included | AC |
| Other features | |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| On-board graphics card | Yes |
| Harmonized System (HS) code | 84713000 |
| Packaging content | |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
Gateway to ultimate productivity 15" workstation with 4-sided InfinityEdge display, Dell Optimizer for Precision and up to 12th Gen Intel Core i7 and NVIDIA RTX A2000 graphics.
| Design | |
|---|---|
| Product type | Mobile workstation |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Intel vPro Platform Eligibility | Yes |
| Introduction year | 2022 |
| Display | |
| HD type | UHD+ |
| Pixel density | 290 ppi |
| Panel type | WLED |
| LED backlight | Yes |
| Display brightness | 500 cd/m� |
| Display response rise/fall | 60 ms |
| Pixel pitch | 0.09 x 0.09 mm |
| Contrast ratio (typical) | 1600:1 |
| Touchscreen | Yes |
| Display resolution | 3840 x 2400 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Maximum refresh rate | 60 Hz |
| RGB colour space | Adobe RGB |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Processor | |
| Processor generation | 12th gen Intel Core i7 |
| Configurable TDP-down | 35 W |
| Processor cache | 24 MB |
| Processor model | i7-12800H |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 14 |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe, PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC, SD, SDHC |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 8 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | NVIDIA RTX A2000 |
| Discrete graphics memory type | GDDR6 |
| Discrete GPU manufacturer | NVIDIA |
| Audio | |
| Audio chip | Realtek ALC3281 |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
| Front camera HD type | HD |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Thunderbolt 4 ports quantity | 2 |
| Intel Thunderbolt 4 | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Software | |
| Operating system language | German, English, French, Italian |
| Operating system architecture | 64-bit |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system installed | Windows 10 Pro |
| Windows 11 free upgrade | Yes |
| Technical details | |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Discrete graphics card memory | 8 GB |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel vPro Platform Eligibility | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity | 86 Wh |
| Battery recharge time | 3 h |
| Battery voltage | 11.4 V |
| Fast charging | Yes |
| Battery weight | 340 g |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 6.5 A |
| AC adapter output voltage | 20 V |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 �C |
| Storage temperature (T-T) | -40 - 65 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Weight & dimensions | |
| Width | 344.4 mm |
| Depth | 230.1 mm |
| Height (front) | 1.85 cm |
| Height (rear) | 1.17 cm |
| Weight | 2.1 kg |
| Packaging data | |
| Cables included | AC |
| Other features | |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| On-board graphics card | Yes |
| Harmonized System (HS) code | 84713000 |
| Packaging content | |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
16-inch premium workstation for users who want high performance and a large display in a thin & light chassis. Featuring FHD-IR camera, haptics trackpad, and 4 ‘Grade A’ speakers.
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Market positioning | Business |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Titan Gray |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1300:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Pixel density | 142 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WLED |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Performance-core boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 8 W |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 0.9 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Keyboard | |
|---|---|
| Keyboard number of keys | 80 |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | Trackpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 363 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 11.55 V |
| Battery capacity | 99.5 Wh |
| Number of battery cells | 6 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 165 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.62 cm |
| Height (front) | 2.62 cm |
| Depth | 240.3 mm |
| Width | 353.7 mm |
| Weight | 1.91 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 475 kg of CO2e |
| Total carbon emissions (Standard deviation) | 92 kg of CO2e |
| Carbon emissions (Manufacturing) | 398 kg of CO2e |
| Carbon emissions (Logistics) | 25 kg of CO2e |
| Carbon emissions (Use) | 49 kg of CO2e |
| Carbon emissions (End-of-Life) | 3 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 426 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
16-inch premium workstation for users who want high performance and a large display in a thin & light chassis. Featuring FHD-IR camera, haptics trackpad, and 4 ‘Grade A’ speakers.
| Design | |
|---|---|
| Market positioning | Business |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Titan Gray |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1300:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Pixel density | 142 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WLED |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Performance-core boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 3500 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 8 W |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 0.9 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Keyboard | |
|---|---|
| Keyboard number of keys | 80 |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | Trackpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 363 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 11.55 V |
| Battery capacity | 99.5 Wh |
| Number of battery cells | 6 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 165 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.62 cm |
| Height (front) | 2.62 cm |
| Depth | 240.3 mm |
| Width | 353.7 mm |
| Weight | 1.91 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 475 kg of CO2e |
| Total carbon emissions (Standard deviation) | 92 kg of CO2e |
| Carbon emissions (Manufacturing) | 398 kg of CO2e |
| Carbon emissions (Logistics) | 25 kg of CO2e |
| Carbon emissions (Use) | 49 kg of CO2e |
| Carbon emissions (End-of-Life) | 3 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 426 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Market positioning | Business |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Titan Gray |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1300:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Pixel density | 142 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WLED |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Performance-core boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 3500 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 8 W |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 0.9 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Keyboard | |
|---|---|
| Keyboard number of keys | 80 |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | German |
| Pointing device | Trackpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 363 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 11.55 V |
| Battery capacity | 99.5 Wh |
| Number of battery cells | 6 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 165 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.62 cm |
| Height (front) | 2.62 cm |
| Depth | 240.3 mm |
| Width | 353.7 mm |
| Weight | 1.91 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 475 kg of CO2e |
| Total carbon emissions (Standard deviation) | 92 kg of CO2e |
| Carbon emissions (Manufacturing) | 398 kg of CO2e |
| Carbon emissions (Logistics) | 25 kg of CO2e |
| Carbon emissions (Use) | 49 kg of CO2e |
| Carbon emissions (End-of-Life) | 3 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 426 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
16-inch premium workstation for users who want high performance and a large display in a thin & light chassis. Featuring FHD-IR camera, haptics trackpad, and 4 ‘Grade A’ speakers.
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Market positioning | Business |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Titan Gray |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1300:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Pixel density | 142 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WLED |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Performance-core boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 8 W |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 0.9 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Keyboard | |
|---|---|
| Keyboard number of keys | 80 |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | Trackpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 363 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 11.55 V |
| Battery capacity | 99.5 Wh |
| Number of battery cells | 6 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 165 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.62 cm |
| Height (front) | 2.62 cm |
| Depth | 240.3 mm |
| Width | 353.7 mm |
| Weight | 1.91 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 475 kg of CO2e |
| Total carbon emissions (Standard deviation) | 92 kg of CO2e |
| Carbon emissions (Manufacturing) | 398 kg of CO2e |
| Carbon emissions (Logistics) | 25 kg of CO2e |
| Carbon emissions (Use) | 49 kg of CO2e |
| Carbon emissions (End-of-Life) | 3 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 426 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Market positioning | Business |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Titan Gray |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 1300:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Pixel density | 142 ppi |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | WLED |
| HD type | Full HD+ |
| Touchscreen | No |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Performance-core boost frequency | 5 GHz |
| Processor model | i7-13700H |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 8 W |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 0.9 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Keyboard | |
|---|---|
| Keyboard number of keys | 80 |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | German |
| Pointing device | Trackpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 363 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 11.55 V |
| Battery capacity | 99.5 Wh |
| Number of battery cells | 6 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 165 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.62 cm |
| Height (front) | 2.62 cm |
| Depth | 240.3 mm |
| Width | 353.7 mm |
| Weight | 1.91 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 475 kg of CO2e |
| Total carbon emissions (Standard deviation) | 92 kg of CO2e |
| Carbon emissions (Manufacturing) | 398 kg of CO2e |
| Carbon emissions (Logistics) | 25 kg of CO2e |
| Carbon emissions (Use) | 49 kg of CO2e |
| Carbon emissions (End-of-Life) | 3 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 426 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
16-inch premium workstation for users who want high performance and a large display in a thin & light chassis. Featuring FHD-IR camera, haptics trackpad, and 4 ‘Grade A’ speakers.
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Market positioning | Business |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Colour name | Titan Gray |
| Product colour | Grey |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Contrast ratio (typical) | 100000:1 |
| Maximum refresh rate | 60 Hz |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Pixel density | 283 ppi |
| Display brightness | 400 cd/m² |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | OLED |
| HD type | WQUXGA |
| Touchscreen | Yes |
| Display resolution | 3840 x 2400 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 5.4 GHz |
| Efficient-core boost frequency | 4.1 GHz |
| Performance-core boost frequency | 5.4 GHz |
| Processor model | i9-13900H |
| Processor generation | 13th gen Intel® Core™ i9 |
| Processor family | Intel® Core™ i9 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
| Internal memory type | LPDDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 40 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX 3500 Ada |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 8 W |
| Number of built-in speakers | 4 |
| Audio chip | Realtek ALC711-VD |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 0.9 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Performance | |
|---|---|
| Accelerometer | Yes |
| Keyboard | |
|---|---|
| Keyboard number of keys | 80 |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | Trackpad |
| Software | |
|---|---|
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Battery | |
|---|---|
| Battery weight | 363 g |
| Fast charging | Yes |
| Battery recharge time | 3 h |
| Battery voltage | 11.55 V |
| Battery capacity | 99.5 Wh |
| Number of battery cells | 6 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 165 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 - 10668 m |
| Operating altitude | -15.2 - 3048 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.62 cm |
| Height (front) | 2.62 cm |
| Depth | 240.3 mm |
| Width | 353.7 mm |
| Weight | 1.91 kg |
| General | |
|---|---|
| Product Family | Precision |
| Product Series | 5000 |
| Carbon footprint | |
|---|---|
| Total carbon footprint | 475 kg of CO2e |
| Total carbon emissions (Standard deviation) | 92 kg of CO2e |
| Carbon emissions (Manufacturing) | 398 kg of CO2e |
| Carbon emissions (Logistics) | 25 kg of CO2e |
| Carbon emissions (Use) | 49 kg of CO2e |
| Carbon emissions (End-of-Life) | 3 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 426 kg of CO2e |
| PAIA version | 1.3.2 |
| Packaging content | |
|---|---|
| Cables included | AC |
