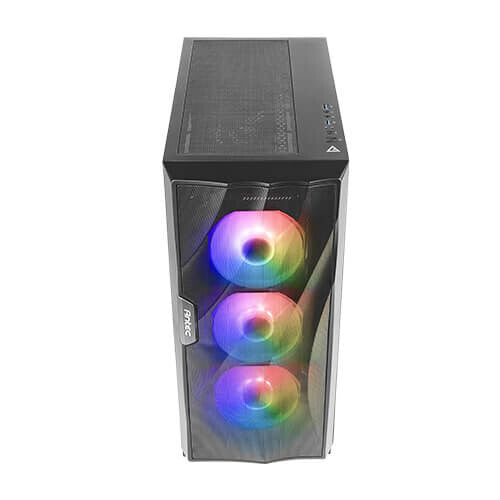

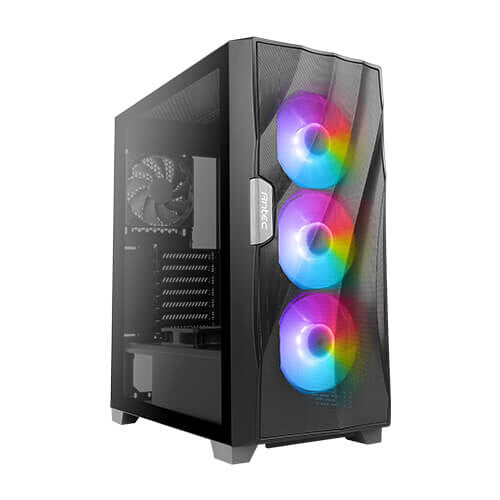

The DF700 FLUX mid-tower gaming case is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark League gaming cases to the next generation.
Why the New Cooling Solution?
When Intel and AMD announced their latest CPUs, they all deliver remarkable performance upgrades and better productivity, it also means the functional requirement of PC equipment needs to be taken to the next level, especially the thermal performance.
To cope with the stress of enhanced heat dissipation, Antec developed a revolutionary structure for airflow, providing an improved and powerful cooling solution for your system. The F-LUX Platform.
F-LUX Platform - Antec's Original Cooling Solution
What is the F-LUX Platform? The definition of FLUX is Flow Luxury. The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow combined with 5 x 120 mm fans included. A core element of the design ethos was to enhance GPU cooling performance.
Color Your System by Built-in LED Controller
You only need the LED mode button to control all the addressable LEDs.
Or you can sync it with the motherboard to enjoy more custom light effects.
Go with the Flow
The front panel is designed by adopting a three-dimensional wave-shaped mesh, presenting a smoothly minimalist looking. With massive ventilation in the front, the DF700 FLUX can easily project attractive light effects and enhance the cooling.
| Design | |
|---|---|
| Maximum PSU length | 20.5 cm |
| Maximum graphics card length | 40.5 cm |
| Maximum CPU cooler height | 17.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| RGB control button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Front |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of internal 3.5" bays | 3 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 3 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,240,280,360 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 7.4 kg |
| Height | 486 mm |
| Depth | 467 mm |
| Width | 220 mm |
| Packaging data | |
|---|---|
| LED controller | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
The brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoECO Gold Modular can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps allow your system has more stable performance. The CircuitShield™ design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Gold Modular series will be the ideal choice for professional modders and PC gamers.
Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count on.
PhaseWave LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
100% Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
| Power | |
|---|---|
| Power protection features | Over power, Over voltage, Overcharge, Short circuit, Under voltage |
| Efficiency | 92% |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 100 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 10 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of SATA power connectors | 8 |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Certification | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
| Silent mode | Yes |
| ATX version | 2.4 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| General | |
|---|---|
| Product Family | Neo ECO Modular |
| Packaging content | |
|---|---|
| Cables included | PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Weight | 1.37 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.53 kg |
| Technical details | |
|---|---|
| Warranty period | 7 year(s) |
Introducing our NE1000G M White ATX 3.0 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.0 and high-quality JP capacitors, unparalleled stability, and 80 PLUS® Gold-certified efficiencies, you can expect peak performance from your system. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The NE1000G M White ATX 3.0 is the perfect choice for building a reliable and efficient PC system for gamers and professionals alike.
ATX 3.0 & PCIe 5.0 Compatible
Our new NEG M ATX 3.0 Series power supplies meet the high standards of the ATX 3.0 standard for reliability and power efficiency, which are formally certified for ATX 3.0 compliance, ensuring the utmost level of quality and performance. The included PCIe 5.0 12VHPWR GPU cable enables seamless compatibility with modern graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.
High-Quality JP Capacitors
Equipped with high-quality JP capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.
PhaseWave Design
Introducing our PhaseWave™ Design, a server-classLLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system.
CircuitShield
The full suite of industrial-grade protections ensuring the safety and reliability of your power supply in any situation.
Zero RPM Manager
With the Zero RPM fan mode, our PSU ensures a longer lifespan and quieter operation. The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels.
120mm FDB Silent Fan
The whisper-quiet, 120mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.
Full Modular Cable Management
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.
Compact Size
Compared to typical power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 150 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 83 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 996 W |
| Combined power (+3.3V) | 120 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 12 - 6 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 67.5 cm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 120,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 120,450 mm |
| Number of SATA power connectors | 12 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Bearing technology | FDB |
| Silent mode | Yes |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | White |
| General | |
|---|---|
| Product Family | Neo ECO Modular |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Weight | 1.64 kg |
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 4.66 kg |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | BSMI, CB, CE, Federal Communications Commission (FCC), ICES, KC, TUV, UKCA, cTUVus |
| Design | |
|---|---|
| On/off button | Yes |
| Reset button | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Product colour | Black, Grey |
| Material | Plastic, SGCC |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Front radiator sizes supported | 240 mm |
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120 mm |
| Number of front fans supported (max) | 2 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 3.41 kg |
| Height | 462 mm |
| Depth | 430 mm |
| Width | 190 mm |
| Packaging data | |
|---|---|
| Package weight | 4.2 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |

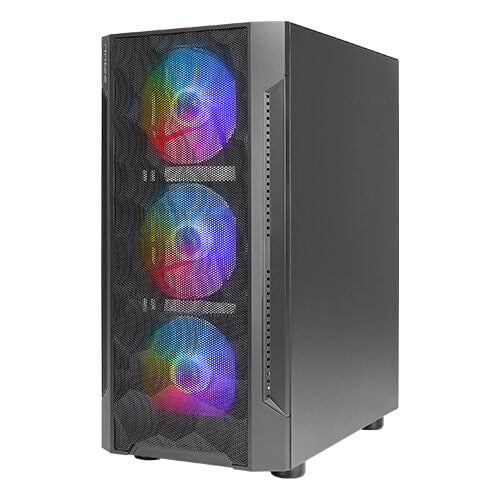

Creation of Value & Function

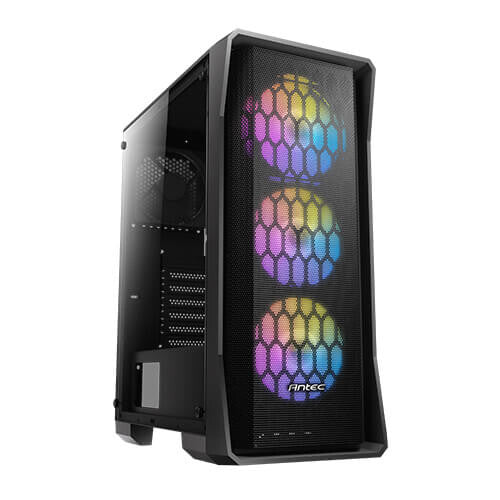

The NX260 mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes 3 x 120mm ARGB fans in front. With support for up to a 360 mm liquid cooling radiator in front, NX260 is easy to build with and easy to cool.
LED Control Button
Just a single press to change the front panel’s ARGB lighting effect at will
| Design | |
|---|---|
| Maximum PSU length | 31 cm |
| Maximum graphics card length | 31 cm |
| Maximum CPU cooler height | 16 cm |
| On/off button | Yes |
| Reset button | Yes |
| RGB control button | Yes |
| Anti-dust filter | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Product colour | Black |
| Material | Plastic, SPCC |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 4.3 kg |
| Height | 448 mm |
| Depth | 379 mm |
| Width | 215 mm |
| Packaging data | |
|---|---|
| Package weight | 5.2 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |

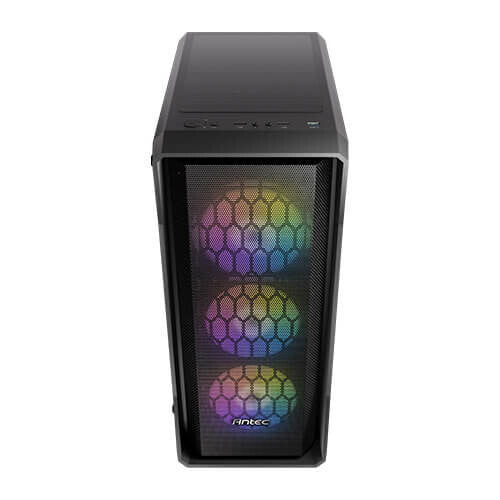

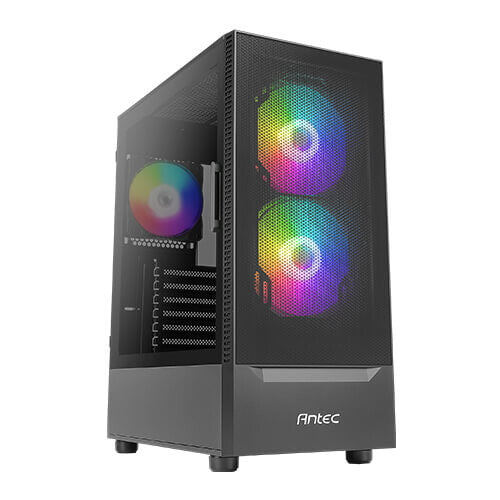

Powerful Heat Dissipation
The NX360 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 6 x 120mm fans can be installed simultaneously.
Polygon-Shaped Frames with Massive Mesh Front Panel
The polygon-shaped frames with the ARGB lighting present special aesthetics and ensure cooling performance and less collection of dust.
High-Airflow Front Panel
Large-area mesh front panel for massive airflow.
Neat Build within Reach
20 mm space for cable management ensures your PC build looks neat.
| Design | |
|---|---|
| Maximum PSU length | 18 cm |
| Maximum graphics card length | 29 cm |
| Maximum CPU cooler height | 16 cm |
| On/off button | Yes |
| Reset button | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 1 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Product colour | Black |
| Material | ABS, Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 4.72 kg |
| Height | 472 mm |
| Depth | 378 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 5.63 kg |
Creation of Value & Function
The NX410 Black/White mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes one ARGB LED fans in both front and rear. With support for up to a 360 mm liquid cooling radiator in front and 280 mm on top, NX410 Black/White is easy to build with and easy to cool.
LED Control Button
Just a single press to change the front panel’s ARGB lighting effect at will.
Supports up to 6 fans
| Design | |
|---|---|
| Maximum PSU length | 16.5 cm |
| Maximum graphics card length | 33.5 cm |
| Maximum CPU cooler height | 16.8 cm |
| On/off button | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of internal 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Product colour | Grey |
| Material | ABS, SPCC |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240,280 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,240,280,360 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 5.1 kg |
| Height | 485 mm |
| Depth | 390 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 6.3 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Creation of Value & Function
The NX410 Black/White mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes one ARGB LED fans in both front and rear. With support for up to a 360 mm liquid cooling radiator in front and 280 mm on top, NX410 Black/White is easy to build with and easy to cool.
LED Control Button
Just a single press to change the front panel’s ARGB lighting effect at will.
Supports up to 6 fans
| Design | |
|---|---|
| Maximum PSU length | 16.5 cm |
| Maximum graphics card length | 33.5 cm |
| Maximum CPU cooler height | 16.8 cm |
| On/off button | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of internal 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Product colour | White |
| Material | ABS, SPCC |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240,280 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,240,280,360 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 5.1 kg |
| Height | 485 mm |
| Depth | 390 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 6.3 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Unique Design &
Powerful Heat
Dissipation

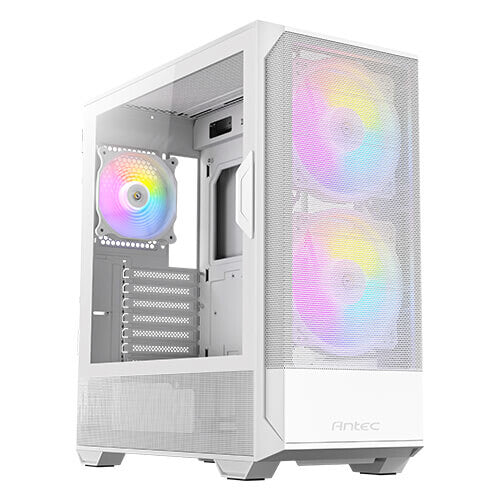

The NX416L features a unique design and excellent cooling performance. The mesh around the case and the fans on the PSU shroud create the possibility for a better heat dissipation of the graphics card.
11 x 120mm fans can be installed simultaneously.

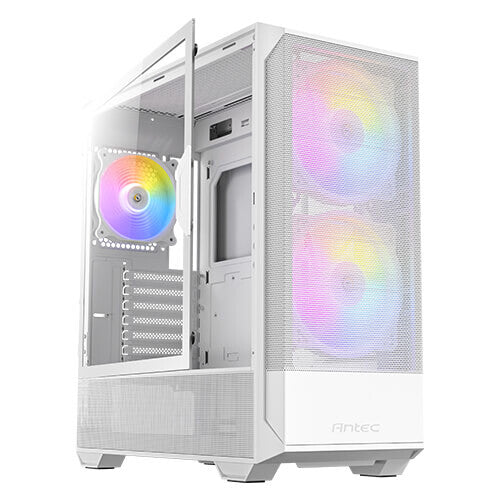

High-Airflow mesh front
panel with 2 pre-installed
160mm ARGB Fans
2 pre-installed 160mm ARGB fans and the vast of mesh ensure massive airflow and maximum cooling performance without giving into dust prevention.
Swing-Opening Tempered Glass Side Panel
The swing-opening left panel made of tempered glass makes interior components easy to access, more convenient for installation and cleaning.
Powerful Cooling
Install a 240mm radiator with decorative storage panel removed.
Optimized
Storage Panel
Install two 2.5" SSD in the decorative panel beside the MB area.
Build-in LED &
PWM Fan Controller
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.
| Design | |
|---|---|
| Maximum PSU length | 24 cm |
| Maximum graphics card length | 41.5 cm |
| Maximum CPU cooler height | 16.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| RGB control button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Back, Case fans, Front, Top |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Product colour | White |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, ITX, MicroATX |
| Power supply location | Rear |
| Number of power supply units | 1 |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity | 1 |
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Side radiator sizes supported | 120,240 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Liquid cooling capability | Yes |
| Suitable location | Computer case |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Side fans diameters supported | 120 mm |
| Number of side fans supported (max) | 2 |
| Front fans diameters supported | 120,140,160 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 160 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 3.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 6.4 kg |
| Height | 486 mm |
| Depth | 471 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| LED controller | Yes |
Unique Design & Powerful Heat Dissipation
The NX500M features a unique design and excellent cooling performance. The half-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 6 x 120mm fans can be installed simultaneously.
Sleek Design with Massive Air Intake
The sleek and elegant exterior design provides ample airflow to your system for maximum cooling while ensuring minimal dust intake. The panel comes equipped with a Type-C port for added convenience in use.
Powerful Cooling
Supports a 360mm (Length ≤ 397mm) Radiator at the front and a 240mm radiator at the top.
Powerful Fan Compatibility
Supports 3 x 120mm fans at the front.
High-Airflow Mesh Front Panel
Massive air intake at the front provides ample airflow.
I/O Panel
Power, Reset, Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO
Neat Build within Reach
20 mm space for cable management ensures your PC build looks neat.
Tempered Glass Side Panel
Showcase your personalized hardware and custom water-cooling system.
Up to 6 x 120mm Fans Simultaneously
Unlimited Performance
Max. GPU Length : 320 mm (Fans are installed at the exterior)
Removable HDD Drive Cage
The HDD drive cage is removable to increase PSU installation space. With the drive cage installed, the PSU compartment can accommodate PSUs up to 165mm in length. With the drive cage removed, the PSU compartment can accommodate PSUs up to 325mm in length.
| Design | |
|---|---|
| Maximum PSU length | 32.5 cm |
| Maximum graphics card length | 32 cm |
| Maximum CPU cooler height | 15.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 5 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ITX, micro ATX |
| Product colour | Black |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Mini Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 3.7 kg |
| Height | 451 mm |
| Depth | 483 mm |
| Width | 200 mm |
| Packaging data | |
|---|---|
| Package weight | 4.45 kg |
Unique Design &
Powerful Heat
Dissipation
The NX500M features a unique design and excellent cooling performance. The half-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 6 x 120mm fans can be installed simultaneously.
Powerful Cooling
Supports a 360mm (Length ≤ 397mm) Radiator at the front and a 240mm radiator at the top.
Removable HDD
Drive Cage
The HDD drive cage is removable to increase PSU installation space. With the drive cage installed, the PSU compartment can accommodate PSUs up to 165mm in length. With the drive cage removed, the PSU compartment can accommodate PSUs up to 325mm in length.
| Design | |
|---|---|
| Maximum PSU length | 32.5 cm |
| Maximum graphics card length | 32 cm |
| Maximum CPU cooler height | 15.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans, Front, Top |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 5 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ITX, micro ATX |
| Product colour | Black |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply location | Rear |
| Number of power supply units | 1 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity | 1 |
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 4 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 5 |
| Storage | |
|---|---|
| Number of HDDs supported | 2 |
| SSD form factor | 2.5" |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 3.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 3.7 kg |
| Height | 451 mm |
| Depth | 384 mm |
| Width | 200 mm |
| Packaging data | |
|---|---|
| Package weight | 4.45 kg |

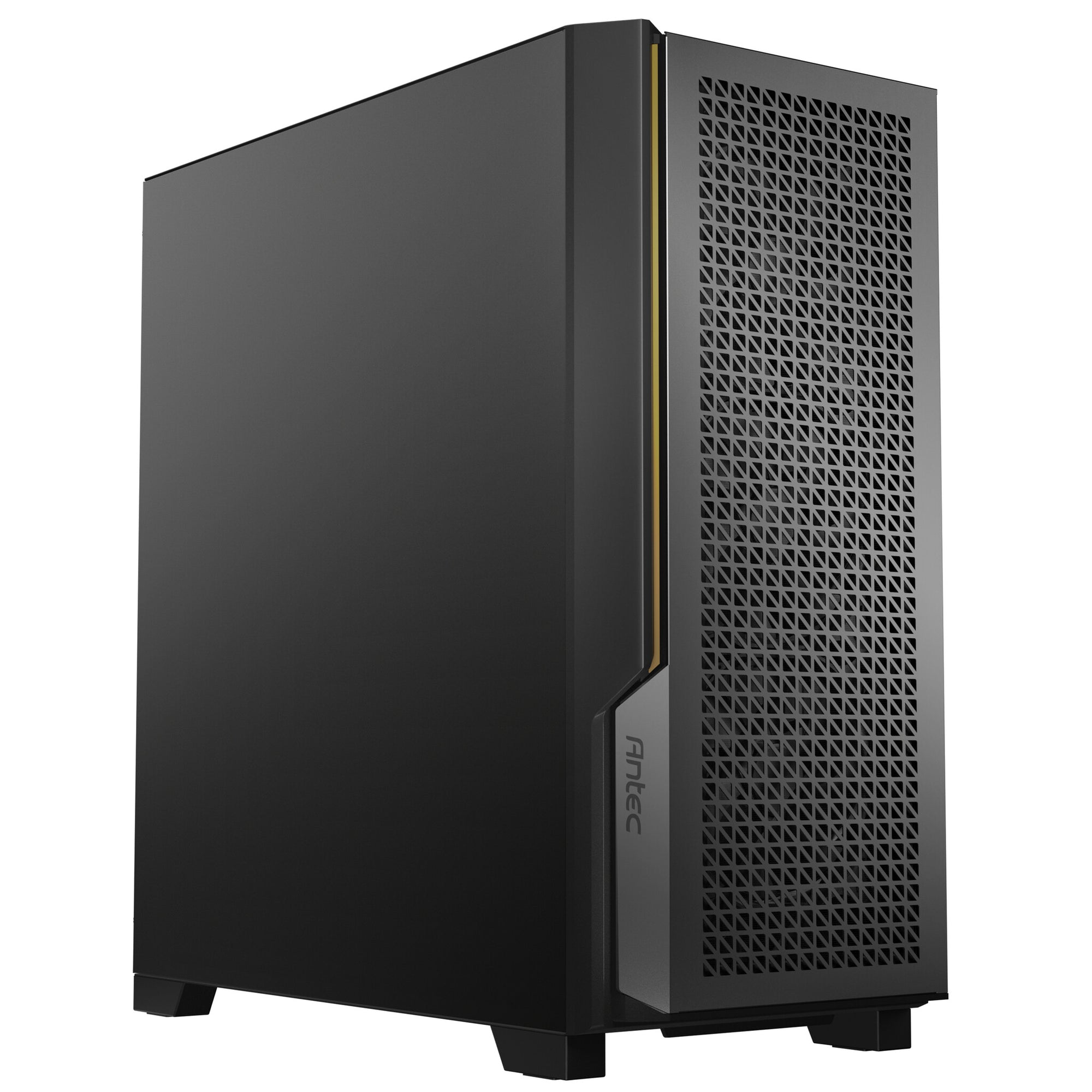

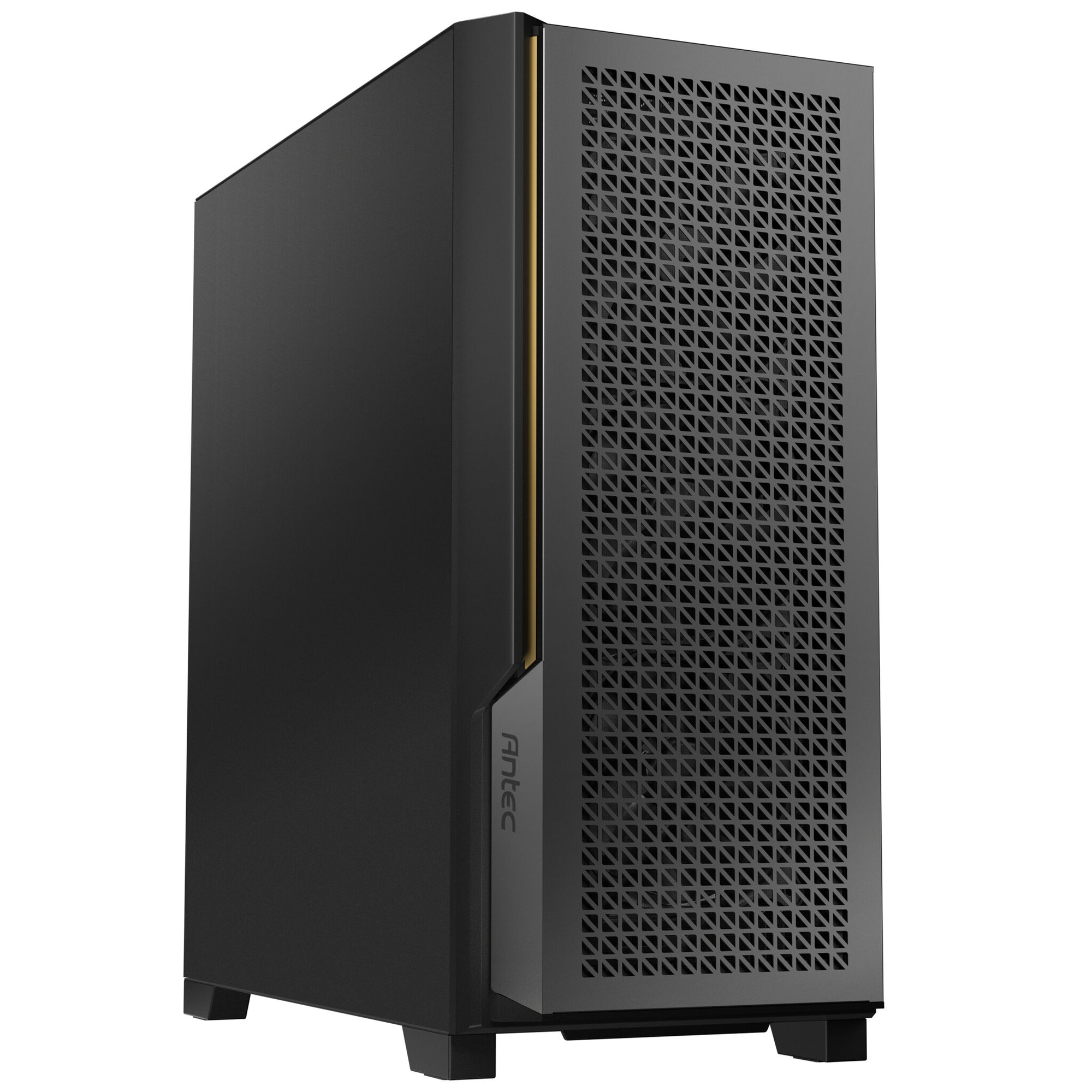

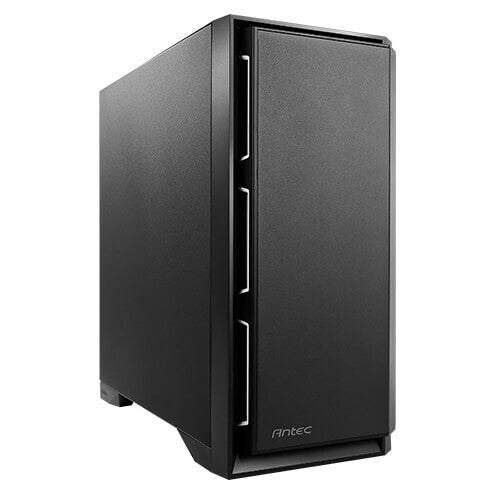

Functionality and sleek minimalism blend seamlessly in the P101 Silent, a mid-tower ATX case with a well-crafted exterior and a practical internal configuration.
The P101 Silent ATX case is engineered to satisfy both performance and silence seekers while ensuring a great building experience-worthy of high-end hardware configurations.
| Design | |
|---|---|
| Maximum PSU length | 29 cm |
| Maximum graphics card length | 45 cm |
| Maximum CPU cooler height | 18 cm |
| Anti-dust filter | Yes |
| Side window | No |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 8 |
| Number of 5.25" bays | 1 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX |
| Product colour | Black |
| Material | Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 140 mm |
| Front radiator sizes supported | 360 mm |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25" |
| Weight & dimensions | |
|---|---|
| Material thickness | 0.8 mm |
| Weight | 11.8 kg |
| Height | 506 mm |
| Depth | 527 mm |
| Width | 232 mm |
| Packaging data | |
|---|---|
| Package weight | 13.2 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
All about Silence
With sound-dampening foam on the front door, sides and top, P10C ensures you the absolute silence.
Antec's Advanced Ventilation
The P10C features an industry-leading ventilation for excellent airflow and 4 x 120 mm silent fans included. The advanced ventilation will provide massive airflow, enhancing the heat dissipation and performance.
All-Round Directed Airflow
With the air-concentrating front filter, P10C pulls in the air from all directions and enhances cooling.
More for Workspace and Education
The 5.25" ODD support is your portal to a world of advanced workspace and education. It's time to have better storage by using the ultra-HD Blu-ray.
Choose Your Side
P10C features a reversible and swing-open front panel design. You can choose to install the front panel on either side according to your dominant hand or PC setup environment.
| Design | |
|---|---|
| Maximum PSU length | 20.5 cm |
| Maximum graphics card length | 40.5 cm |
| Maximum CPU cooler height | 17.5 cm |
| Anti-dust filter | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 1 |
| Supported motherboard form factors | ATX, ITX, Mini-ATX |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,240,280,360 mm |
| Rear fans installed | 1x 120 mm |
| Front fans installed | 3x 120 mm, 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25" |
| Weight & dimensions | |
|---|---|
| Weight | 7.7 kg |
| Height | 486 mm |
| Depth | 477 mm |
| Width | 220 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |

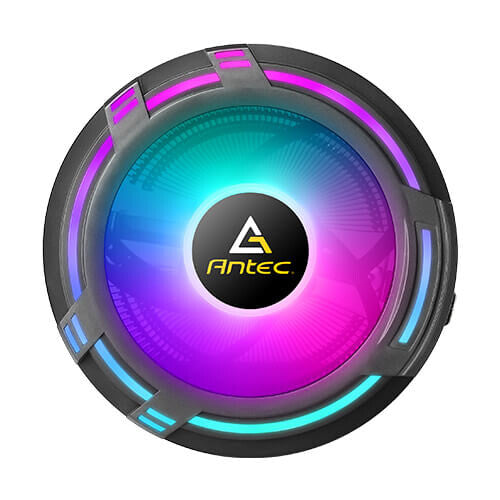

Superior Heat Dissipation
9-blade design provides efficient ventilation and powerful airflow, ensuring the fan maintains extremely efficient cooling level even as air resistance increases.
Bright ARGB
Full-spectrum ARGB lighting delivers distinctive visions to meet every need of gamers.
PWM Fan
From low noise to high performance, tune your perfect fan curve between 240 - 1350 RPM.
Quiet operation
8 anti-vibration rubber pads and hydro bearing help the fan run quietly.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Rotational speed (min) | 240 RPM |
| Rotational speed (max) | 1350 RPM |
| Bearing type | Hydraulic |
| Type | Fan |
| Fan diameter | 14 cm |
| Minimum airflow (imperial) | 66.25 cfm |
| Maximum airflow | 73.61 cfm |
| Minimum air pressure | 1.3 mmH2O |
| Maximum air pressure | 1.6 mmH2O |
| Quantity per pack | 1 pc(s) |
| Fan noise level (min) | 14.2 dB |
| Fan noise level (max) | 29.9 dB |
| Fan's mean time to failure (MTTF) | 30000 h |
| Design | |
| Fan connector | 4-pin |
| Product colour | Black |
| LED connector type | 3-pin |
| Technical details | |
| Type | Fan |
| Fan diameter | 14 cm |
| Minimum airflow (imperial) | 66.25 cfm |
| Maximum airflow | 73.61 cfm |
| Minimum air pressure | 1.3 mmH2O |
| Maximum air pressure | 1.6 mmH2O |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Voltage | 7 - 13.8 V |
| Rated current | 0.08 A |
| Maximum current | 0.18 A |
| LED voltage | 5 V |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 25 mm |
| Height | 140 mm |
| Other features | |
| LED voltage | 5 V |
| Design | |
|---|---|
| Maximum PSU length | 41 cm |
| Maximum graphics card length | 37.5 cm |
| Maximum CPU cooler height | 17 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Suitable for | Gaming |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX |
| Product colour | Black |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Front radiator sizes supported | 360 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 5 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140,185 mm |
| Number of front fans supported (max) | 8 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 8.1 kg |
| Height | 490 mm |
| Depth | 469 mm |
| Width | 220 mm |
| Packaging data | |
|---|---|
| Package weight | 93.2 kg |

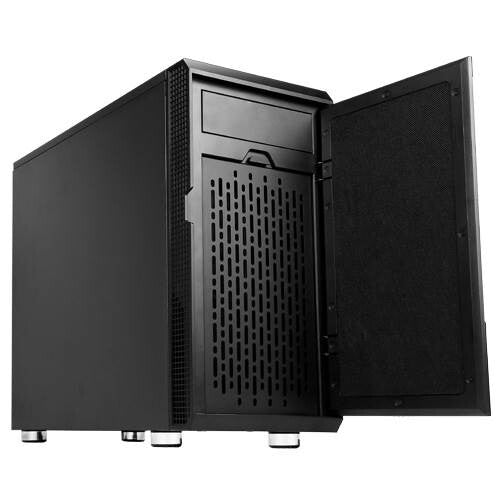

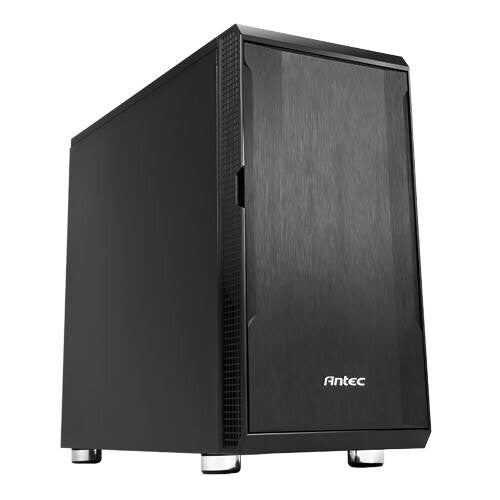

The P5 micro-ATX case is engineered to ensure an easy building experience - capable of supporting your high end PC components and your ideal hardware configurations without breaking the bank.
Front panel with a brushed metallic effect
The hinged front panel and side panels are lined with advanced, sound-absorbing bitumen and noise-insulating foam, so performance and silence are in perfect balance.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 36 cm |
| Maximum CPU cooler height | 15.5 cm |
| LED indicators | Power |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Suitable for | Home/Office |
| Side window | No |
| Number of expansion slots | 4 |
| Number of internal 5.25" bays | 1 |
| Number of internal 3.5" bays | 2 |
| Number of 2.5" bays | 6 |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 1 |
| Supported motherboard form factors | ITX, micro ATX |
| Product colour | Black |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Micro Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Liquid cooling capability | Yes |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 2 |
| Front fans installed | 1x 140 mm |
| Storage | |
|---|---|
| Number of HDDs supported | 2 |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 6.5 kg |
| Height | 395 mm |
| Depth | 475 mm |
| Width | 195 mm |
| Packaging data | |
|---|---|
| Package weight | 7.2 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Side panels feature sound dampening material to block noise.
The front panel can be disassembled independently, for a neat and simple building experience.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 39 cm |
| Maximum CPU cooler height | 16.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Side window | No |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 1 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Plastic, SGCC |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 280 mm |
| Cooling | Yes |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 2 |
| Front fans installed | 1x 120 mm |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 5.85 kg |
| Height | 470 mm |
| Depth | 445 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 6.61 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Outstanding Cooling and High Compatibility.
| Design | |
|---|---|
| Maximum graphics card length | 40 cm |
| Maximum CPU cooler height | 17.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | EATX |
| Product colour | Black |
| Type | PC |
| Form factor | Full Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Front radiator sizes supported | 420 mm |
| Rear fans installed | 1x 120 mm |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Height | 522 mm |
| Depth | 522 mm |
| Width | 230 mm |
Temperature Display
By pressing the switch button on the I/O panel, users can glance at the temperature of the CPU and GPU on the temperature display.
The temperature display can be switched from CPU temperature to GPU temperature or turned off via the switch button.
Attention: The Antec iUnity software must be installed.
4mm Tempered Glass Side Panel
Both side panels adopt tempered glass for better PC showcase visual effects.
Cable Management on Point
2 cable covers are included for beautifying the cable management area.
Storm T3 PWM Fan
3 x Storm T3 140mm PWM Fans at the Front.
1 x Storm T3 120mm PWM Fan at the Rear.
Storm T3 PWM Fan
The Storm T3 Fan of 30mm thickness comes with thicker and longer fan blades, efficiently increasing the air intake.
The PWM function easily reaches the balance between cooling and silence.
Exquisite Steel Mesh
The mesh front panel adopts the 1.2mm vent holes and the magnetic & clip-on design with easy access.
SHOP NOW
OVERVIEW SPECS GALLERY DOWNLOAD

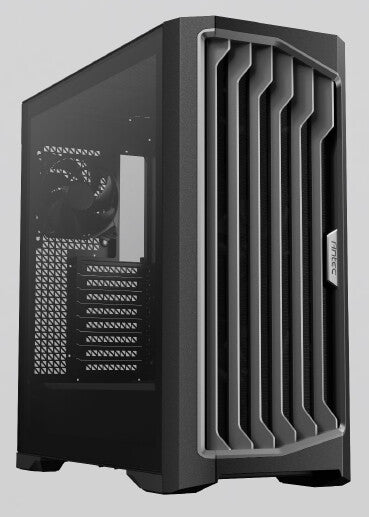

Performance 1 FT
E-ATX HIGHLY COMPATIBLE PC CASE
SYSTEM STATUS WITH A GLANCE
Temperature Display
By pressing the switch button on the I/O panel, users can glance at the temperature of the CPU and GPU on the temperature display.
The temperature display can be switched from CPU temperature to GPU temperature or turned off via the switch button.
Attention: The Antec iUnity software must be installed.
ANTEC iUnity
The Antec iUnity provides instant data on PC specs, loads, and usage.
Download
I/O Panel
Including the mainstream Type-C(10Gbps) port for high-speed transfer
Included dust plugs for dust prevention.
Mic/Audio 2-in-1 port.
PC SHOWCASE
4mm Tempered Glass Side Panel
Both side panels adopt tempered glass for better PC showcase visual effects.
EVERYTHING ORGANIZED
Cable Management on Point
2 cable covers are included for beautifying the cable management area.
There are ten sets of velcro straps for easy cable management.
1
Three sets of velcro straps for fan & I/O cable routing.
2
Five velcro straps for hardware and power supply cables.
3
Two velcro straps at the rear for rear I/O cable routing.
Easy Installation
Removable Top Cooling Bracket.
PRE-INSTALLED 4 FANS OF 30MM THICKNESS
Storm T3 PWM Fan
3 x Storm T3 140mm PWM Fans at the Front.
1 x Storm T3 120mm PWM Fan at the Rear.
COOLING COMPATIBILITY
Storm T3 PWM Fan
The Storm T3 Fan of 30mm thickness comes with thicker and longer fan blades, efficiently increasing the air intake.
The PWM function easily reaches the balance between cooling and silence.
BEST DUST PREVENTION DESIGN
Exquisite Steel Mesh
The mesh front panel adopts the 1.2mm vent holes and the magnetic & clip-on design with easy access.
Best Airflow Path for GPU Cooling
Airflow-enhancing mesh front panel provides massive air.
Ample mesh at the bottom with fans (optional) on the meshed PSU shroud provides the best performance for the GPU cooling
Modular Drive Trays
Supports up to 5 drives: 2 removable drive trays for 3.5" HDD/2.5" SSD & 3 drive trays for 2.5" SSD.
| Design | |
|---|---|
| Maximum PSU length | 44 cm |
| Maximum graphics card length | 40 cm |
| Maximum CPU cooler height | 17.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 8 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX |
| Product colour | White |
| Material | Glass, Plastic, Steel |
| Type | PC |
| Form factor | Full Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Liquid cooling capability | Yes |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 12.6 kg |
| Height | 522 mm |
| Depth | 522 mm |
| Width | 230 mm |
| Packaging data | |
|---|---|
| Package weight | 14.8 kg |
SYSTEM STATUS WITH A GLANCE
Temperature Display
By pressing the switch button on the I/O panel, users can glance at the temperature of the CPU and GPU on the temperature display.
The temperature display can be switched from CPU temperature to GPU temperature or turned off via the switch button.
Attention: The Antec iUinity software must be installed.
ANTEC iUnity
The Antec iUnity provides instant data on PC specs, loads, and usage.
I/O Panel
- Including the mainstream Type-C(10Gbps) port for high-speed transfer.
- Included dust plugs for dust prevention.
- Mic/Audio 2-in-1 port.
PC SHOWCASE
4mm tempered glass & perforated solid steel
Left panel adopts tempered glass for better PC showcase visual effects.
Right solid panel is bottom-perforated to enhance heat dissipation and ventilation.
EVERYTHING ORGANIZED
Cable Management on Point
Spacious cable management for efficient wire organization.
There are ten sets of velcro straps for easy cable management.
1. Three sets of velcro straps for fan & I/O cable routing.
2. Five velcro straps for hardware and power supply cables.
3. Two velcro straps at the rear for rear I/O cable routing.
Easy Installation
Removable Top Cooling Bracket
PRE-INSTALLED4 x TRANQUILSILENT ARGB FANS
MORE TRANQUIL, MORE AIRFLOW
Unique fan blade and frame design offers powerful airflow with low noise accomplished.
Exquisite craftsmanship
Minimal clearance between fan frame and blades,
achieving maximum operational efficiency.
Vibration-Absorbing & Anti-Noise Pads
Equipped with eight damping feet to prevent chassis and fan resonance, reducing noise.
BEST DUST PREVENTION DESIGN
Exquisite Steel Mesh
The mesh front panel adopts the 1.2mm vent holes and the magnetic & clip-on design with easy access.
POWERFUL AIRFLOW PATH DESIGN
Best Airflow Path for GPU Cooling
Airflow-enhancing mesh front panel provides massive air.
Ample mesh at the bottom and bottom-right side, and the availability of fans installed on the meshed PSU shroud together provide the best performance for the GPU cooling.
- Top: Magnetic dust filter
- Front: Magnetic & clip-on dust filter
- Bottom: Full-sized pull-out dust filter
- Side: Magnetic dust filter
HIGHLY COMPATIBLE FULL-TOWER PC CASE
Supports RTX 40 Series Graphics Cards
Full-tower PC case in 230mm width supports the up-to-date 40 Series GPUs and high-end PC components.
THOUGHTFUL DESIGN
Detailed Features
COOLING COMPATIBILITY
Best Cooling Design
Support a 420mm radiator at the front. (When installing a 420mm radiator at the front, the radiator at the top must be less than 360mm.)
Supports 360mm radiators at the front and top simultaneously.
Up to 10 fans simultaneously.
STORAGE COMPATIBILITY
Modular Drive Trays
Supports up to 5 drives: 2 removable drive trays for 3.5" HDD/2.5" SSD & 3 drive trays for 2.5" SSD.
CASE COMPATIBILITY
Extensive Interior
Motherboard support E-ATX (≤ 285 mm), ATX, Micro-ATX, ITX
CPU cooler max height ≤ 175mm
GPU max length ≤ 440mm
Power Supply max length ≤ 245 mm (with HDD), ≤ 440 mm (without HDD)
| Design | |
|---|---|
| Maximum PSU length | 44 cm |
| Maximum graphics card length | 40 cm |
| Maximum CPU cooler height | 17.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| RGB control button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination colour | Amber, Blue, Green, Red |
| Illumination | Yes |
| Number of expansion slots | 8 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX |
| Product colour | Black |
| Material | Glass, Plastic, Steel |
| Type | PC |
| Form factor | Full Tower |
| Power supply | |
|---|---|
| Power supply shroud | Yes |
| Power supply included | Yes |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120 mm |
| Rear radiator sizes supported | 120,140,240,280,360 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 13 kg |
| Height | 522 mm |
| Depth | 522 mm |
| Width | 230 mm |
| Packaging data | |
|---|---|
| Package weight | 15.3 kg |
BEST DUST PREVENTION DESIGN
Exquisite Steel Mesh
The mesh front panel adopts the 1.2mm vent holes and the magnetic & clip-on design with easy access.
I/O Panel
- Including the mainstream Type-C(10Gbps) port for high-speed transfer.
- Included dust plugs for dust prevention.
- Mic/Audio 2-in-1 port.

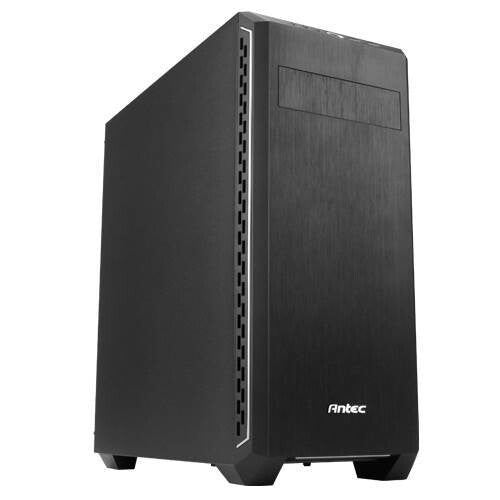

SILENT PC CASE
Sound-Dampening Side Panels
Both side panels are designed with sound-dampening foam, providing even better overall sound insulation.
EVERYTHING ORGANIZED
Cable Management on Point
2 cable covers are included for beautifying the cable management area.
There are ten sets of velcro straps for easy cable management.
1. Three sets of velcro straps for fan & I/O cable routing.
2. Five velcro straps for hardware and power supply cables.
3. Two velcro straps at the rear for rear I/O cable routing.
Easy Installation
Removable Top Cooling Bracket.
PRE-INSTALLED 4 TRANQUIL SILENT PWM FANS
MORE TRANQUIL, MORE AIRFLOW
Unique fan blade and frame design offers powerful airflow with low noise accomplished.
Exquisite craftsmanship
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.
Vibration-Absorbing & Anti-Noise Pads
Equipped with eight damping feet to prevent chassis and fan resonance, reducing noise.
POWERFUL AIRFLOW PATH DESIGN
Best Airflow Path for GPU Cooling
Airflow-enhancing mesh front panel provides massive air.
Ample mesh at the bottom with fans (optional) on the meshed PSU shroud provides the best performance for the GPU cooling
- Top: Magnetic dust filter.
- Front: Magnetic & clip-on dust filter.
- Bottom: Full-sized pull-out dust filter.
HIGHLY COMPATIBLE FULL-TOWER PC CASE
Supports RTX 40 Series Graphics Cards
Full-tower PC case in 230mm width supports the up-to-date 40 Series GPUs and high-end PC components.
THOUGHTFUL DESIGN
Detailed Features
COOLING COMPATIBILITY
Best Cooling Design
- Support a 420mm radiator at the front. (When installing a 420mm radiator at the front, the radiator at the top must be less than 360mm.)
- Supports 360mm radiators at the front and top simultaneously.
- Up to 10 fans simultaneously.
STORAGE COMPATIBILITY
Modular Drive Trays
Supports up to 5 drives: 2 removable drive trays for 3.5" HDD/2.5" SSD & 3 drive trays for 2.5" SSD.
CASE COMPATIBILITY
Extensive Interior
| Design | |
|---|---|
| Maximum PSU length | 44 cm |
| Maximum graphics card length | 40 cm |
| Maximum CPU cooler height | 17.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 8 |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX |
| Product colour | Black |
| Material | Plastic, Steel |
| Type | PC |
| Form factor | Full Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Liquid cooling capability | Yes |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 12.1 kg |
| Height | 522 mm |
| Depth | 522 mm |
| Width | 230 mm |
| Packaging data | |
|---|---|
| Package weight | 14.3 kg |
The brand-new Symphony ARGB AIO liquid cooler delivers a cooling solution with unique ARGB lighting. The mirror ARGB lighting bar gives a subtle and beautiful color scheme. Specifically designed using EPDM+IIP high-density tubes and 14 dense cooling fins, the Symphony ARGB not only extends its lifespan but also enhances the entire cooling performance. The Symphony ARGB is ready to bring you a brand-new user experience.
Mirror ARGB Lighting
Pump Head
Designed with the high liquid flow and the low-noise pump makes it easy to have better cooling and less noise.
EPDM+IIP High-Density Tubing
The EEPDM+IIP high-density tubing is very durable, making less loss of liquid.
Covered with aluminum alloy, the joints of the tubing highly decrease the chance of liquid leaking.
14 Dense Cooling Fins
The 14 dense cooling fins are specially designed for AIO coolers, delivering efficient cooling.
Sync with the Motherboard for
16.8 Million Possible Colors
Working in sync with the motherboard or the ARGB controller, the pump can display the colors you like anytime.
The ARGB PWM fan
The ARGB PWM fan delivers thermal control, shock absorption, and high airflow. Meanwhile, it provides the CPU a better cooling solution.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 40000 h |
| Pump's mean time to failure (MTTF) | 70000 h |
| Fan speed (min) | 800 RPM |
| Fan speed (max) | 1600 RPM |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin |
| Pump noise level | 30 dB |
| Fan noise level (max) | 35 dB |
| Fan noise level (min) | 20 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.1 mmH2O |
| Maximum airflow | 72 cfm |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 3-pin + 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Tube diameter | 8 mm |
| Tube inner diameter | 1 cm |
| Tube length | 38 cm |
| Radiator height | 12 cm |
| Radiator depth | 2.7 cm |
| Radiator width | 27.7 cm |
| Packaging content | |
|---|---|
| CPU socket spacer(s) | Yes |
| CPU bracket(s) | Yes |
| RGB controller included | Yes |
| LED controller dimensions (W x D x H) | 66.7 x 67 x 56 mm |
| LED controller interface | 4-pin |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
Chromatic Silent Fan
High Fan Speed: 1500 ± 10%, with 3-pin fan connectors
Massive Black Aluminum Fins
Enhance the cooling performance and speed up heat dissipation
Easy Installation
The installation is convenient and safe.
Small Design
Designed for small form factor cases.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Maximum airflow | 60 cfm |
| Noise level (high speed) | 26 dB |
| Rotational speed (max) | 1500 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter | 12 cm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 3-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 300 g |
| Package height | 85 mm |
| Package depth | 135 mm |
| Package width | 135 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Height | 82 mm |
| Width | 130 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
