Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G162706L1 |
| Export Control Classification Number (ECCN) | 5A992C |
| Use conditions | Server/Enterprise |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| Sequential latency - write (up to) | 13 µs |
| Sequential latency - read (up to) | 10 µs |
| Random latency - write (up to) | 20 µs |
| Random latency - read (up to) | 75 µs |
| Random write (100% span) | 200000 IOPS |
| Random read (100% span) | 1000000 IOPS |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| NVMe | Yes |
| Memory type | TLC 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 15.4 TB |
| SSD form factor | U.2 |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| General | |
|---|---|
| Product Family | D7 |
| Operational conditions | |
|---|---|
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 165 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8523510000 |
| Other features | |
|---|---|
| Launch date | Q2'22 |
| Power consumption (active) | 20 W |
| SSD endurance rating | 28.0 PBW |
| SSD shock | 1000G,0.5ms |
| Sequential reading | 7100 MB/s |
| Sequential writing speed | 3700 MB/s |
| Status | Launched |
| Internal memory type | PCIe 4.0 x4, NVMe |
| Processor family | Intel SSD D7-P5520 |
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G162706L1 |
| Export Control Classification Number (ECCN) | 5A992C |
| Use conditions | Server/Enterprise |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| Sequential latency - write (up to) | 13 µs |
| Sequential latency - read (up to) | 10 µs |
| Random latency - write (up to) | 15 µs |
| Random latency - read (up to) | 75 µs |
| Random write (100% span) | 114000 IOPS |
| Random read (100% span) | 700000 IOPS |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| NVMe | Yes |
| Memory type | TLC 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 1.92 TB |
| SSD form factor | U.2 |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| General | |
|---|---|
| Product Family | D7 |
| Operational conditions | |
|---|---|
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 165 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8523510000 |
| Other features | |
|---|---|
| Launch date | Q2'22 |
| Power consumption (active) | 13 W |
| SSD endurance rating | 3.5 PBW |
| SSD shock | 1000G,0.5ms |
| Sequential reading | 5300 MB/s |
| Sequential writing speed | 1900 MB/s |
| Status | Launched |
| Internal memory type | PCIe 4.0 x4, NVMe |
| Processor family | Intel SSD D7-P5520 |
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G162706L1 |
| Export Control Classification Number (ECCN) | 5A992C |
| Use conditions | Server/Enterprise |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| Sequential latency - write (up to) | 13 µs |
| Sequential latency - read (up to) | 10 µs |
| Random latency - write (up to) | 15 µs |
| Random latency - read (up to) | 75 µs |
| Random write (100% span) | 200000 IOPS |
| Random read (100% span) | 1000000 IOPS |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| NVMe | Yes |
| Memory type | TLC 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 3.84 TB |
| SSD form factor | U.2 |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| General | |
|---|---|
| Product Family | D7 |
| Operational conditions | |
|---|---|
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 165 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
| Other features | |
|---|---|
| Launch date | Q2'22 |
| Power consumption (active) | 15 W |
| SSD endurance rating | 7.0 PBW |
| SSD shock | 1000G,0.5ms |
| Sequential reading | 6700 MB/s |
| Sequential writing speed | 3600 MB/s |
| Status | Launched |
| Internal memory type | PCIe 4.0 x4, NVMe |
| Processor family | Intel SSD D7-P5520 |
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G162706L1 |
| Export Control Classification Number (ECCN) | 5A992C |
| Use conditions | Server/Enterprise |
| Mean time between failures (MTBF) | 2000000 h |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| Sequential latency - write (up to) | 13 µs |
| Sequential latency - read (up to) | 10 µs |
| Random latency - write (up to) | 15 µs |
| Random latency - read (up to) | 75 µs |
| Random write (100% span) | 200000 IOPS |
| Random read (100% span) | 700000 IOPS |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| NVMe | Yes |
| Memory type | TLC 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 1.6 TB |
| SSD form factor | U.2 |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| General | |
|---|---|
| Product Family | D7 |
| Operational conditions | |
|---|---|
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 165 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
| Other features | |
|---|---|
| Launch date | Q2'22 |
| Power consumption (active) | 13 W |
| SSD endurance rating | 8.7 PBW |
| SSD shock | 1000G,0.5ms |
| Sequential reading | 5300 MB/s |
| Sequential writing speed | 1900 MB/s |
| Status | Launched |
| Internal memory type | PCIe 4.0 x4, NVMe |
| Processor family | Intel SSD D7-P5620 |
| Processor | |
|---|---|
| Processor frequency | 1950 MHz |
| Graphics processor | Flex 140 |
| Graphics processor family | Intel |
| Memory | |
|---|---|
| Memory bandwidth (max) | 336 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 256 |
| Xe-cores | 16 |
| Dual Link DVI | No |
| OpenCL version | 3.0 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
Intel Xᵉ HPG Microarchitecture
Xe HPG microarchitecture is engineered from the ground-up to deliver high performance, efficiency, and scalability for gamers and creators.
- New Xe-cores with built-in XMX AI capabilities.
- Advanced 3D acceleration hardware.
- Ray Tracing Units.
Xᵉ Super Sampling: AI-Enhanced Upscaling
Intel Xe Super Sampling technology (XeSS) takes your gaming experience to the next level with AI-enhanced upscaling enabling more performance with high image fidelity. XeSS is optimized for Intel®Arc™ graphics products with the ability to take advantage of XMX AI hardware acceleration.
DirectX* 12 Ultimate
Take gaming to a new level of realism with support for the latest graphics technologies including ray tracing, variable rate shading, mesh shading, and sampler feedback - the fundamentals for next-gen gaming.
Intel Arc Graphics for Creators
Unleash your imagination and captivate audiences with rich digital content creation using a hyper advanced media engine, augmented by AI and accelerated by Intel® Deep Link technology. Create compelling content, powered by the first graphics card with support for all current leading media formats, and keep yourself up to date with the most advanced AV1 video encode capabilities.
Seamless Streaming
Bring your best for your viewers and take your livestreams to the next level with virtual streaming technologies built into Intel Arc Control enabling flexibility and creative control. Transform your space to a streaming studio in an instant with Virtual Background, Auto Frame, and broadcasting options accessible from an intuitive easy to use software interface.
Intel® Deep Link
Harness the power of Intel® Core, Intel® Iris®, and Intel® Arc together to unleash new levels of performance and efficiency across a variety of gaming and creating workloads.
Intel Arc Solutions
Intel Arc graphics solutions comprised of hardware, software, and services were built to enable supercharged gaming, powerful creating, and seamless streaming experiences.

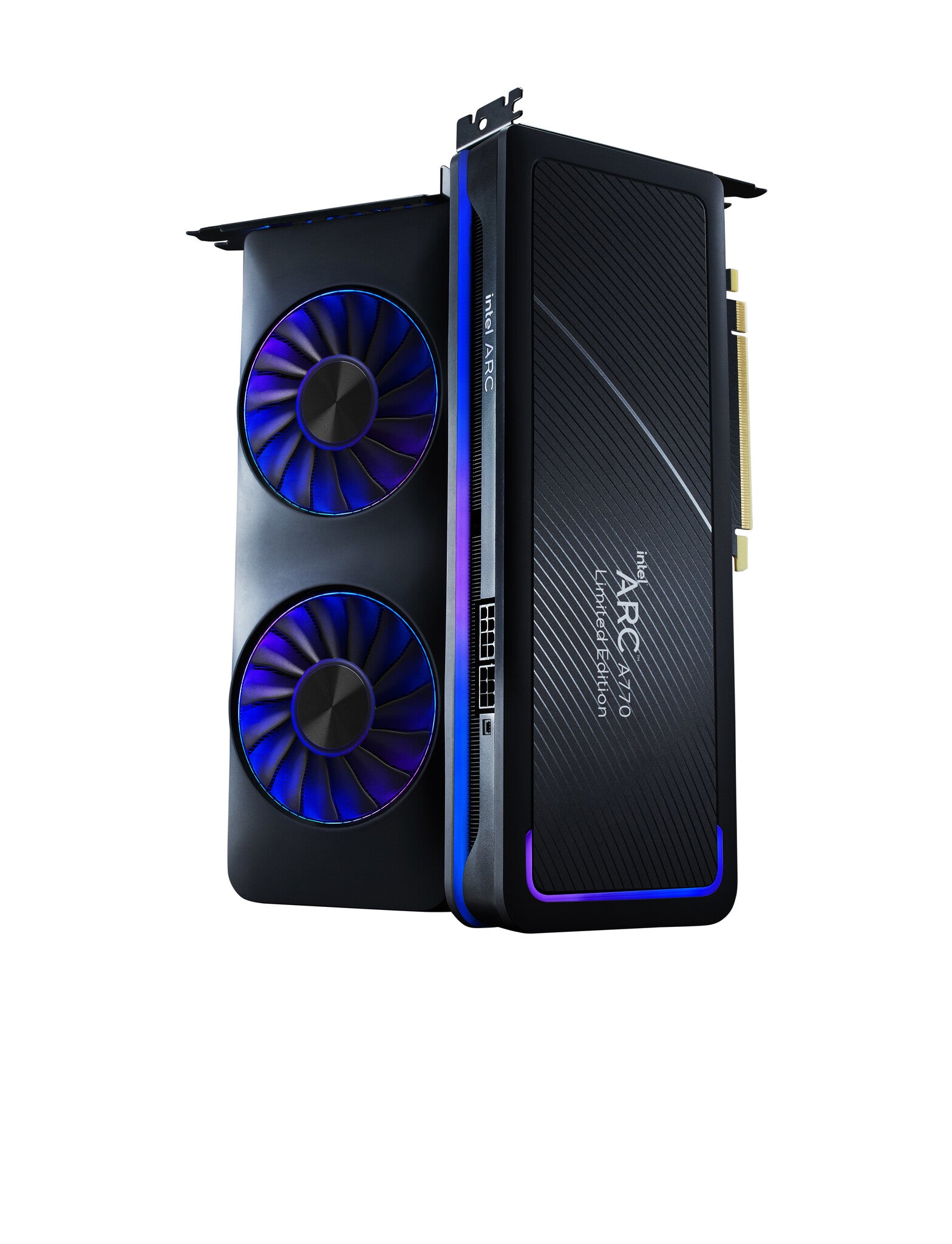

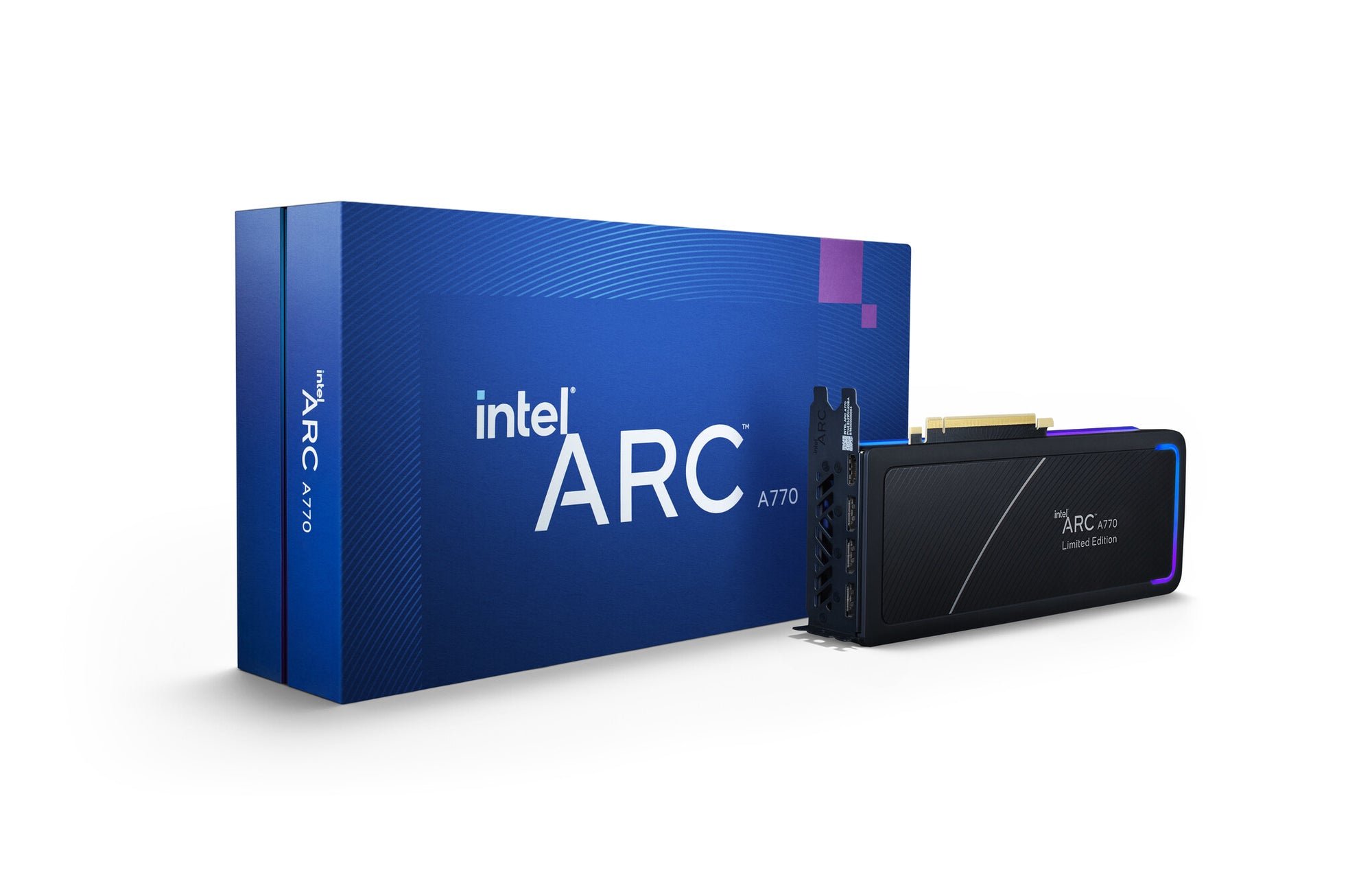

| Processor | |
|---|---|
| Processor frequency | 2100 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Arc A770 |
| Graphics processor family | Intel |
| Memory | |
|---|---|
| Memory bandwidth (max) | 560 GB/s |
| Data transfer rate | 17.5 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.0 |
| HDMI version | 2.0b/2.1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| Xe-cores | 32 |
| Dual Link DVI | No |
| OpenCL version | 3.0 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8473301180 |
| Export Control Classification Number (ECCN) | EAR99 |
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
| Features | |
|---|---|
| Temperature monitoring and logging | Yes |
| Commodity Classification Automated Tracking System (CCATS) | G162706 |
| Export Control Classification Number (ECCN) | 5A992C |
| SSD ARK ID | 134910 |
| Market segment | Server |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| Write latency | 37 µs |
| Read latency | 36 µs |
| Random write (100% span) | 16000 IOPS |
| Random read (100% span) | 90000 IOPS |
| Write speed | 280 MB/s |
| Read speed | 560 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| NVMe | No |
| NAND flash type | TLC (Triple Level Cell) |
| Memory type | TLC 3D NAND |
| Interface | Serial ATA III |
| SSD capacity | 240 GB |
| SSD form factor | 2.5" |
| Power | |
|---|---|
| Power consumption (idle) | 1 W |
| Brand-specific features | |
|---|---|
| Intel Smart Response Technology version | 0.00 |
| Intel® Smart Response Technology | No |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | No |
| Intel® Remote Secure Erase | No |
| Operational conditions | |
|---|---|
| Operating / non-operating shock | 1000 G/0.5 msec |
| Non-operating shock | 1000 G |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
| Other features | |
|---|---|
| Product codename | Youngsville Refresh |
| Product series | Intel® SSD D3-S4510 Series |
| Product family | Data center SSD |
| Launch date | Q3'18 |
| Drive capacity | 240 GB |
| SSD hardware encryption | AES 256 bit |
| SSD power consumption (active) | 2.4W |
| SSD power consumption (idle) | 1.0W |
| Last change | 63903513 |
| Intel Rapid Start Technology version | 0.00 |
| Remote Secure Erase (RSE) technology version | 0.00 |
| Power consumption (active) | 2.4 W |
| SSD endurance rating | 0.9 PBW |
| SSD shock | 1000 G/0.5 msec |
| Sequential reading | 560 MB/s |
| Sequential writing speed | 280 MB/s |
| Status | Launched |
| Processor family | Intel SSD D3 |
| Product colour | Silver |
High capacity - high speed
The Memory Center is the ideal storage solution for large amounts of data. Photos, movies and music files have sufficient space on the 3.5“ desktop hard drive. You wish to quickly transfer your large video and music files from your computer to an external hard drive? No problem with the Memory Center. The hard drive can achieve 10 times higher transfer rates than hard drives with USB 2.0. Reading rates of 85 MB per second and writing rates of 75 MB per second ensure a quick data transfer.
| Hard drive | |
|---|---|
| File format system | FAT32 |
| Storage drive buffer size | 32 MB |
| Write speed | 75 MB/s |
| Read speed | 85 MB/s |
| Type | HDD |
| HDD speed | 5400 RPM |
| HDD capacity | 4 TB |
| HDD size | 3.5" |
| Ports & interfaces | |
|---|---|
| USB data transfer rates | 5000 Mbit/s |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector | USB Type-A |
| Features | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| LED indicators | Yes |
| On/off switch | Yes |
| Plug and Play | Yes |
| Housing material | Plastic |
| Product colour | Black |
| Power | |
|---|---|
| AC adapter output voltage | 12 V |
| External power adapter | Yes |
| Bus powered | No |
| Sustainability | |
|---|---|
| Sustainability certificates | CE |
| Weight & dimensions | |
|---|---|
| Weight | 650 g |
| Height | 34 mm |
| Depth | 189 mm |
| Width | 120 mm |
| Packaging data | |
|---|---|
| User guide | Yes |
| Cables included | USB |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717050 |
