The ThinkVision S24E-20 is an excellent performer that delivers core functionality with a sleek new form factor. Its 1920 x 1080 FHD resolution VA panel rotates up to angles as extreme as 178°. The compact screen head is twice as slim as its previous generation and sits within a compact 3-side NearEdgeless frame. The stand’s built-in cable management system keeps wires out of sight and out of mind. This is a good thing, because with HDMI, VGA and Audio Out ports, the S24e-20 can connect to a whole range of mission-critical devices. And because your staff are your most precious asset, S24E-20 has TÜV Rheinland Eye Comfort Certified technology to protect them from eye fatigue.
Your 3-side NearEdgeless edge
Make multitasking near-effortless with 3-side NearEdgeless display. Compare files side-by-side on two screens with an almost uninterrupted visual continuity. Share content with colleagues standing up, sitting down or far off to the side as much as 178°; everyone sees the same quality image thanks to a 23.8-inch, FHD 1920 x 1080 resolution, VA panel display. Its 7.1 mm slim head design has less than half the screen thickness of the model it replaces but will still hold a Lenovo Tiny or Nano PC tucked away on its back.
Visibly safe and comfortable
S24E-20 has TÜV Eye Comfort certified technology to protect your employees’ eyes even during long stretches of work. And for greater user comfort, the screen can tilt on its stand to the perfect angle to suit each individual user. Or simply take the monitor off the desk altogether and place onto the wall with its 100 x 100 mm VESA wall mount capability that can also hold a Tiny or Nano PC unseen behind the screen.
Connection, connection, connection
Connect to your fleet of other devices thanks to extensive compatibility. Through HDMI 1.4, VGA and even Audio Out ports, S24e-20 works with PCs laptops and even headphones or external speakers. And you’ll never be troubled by those devices’ wires because the integrated cable management system tucks them tidily out of your way. And an extra touch that staff will appreciate is the new integrated phone holder right in the base of the stand.
| Display | |
|---|---|
| NTSC coverage (typical) | 72% |
| RGB colour space | NTSC |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Pixel density | 93 ppi |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Home |
| Ports & interfaces | |
|---|---|
| Headphone out | No |
| Audio output | Yes |
| Audio input | No |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 22° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 23.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 17.5 W |
| Packaging content | |
|---|---|
| Cables included | HDMI |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.24 cm |
| Bezel width (top) | 2.5 mm |
| Bezel width (side) | 2.5 mm |
| Weight (without stand) | 3.02 kg |
| Height (without stand) | 327.2 mm |
| Depth (without stand) | 45.5 mm |
| Width (without stand) | 540.4 mm |
| Weight (with stand) | 3.82 kg |
| Height (with stand) | 434.5 mm |
| Depth (with stand) | 173.1 mm |
| Width (with stand) | 540.4 mm |
| Packaging data | |
|---|---|
| Package weight | 5.42 kg |
| Package height | 124 mm |
| Package depth | 415 mm |
| Package width | 624 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
Lenovo ThinkVision S24e-20. Display diagonal: 60.5 cm (23.8) Display resolution: 1920 x 1080 pixels HD type: Full HD Response time: 6 ms Native aspect ratio: 16:9 Viewing angle horizontal: 178° Viewing angle vertical: 178°. VESA mounting. Product colour: Black
Employee happiness and productivity go hand in hand. Put the right monitor in front of your workforce
and it’ll work as a force for good, empowering them to be happier and better in their job. Enter ThinkVision S27E-20. The next generation of this excellent performer, upgraded with new form factor and functionality. Its sleek design and compact features are crafted to help employees get right down to business.
High-Quality Display
Lenovo ThinkVision monitors are known for their high-quality display panels. Whether you're working on graphic design, editing photos, or watching videos, ThinkVision monitors deliver vibrant colors, sharp details, and wide viewing angles. The accurate color reproduction and precise image quality ensure an immersive visual experience, enhancing your productivity and enjoyment.
Ergonomic Design
Another user-friendly aspect of ThinkVision monitors is their ergonomic design. These monitors are carefully engineered to provide maximum comfort and convenience during prolonged usage. The ergonomic design of ThinkVision monitors promotes good posture and reduces the risk of discomfort or fatigue, making them ideal for long hours of work or entertainment.
Reliable Performance and Durability
Lenovo is renowned for its commitment to quality and reliability, and the ThinkVision series is no exception. These monitors are built to last, with robust construction and high-quality materials. They undergo rigorous testing to ensure they meet Lenovo's strict standards, providing users with a reliable and long-lasting display solution.
Lenovo Premier Support
Whether you’re running a business or just looking for a personal device to work from anywhere, when you upgrade to Lenovo Premier Support you’ll get access to:- Comprehensive hardware and OEM software support - Single point of contact with advanced engineers- Technical account managers for proactive relationship & escalation management - Priority service delivery & repair parts
| Display | |
|---|---|
| NTSC coverage (typical) | 72% |
| Viewable size, vertical | 33.6 cm |
| Viewable size, horizontal | 59.8 cm |
| Pixel density | 82 ppi |
| Pixel pitch | 0.3114 x 0.3114 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 68.6 cm (27") |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 22° |
| Height adjustment | No |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 115 kWh |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 24 W |
| Power consumption (typical) | 18 W |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.24 cm |
| Bezel width (top) | 2.5 mm |
| Bezel width (side) | 2.5 mm |
| Weight (without stand) | 3.6 kg |
| Height (without stand) | 367.7 mm |
| Depth (without stand) | 43.2 mm |
| Width (without stand) | 612.5 mm |
| Weight (with stand) | 4.6 kg |
| Height (with stand) | 475.8 mm |
| Depth (with stand) | 182.5 mm |
| Width (with stand) | 612.5 mm |
| Packaging data | |
|---|---|
| Package weight | 6.42 kg |
| Package height | 455 mm |
| Package depth | 126 mm |
| Package width | 710 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Display | |
|---|---|
| NTSC coverage (typical) | 72% |
| Viewable size, vertical | 33.6 cm |
| Viewable size, horizontal | 59.8 cm |
| Pixel density | 82 ppi |
| Pixel pitch | 0.3114 x 0.3114 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 68.6 cm (27") |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 22° |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 115 kWh |
| Energy efficiency scale | A to G |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 24 W |
| Power consumption (typical) | 18 W |
| Energy consumption (SDR) per 1000 hours | 17 kWh |
| Energy efficiency class (SDR) | D |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.24 cm |
| Bezel width (top) | 2.5 mm |
| Bezel width (side) | 2.5 mm |
| Weight (without stand) | 3.6 kg |
| Height (without stand) | 367.7 mm |
| Depth (without stand) | 43.2 mm |
| Width (without stand) | 612.5 mm |
| Weight (with stand) | 4.6 kg |
| Height (with stand) | 475.8 mm |
| Depth (with stand) | 182.5 mm |
| Width (with stand) | 612.5 mm |
| Packaging data | |
|---|---|
| Package weight | 6.42 kg |
| Package height | 455 mm |
| Package depth | 126 mm |
| Package width | 710 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Display | |
|---|---|
| sRGB coverage (typical) | 99% |
| Colour gamut | 99% |
| RGB colour space | sRGB |
| Colour depth | 8 bit |
| Viewable size, vertical | 33.6 cm |
| Viewable size, horizontal | 59.8 cm |
| Pixel density | 82 ppi |
| Pixel pitch | 0.311 x 0.311 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 100 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1300:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 68.6 cm (27") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHS, EU Energy Efficiency Level (Level-E)Eyesafe® Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Eye Comfort |
| Detachable stand | Yes |
| Front bezel colour | Grey |
| Colour name | Storm Grey |
| Product colour | Grey |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| HDMI version | 1.4 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 22° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 36 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 19.5 W |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, HDMI |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.1 cm |
| Bezel width (top) | 2.3 mm |
| Bezel width (side) | 2.3 mm |
| Weight (without stand) | 3.6 kg |
| Height (without stand) | 368 mm |
| Depth (without stand) | 43.5 mm |
| Width (without stand) | 612.3 mm |
| Weight (with stand) | 4.5 kg |
| Height (with stand) | 475 mm |
| Depth (with stand) | 184.9 mm |
| Width (with stand) | 612.3 mm |
| Packaging data | |
|---|---|
| Package weight | 6.9 kg |
| Package height | 452 mm |
| Package depth | 125 mm |
| Package width | 720 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
The Lenovo ThinkVision S28U-10 offers professional monitor features while remaining a smart and intelligent business investment. The 4K UHD resolution screen has a 99% accurate sRGB colour gamut and 90% accurate DCI-P3 colour gamut, delivering pixel-perfect clarity. The near-edgeless screen with wide viewing angles is aesthetic and effective in equal measure, enhancing collaboration capabilities. Comes with HDMI 2.0 port and DisplayPort 1.2 for flexible connectivity. Natural low blue light radiation minimises eye strain and provides a pleasant viewing experience.
| Display | |
|---|---|
| Colour gamut standard | sRGB |
| sRGB coverage (typical) | 99% |
| Viewable size, vertical | 36 cm |
| Viewable size, horizontal | 63.2 cm |
| Pixel density | 157.35 ppi |
| Pixel pitch | 0.1617 x 0.158 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 1.07 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 3840 x 2160 |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 71.1 cm (28") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | TCO 8.0, CCC, TCO Edge 2.0 |
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 22° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 31 W |
| Packaging content | |
|---|---|
| HDMI cable length | 1.8 m |
| Cables included | AC, HDMI |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.28 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 4.58 kg |
| Height (without stand) | 373.7 mm |
| Depth (without stand) | 49.2 mm |
| Width (without stand) | 636.9 mm |
| Weight (with stand) | 5.24 kg |
| Height (with stand) | 450.8 mm |
| Depth (with stand) | 230 mm |
| Width (with stand) | 636.9 mm |
| Packaging data | |
|---|---|
| Package weight | 7 kg |
| Package height | 127 mm |
| Package depth | 723 mm |
| Package width | 452 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
The Lenovo ThinkVision S28u-10, offers professional monitor features while remaining a smart and intelligent business investment. The 4K UHD resolution screen has a 99% accurate sRGB color gamut and 90% accurate DCI-P3 color gamut, delivering pixel-perfect clarity. The eardgeless screen with wide viewing angles is aesthetic and effective in equal measure, enhancing collaboration capabilities. Comes with HDMI 2.0 port and DisplayPort 1.2 for flexible connectivity. Natural low blue light radiation minimizes eye strain and provides a pleasant viewing experience.
A Monitor to Elevate Your Business
The ThinkVision S28u-10, sporting a 28-inch In-Plane Switching panel, offers professional features while remaining a smart and intelligent business investment. The 4K UHD resolution screen has a 99% accurate sRGB color gamut and 90% accurate DCI-P3 color gamut, delivering pixel-perfect clarity that’s ideal for multitasking, analytics, and graphic designing tasks. The NearEdgeless screen with wide viewing angles is aesthetically pleasing and enhances collaboration capabilities. Equipped with both an HDMI port and DisplayPort, the display delivers flexible connectivity. For maximum user comfort, the ThinkVision S28u-10 uses leading eye protection technology like Natural Low Blue Light emission and Eyesafe Display Standard (to be certified). These minimize eyestrain and enable an enjoyable viewing experience without color distortion.
Eye-catching Display
Experience superior visual output on the ThinkVision S28u-10 that has a 7.5% larger display area than 27-inch monitors of the same resolution. Crystal-clear visuals on the 4K UHD In-Plane Switching panel means no detail is too small. Colors are vivid and bright with the >99% sRGB and 90% DCI-P3 color gamut providing 1.07 billion colors for impeccable accuracy.
Comfortable User Experience
Enjoy more productive hours on the ThinkVision S28u-10 that is TÜV Rheinland Eye Comfort Certified with flicker free technology and reduced reflections. Eye strain is minimized thanks to Nature Low Blue Light solution. Eyesafe Display Certification—that meets the industry standards for Natural Low Blue Light and accurate color performance—reduces harmful blue light without color distortion.
Enhanced Connectivity
The monitor has HDMI 2.0 and a DisplayPort 1.2 that provide improved connectivity required for modern businesses. The 100 x 100 mm VESA Mount makes the ThinkVision S28u-10 monitor easily deployable in a variety of scenarios. Additionally, the quick release tilt stand ensures the monitor is easy to set up and flexible to use.
| Display | |
|---|---|
| Colour gamut standard | sRGB |
| sRGB coverage (typical) | 99% |
| Colour depth | 10 bit |
| Viewable size, vertical | 36 cm |
| Viewable size, horizontal | 63.2 cm |
| Pixel density | 157.35 ppi |
| Pixel pitch | 0.1617 x 0.158 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 1.07 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 3840 x 2160 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 71.1 cm (28") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 7, Windows 10 |
| Flicker-free technology | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | Energy Star Certified, TCO 7.0, TCO Edge 2.0, EPEAT Gold, RoHSEyesafe Display, TÜV Rheinland Low Blue Light |
| Introduction year | 2020 |
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 22° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 48 W |
| Power consumption (typical) | 31 W |
| Packaging content | |
|---|---|
| HDMI cable length | 1.8 m |
| Cables included | AC, HDMI |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.28 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 4.58 kg |
| Height (without stand) | 373.7 mm |
| Depth (without stand) | 49.2 mm |
| Width (without stand) | 636.9 mm |
| Weight (with stand) | 5.24 kg |
| Height (with stand) | 450.8 mm |
| Depth (with stand) | 230 mm |
| Width (with stand) | 636.9 mm |
| Packaging data | |
|---|---|
| Package weight | 7 kg |
| Package height | 723 mm |
| Package depth | 127 mm |
| Package width | 452 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| DCI-P3 coverage | 90% |
The Lenovo ThinkVision monitor T2054p is a commercial monitor with premium product features. It contains built-in VGA + DP + HDMI interfaces and tilt stand function. It provides wide viewing angle by IPS panel. For space-saving scenario, this monitor is also is designed to support ThinkCentre’s Tiny PC with the Clamp Bracket. It is environmentally conscious, meeting the latest green standards including Energy Star 6.0 Certified, TUV Green Mark, EPEAT Gold Certified, TCO Display 6.0, TCO Certified Edge 2.0, UL Environment Gold, CEL 1, RoHs and 85% PCC plastic resins
| Display | |
|---|---|
| 3D | No |
| Viewable size, vertical | 26.2 cm |
| Viewable size, horizontal | 41.9 cm |
| Pixel density | 87 ppi |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 |
| Screen shape | Flat |
| Response time | 7 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | IPS |
| HD type | WXGA+ |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1440 x 900 pixels |
| Display diagonal | 49.5 cm (19.5") |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Power | |
|---|---|
| Power consumption (max) | 21 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 14.5 W |
| Packaging content | |
|---|---|
| Cables included | AC, DisplayPort, VGA |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (side) | 1.7 cm |
| Weight (with stand) | 3.7 kg |
| Height (with stand) | 345.9 mm |
| Depth (with stand) | 242.6 mm |
| Width (with stand) | 454.2 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Thin Client | |
|---|---|
| Thin client installed | No |
| Other features | |
|---|---|
| TV tuner integrated | No |
| Display | LED |
The ThinkVision T22i-20 is a practical productivity enhancer that comes with a 21.5 inch Full-HD 3-side NearEdgeless In-Plane Switching display that fits any workplace. The monitor's minimalist square base, phone holder, and cable management reduce clutter around your desk, making it a practical choice for any workplace.
| Display | |
|---|---|
| NTSC coverage (typical) | 72% |
| Viewable size, vertical | 26.8 cm |
| Viewable size, horizontal | 47.6 cm |
| Pixel density | 102 ppi |
| Pixel pitch | 0.2479 x 0.2479 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 12 W |
| Packaging content | |
|---|---|
| DisplayPort cable length | 1.8 m |
| Cables included | AC |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 1.8 mm |
| Bezel width (side) | 1.8 mm |
| Weight (without stand) | 3.01 kg |
| Height (without stand) | 297.4 mm |
| Depth (without stand) | 48.5 mm |
| Width (without stand) | 489.3 mm |
| Weight (with stand) | 5.47 kg |
| Height (with stand) | 396 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 489.3 mm |
| Packaging data | |
|---|---|
| Package weight | 7.2 kg |
| Package height | 187 mm |
| Package depth | 390 mm |
| Package width | 577 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |

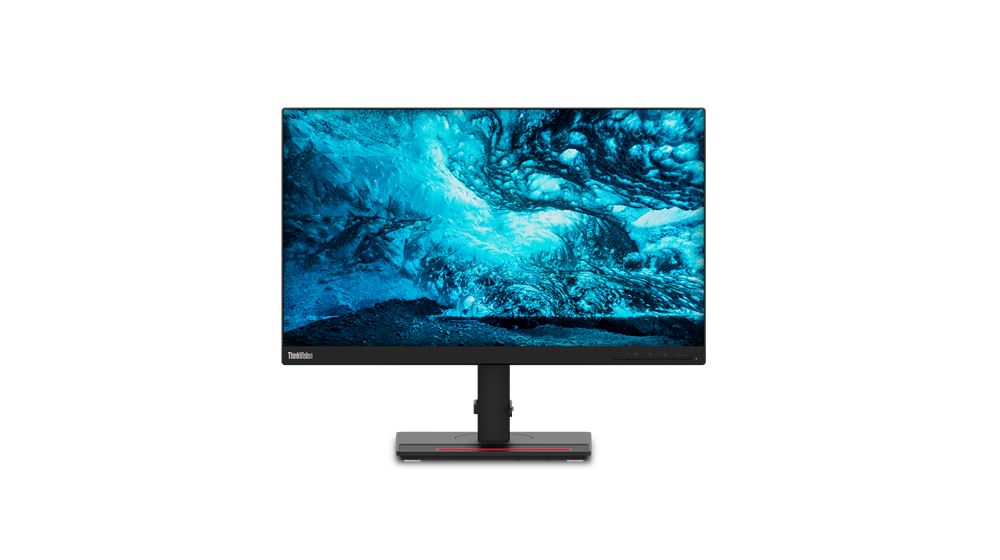

The ThinkVision T22i-20 is a practical productivity enhancer that comes with a 21.5 inch Full-HD 3-side NearEdgeless In-Plane Switching display that fits any workplace. The monitor's minimalist square base, phone holder, and cable management reduce clutter around your desk, making it a practical choice for any workplace.
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Display | |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 102 ppi |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 3000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2479 x 0.2479 mm |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 6 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Response time (fast) | 4 ms |
| NTSC coverage (typical) | 72% |
| Touchscreen | No |
| Panel type | IPS |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Design | |
| Feet colour | Black |
| Product colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Technical details | |
| Height (without stand) | 29.7 cm |
| Depth (without stand) | 4.85 cm |
| Width (without stand) | 48.9 cm |
| Feet colour | Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Front bezel colour | Black |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Weight (with stand) | 5.47 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 35° |
| Height adjustment | 15 cm |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | -90 - 90° |
| Number of OSD languages | 8 |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 12 W |
| Power consumption (off) | 0.3 W |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC |
| DisplayPort cable length | 1.8 m |
| Weight & dimensions | |
| Height (without stand) | 29.7 cm |
| Depth (without stand) | 4.85 cm |
| Width (without stand) | 48.9 cm |
| Width (with stand) | 489.3 mm |
| Depth (with stand) | 205 mm |
| Height (with stand) | 396 mm |
| Bezel width (side) | 1.8 mm |
| Bezel width (top) | 1.8 mm |
| Bezel width (bottom) | 2.2 cm |
| Weight (with stand) | 5.47 kg |
| Weight (without stand) | 3.01 kg |
| Package width | 577 mm |
| Package depth | 390 mm |
| Package height | 187 mm |
| Package weight | 7.2 kg |
| Packaging data | |
| Package width | 577 mm |
| Package depth | 390 mm |
| Package height | 187 mm |
| Package weight | 7.2 kg |
| Stand included | Yes |
| Cables included | AC |
| DisplayPort cable length | 1.8 m |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Height (without stand) | 29.7 cm |
| Depth (without stand) | 4.85 cm |
| Width (without stand) | 48.9 cm |
| HDMI | Yes |
| Touchscreen | No |
| Front bezel colour | Black |

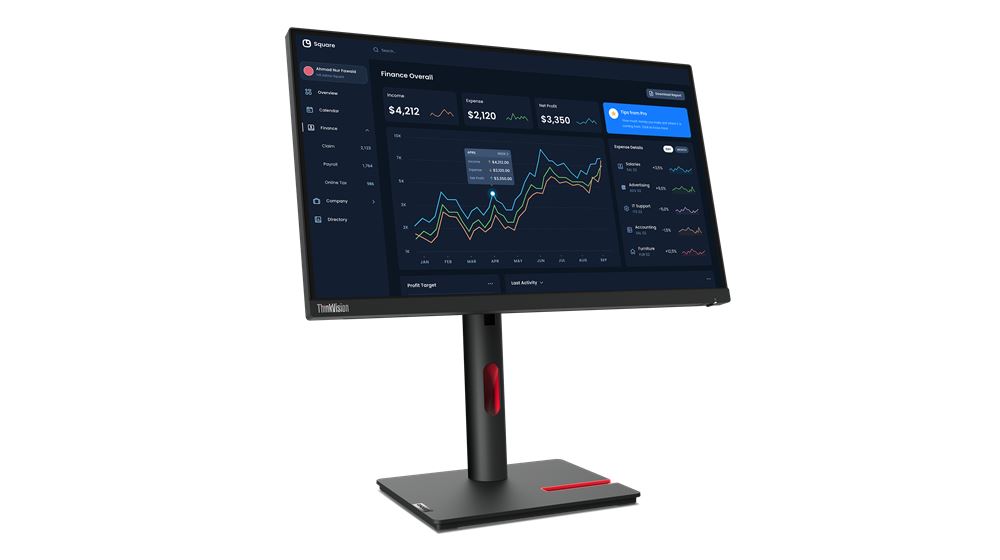

Crafted to power performance and connectivity, the ThinkVision T22i-30 Monitor is a great force multiplier that lets you get more done. A practical 21.5-inch screen with FHD (1920 x 1080) resolution delivers a remarkably rich viewing experience with sharp and crisp picture quality. The monitor sports an IPS panel with wider viewing angles that afford vivid views with no loss of colour or contrast when viewed from any direction. Experience a wider colour gamut with 99% sRGB complemented by a high contrast ratio of 1000:1.
Enjoy a distraction-free viewing landscape with the monitor’s 3-side Near Edgeless bezel design that supports a multi-screen setup, delivering seamless generous views with minimal interference. The ThinkVision T22i-30 Monitor’s in-built Natural Low Blue Light technology protects your eyes from harmful blue light, while TÜV Rheinland Eye Comfort certification reduces visual fatigue, making it the perfect partner for long working hours. A host of connectivity options including VGA, DP 1.2, HDMI 1.4 with Audio Out, and four USB 3.2 Gen 1* ports ensure you can plug in and connect with effortless ease. A highly adjustable ergonomic stand, with tilt, swivel, lift, and pivot functions help you adjust the monitor to complement your posture and free you of any physical strain.
A smaller base with an integrated phone rack saves precious desk real estate. The ThinkVision T22i-30 Monitor stays in step with the latest TCO 9.0 regulations and comes in specially designed environmentally friendly packaging that’s easy on your conscience and on the environment. Powered with features that accelerate your productivity, the ThinkVision T22i-30 Monitor takes performance and comfort to a whole new level.
Crafted to power performance and connectivity, the ThinkVision T22i-30 Monitor is a great force multiplier that lets you get more done. A practical 21.5-inch screen with FHD (1920 x 1080) resolution delivers a remarkably rich viewing experience with sharp and crisp picture quality. The monitor sports an IPS panel with wider viewing angles that afford vivid views with no loss of color or contrast when viewed from any direction. Experience a wider color gamut with 99% sRGB complemented by a high contrast ratio of 1000:1. Enjoy a distraction-free viewing landscape with the monitor’s 3-side NearEdgeless bezel design that supports a multi-screen setup, delivering seamless generous views with minimal interference. The ThinkVision T22i-30 Monitor’s in-built Natural Low Blue Light technology protects your eyes from harmful blue light, while TÜV Rheinland Eye Comfort certification reduces visual fatigue, making it the perfect partner for long working hours. A host of connectivity options including VGA, DP 1.2, HDMI 1.4 with Audio Out, and four USB 3.2 Gen 1* ports ensure you can plug in and connect with effortless ease. A highly adjustable ergonomic stand, with tilt, swivel, lift, and pivot functions help you adjust the monitor to complement your posture and free you of any physical strain. A smaller base with an integrated phone rack saves precious desk real estate. The ThinkVision T22i-30 Monitor stays in step with the latest TCO 9.0 regulations and comes in specially designed environmentally friendly packaging that’s easy on your conscience and on the environment. Powered with features that accelerate your productivity, the ThinkVision T22i-30 Monitor takes performance and comfort to a whole new level.
| Display | |
|---|---|
| sRGB coverage (typical) | 99% |
| Colour gamut | 99% |
| RGB colour space | sRGB |
| Colour depth | 8 bit |
| Viewable size, vertical | 26.8 cm |
| Viewable size, horizontal | 47.6 cm |
| Pixel density | 102 ppi |
| Pixel pitch | 0.274 x 0.274 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | Energy Star Certified, TCO 9.0, TCO Edge 2.0, EPEAT Gold, RoHSEyesafe Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Low Blue Light, TÜV Rheinland Flicker Free, TÜV Rheinland Eye Comfort |
| Feet colour | Black |
| Detachable stand | Yes |
| Front bezel colour | Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio output | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 23.5° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15.5 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 48 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15 W |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 1.73 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3 kg |
| Height (without stand) | 294.7 mm |
| Depth (without stand) | 46.4 mm |
| Width (without stand) | 489.3 mm |
| Weight (with stand) | 4.9 kg |
| Height (with stand) | 487.4 mm |
| Depth (with stand) | 194.7 mm |
| Width (with stand) | 498.3 mm |
| Packaging data | |
|---|---|
| Package weight | 6.8 kg |
| Package height | 414 mm |
| Package depth | 144 mm |
| Package width | 563 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
Collaborate and hold meetings and video conferencing with the 21.5-inch ThinkVision T22V-20 that has a built-in camera, microphone, and speakers. With an integrated IR camera and Windows Hello, you can safely log in without a password. The monitor also offers a 3-side NearEdgeless In-Plane Switching display, which will enhance the visual experience of your virtual meetings. A compact square base and cable management reduce table-clutter for user convenience and comfort.
Effortless Collaboration
Enjoy seamless collaboration on the ThinkVision T22V-20, equipped with an FHD camera, dual-array microphones, and stereo speakers that facilitate an enhanced VoIP meeting experience. The 1920 x 1080 screen offers exceptional visual clarity for effective meetings and presentations.
Uncompromised Security
Privacy is safeguarded with the ThinkShutter that physically covers the camera when not in use. For enhanced privacy, a smart auto-alarm function notifies you if the camera or microphone is in use. The IR camera coupled with Windows Hello ensures secure facial recognition for quick, secure logins.
Amplified Productivity
An angle-adjustable camera, inbuilt with smart face-tracking technology automatically adjusts the user’s face to the center of the screen, optimizing the display for a perfect VoIP meeting. Dedicated speaker and microphone control keys make it easy to toggle audio and video during meetings. Increased lift range and tilt angle on this monitor allow you to adjust it to a comfortable position.
| Display | |
|---|---|
| NTSC coverage (typical) | 72% |
| Colour gamut | 72% |
| Viewable size, vertical | 26.8 cm |
| Viewable size, horizontal | 47.6 cm |
| Pixel pitch | 0.2479 x 0.2479 mm |
| Response time (fast) | 6 ms |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 4 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 33.81 kWh |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 13 W |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 1.8 mm |
| Bezel width (side) | 1.8 mm |
| Weight (without stand) | 3.03 kg |
| Height (without stand) | 314.4 mm |
| Depth (without stand) | 48.3 mm |
| Width (without stand) | 489.3 mm |
| Weight (with stand) | 5.49 kg |
| Height (with stand) | 489.3 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 563 mm |
| Packaging data | |
|---|---|
| Package weight | 7.22 kg |
| Package height | 187 mm |
| Package depth | 390 mm |
| Package width | 577 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| Energy efficiency class (old) | A+ |
Redefine collaboration with the purposefully designed 21.5-inch ThinkVision T22V-20. Designated as one of the Most Efficient ENERGY STAR certified products in 2020, it reduces your carbon footprint while lowering power consumption. A built-in camera, Full-HD display, microphone, and speakers take video conferencing to a whole new level and easy to scale. The integrated IR Camera in conjunction with Windows Hello facial recognition ensures users can safely login without a password. In addition, the ThinkShutter allows users to cover their camera and the Auto Alarm feature notifies users when the camera or microphone is in use—safeguarding user confidentiality and privacy. Lenovo exclusive ThinkColour software1 lets you effortlessly adjust advanced display settings using the mouse, enhancing efficiency and user experience.
| Display | |
|---|---|
| Colour gamut standard | NTSC |
| NTSC coverage (typical) | 72% |
| Viewable size, vertical | 26.8 cm |
| Viewable size, horizontal | 47.6 cm |
| Pixel density | 102 ppi |
| Pixel pitch | 0.2479 x 0.2479 mm |
| Response time (fast) | 6 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 4 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| RMS rated power | 3 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| Headphone out | No |
| Audio output | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (max) | 43 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 13 W |
| Packaging content | |
|---|---|
| DisplayPort cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 1.8 mm |
| Bezel width (side) | 1.8 mm |
| Weight (without stand) | 3.03 kg |
| Height (without stand) | 314.4 mm |
| Depth (without stand) | 48.3 mm |
| Width (without stand) | 489.3 mm |
| Weight (with stand) | 5.49 kg |
| Height (with stand) | 489.3 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 563 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 7.22 kg |
| Package height | 187 mm |
| Package depth | 390 mm |
| Package width | 577 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Silver |
| Sustainability compliance | Yes |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
Collaborate and hold meetings and video conferencing with the 21.5-inch ThinkVision T22v-20 that has a built-in camera, microphone, and speakers. With an integrated IR camera and Windows Hello, you can safely log in without a password. The monitor also offers a 3-side NearEdgeless In-Plane Switching display, which will enhance the visual experience of your virtual meetings. A compact square base and cable management reduce table-clutter for user convenience and comfort.
| Display | |
|---|---|
| NTSC coverage (typical) | 72% |
| Colour gamut | 72% |
| Viewable size, vertical | 26.8 cm |
| Viewable size, horizontal | 47.6 cm |
| Pixel pitch | 0.2479 x 0.2479 mm |
| Response time (fast) | 6 ms |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 4 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Multimedia | |
|---|---|
| Built-in microphone | Yes |
| RMS rated power | 6 W |
| Number of speakers | 2 |
| Built-in camera | Yes |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 33.81 kWh |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 13 W |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 1.8 mm |
| Bezel width (side) | 1.8 mm |
| Weight (without stand) | 3.03 kg |
| Height (without stand) | 314.4 mm |
| Depth (without stand) | 48.3 mm |
| Width (without stand) | 489.3 mm |
| Weight (with stand) | 5.49 kg |
| Height (with stand) | 489.3 mm |
| Depth (with stand) | 205 mm |
| Width (with stand) | 563 mm |
| Packaging data | |
|---|---|
| Package weight | 7.22 kg |
| Package height | 187 mm |
| Package depth | 390 mm |
| Package width | 577 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| Energy efficiency class (old) | A+ |
Collaborate and hold meetings and video conferencing with the 21.5-inch ThinkVision T22v-20 that has a built-in camera, microphone, and speakers. With an integrated IR camera and Windows Hello, you can safely log in without a password. The monitor also offers a 3-side Near Edgeless In-Plane Switching display, which will enhance the visual experience of your virtual meetings. A compact square base and cable management reduce table-clutter for user convenience and comfort.
The Lenovo ThinkVision T23d-10 is a superior monitor that is meant to take your efficiency to new heights. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23d-10 lets you perform to your full potential.
The 16:10 aspect ratio of the T23d-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel of the bright WUXGA monitor and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4 ms response time, the anti-glare display minimises motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23d-10 has a range of ports such as VGA, DP and HDMI to boost productivity.
| Display | |
|---|---|
| Quantum dot color technology | Yes |
| 3D | No |
| Colour gamut | 72% |
| Viewable size, vertical | 31.4 cm |
| Viewable size, horizontal | 49.6 cm |
| Pixel pitch | 0.25 x 0.25 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | TFT/IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 57.1 cm (22.5") |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | TCO 7.0, DDC2B/CI, ISO 9241-307, FCC Class B, TCO Certified Edge 2.0, WEEE |
| Detachable stand | Yes |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Network | |
|---|---|
| Ethernet LAN | No |
| Bluetooth | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 30° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | 0 - 90° |
| Pivot | Yes |
| Height adjustment | 11 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power consumption (max) | 18 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 15 W |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Energy efficiency class (SDR) | D |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (side) | 2.3 mm |
| Weight (with stand) | 4.85 kg |
| Height (with stand) | 491.9 mm |
| Depth (with stand) | 251.9 mm |
| Width (with stand) | 501.2 mm |
| Packaging data | |
|---|---|
| VGA cable length | 1.8 m |
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| TV tuner integrated | No |
| On/off switch | Yes |
| AC adapter included | Yes |
The Lenovo ThinkVision T23D-10 is a superior monitor that is meant to take your efficiency to new heights. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23D-10 lets you perform to your full potential. The 16:10 aspect ratio of the T23D-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel of the bright WUXGA monitor and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4 ms response time, the anti-glare display minimises motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23D-10 has a range of ports such as VGA, DP and HDMI to boost productivity.
Increase Your Efficiency
The 22.5-inch borderless display offers 11% more space, allowing you to do much more. The extra thin bezel is beneficial especially if you are dealing with extensive data and need to work with multiple screens.
Adaptable and Ergonomic
The ThinkVision T23d-10 is built to support you in any work environment. The wide 178° viewing angle eliminates disturbing reflections and makes for a brilliant and bright display, so you don’t miss a single detail. Easy to assemble (tool-free), the ergonomic stand can lift, tilt, pivot, and swivel at your will. For a clutter-free desk, manage cables with the clip behind the stand.
Clarity with Comfort
Promoting eye-safety, the ThinkVision T23D-10 comes with the TÜV Eye Comfort certification. It is the solution to long hours at the desk. Also, these monitors emit low blue light, which lessens eye-strain without hindering your productivity
| Display | |
|---|---|
| Colour gamut | 72% |
| Viewable size, vertical | 31.4 cm |
| Viewable size, horizontal | 49.6 cm |
| Pixel pitch | 0.25 x 0.25 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 57.1 cm (22.5") |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Detachable stand | Yes |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Network | |
|---|---|
| Bluetooth | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 30° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | 0 - 90° |
| Pivot | Yes |
| Height adjustment | 11 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 18 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 15 W |
| Packaging content | |
|---|---|
| HDMI cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (side) | 2.3 mm |
| Weight (with stand) | 4.85 kg |
| Height (with stand) | 491.9 mm |
| Depth (with stand) | 251.9 mm |
| Width (with stand) | 501.2 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
The Lenovo ThinkVision T23D-10 is a superior monitor that is meant to take your efficiency to new heights. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23d-10 lets you perform to your full potential.
The 16:10 aspect ratio of the T23D-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel of the bright WUXGA monitor and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4 ms response time, the anti-glare display minimises motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23D-10 has a range of ports such as VGA, DP and HDMI to boost productivity.
Explore your Potential
The ThinkVision T23D-10 is a superior monitor that ensures you never miss any detail, be it comparing data-intensive files or while creating content. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23D-10 lets you perform to your full potential.The 16:10 aspect ratio of the ThinkVision T23D-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4ms response time, the anti-glare display minimizes motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23D-10 has a range of ports such as VGA, DP, and HDMI to boost productivity.
Increase Your Efficiency
The 22.5-inch borderless display offers 11% more space, allowing you to do much more. The extra thin bezel is beneficial especially if you are dealing with extensive data and need to work with multiple screens.
Adaptable and Ergonomic
The ThinkVision T23D-10 is built to support you in any work environment.The wide 178° viewing angle eliminates disturbing reflections and makes for a brilliant and bright display, so you don’t miss a single detail. Easy to assemble (tool-free), the ergonomic stand can lift, tilt, pivot, and swivel at your will. For a clutter-free desk, manage cables with the clip behind the stand.
| Display | |
|---|---|
| Colour gamut | 72% |
| Viewable size, vertical | 31.4 cm |
| Viewable size, horizontal | 49.6 cm |
| Pixel pitch | 0.25 x 0.25 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 57.1 cm (22.5") |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Detachable stand | Yes |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Network | |
|---|---|
| Bluetooth | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 30° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | 0 - 90° |
| Pivot | Yes |
| Height adjustment | 11 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 18 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 15 W |
| Packaging content | |
|---|---|
| HDMI cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (side) | 2.3 mm |
| Weight (with stand) | 4.85 kg |
| Height (with stand) | 491.9 mm |
| Depth (with stand) | 251.9 mm |
| Width (with stand) | 501.2 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
The Lenovo ThinkVision T23D-10 is a superior monitor that is meant to take your efficiency to new heights. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23D-10 lets you perform to your full potential.
The 16:10 aspect ratio of the T23D-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel of the bright WUXGA monitor and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4 ms response time, the anti-glare display minimises motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23D-10 has a range of ports such as VGA, DP and HDMI to boost productivity.
| Display | |
|---|---|
| Colour gamut | 72% |
| Viewable size, vertical | 31.4 cm |
| Viewable size, horizontal | 49.6 cm |
| Pixel pitch | 0.25 x 0.25 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 57.1 cm (22.5") |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Detachable stand | Yes |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Network | |
|---|---|
| Bluetooth | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 30° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | 0 - 90° |
| Pivot | Yes |
| Height adjustment | 11 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 18 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 15 W |
| Packaging content | |
|---|---|
| HDMI cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (side) | 2.3 mm |
| Weight (with stand) | 4.85 kg |
| Height (with stand) | 491.9 mm |
| Depth (with stand) | 251.9 mm |
| Width (with stand) | 501.2 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
Enhance your work and experience brilliant visuals on the ThinkVision T23i-20. View crystal-clear details from all angles on this 23-inch monitor that has an In-Plane Switching panel and anti-glare display. Its ultra-thin, 3-side NearEdgeless bezels offer wide screen real estate to let you create and collaborate efficiently. Multiple ports on the ThinkVision T23i-20 allow you to connect to peripherals effortlessly. While enabling efficient working, the monitor, with ergonomic stand and TÜV Rheinland Eye Comfort certification, ensures that you work comfortably.
High-Quality Display
Lenovo ThinkVision monitors are known for their high-quality display panels. Whether you're working on graphic design, editing photos, or watching videos, ThinkVision monitors deliver vibrant colors, sharp details, and wide viewing angles. The accurate color reproduction and precise image quality ensure an immersive visual experience, enhancing your productivity and enjoyment.
Ergonomic Design
Another user-friendly aspect of ThinkVision monitors is their ergonomic design. These monitors are carefully engineered to provide maximum comfort and convenience during prolonged usage. The ergonomic design of ThinkVision monitors promotes good posture and reduces the risk of discomfort or fatigue, making them ideal for long hours of work or entertainment.
Reliable Performance and Durability
Lenovo is renowned for its commitment to quality and reliability, and the ThinkVision series is no exception. These monitors are built to last, with robust construction and high-quality materials. They undergo rigorous testing to ensure they meet Lenovo's strict standards, providing users with a reliable and long-lasting display solution.
Lenovo Premier Support
Whether you’re running a business or just looking for a personal device to work from anywhere, when you upgrade to Lenovo Premier Support you’ll get access to:- Comprehensive hardware and OEM software support - Single point of contact with advanced engineers- Technical account managers for proactive relationship & escalation management - Priority service delivery & repair parts
| Display | |
|---|---|
| NTSC coverage (typical) | 75% |
| Colour depth | 8 bit |
| Viewable size, vertical | 28.6 cm |
| Viewable size, horizontal | 50.9 cm |
| Pixel density | 95.78 ppi |
| Pixel pitch | 0.2652 x 0.2652 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 58.4 cm (23") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | CCC, TCO 8.0, TCO Edge 2.0, TÜV |
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 14.5 W |
| Packaging content | |
|---|---|
| DisplayPort cable length | 1.8 m |
| Cables included | DisplayPort |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.32 kg |
| Height (without stand) | 316.3 mm |
| Depth (without stand) | 44.8 mm |
| Width (without stand) | 521.8 mm |
| Weight (with stand) | 5.59 kg |
| Height (with stand) | 554.3 mm |
| Depth (with stand) | 200 mm |
| Width (with stand) | 521.8 mm |
| Packaging data | |
|---|---|
| Package weight | 7.5 kg |
| Package height | 387 mm |
| Package depth | 175 mm |
| Package width | 599 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
Enhance your work and experience brilliant visuals on the ThinkVision T23i-20. View crystal-clear details from all angles on this 23-inch monitor that has an In-Plane Switching panel and anti-glare display. Its ultra-thin, 3-side NearEdgeless bezels offer wide screen real estate to let you create and collaborate efficiently. Multiple ports on the ThinkVision T23i-20 allow you to connect to peripherals effortlessly. While enabling efficient working, the monitor, with ergonomic stand and TÜV Rheinland Eye Comfort certification, ensures that you work comfortably.
| Display | |
|---|---|
| Colour gamut standard | NTSC |
| NTSC coverage (typical) | 75% |
| Colour depth | 8 bit |
| Viewable size, vertical | 28.6 cm |
| Viewable size, horizontal | 50.9 cm |
| Pixel density | 95.78 ppi |
| Pixel pitch | 0.2652 x 0.2652 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 58.4 cm (23") |
| Performance | |
|---|---|
| Compatibility | Tiny Bracket, Nano Bracket |
| Low Blue Light technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Feet colour | Black |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 35° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 14.5 W |
| Packaging content | |
|---|---|
| DisplayPort cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, USB Type-A to USB Type-B |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 2.2 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.32 kg |
| Height (without stand) | 316.3 mm |
| Depth (without stand) | 44.8 mm |
| Width (without stand) | 521.8 mm |
| Weight (with stand) | 5.59 kg |
| Height (with stand) | 554.3 mm |
| Depth (with stand) | 200 mm |
| Width (with stand) | 521.8 mm |
| Packaging data | |
|---|---|
| Package weight | 7.5 kg |
| Package height | 387 mm |
| Package depth | 175 mm |
| Package width | 599 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Energy efficiency class (old) | A+ |
Enhance your work and experience brilliant visuals on the ThinkVision T23i-20. View crystal-clear details from all angles on this 23-inch monitor that has an In-Plane Switching panel and anti-glare display. Its ultra-thin, 3-side Near Edgeless bezels offer wide screen real estate to let you create and collaborate efficiently. Multiple ports on the ThinkVision T23i-20 allow you to connect to peripherals effortlessly. While enabling efficient working, the monitor, with ergonomic stand and TÜV Rheinland Eye Comfort certification, ensures that you work comfortably.
| Display | |
|---|---|
| Colour gamut | 72% |
| RGB colour space | NTSC |
| Colour depth | 8 bit |
| Viewable size, vertical | 28.6 cm |
| Viewable size, horizontal | 50.9 cm |
| Pixel density | 96 ppi |
| Pixel pitch | 0.265 x 0.265 mm |
| Response time (fast) | 4 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (dynamic) | 3000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | W-LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 58.4 cm (23") |
| Performance | |
|---|---|
| Compatible operating systems | Windows 10, Windows 11 |
| Low Blue Light technology | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | ENERGY STAR® Certified, TCO 9.0, TCO Edge 2.0, EPEAT™ Gold, RoHSEyesafe® Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland® Low Blue Light, TÜV Rheinland® Flicker Free, TÜV Rheinland® Eye Comfort |
| Feet colour | Black |
| Detachable stand | Yes |
| Front bezel colour | Black |
| Colour name | Raven Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 23.5° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15.5 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Power consumption (off) | 0.5 W |
| Power consumption (max) | 48 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15 W |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 1.73 cm |
| Bezel width (top) | 2 mm |
| Bezel width (side) | 2 mm |
| Weight (without stand) | 3.2 kg |
| Height (without stand) | 313.1 mm |
| Depth (without stand) | 46.4 mm |
| Width (without stand) | 522 mm |
| Weight (with stand) | 5.2 kg |
| Height (with stand) | 493.8 mm |
| Depth (with stand) | 199.7 mm |
| Width (with stand) | 522 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 7.3 kg |
| Package height | 421 mm |
| Package depth | 150 mm |
| Package width | 592 mm |
| General | |
|---|---|
| Product Family | ThinkVision |
