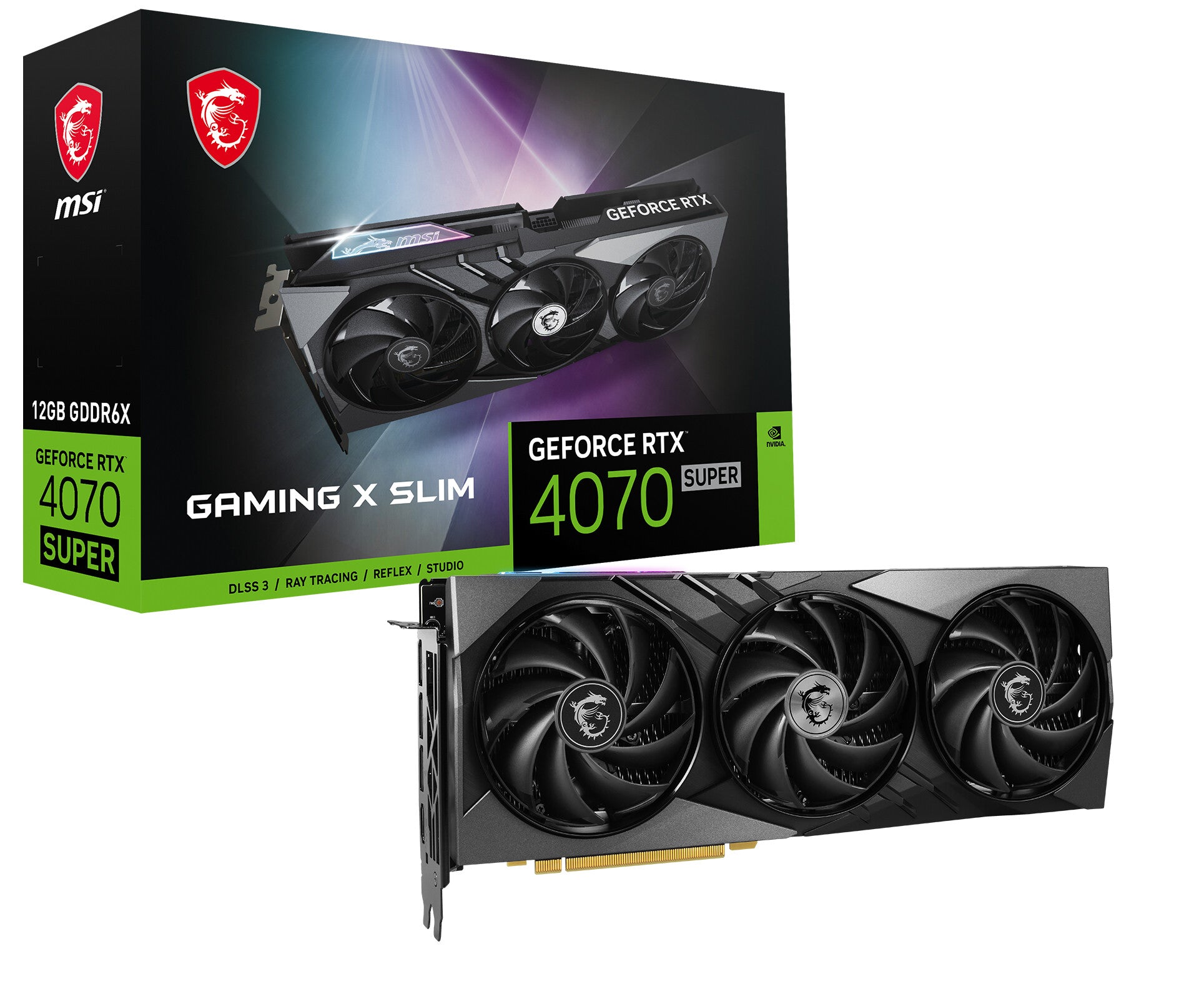

GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2640 MHz |
| Processor frequency | 2655 MHz |
| CUDA cores | 7168 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Silver |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power supply location | External |
| Power consumption (typical) | 245 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 650 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 125 mm |
| Width | 46 mm |
| Weight | 972 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 972 g |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 165 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 125 mm |
| Height | 46 mm |
| Width | 307 mm |
| Weight | 919 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.64 kg |

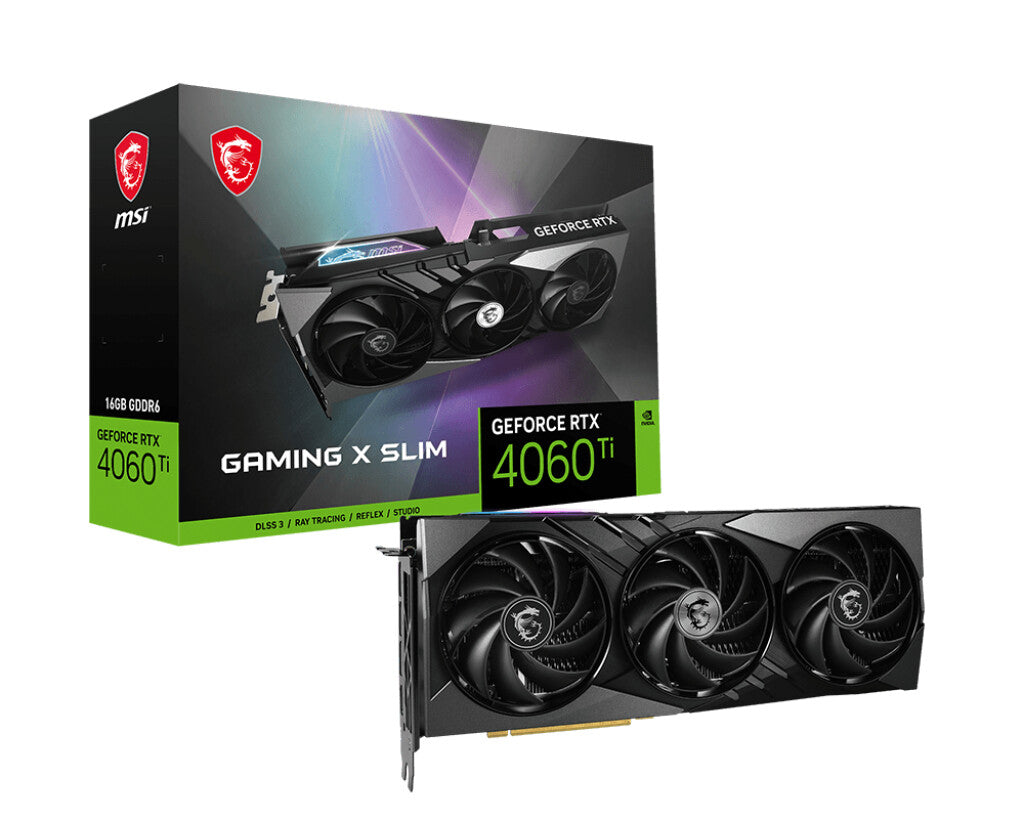

Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor frequency | 2685 MHz |
| Processor boost clock speed | 2670 MHz |
| Maximum displays per videocard | 4 |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Memory | |
| Discrete graphics card memory | 16 GB |
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Ports & interfaces | |
| HDMI version | 2.1a |
| HDMI ports quantity | 1 |
| DisplayPort version | 1.4a |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Interface type | PCI Express x8 4.0 |
| Video | |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDMI version | 2.1a |
| HDCP | Yes |
| Dual Link DVI | No |
| CUDA cores | 4352 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Design | |
| Number of fans | 3 fan(s) |
| Illumination | Yes |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black, Grey |
| Cooling technology | MSI TORX FAN 5.0 |
| Power | |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (typical) | 165 W |
| Minimum system power supply | 550 W |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black, Grey |
| TV tuner integrated | No |
| System requirements | |
| Minimum system power supply | 550 W |
| Weight & dimensions | |
| Weight | 919 g |
| Height | 125 mm |
| Depth | 46 mm |
| Length | 307 mm |
| Packaging data | |
| Package type | Box |
| Package weight | 1.64 kg |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 8448 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power supply location | External |
| Power consumption (typical) | 285 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 700 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 125 mm |
| Width | 51 mm |
| Weight | 1.09 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.68 kg |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 8448 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power supply location | External |
| Power consumption (typical) | 285 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 700 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 51 mm |
| Height | 125 mm |
| Length | 307 mm |
| Weight | 1.09 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.68 kg |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2610 MHz |
| Processor frequency | 2625 MHz |
| CUDA cores | 10240 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |

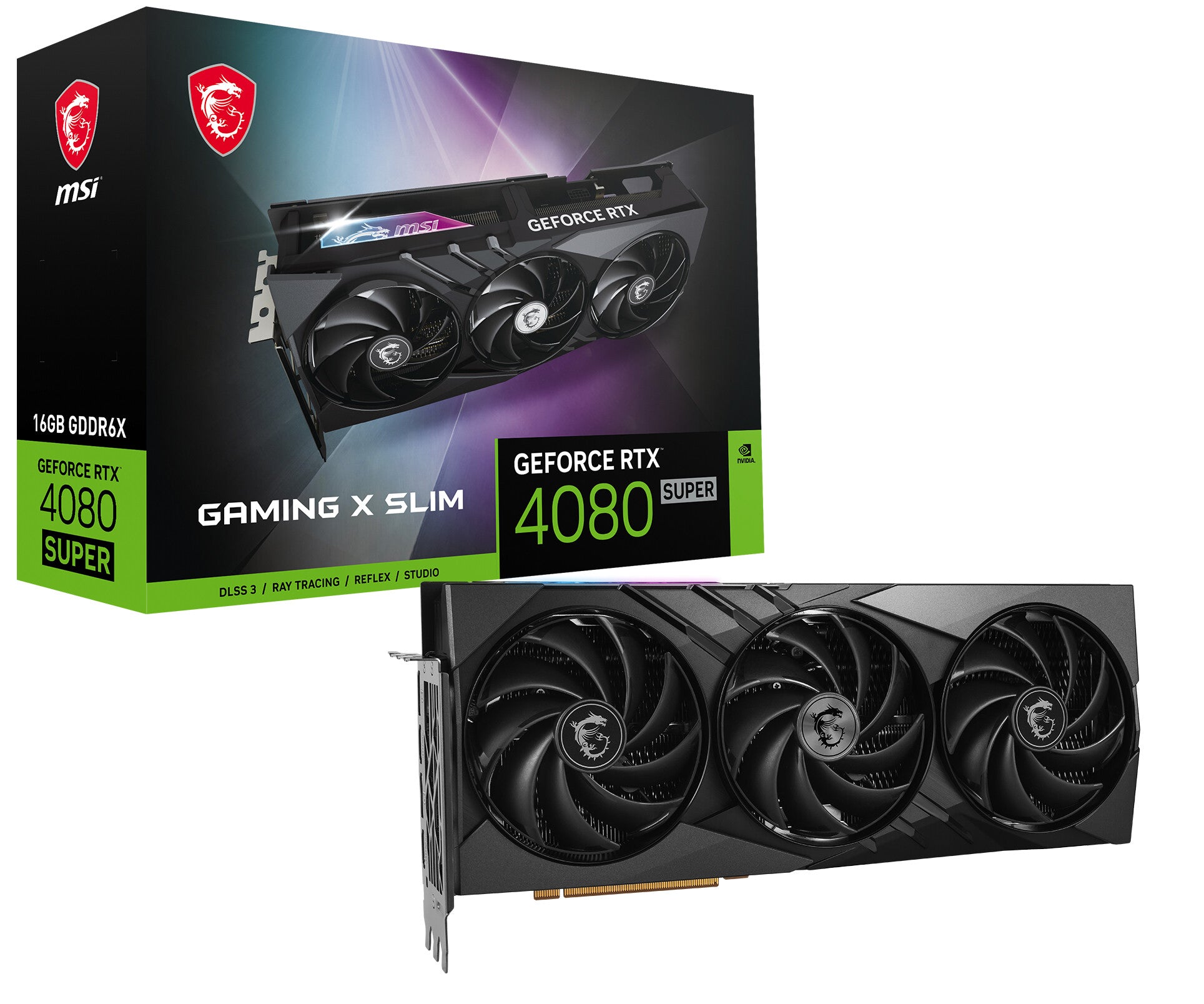

| Graphics processor | GeForce RTX 4080 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 23 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 320 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 850 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 62 mm |
| Height | 136 mm |
| Length | 322 mm |
| Weight | 1.63 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.33 kg |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2610 MHz |
| Processor frequency | 2625 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power supply location | External |
| Power consumption (typical) | 215 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 650 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 46 mm |
| Width | 125 mm |
| Weight | 988 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.75 kg |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2730 MHz |
| Processor frequency | 2745 MHz |
| CUDA cores | 7680 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 285 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 700 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 51 mm |
| Width | 125 mm |
| Weight | 1.09 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.84 kg |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2640 MHz |
| Processor frequency | 2655 MHz |
| CUDA cores | 7168 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 245 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 650 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 125 mm |
| Width | 46 mm |
| Weight | 972 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 972 g |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 165 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 125 mm |
| Height | 46 mm |
| Width | 307 mm |
| Weight | 919 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.64 kg |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
COPPER BASEPLATE
FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 18 GB/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 125 mm |
| Width | 46 mm |
| Weight | 895 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.6 kg |
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2640 MHz |
| Processor frequency | 2655 MHz |
| CUDA cores | 7168 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 245 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 650 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 46 mm |
| Height | 125 mm |
| Length | 307 mm |
| Weight | 972 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 972 g |
GAMING UNBOUND
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
Powered by GeForce RTX 40 Series and DLSS 3
The Ultimate Platform for Gamers and Creators
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
COPPER BASEPLATE
FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 165 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 46 mm |
| Width | 125 mm |
| Weight | 919 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.64 kg |
GAMING UNBOUND
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
Powered by GeForce RTX 40 Series and DLSS 3
The Ultimate Platform for Gamers and Creators
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
COPPER BASEPLATE
FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 165 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 46 mm |
| Width | 125 mm |
| Weight | 919 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.64 kg |
GAMING UNBOUND
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 8448 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |

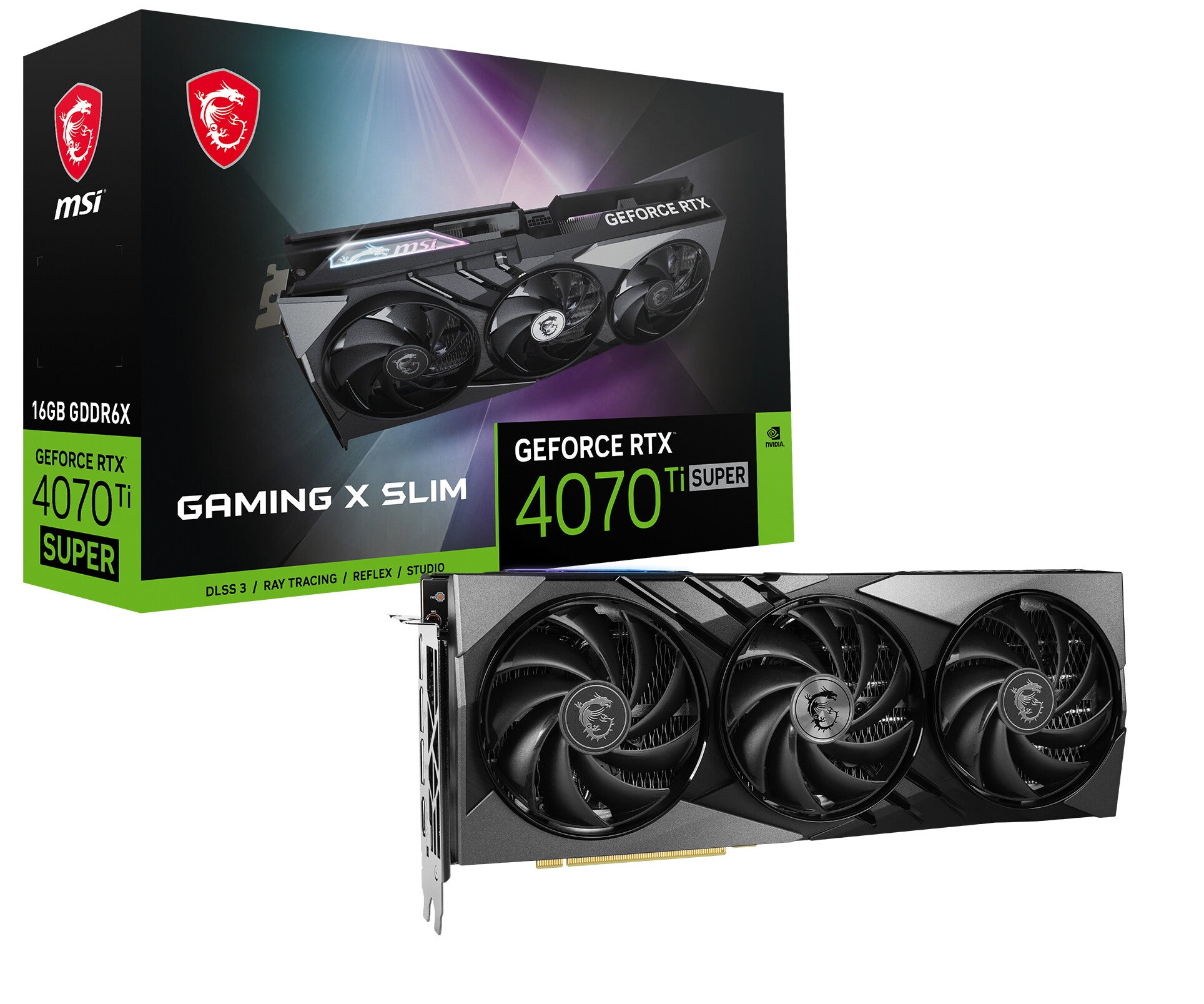

| Graphics processor | GeForce RTX 4070 Ti SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 285 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 700 W |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 125 mm |
| Width | 51 mm |
| Weight | 1.09 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.68 kg |

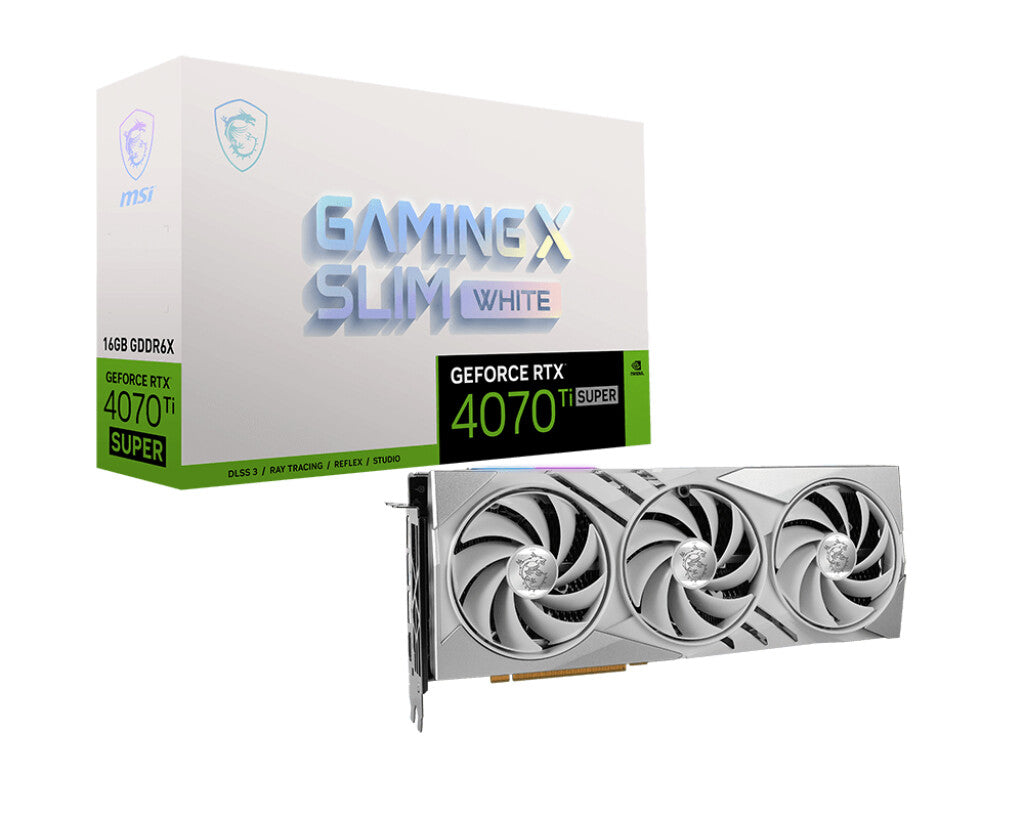

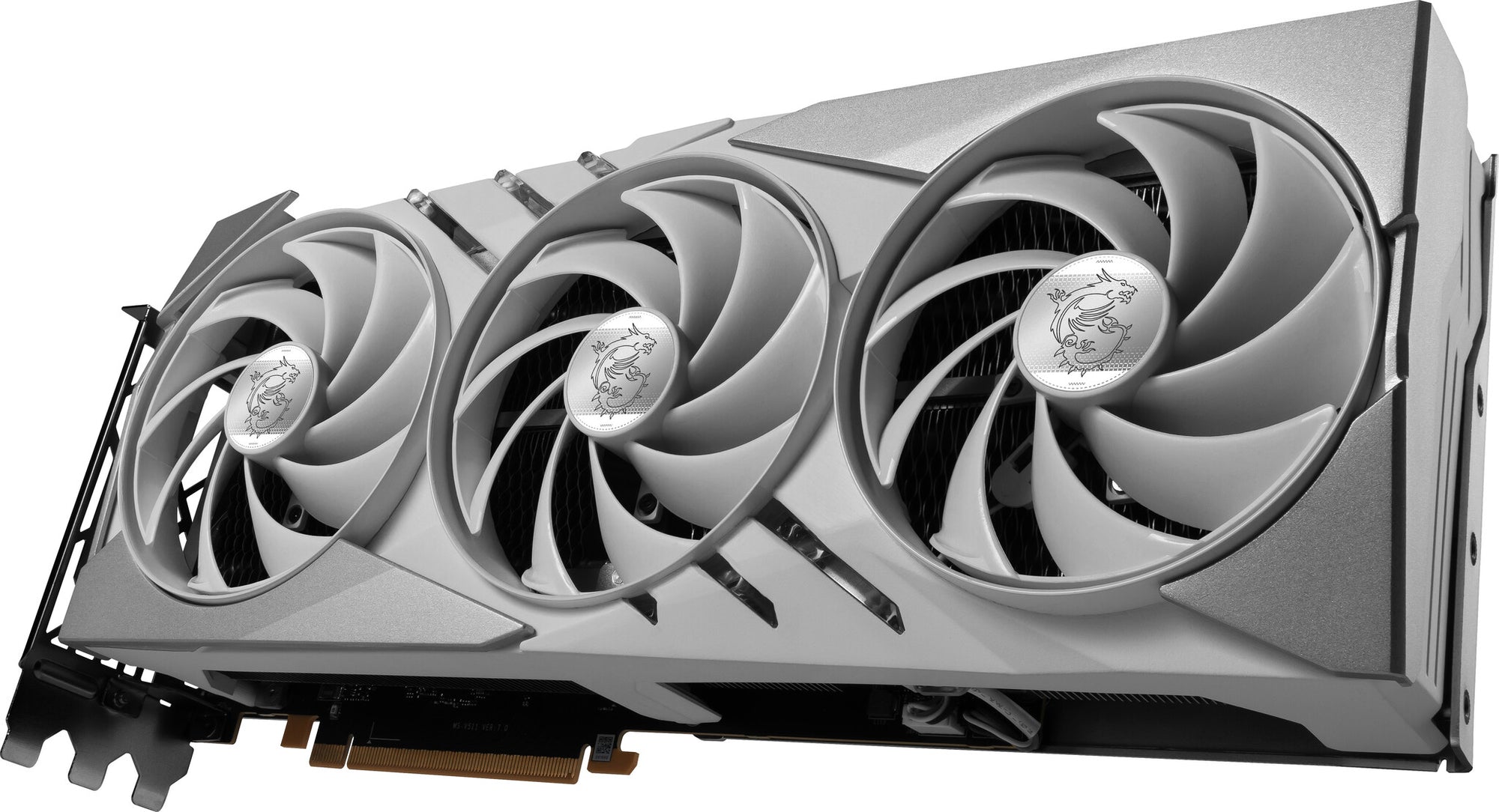

GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTH AND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2610 MHz |
| Processor frequency | 2625 MHz |
| CUDA cores | 10240 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |

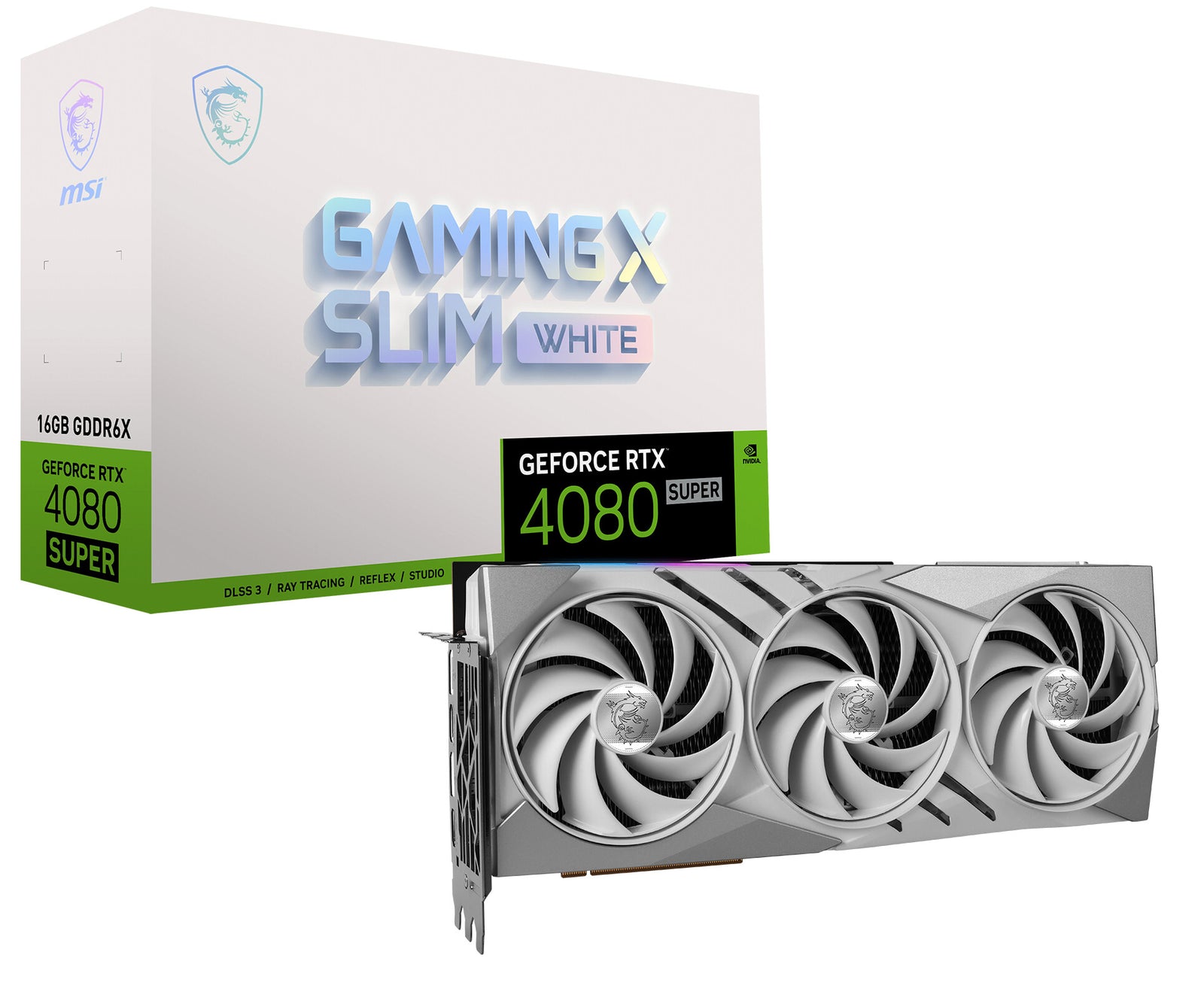

| Graphics processor | GeForce RTX 4080 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 23 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 1.2a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 320 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 850 W |
| Weight & dimensions | |
|---|---|
| Depth | 322 mm |
| Height | 136 mm |
| Width | 62 mm |
| Weight | 1.63 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.33 kg |
| Package height | 107 mm |
| Package depth | 411 mm |
| Package width | 270 mm |
GAMING UNBOUND

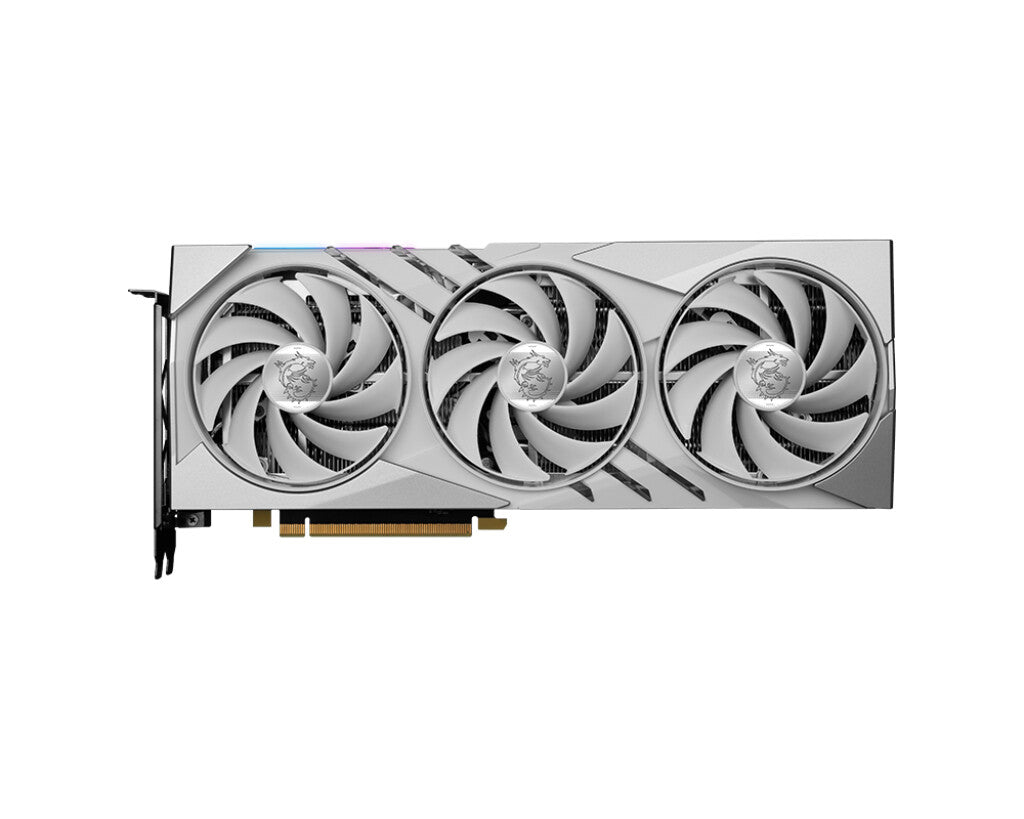

GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTHAND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
COPPER BASEPLATE
FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2670 MHz |
| Processor frequency | 2685 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 18 GB/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 307 mm |
| Height | 125 mm |
| Width | 46 mm |
| Weight | 895 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.6 kg |
GAMING UNBOUND

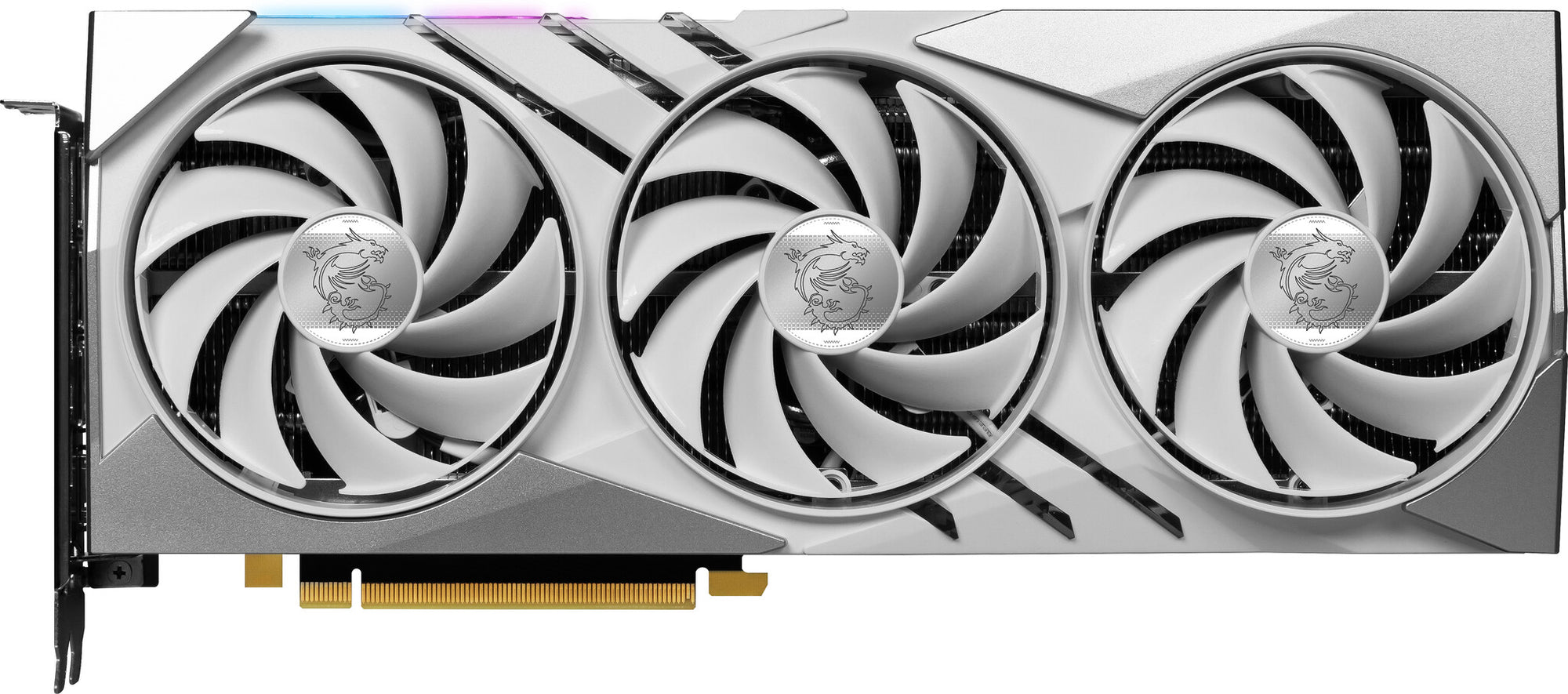

GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
STRENGTH AND MASTERY
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2595 MHz |
| CUDA cores | 9728 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4080 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 22.4 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Illumination | Yes |
| Illumination colour | Multi |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 320 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 750 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 322 mm |
| Height | 136 mm |
| Width | 62 mm |
| Weight | 1.67 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.82 kg |

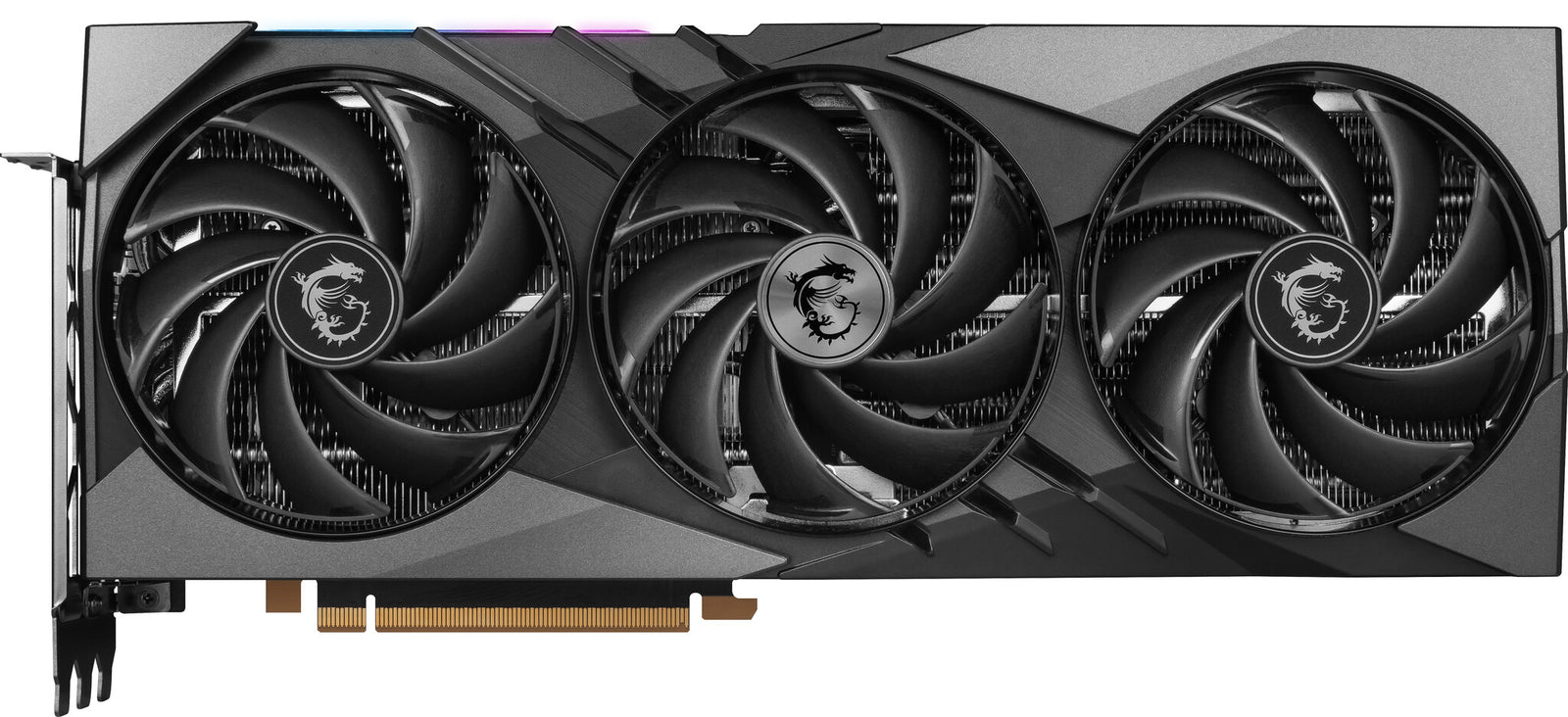

THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TRI FROZR 2 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TRI FROZR 2 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
BEND THE RULES, NOT THE CARD
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
DIRECTX® RAYTRACING
Experience Photorealistic Games
DirectX Raytracing (DXR) adds a new level of graphics realism to games through effects like reflections, shadows, and global illumination at real-time frame rates on AMD Radeon™ RX 6000 series graphics, thanks to AMD RDNA™ 2 architecture support for hardware-accelerated raytracing.
Bringing It All Together
MSI's exclusive Dragon Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Stream processors | 3840 |
| Parallel processing technology support | 2-Way CrossFireX |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2155 MHz |
| Processor frequency | 1775 MHz |
| CUDA cores | 3840 |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 6800 |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 16 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| PhysX | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Illumination | Yes |
| Illumination colour | Multi |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX Fan 4.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 250 W |
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 650 W |
| General | |
|---|---|
| Product Family | GAMING |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 55 mm |
| Height | 141 mm |
| Length | 324 mm |
| Weight | 1.52 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Manual | Yes |
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TRI FROZR 2 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TRI FROZR 2 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
BEND THE RULES, NOT THE CARD
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
DIRECTX® RAYTRACING
Experience Photorealistic Games
DirectX Raytracing (DXR) adds a new level of graphics realism to games through effects like reflections, shadows, and global illumination at real-time frame rates on AMD Radeon™ RX 6000 series graphics, thanks to AMD RDNA™ 2 architecture support for hardware-accelerated raytracing.
Bringing It All Together
MSI's exclusive Dragon Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Stream processors | 4608 |
| Parallel processing technology support | 2-Way CrossFireX |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2285 MHz |
| Processor frequency | 1850 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 6800 XT |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 16 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| PhysX | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Illumination | Yes |
| Illumination colour | Multi |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX Fan 4.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 300 W |
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 750 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 55 mm |
| Height | 141 mm |
| Length | 324 mm |
| Weight | 1.55 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.36 kg |
| Manual | Yes |
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TRI FROZR 2 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TRI FROZR 2 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional layers of protection against electrical damage.
BEND THE RULES, NOT THE CARD
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
DIRECTX® RAYTRACING
Experience Photorealistic Games
DirectX Raytracing (DXR) adds a new level of graphics realism to games through effects like reflections, shadows, and global illumination at real-time frame rates on AMD Radeon™ RX 6000 series graphics, thanks to AMD RDNA™ 2 architecture support for hardware-accelerated raytracing.
Bringing It All Together
MSI's exclusive Dragon Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Stream processors | 5120 |
| Parallel processing technology support | 2-Way CrossFireX |
| FireStream | Yes |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2340 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 6900 XT |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 16 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| PhysX | No |
| Design | |
|---|---|
| Number of slots | 2 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX Fan 4.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 300 W |
| Supplementary power connectors | 3x 8-pin |
| Minimum system power supply | 850 W |
| General | |
|---|---|
| Product Family | GAMING |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 55 mm |
| Height | 141 mm |
| Length | 324 mm |
| Weight | 1.58 kg |
| Packaging data | |
|---|---|
| Package type | Box |
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TRI FROZR 2 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the updated TRI FROZR 2 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Forged from Enhanced Materials
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
BEND THE RULES, NOT THE CARD
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1770 MHz |
| CUDA cores | 10240 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3080 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 19 Gbit/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | Multi |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX Fan 4.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 350 W |
| Supplementary power connectors | 3x 8-pin |
| Minimum system power supply | 750 W |
| General | |
|---|---|
| Product Family | GAMING |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 56 mm |
| Height | 140 mm |
| Length | 324 mm |
| Weight | 1.57 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Manual | Yes |
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TRI FROZR 2 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the updated TRI FROZR 2 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Forged from Enhanced Materials
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
BEND THE RULES, NOT THE CARD
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
WE MADE 10 MILLION CLICKS, YOU ONLY NEED 1
Bringing It All Together
MSI's exclusive Dragon Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Parallel processing technology support | NVLink |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1785 MHz |
| CUDA cores | 10496 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3090 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 19.5 Gbit/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 24 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| PhysX | Yes |
| Design | |
|---|---|
| Illumination | Yes |
| Illumination colour | Multi |
| Number of slots | 2 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI Tri Frozr 2 |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 3x 8-pin |
| Minimum system power supply | 750 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 |
| General | |
|---|---|
| Product Family | GAMING |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 56 mm |
| Height | 140 mm |
| Length | 232 mm |
| Weight | 1.56 kg |
| Packaging data | |
|---|---|
| Package type | Box |
GAMING IN STYLE
Play with style! GAMING is upgraded with TRI FROZR 3 to sustain intense performance during gaming and content creation.
A high-speed style matches high-performance capabilities for gamers who want to go all out.
STRENGTH AND ARTISTRY
MSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
A fan cowl extends a bit beyond the general enclosure to lengthen the wind’s passageway, allowing airflow to stabilize and move smoother through the fans. Bulging notches under the cowl help to reduce recirculation, thus further improving airflow stability and reducing some noise.
COPPER BASEPLATE
FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.
Airflow Control improves airflow dynamics through the Wave Curved 2.0, updated deflectors, and Air Antegrade fin design for optimizing the balance between cooling and quieter acoustics.
AIR ANTEGRADE FIN
Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
High-Efficiency Carbonyl Inductors (HCI)
Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electrical filtering.
SPS
Highly efficient Smart Power Stages (SPS) allow for accurate current regulation with lower resistance. The result is less power loss and less heat produced from the power layout.
Change Focus When Needed
Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Effective Thermal Padding
An abundance of clay-based thermal pads provide additional heat dissipation for board components.
Hardened Defenses
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
RELENTLESS DEFENSE
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2595 MHz |
| CUDA cores | 16384 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4090 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 24 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 450 W |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 850 W |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 337 mm |
| Height | 140 mm |
| Width | 77 mm |
| Weight | 2.17 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.09 kg |
