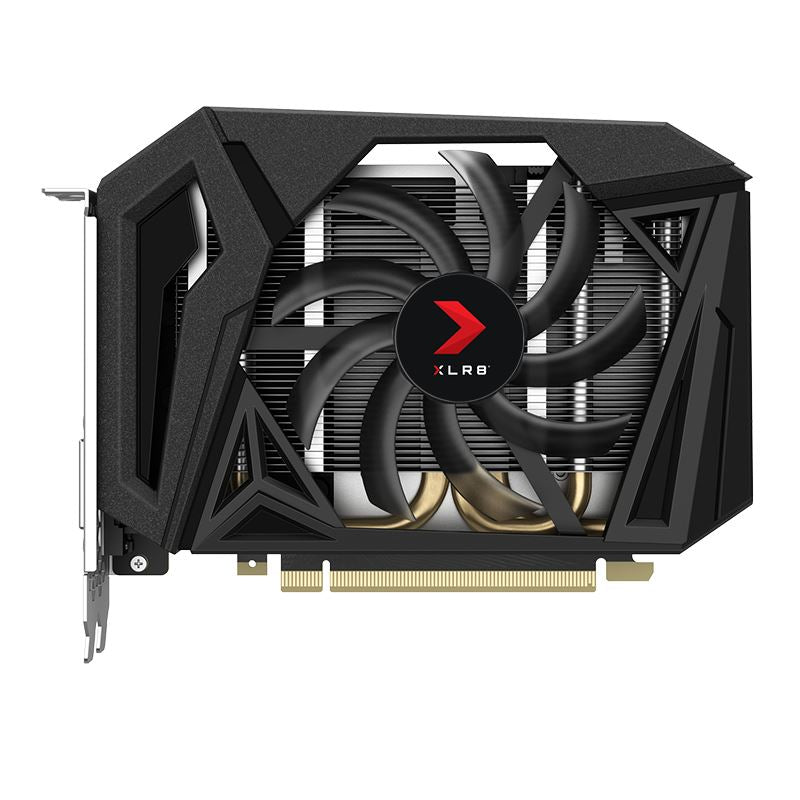

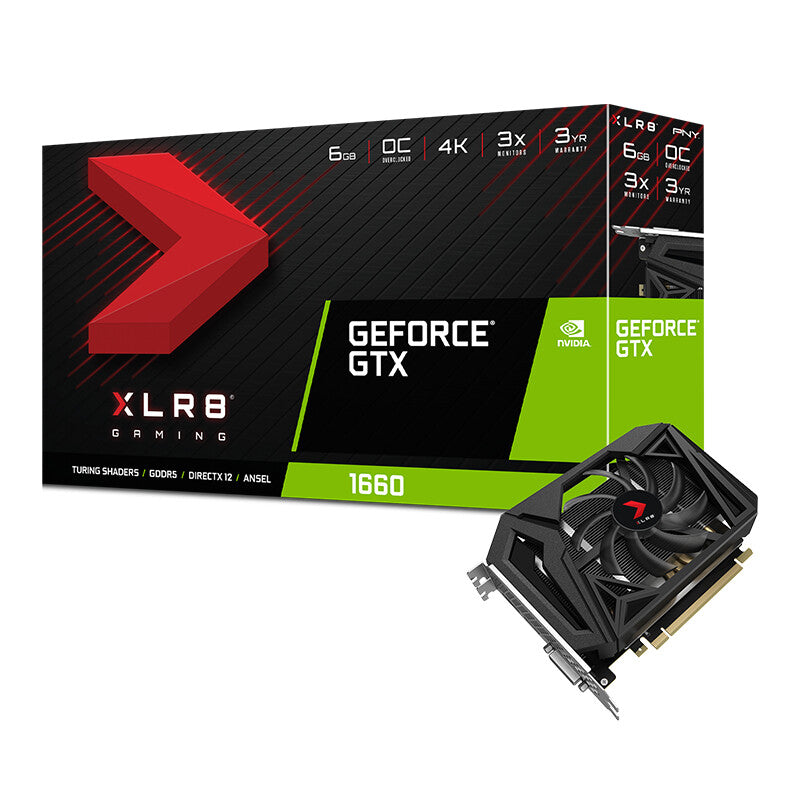

GEFORCE GTX 1660, THE NEW SUPERCHARGER.
The GeForce® GTX 1660 is built with the breakthrough graphics performance of the award-winning NVIDIA Turing™ architecture. With performance that rivals the GeForce GTX 1070, it’s a blazing-fast supercharger for today’s most popular games, and even faster with modern titles. GeForce GTX 1660 graphics cards are advanced graphics cards designed to deliver a powerful combination of gaming innovation and next-gen graphics Get game ready with performance that rivals the GeForce GTX 1070 on the latest games.
| Processor | |
|---|---|
| Processor boost clock speed | 1830 MHz |
| Processor frequency | 1530 MHz |
| CUDA cores | 1408 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce GTX 1660 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 192 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR5 |
| Discrete graphics card memory | 6 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.0b |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| OpenGL version | 4.5 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Number of slots | 2 |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 130 W |
| Minimum system power supply | 450 W |
| System requirements | |
|---|---|
| Minimum storage drive space | 1500 MB |
| Minimum RAM | 8000 MB |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 39.9 mm |
| Height | 126 mm |
| Length | 167.9 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 181.1 mm |
| Package depth | 57.4 mm |
| Package width | 314.7 mm |

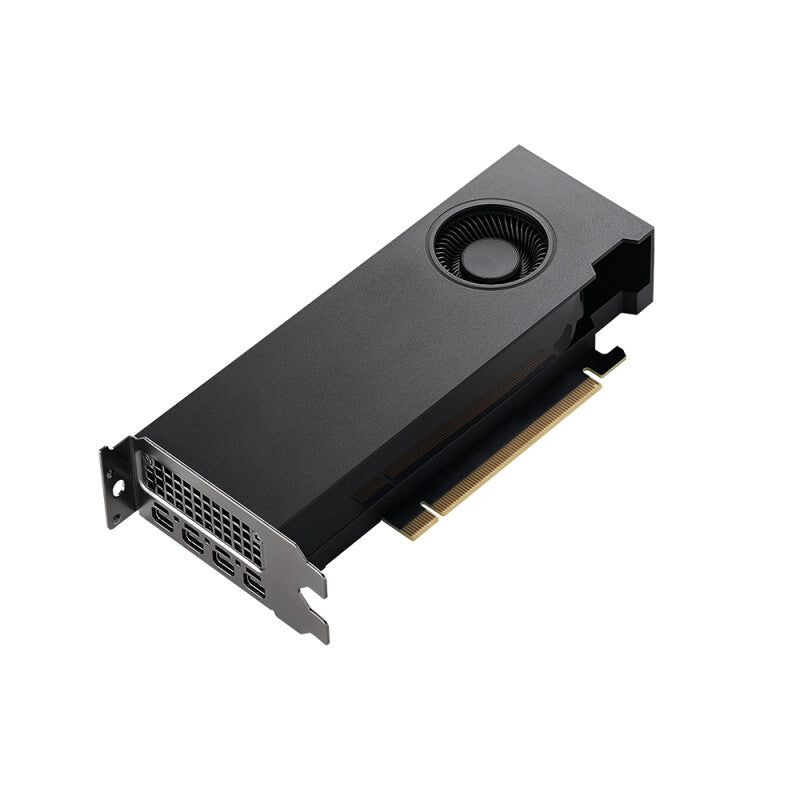

Accelerate Your Workflow

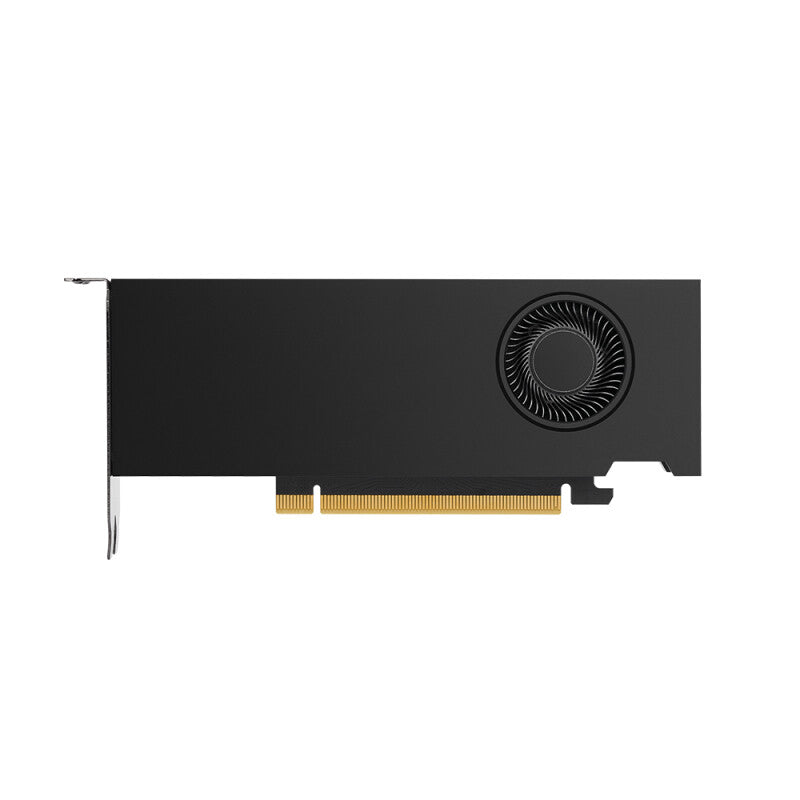

The NVIDIA RTX A2000 brings the power of NVIDIA RTX technology, realtime ray tracing, AI-accelerated compute, and high-performance graphics
to more professionals. Built on the NVIDIA Ampere architecture, the VR
ready RTX A2000 combines 26 second-generation RT Cores, 104 thirdgeneration Tensor Cores, and 3,328 next-generation CUDAcores and 6GB
of GDDR6 graphics memory with error correction code (ECC) support for
error free computing. The RTX A2000 features a power-efficient low profile,
dual-slot PCIe form factor that fits into a wide range of small form factor
workstations. Design bigger, render faster, and work smarter than ever
before with the RTX A2000.
NVIDIA RTX professional graphics cards are certified with a broad range of
professional applications, tested by leading independent software vendors
(ISVs) and workstation manufacturers, and backed by a global team of
support specialists. Get the peace of mind needed to focus on what matters
with the premier visual computing solution for mission-critical business.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| CUDA cores | 3328 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | RTX A2000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| Ports & interfaces | |
|---|---|
| Mini DisplayPorts quantity | 4 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.68 |
| Shader model version | 5.17 |
| DirectX version | 12.07 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of slots | 1 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 70 W |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Height | 68.6 mm |
| Length | 167.6 mm |

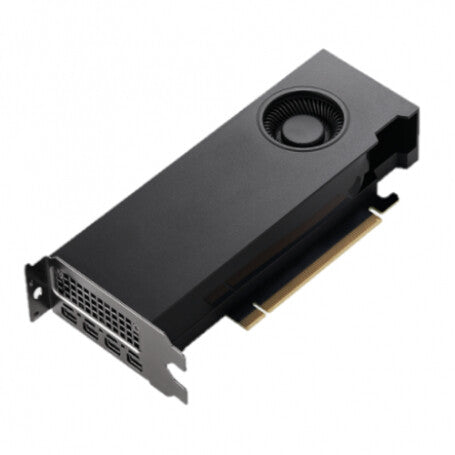

The NVIDIA RTX A2000 brings the power of NVIDIA RTX technology, real-time ray tracing, AI-accelerated compute, and high-performance graphics to more professionals. Built on the NVIDIA Ampere architecture, the VR ready RTX A2000 combines 26 second-generation RT Cores, 104 third-generation Tensor Cores, and 3,328 next-generation CUDA cores and 6GB of GDDR6 graphics memory with error correction code (ECC) support for error free computing. The RTX A2000 features a power-efficient low profile, dual-slot PCIe form factor that fits into a wide range of small form factor workstations. Design bigger, render faster, and work smarter than ever before with the RTX A2000.
NVIDIA RTX cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, NVIDIA RTX gives you the performance to do it brilliantly.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| CUDA cores | 3328 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | RTX A2000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| Ports & interfaces | |
|---|---|
| Mini DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.68 |
| Shader model version | 5.17 |
| DirectX version | 12.07 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (max) | 70 W |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Height | 69 mm |
| Length | 168 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| User guide | Yes |

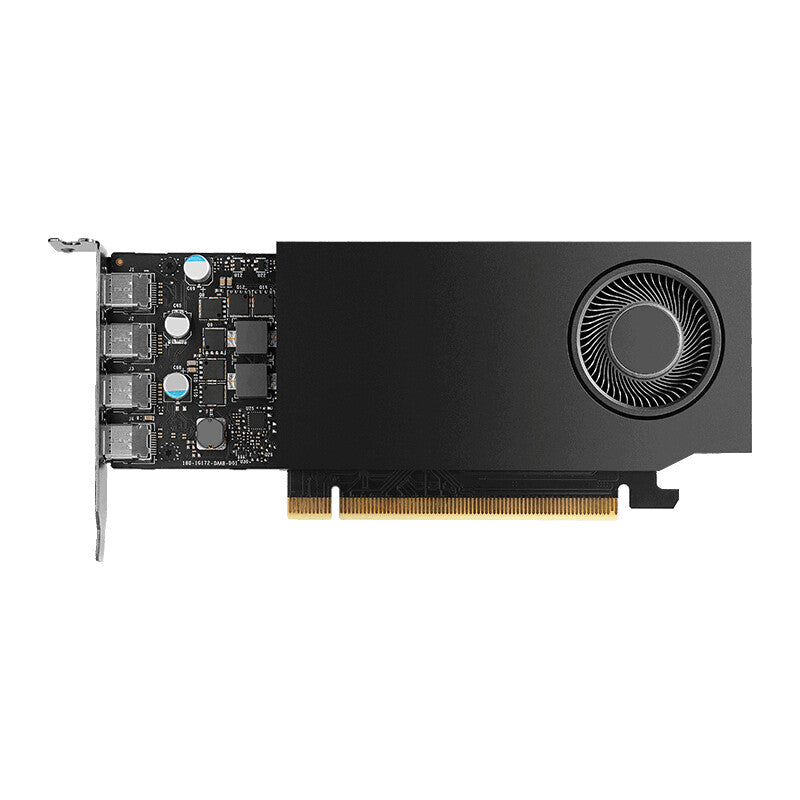

Performance for endless possibilities.
Small-form-factor computing solutions are becoming more common as professionals look to minimize their desktop workstation footprint—without compromising performance. Today's professional workflows require small-form-factor workstations to provide full-size features and performance in a compact package.

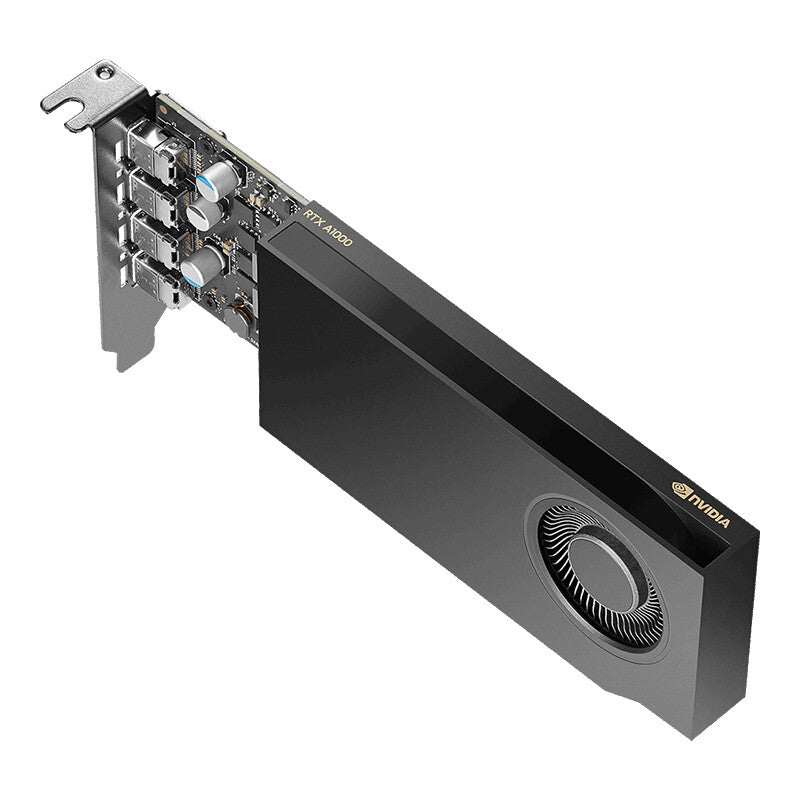

Built on NVIDIA Ampere GPU architecture, the NVIDIA RTX™ A1000 GPU is a powerful, low-profile solution that delivers the performance and capabilities required by demanding professional applications. With 2,304 CUDA® Cores, 18 RT Cores, 72 Tensor Cores, 8GB of GDDR6 memory, and the ability to drive up to four 5K displays, the NVIDIA RTX A1000 is ready to take your work to the next level.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| CUDA cores | 2304 |
| CUDA | Yes |
| Graphics processor | RTX A1000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 192 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| Mini DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (max) | 50 W |
Unleash the Power of RTX. Now for Every Workstation.
Introducing NVIDIA RTX™ A1000, bringing the power of RTX — real-time ray tracing and AI acceleration – to a whole new audience. Discover the ultimate low-profile, single-slot workstation GPU that will transform your work. Designed for the modern professional, RTX A1000 empowers you to create more compelling visuals, explore new AI-enhanced workflows, and boost your productivity. It redefines efficiency, packing full-scale performance into a sleek, space-saving design. Elevate your projects with cutting-edge technology and experience a new level of performance and productivity, even in compact workspaces.
NVIDIA Ampere Architecture-Based CUDA Cores
Accelerate graphics and compute workflows with up to 2X single-precision floating point (FP32) performance compared to the previous generation.
Second-Generation RT Cores
With the introduction of RT Cores to the RTX A1000, professionals can produce more visually accurate renders faster with hardware-accelerated motion blur and up to 2X faster ray-tracing performance than the previous generation.
Third-Generation Tensor Cores
Introducing Tensor Cores in the RTX A1000 dramatically boosts AI-augmented application performance, bringing advanced capabilities like AI denoising, DLSS, and more to graphics workflows.
8GB of GPU Memory
Drive graphics and compute-intensive workflows with 8GB of GDDR6 memory. Engineered for faster memory speeds to accelerate your workflow.
Low-Profile, Single-Slot Form Factor
Leverage a power-efficient design that fits into a wide range of workstation chassis.
PCI Express Gen 4
Improve data-transfer speeds from CPU memory for data-intensive tasks with support for PCI Express Gen 4.
Fifth-Generation NVDEC
Power through your workflow with faster video editing and playback, thanks to the fifth-generation NVDEC in the RTX A1000. Now featuring AV1 decode support, allow for higher efficiency and smoother playback of next-generation video formats.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| CUDA cores | 2304 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | RTX A1000 |
| Memory | |
| Discrete graphics card memory | 8 GB |
| Memory bandwidth (max) | 192 GB/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Ports & interfaces | |
| Mini DisplayPorts quantity | 4 |
| HDMI ports quantity | 0 |
| DisplayPort version | 1.4a |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Interface type | PCI Express x8 4.0 |
| Video | |
| DirectX version | 12.0 |
| Shader model version | 6.6 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| CUDA cores | 2304 |
| Performance | |
| DirectX version | 12.0 |
| Shader model version | 6.6 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| TV tuner integrated | No |
| HDCP version | 2.2 |
| Design | |
| Cooling type | Active |
| Number of slots | 1 |
| Bracket height | Low-Profile (LP) |
| Power | |
| Power consumption (typical) | 50 W |
| Weight & dimensions | |
| Number of slots | 1 |
| Height | 69 mm |
| Length | 163 mm |
| Technical details | |
| Cooling type | Active |
| TV tuner integrated | No |

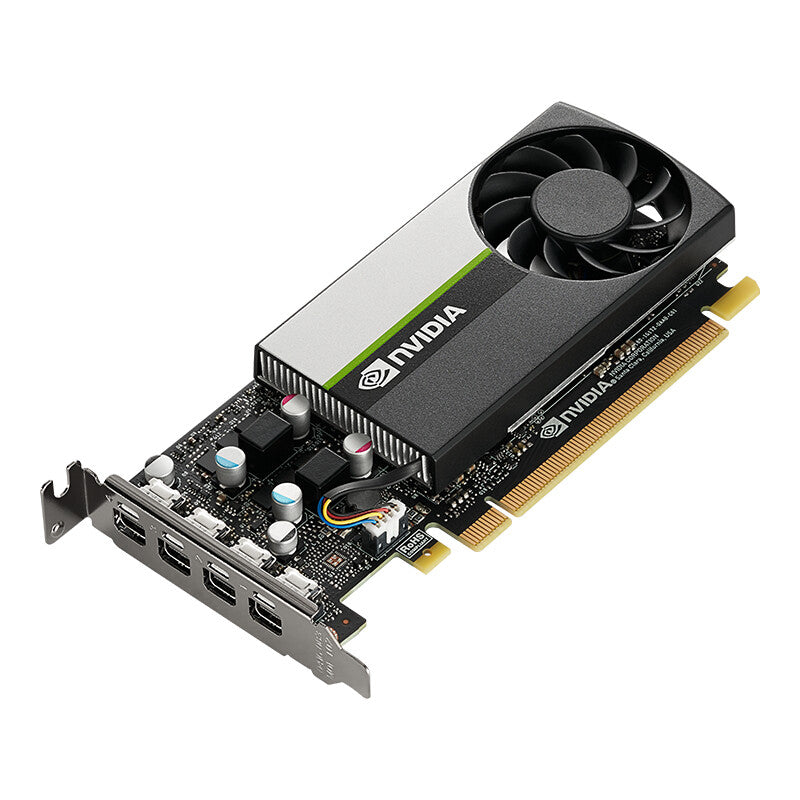

Full Performance in a Small Form Factor Solution

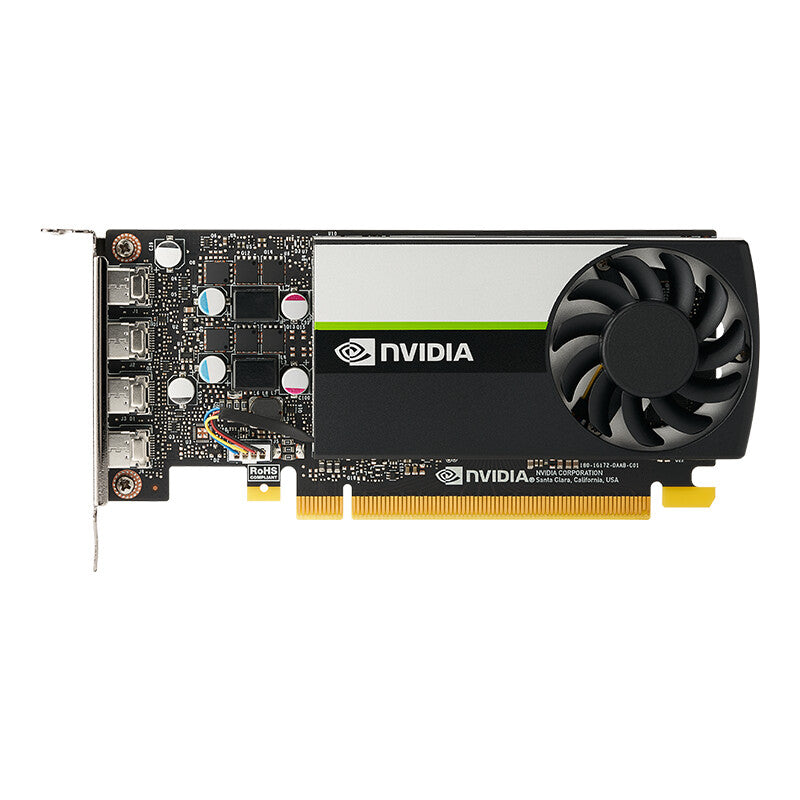

Built on NVIDIA® Turing™ GPU architecture, the NVIDIA T1000 8GB GPU is a powerful, low-profile solution that delivers the performance and capabilities required by demanding professional applications in a compact professional graphics card. With 896 CUDA Cores, up to 8 GB of GDDR6 memory, and the ability to drive up to four 5K displays, the NVIDIA T1000 8GB (or T1000) is ready to take your work to the next level.
Small form factor computing solutions are becoming more common as professionals look to minimize their desktop workstation footprint—without compromising performance. Today's professional workflows require small form factor workstations to provide full-size features and performance in a compact package.
NVIDIA T1000 8GB PERFORMANCE AND FEATURES
Value for End-Users
- Powered by NVIDIA Turing GPU architecture, NVIDIA T1000 8GB (or T1000) delivers more than 50% more performance than the previous generation.
- Allows you to work with larger models, scenes, and assemblies, with higher levels of interactivity during design and visualization.
- Ensures hardware compatibility and stability through NVIDIA support of the latest OpenGL, DirectX, Vulkan, and NVIDIA CUDA standards, deep ISV developer engagements, and certification with over 100 professional software applications.
- Enables creation and playback of H.264 and HEVC video, with dedicated decode and encode engines that are independent of the 3D graphics and compute pipeline.
- With support for DisplayPort 1.4, NVIDIA T1000 8GB (or T1000) can drive display resolutions for up to four 5K displays or two 8K displays per card. Combine up to four NVIDIA T1000 8GB ( or T1000) boards in a single system to create display walls or other immersive environments.
- Experience stunning visuals with HDR color support and up to 120 Hz refresh rates for 4K displays with 30-bit color.
Value for IT Administrators
- Experience higher-quality products, driven by power-efficient hardware designs and component selection, for optimum operational performance, durability, and longevity.
- Expect maximum uptime thanks to exhaustive product testing in conjunction with leading OEMs and system integrators that simulate the most demanding real-world conditions.
- Remotely monitor and manage NVIDIA T1000 8GB (or T1000) boards deployed in your enterprise by integrating the NVIDIA Enterprise Management toolkit within your IT asset management framework.
- Scale up NVIDIA T1000 8GB (or T1000) deployment to hundreds of workstations using the powerful driver installer included with the NVIDIA Enterprise Management toolkit.
- Simplify software driver deployment through a regular cadence of long-life, stable driver releases based on a robust feature-development and quality-assurance process.
NVIDIA T1000 8GB SOLUTIONS
Manufacturing
- Enables designers and engineers to create models with larger numbers of components and more complex assemblies.
- Offers support for up to three 4K displays for an expansive desktop that allows designers to work with multiple apps, simultaneously.
- Supports displays at up to 8K resolution. Combine multiple NVIDIA T1000 8GB (or T1000) boards for massive visual workspaces.
Media and Entertainment
- Allows editors to work in real time with HDR content and up to 5K full resolution.
- Enables artists working with 3D models or 2D imagery to realize better performance with assets stored in dedicated high-performance graphics memory.
- Creates and plays back ultra-high quality HDR content with H.264/HEVC encode and decode engines.
- Combine multiple NVIDIA T1000 8Gb (or T1000) boards to create expansive visual display solutions.
Architecture, Engineering and Construction
- Allows architects to create larger models, view 2D and 3D designs and plans, in real-time, with no lag.
- Equips urban designers with the tools to create models with more detail and complexity.
Financial Services
- Drives up to four 4K displays per card directly with onboard mini-DisplayPort latching connectors. Creates expansive visual environments with up to 16 total displays, using four NVIDIA T1000 8GB (or T1000) boards per system.
- Manages multiple windows across multiple applications and desktops with NVIDIA RTX Desktop Manager software.
- Improves productivity by running multi-application workflows without performance impact.
- Uses minimal power, resulting in lower TCO.
| Processor | |
|---|---|
| Parallel processing technology support | NVIDIA Turing |
| Maximum displays per videocard | 4 |
| CUDA cores | 896 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | T1000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 160 GB/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| Mini DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| Video formats supported | H.264, HEVC |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.2 |
| OpenGL version | 4.5 |
| Shader model version | 5.1 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Green, Grey |
| Illumination | No |
| Number of slots | 1 |
| Bracket height | Low-Profile (LP) |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 50 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Debian 7.0, Fedora 31, FreeBSD 11, SUSE Linux Enterprise Desktop 15, Solaris 11, Ubuntu 18.04 LTS |
| Windows operating systems supported | Windows 10 |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Weight & dimensions | |
|---|---|
| Height | 68.9 mm |
| Length | 155.9 mm |

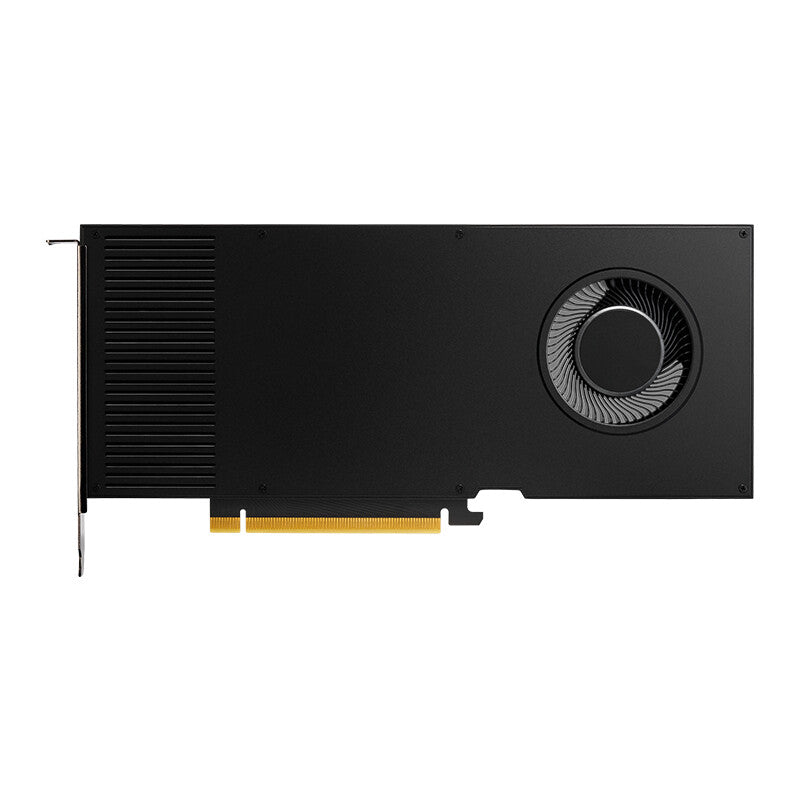

The NVIDIA Ampere architecture builds on the power of NVIDIA RTX to deliver the next generation of accelerated visual computing. As millions of professionals continue to work from anywhere, they rely on a wide range of devices to deliver the power and performance they need to work effectively.

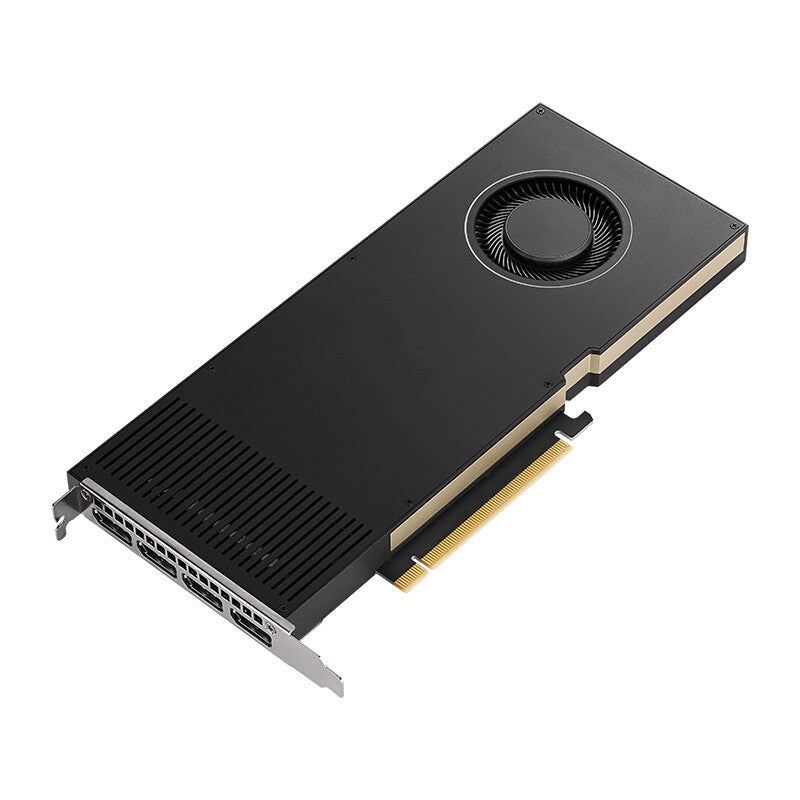

The NVIDIA RTX A4000 is the most powerful single-slot GPU for professionals, delivering real-time ray tracing, AI-accelerated compute, and high-performance graphics performance to your desktop. Built on the NVIDIA Ampere architecture, the RTX A4000 combines 48 second-generation RT Cores, 192 third-generation Tensor Cores, and 6144 CUDA cores with 16 GB of graphics memory. So you can engineer next-generation products, design cityscapes of the future, and create immersive entertainment experiences of tomorrow, today, from your desktop workstation. And with a power-efficient, single-slot PCIe form factor that fits into a wide range of workstation chassis, you can do exceptional work without limits.
Incredible Application Performance
Experience fast, interactive performance—powered by the latest NVIDIA Ampere architecture-based GPU—with ultra-fast, on-board graphics memory technology and optimized software drivers for professional applications.
The NVIDIA RTX A4000 includes 48 RT Cores to accelerate photorealistic ray-traced rendering up to 2x faster than the previous generation. Hardware accelerated Motion BVH (bounding volume hierarchy) improves motion blur rendering performance by up to 7x when compared to previous generation.
With 192 Tensor Cores to accelerate AI workflows, the RTX A4000 provides the compute power necessary for AI development and training workloads, as well as inferencing deployments.
Ensure hardware compatibility and stability through NVIDIA support of the latest OpenGL, DirectX, Vulkan, and CUDA standards, deep independent software vendor (ISV) developer engagements, and certification with over 100 professional software applications.
NGC support gives engineers, researchers, and data scientists access to NVIDIA-tuned, tested, certified, and maintained containers for the top deep learning frameworks, as well as third-party managed high-performance computing (HPC) containers, NVIDIA HPC visualization containers, and partner applications.
Value for IT Administrators
Experience higher-quality products driven by power-efficient hardware and components selected for optimum operational performance, durability, and longevity.
Remotely monitor and manage NVIDIA professional products in your enterprise by integrating the NVIDIA Enterprise Management Toolkit (NVWMI) in your IT asset management framework.
Scale up NVIDIA RTX Enterprise driver deployment to hundreds of workstations using NVWMI’s powerful driver installer.
Simplify software driver deployment through a regular cadence of long-life, stable driver releases based on a robust feature-development and quality-assurance process.
Rich, Expansive Visual Workspace
Experience stunning imagery through movie-quality, anti-aliasing techniques, high-dynamic range (HDR) color support, higher refresh rates, and up to 8K screen resolution at 60 Hz from a single cable with the DisplayPort 1.4a standard. Using Display Stream Compression (DSC).
Enhance your desktop workspace experience with NVIDIA RTX Desktop Manager and NVIDIA Mosaic technology. Work across four displays on every NVIDIA RTX professional card with intuitive placement of windows, multiple virtual desktops, and user profiles.
Use advanced multi-display technologies like Quadro Sync II, NVIDIA Mosaic, and Warp and Blend to synchronize images and scale resolution on a display surface with multiple projectors or screens.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| CUDA cores | 6144 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | RTX A4000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 448 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| HDCP | Yes |
| OpenGL version | 4.5 |
| Shader model version | 5.1 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of slots | 1 |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 6-pin |
| Power consumption (max) | 140 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 241.3 mm |
| Height | 111.8 mm |
The PNY CS1030 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) or traditional hard drive in an NVMe enabled desktop or laptop computer. The CS1030 drive is designed to be an upgrade from conventional SATA based storage to take advantage of the high bandwidth of the NVMe interface to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 4 times faster than with SATA based SSD’s. With no moving parts, the PNY CS1030 M.2 NVMe SSD is highly durable, less likely to fail, and supports
| Features | |
|---|---|
| Mean time between failures (MTBF) | 2000000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express interface data lanes | x4 |
| Component for | PC/Laptop |
| NVMe version | 1.3 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 3.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
|---|---|
| Sustainability certificates | REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 6.6 g |
The PNY CS2140 M.2 NVMe Gen4 x4 Solid State Drive is an excellent choice for a mainstream performance upgrade in an NVMe Gen4 enabled desktop or laptop computer. Upgrade to the latest in NVMe technology and experience the enhanced performance of up to 3,600 MB/s seq. read and 3,200 MB/s seq. write speeds. Experience faster boot times, quicker application launches, and improved overall system performance using the CS2140 Gen4 technology. Do more in less time with NVMe Gen4 x4; boot up, power down, and load applications up to 6 times faster compared to SATA based SSD’s. Designed to deliver the performance you demand, and with no moving parts, the PNY CS2140 is highly durable, less likely to fail.
Extreme Performance
Transfer speed faster than a traditional SSD
Enhanced Reliability
Non-volatile NAND up to 30 times more robust than HDDs
| Features | |
|---|---|
| Certification | BSMI, CE, FCC, KCC, VCCI |
| Mean time between failures (MTBF) | 1500000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express interface data lanes | x4 |
| Write speed | 3200 MB/s |
| Read speed | 3600 MB/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC/Laptop |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
|---|---|
| Sustainability certificates | REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 6.6 g |
| Height | 4 mm |
| Depth | 80 mm |
| Width | 22 mm |
The PNY CS2140 M.2 NVMe Gen4 x4 Solid State Drive is an excellent choice for a mainstream performance upgrade in an NVMe Gen4 enabled desktop or laptop computer. Upgrade to the latest in NVMe technology and experience the enhanced performance of up to 3,600 MB/s seq. read and 3,200 MB/s seq. write speeds. Experience faster boot times, quicker application launches, and improved overall system performance using the CS2140 Gen4 technology. Do more in less time with NVMe Gen4 x4; boot up, power down, and load applications up to 6 times faster compared to SATA based SSD’s. Designed to deliver the performance you demand, and with no moving parts, the PNY CS2140 is highly durable, less likely to fail.
Extreme Performance
Transfer speed faster than a traditional SSD
Enhanced Reliability
Non-volatile NAND up to 30 times more robust than HDDs
| Features | |
|---|---|
| Certification | BSMI, CE, FCC, KCC, VCCI |
| Mean time between failures (MTBF) | 1500000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express interface data lanes | x4 |
| Write speed | 2300 MB/s |
| Read speed | 3600 MB/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC/Laptop |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 4.0 |
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
|---|---|
| Sustainability certificates | REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 6.6 g |
| Height | 4 mm |
| Depth | 80 mm |
| Width | 22 mm |
The PNY CS2230 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an existing NVMe enabled PC or MAC desktop or laptop computer. The CS2230 drive is designed to be a SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 6 times faster than with SATA based SSD’s. With no moving parts, the PNY CS2230 M.2 NVMe SSD is highly durable, less likely to fail, and supports a 5-Year Limited Warranty or TBW.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1000000 h |
| End-to-End Data Protection | Yes |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express interface data lanes | x4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Write speed | 2600 MB/s |
| Read speed | 3300 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 3.0 |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.6 g |
| Height | 4 mm |
| Depth | 22 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
The PNY CS2230 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an existing NVMe enabled PC or MAC desktop or laptop computer. The CS2230 drive is designed to be a SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 6 times faster than with SATA based SSD’s. With no moving parts, the PNY CS2230 M.2 NVMe SSD is highly durable, less likely to fail, and supports a 5-Year Limited Warranty or TBW.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1000000 h |
| End-to-End Data Protection | Yes |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| PCI Express interface data lanes | x4 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Write speed | 2500 MB/s |
| Read speed | 3300 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe version | 1.4 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Interface | PCI Express 3.0 |
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.6 g |
| Height | 4 mm |
| Depth | 22 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
PNY CS900 is the ideal solution for a mainstream solid state drive (SSD) upgrade from a hard disk drive (HDD). The CS900 delivers all the most sought after features at an excellent value, and is designed for an easy and cost-effective HDD replacement in the PC system to help realize faster boot times, quicker application launches and better overall system performance.
| Features | |
|---|---|
| Write speed | 500 MB/s |
| Read speed | 535 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe | No |
| Memory type | 3D TLC |
| Interface | Serial ATA III |
| SSD capacity | 1 TB |
| SSD form factor | 2.5" |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
PNY CS900 is the ideal solution for a mainstream solid state drive (SSD) upgrade from a hard disk drive (HDD). The CS900 delivers all the most sought after features at an excellent value, and is designed for an easy and cost-effective HDD replacement in the PC system to help realize faster boot times, quicker application launches and better overall system performance.
| Features | |
|---|---|
| Write speed | 500 MB/s |
| Read speed | 535 MB/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe | No |
| Memory type | 3D TLC |
| Interface | Serial ATA III |
| SSD capacity | 250 GB |
| SSD form factor | 2.5" |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
PNY CS900 is the ideal solution for a mainstream solid state drive (SSD) upgrade from a hard disk drive (HDD). The CS900 delivers all the most sought after features at an excellent value, and is designed for an easy and cost-effective HDD replacement in the PC system to help realize faster boot times, quicker application launches and better overall system performance.
| Features | |
|---|---|
| Data transfer rate | 6 Gbit/s |
| Hardware encryption | No |
| Component for | PC/Laptop |
| NVMe | No |
| Memory type | 3D TLC |
| Interface | Serial ATA III |
| SSD capacity | 500 GB |
| SSD form factor | 2.5" |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
Quality Assurance
All PNY SSDs undergo extensive component and sub-system testing. We utilize high-quality NAND from the industry’s top vendors to ensure a solid SSD. Our SSDs are validated across applications and environments to ensure they meet the highest quality, reliability, and durability criteria.
Proven Reliability
Our SSDs undergo some of the most rigorous durability and validation testing in the industry, withstanding hundreds of qualification tests and over 10,000 hours of validation testing. Each SSD is guaranteed to meet the requirements of even the most demanding applications.
Cool and Quiet Operation
Generating less heat than an HDD, PNY SSDs ultimately increase the life of your PC. Our SSDs reduce operating temperature and potential damage from overheating. Additionally, SSDs don’t produce any noise, making your PC significantly quieter.
Energy Efficient
PNY SSDs feature low-wattage and function with an advanced lower-power mode. On average, PNY SSDs consume 30% less power than HDDs. If you’re aiming to build a silent, green PC, PNY SSDs are a must have on item your checklist.
Shock Proof
PNY SSDs are up to 30 times more robust than HDDs, making it less likely to fail in extreme environments, including high and low temperatures. The non-volatile NAND in the system enables the SSD to retain its memory if your computer ever falls or is dropped.
Built by Experts
PNY is an SSD solution provider with lifecycle product management to JEDEC standards. With a world class SSD engineering team based in Silicon Valley, we are well positioned to take advantage of emerging technologies.
| Features | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64 |
| Mean time between failures (MTBF) | 2000000 h |
| Native Command Queuing (NCQ) | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Write speed | 500 MB/s |
| Read speed | 535 MB/s |
| Data transfer rate | 6 Gbit/s |
| NVMe | No |
| Memory type | 3D TLC NAND |
| Interface | Serial ATA III |
| SSD capacity | 240 GB |
| SSD form factor | 2.5" |
| Power | |
|---|---|
| Power consumption (idle) | 0.3 W |
| Power consumption (average) | 2 W |
| Current | 0.5 A |
| Operating voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 45 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 318 mm |
| Package depth | 133 mm |
| Package width | 118 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
Quality Assurance
All PNY SSDs undergo extensive component and sub-system testing. We utilize high-quality NAND from the industry’s top vendors to ensure a solid SSD. Our SSDs are validated across applications and environments to ensure they meet the highest quality, reliability, and durability criteria.
Proven Reliability
Our SSDs undergo some of the most rigorous durability and validation testing in the industry, withstanding hundreds of qualification tests and over 10,000 hours of validation testing. Each SSD is guaranteed to meet the requirements of even the most demanding applications.
Cool and Quiet Operation
Generating less heat than an HDD, PNY SSDs ultimately increase the life of your PC. Our SSDs reduce operating temperature and potential damage from overheating. Additionally, SSDs don’t produce any noise, making your PC significantly quieter.
Energy Efficient
PNY SSDs feature low-wattage and function with an advanced lower-power mode. On average, PNY SSDs consume 30% less power than HDDs. If you’re aiming to build a silent, green PC, PNY SSDs are a must have on item your checklist.
Shock Proof
PNY SSDs are up to 30 times more robust than HDDs, making it less likely to fail in extreme environments, including high and low temperatures. The non-volatile NAND in the system enables the SSD to retain its memory if your computer ever falls or is dropped.
Built by Experts
PNY is an SSD solution provider with lifecycle product management to JEDEC standards. With a world class SSD engineering team based in Silicon Valley, we are well positioned to take advantage of emerging technologies.
| Features | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate x64, Windows Vista x64 |
| Mean time between failures (MTBF) | 2000000 h |
| Native Command Queuing (NCQ) | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Write speed | 500 MB/s |
| Read speed | 550 MB/s |
| Data transfer rate | 6 Gbit/s |
| NVMe | No |
| Memory type | 3D TLC NAND |
| Interface | Serial ATA III |
| SSD capacity | 480 GB |
| SSD form factor | 2.5" |
| Power | |
|---|---|
| Power consumption (idle) | 0.3 W |
| Power consumption (average) | 2 W |
| Current | 0.5 A |
| Operating voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 45 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 318 mm |
| Package depth | 133 mm |
| Package width | 118 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |

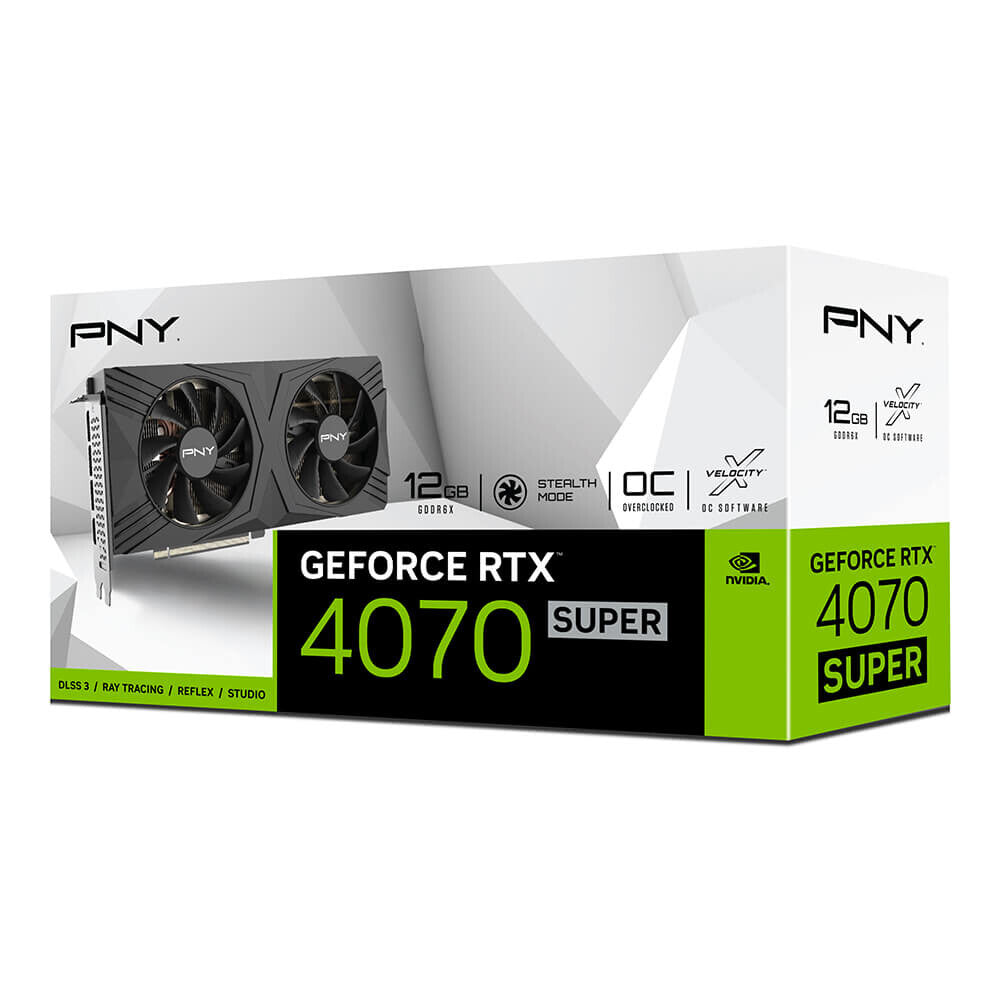

Supercharge your PC with the NVIDIA® GeForce RTX™ 4070 SUPER, built with the ultra-efficient ADA Lovelace architecture and up to 12GB of superfast G6X memory. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create and much more.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2490 MHz |
| Processor frequency | 1980 MHz |
| CUDA cores | 7168 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 504 GB/s |
| Data transfer rate | 21 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 220 W |
| Minimum system power supply | 650 W |
| Weight & dimensions | |
|---|---|
| Depth | 40.8 mm |
| Height | 120.4 mm |
| Width | 247.4 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 172 mm |
| Package depth | 90 mm |
| Package width | 325 mm |
| Cables included | Power |
GRAPHICS REINVENTED

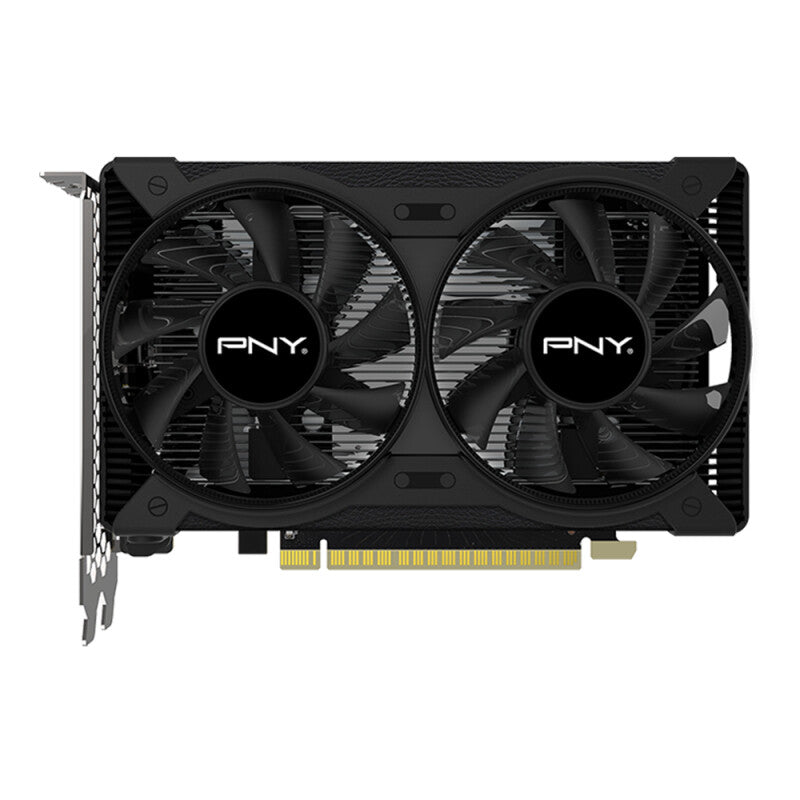

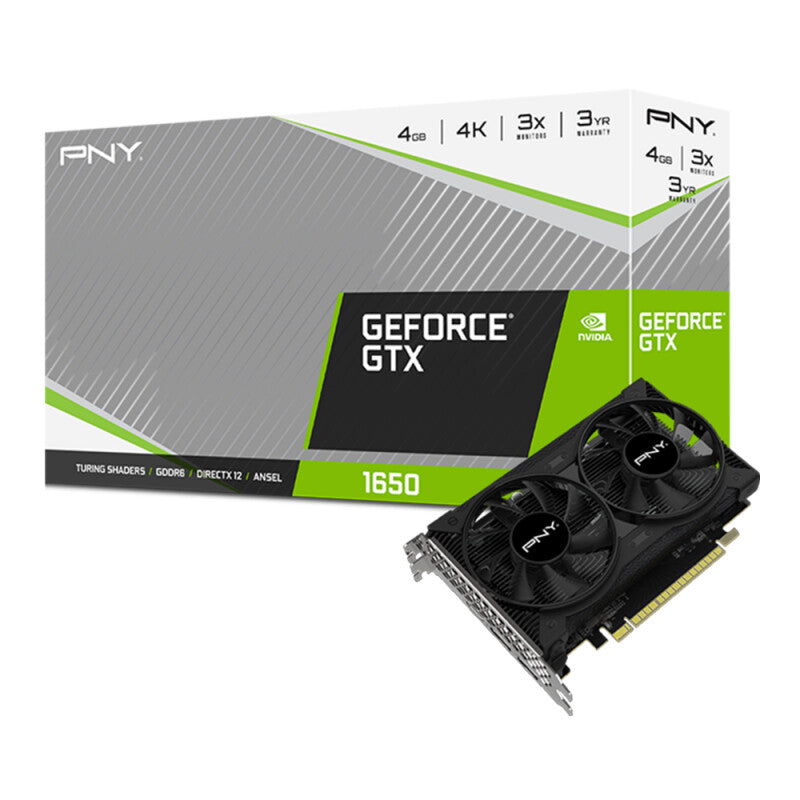

The GeForce GTX 1650 is built with the breakthrough graphics performance of the award-winning NVIDIA Turing architecture. With up to 2X the performance of the GeForce GTX 950, it’s a supercharger for today’s most popular games, and even faster with modern titles. This graphics card is designed to deliver a powerful combination of gaming innovation, next-gen graphics, and quiet, power-efficient operation. Easily upgrade your PC and get game ready with performance that’s up to 2X the GeForce GTX 950 and up to 70% faster than the GTX 1050 on the latest games.
Best-In-Class Performance
Best-in-class performance with the advanced graphics capabilities of the award-winning NVIDIA Turing architecture
Turing Shaders
Concurrent execution of floating point and integer operations, adaptive shading technology, and a new unified memory architecture enable awesome performance increases on today’s games
State-Of-The-Art-Graphics
State-of-the-art graphics features, including variable rate shading, mesh shading, and multi-view rendering
| Processor | |
|---|---|
| Processor boost clock speed | 1590 MHz |
| Processor frequency | 1485 MHz |
| CUDA cores | 896 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce GTX 1650 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 192 GB/s |
| Data transfer rate | 12 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 75 W |
| Minimum system power supply | 300 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 7 x64 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 39.8 mm |
| Height | 112 mm |
| Length | 169.9 mm |
| Packaging data | |
|---|---|
| Package type | Box |
Get game-changing performance with the GeForce RTX™ 5070, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor frequency | 2325 MHz |
| Processor boost clock speed | 2685 MHz |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA cores | 6144 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5070 |
| Memory | |
| Discrete graphics card memory | 12 GB |
| Data transfer rate | 28 Gbit/s |
| Memory bandwidth (max) | 672 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR7 |
| Ports & interfaces | |
| HDMI version | 2.1b |
| HDMI ports quantity | 1 |
| DisplayPort version | 2.1b |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Interface type | PCI Express x16 5.0 |
| Video | |
| DirectX version | 12 Ultimate |
| HDMI version | 2.1b |
| Dual Link DVI | No |
| CUDA cores | 6144 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| Virtual Reality (VR) ready | Yes |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Overclocked (OC) edition | Yes |
| Design | |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Illumination | Yes |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| Number of slots | 2.4 |
| Bracket height | Full-Height (FH) |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Power | |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 650 W |
| Thermal Design Power (TDP) | 250 W |
| Weight & dimensions | |
| Number of slots | 2.4 |
| Height | 120.1 mm |
| Depth | 48.3 mm |
| Length | 299.7 mm |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| TV tuner integrated | No |
| System requirements | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Minimum system power supply | 650 W |
| Packaging data | |
| Package type | Box |
| Package width | 382 mm |
| Package height | 194 mm |
| Package depth | 72 mm |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
| Power cord included | Yes |
NVIDIA Ampere Streaming Multiprocessors
The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores
Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores
Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
GRAPHICS REINVENTED

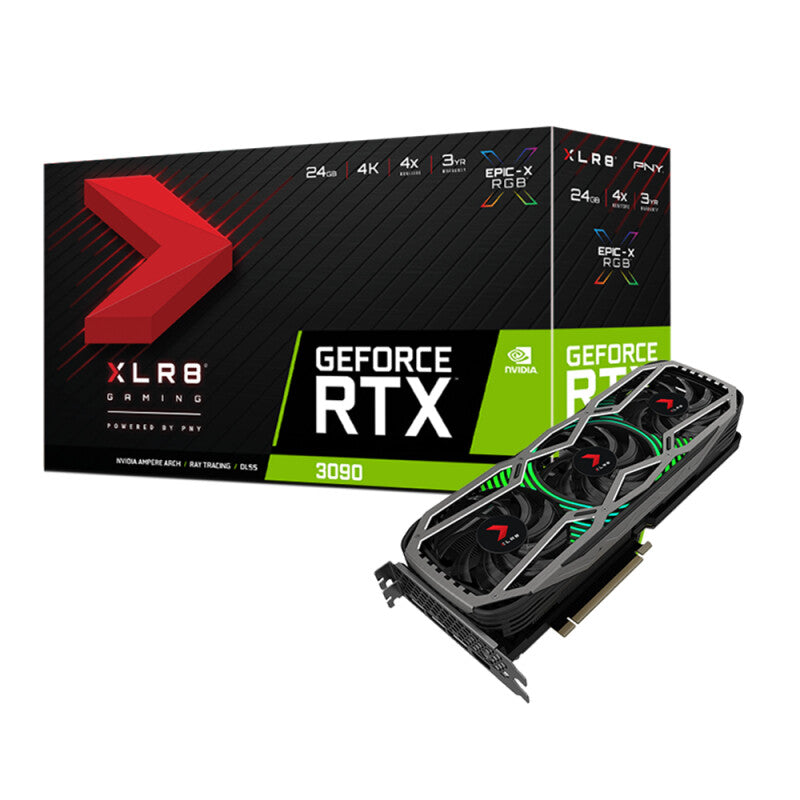

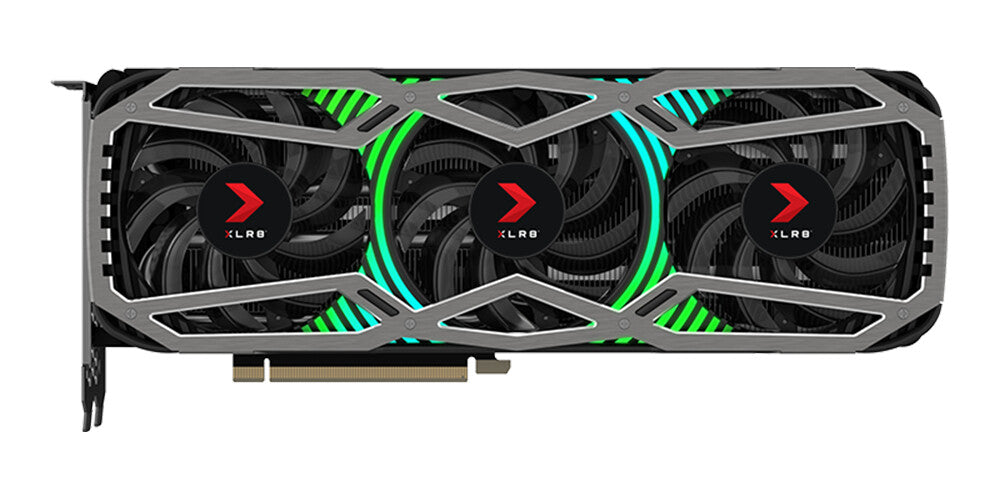

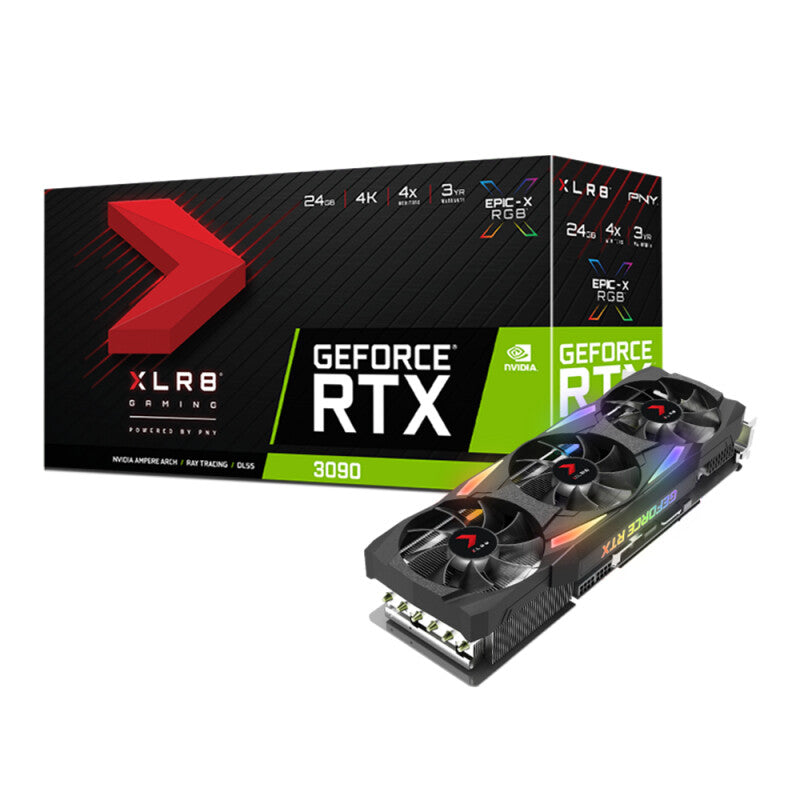

The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.
The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators.
GeForce RTX 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
| Processor | |
|---|---|
| Parallel processing technology support | NVLink |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1695 MHz |
| Processor frequency | 1395 MHz |
| CUDA cores | 10496 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3090 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 936 GB/s |
| Data transfer rate | 19.5 Gbit/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 24 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Illumination | Yes |
| Illumination colour | Multi |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 350 W |
| Supplementary power connectors | 2x 8-pin |
NVIDIA Ampere Streaming Multiprocessors
The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores
Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores
Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
GRAPHICS REINVENTED
The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.
The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators.
GeForce RTX 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
| Processor | |
|---|---|
| Parallel processing technology support | NVLink |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1695 MHz |
| Processor frequency | 1395 MHz |
| CUDA cores | 10496 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3090 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 936 GB/s |
| Data transfer rate | 19.5 Gbit/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 24 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Illumination | Yes |
| Illumination colour | Multi |
| Number of slots | 2.7 |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 350 W |
| Supplementary power connectors | 2x 8-pin |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 56 mm |
| Height | 112 mm |
| Length | 294 mm |
