Two years ago, the NVIDIA® Quadro RTX™ platform revolutionized professional visual computing forever. Based on the NVIDIA Turing™ GPU architecture and armed with real-time ray tracing, accelerated AI, and photorealistic VR, it enabled designers and engineers to do their life’s work at a level of quality and performance unlike ever before. But the pace of innovation and the drive to achieve new breakthroughs do not cease. And now, global circumstances have presented a new set of challenges for professionals to create, build, entertain and discover in a world that looks dramatically different than the recent past.

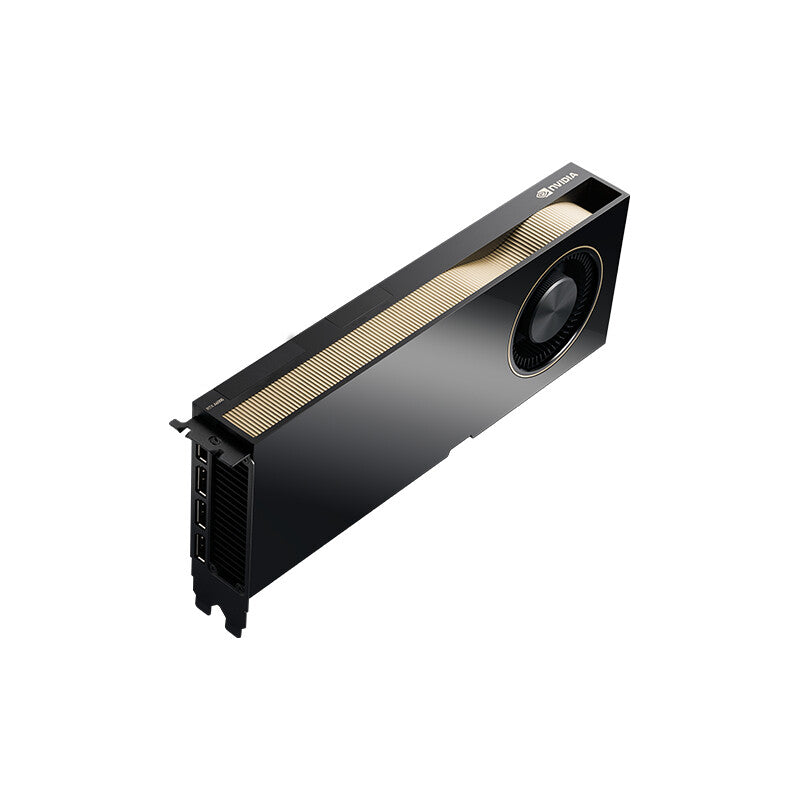

With the introduction of the NVIDIA RTX A6000 desktop GPU, based on the NVIDIA Ampere architecture, we are putting a whole new level of performance and capabilities in the hands of professionals again. So, they are not only ready to tackle the urgent needs of today, but are superbly equipped to meet the rapidly evolving, intensive demands of tomorrow.
Incredible Application Performance
- Experience fast, interactive performance—powered by the latest NVIDIA Ampere architecture GPU—with ultra-fast, on-board graphics memory technology and optimized software drivers for professional applications.
- The NVIDIA RTX A6000 includes 84 RT Cores to accelerate photorealistic ray-traced rendering up to 80% faster than the previous generation. Hardware accelerated Motion BVH (bounding volume hierarchy) improves motion blur rendering performance by up to 7X when compared to previous generation.
- With 336 Tensor Cores to accelerate AI workflows, the RTX A6000 provides the power necessary for AI development and training workloads. Incredible inferencing performance, combined with Quadro enterprise-class stability and reliability, make RTX A6000-powered desktop workstations ideal for professional AI training and inferencing deployments.
- Scale application performance even more with NVIDIA NVLink technology that lets you combine two RTX A6000 cards to double the effective GPU memory and performance in a single workstation chassis to 96 GB.
- NGC™ support gives engineers, researchers, and data scientists access to NVIDIA-tuned, tested, certified, and maintained containers for the top deep learning frameworks, as well as third-party managed high-performance computing (HPC) containers, NVIDIA HPC visualization containers, and partner applications.
Rich, Expansive Visual Workspace
- Experience stunning imagery through movie-quality, anti-aliasing techniques, high-dynamic range (HDR) color support, higher refresh rates, and up to 8K screen resolution at 60 Hz from a single cable with the DisplayPort 1.4a standard.
- Enhance your desktop workspace experience with NVIDIA Quadro View desktop management software and NVIDIA Mosaic technology. Work across four displays on every Quadro card with intuitive placement of windows, multiple virtual desktops, and user profiles.
- Use advanced multi-display technologies like Quadro Sync II, Quadro Mosaic, and Quadro Warp and Blend to synchronize images and scale resolution on a display surface with multiple projectors or screens.
Proven Reliability
- Experience higher-quality products driven by power-efficient hardware and components selected for optimum operational performance, durability, and longevity.
- Enjoy maximum uptime thanks to exhaustive product testing with leading OEMs and system integrators that simulates the most demanding real-world conditions.
Easy Manageability
- Remotely monitor and manage Quadro products in your enterprise by integrating the NVIDIA Enterprise Management Toolkit (NVWMI) in your IT asset management framework.
- Scale up Quadro driver deployment to hundreds of workstations using NVWMI’s powerful driver installer.
- Simplify software driver deployment through a regular cadence of long-life, stable driver releases based on a robust feature-development and quality-assurance process.
| Processor | |
|---|---|
| Parallel processing technology support | NVLink |
| Maximum displays per videocard | 4 |
| CUDA cores | 10752 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | RTX A6000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 768 GB/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 48 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| HDCP | Yes |
| OpenGL version | 4.5 |
| Shader model version | 5.1 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Number of slots | 2 |
| Cooling type | Active |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Height | 111.8 mm |
| Width | 266.7 mm |
NVIDIA® Quadro® K6000 with NVIDIA Quadro Sync
The NVIDIA Quadro K6000 is the ultimate expression of NVIDIA’s expertise in professional graphics, empowering artists, designers, and engineers to realize their biggest visions. It combines 12 GB of GPU memory, 2880 NVIDIA CUDA parallel processing cores, accelerated double-precision computation, plus the ability to drive up to four ultra-high resolution displays or projectors. This makes the NVIDIA Quadro K6000 the superior choice to bring your largest and most complex projects to life.
Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization and simulation, or spectacular visual storytelling—and get results to market faster.
The NVIDIA Quadro Sync board included as part of this turnkey solution synchronizes up to four NVIDIA Kepler™ architecture-based GPUs and up to 16 displays or projectors per system. Quadro Sync benefits include the ability to keep multi-projector systems or video walls free of imaging artifacts without impacting performance, the ability to align inputs for multi-input display devices like 4K projectors or panels, proper stereoscopic 3D display across multiple systems, and the ability to align displays or projectors to an external timing source. NVIDIA Mosaic™ technology support allows any application to scale across synchronized displays or projectors and offers features like projector overlap and an integrated geometry and intensity adjustment to enable pixel-accurate display surfaces.
| Processor | |
|---|---|
| FireStream | No |
| Maximum displays per videocard | 4 |
| CUDA cores | 2880 |
| CUDA | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Graphics processor | Quadro K6000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR5 |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 2 |
| DisplayPort version | 1.2 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Interface type | PCI Express 3.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| NVIDIA GameWorks VR | No |
| NVIDIA 3D Vision | Yes |
| Dual Link DVI | Yes |
| HDCP | Yes |
| OpenGL version | 4.3 |
| Shader model version | 5.0 |
| DirectX version | 11 |
| TV tuner integrated | No |
| PhysX | No |
| Design | |
|---|---|
| Number of slots | 2 |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 225 W |
| System requirements | |
|---|---|
| Minimum storage drive space | 200 MB |
| Minimum RAM | 1024 MB |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Packaging data | |
|---|---|
| Cables included | DVI |

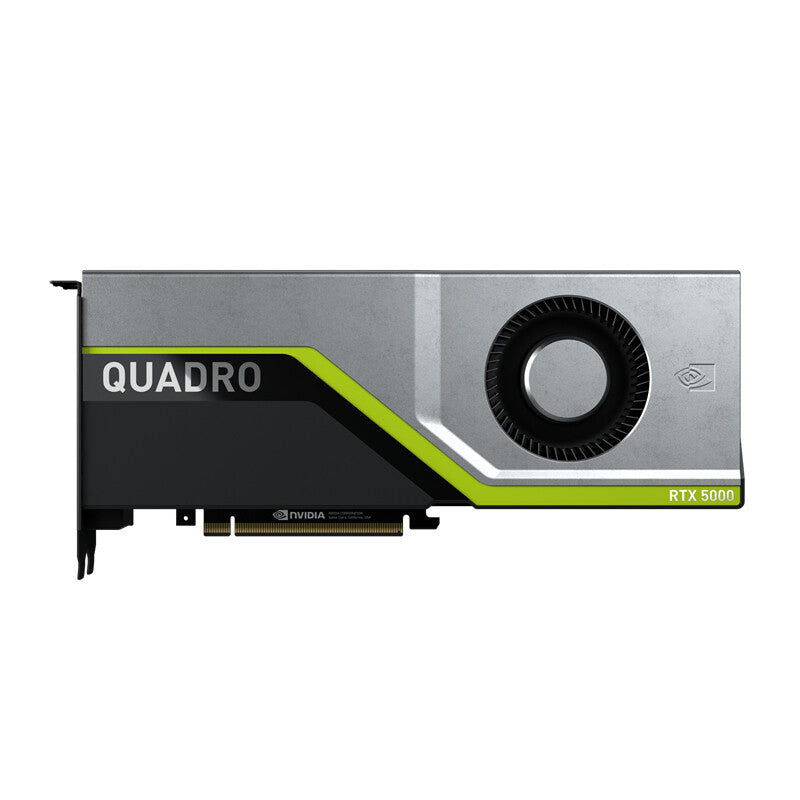

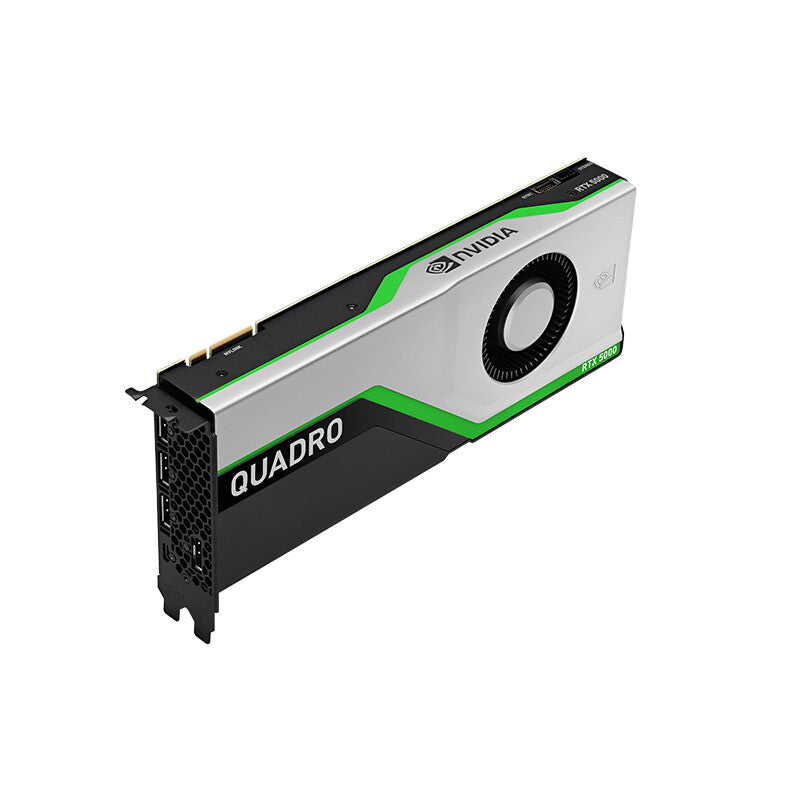

The World’s First Ray Tracing GPU
Shatter the boundaries of what’s possible with NVIDIA Quadro RTX 5000. Powered by the NVIDIA Turing™ architecture and the NVIDIA RTX platform, it fuses ray tracing, deep learning and advanced shading to supercharge next-generation workflows. Creative and technical professionals can make more informed decisions faster and tackle demanding design and visualization workloads with ease.
New RT Cores and Tensor Cores bring the power of real-time ray tracing and AI-enhanced workflows to millions of design and creative professionals. Combined with NVIDIA NVLink™ technology, RTX 5000 scales graphics memory and performance to drive the most demanding rendering, AI, and visual computing workloads. And the all-new VirtualLink® provides connectivity to next-generation, high-resolution VR HMDs to let you view your work in the most compelling virtual environments. Welcome to the future of professional visual computing.
Incredible Application Performance
- Experience fast, interactive, professional application performance
- Latest NVIDIA Turing GPU architecture and ultra-fast graphics memory
New RT Cores for Realtime Ray Tracing
- 72 RT Cores accelerate photorealistic ray-traced rendering
- NVIDIA RTX technology brings realtime rendering to professionals
Tensor Cores Accelerate AI Workflows
- 576 Tensor Cores power AI development and training
- Incredible inferencing performance is ideal for “at the edge” deployment
Next Generation VR Support
- VirtualLink simplifies HMD cabling
- Advanced rendering and shading features for immersive VR
NVIDIA NVLink
- Scales memory and performance for the largest visual computing workloads
- Faster than PCIe-based solutions and offers flexible configurations
| Processor | |
|---|---|
| Parallel processing technology support | NVLink |
| FireStream | No |
| CUDA cores | 3072 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Quadro RTX 5000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 448 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.5 |
| Shader model version | 5.0 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey, Yellow |
| Number of slots | 2 |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 x64 |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Height | 111.8 mm |
| Length | 266.7 mm |
| Packaging data | |
|---|---|
| Manual | Yes |
| User guide | Yes |
| Interface adapters included | DisplayPort male - DVI-D male |

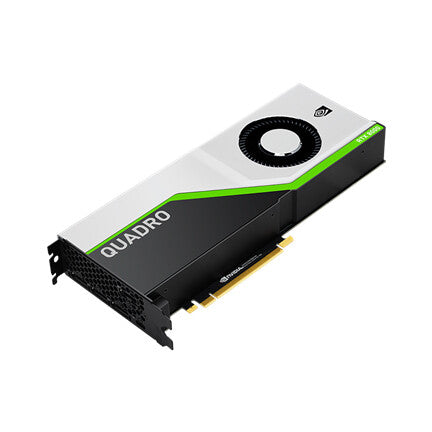

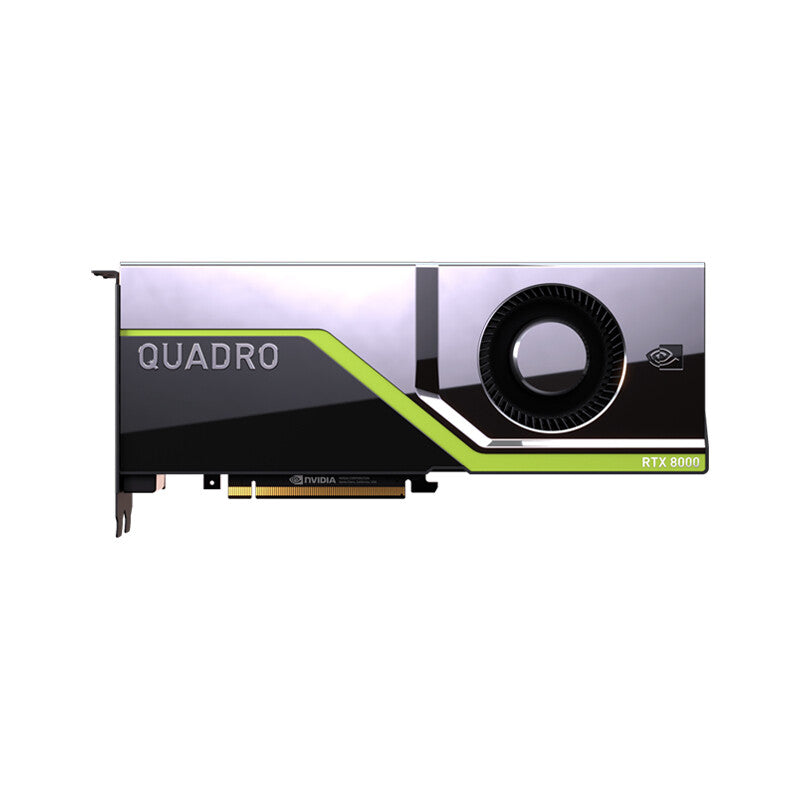

The World’s Most Powerful Ray Tracing GPU
NVIDIA® Quadro RTX™ 8000, powered by the NVIDIA Turing™ architecture and the NVIDIA RTX™ platform, combines unparalleled performance and memory capacity to deliver the world’s most powerful graphics card solution for professional workflows. Creative and technical professionals can now wield the power of hardware-accelerated ray tracing, AI and advanced shading to boost productivity and create amazing content faster than ever before.
The Quadro RTX 8000 features 72 RT cores for real-time ray tracing and 576 Tensor Cores for AI enhanced workflows, resulting in over 130 TFLOPS of deep learning performance. With 48 GB of GDDR6 memory, scalable to 96 GB with NVIDIA NVLink technology, the Quadro RTX 8000 is designed to work with the most memory intensive workloads like creating the most complex models, building massive architectural datasets, visualizing immense data science workloads, working with 8K movie content in real time, and speeding up high resolution final frame rendering. VirtualLink® provides connectivity to next-generation, high-resolution VR HMDs to let you view your work in the most compelling virtual environments. The NVIDIA Quadro RTX 8000 redefines what’s possible.
Incredible Application Performance
- Experience fast, interactive, professional application performance
- Latest NVIDIA Turing GPU architecture and ultra-fast graphics memory
New RT Cores for Realtime Ray Tracing
- 72 RT Cores accelerate photorealistic ray-traced rendering
- NVIDIA RTX technology brings realtime rendering to professionals
Tensor Cores Accelerate AI Workflows
- 576 Tensor Cores power AI development and training
- Incredible inferencing performance is ideal for “at the edge” deployment
Next Generation VR Support
- VirtualLink simplifies HMD cabling
- Advanced rendering and shading features for immersive VR
Quadro RTX NVLink
Scales memory and performance for the largest visual computing workloads
Faster than PCIe-based solutions and offers flexible configurations
| Processor | |
|---|---|
| Parallel processing technology support | NVIDIA Turing, NVLink |
| FireStream | No |
| Peak floating point performance (single precision) | 16300 Gflops |
| Maximum displays per videocard | 4 |
| CUDA cores | 4608 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Quadro RTX 8000 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 672 GB/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 48 GB |
| Ports & interfaces | |
|---|---|
| USB Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| Video formats supported | DIVX, H.265, HEVC, MPEG2, MPEG4, MPEG4-ASP, MVC, VC-1 |
| NVIDIA 3D Vision | Yes |
| Dual Link DVI | Yes |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.5 |
| Shader model version | 5.1 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Certification | REACH, CE |
| Product colour | Black, Green, Silver |
| Number of slots | 2 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
| Power consumption (max) | 295 W |
| System requirements | |
|---|---|
| Minimum storage drive space | 8000 MB |
| Minimum processor | Intel Core i5, i7, Xeon / AMD Phenom, Opteron |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 7 x64, Windows 8 x64, Windows 8.1 x64 |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 111.8 mm |
| Length | 266.7 mm |
The NVIDIA GeForce RTX 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 2505 MHz |
| Processor frequency | 2205 MHz |
| CUDA cores | 16384 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4080 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 23 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| PhysX | Yes |
| Design | |
|---|---|
| Number of slots | 2.9 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 320 W |
| Weight & dimensions | |
|---|---|
| Depth | 59.4 mm |
| Height | 142.9 mm |
| Length | 340.4 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 103 mm |
| Package depth | 199 mm |
| Package width | 405 mm |

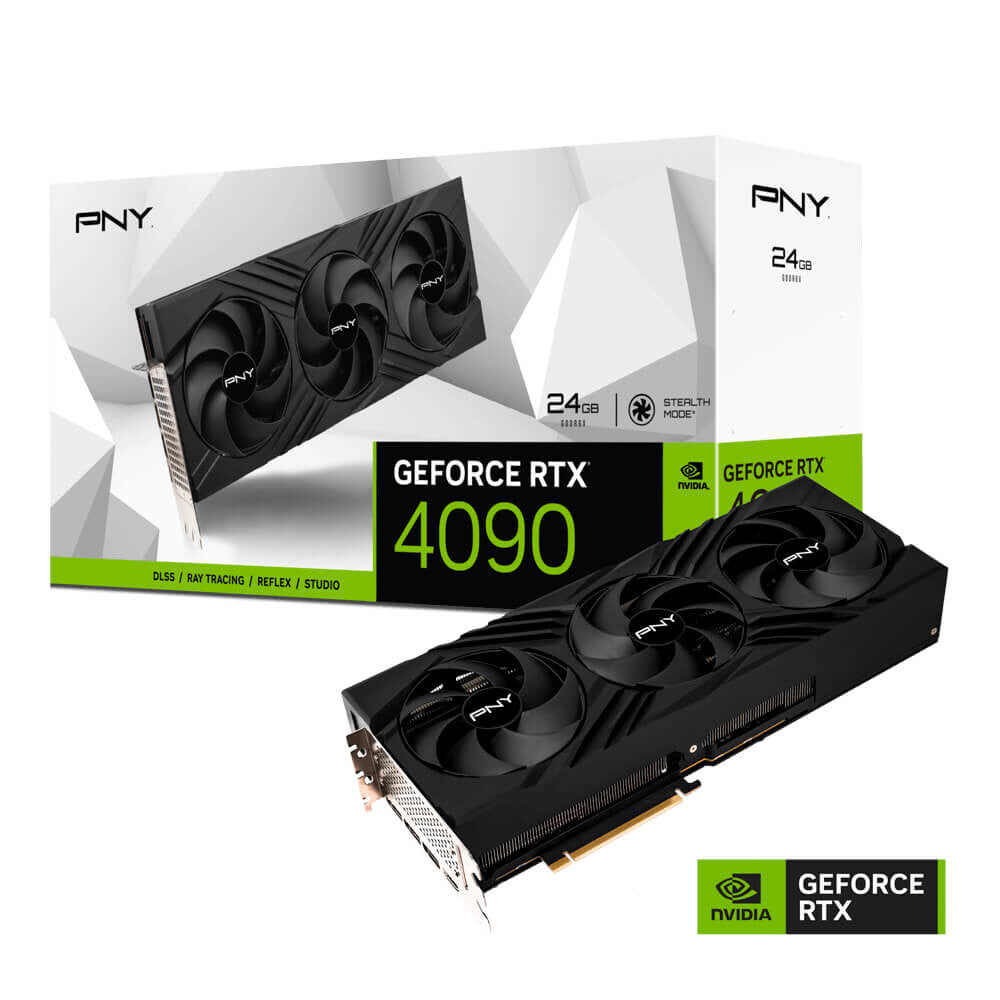

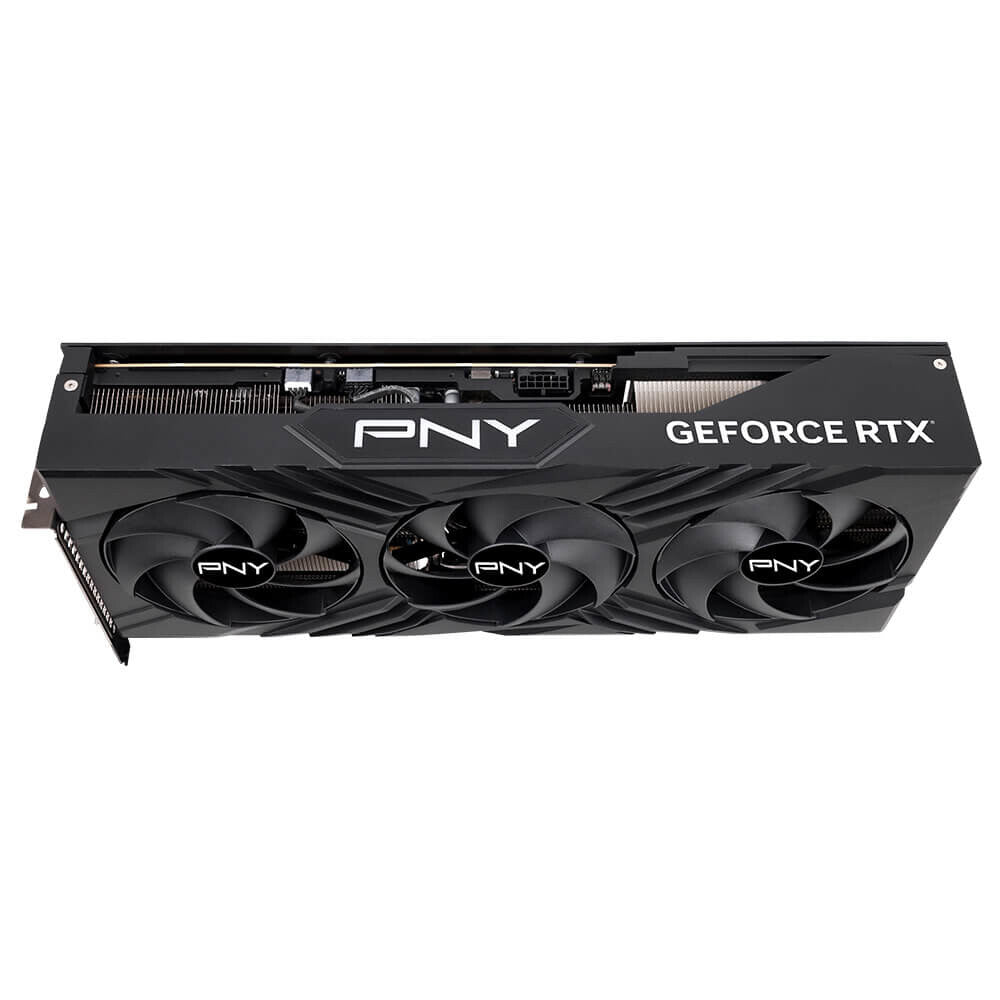

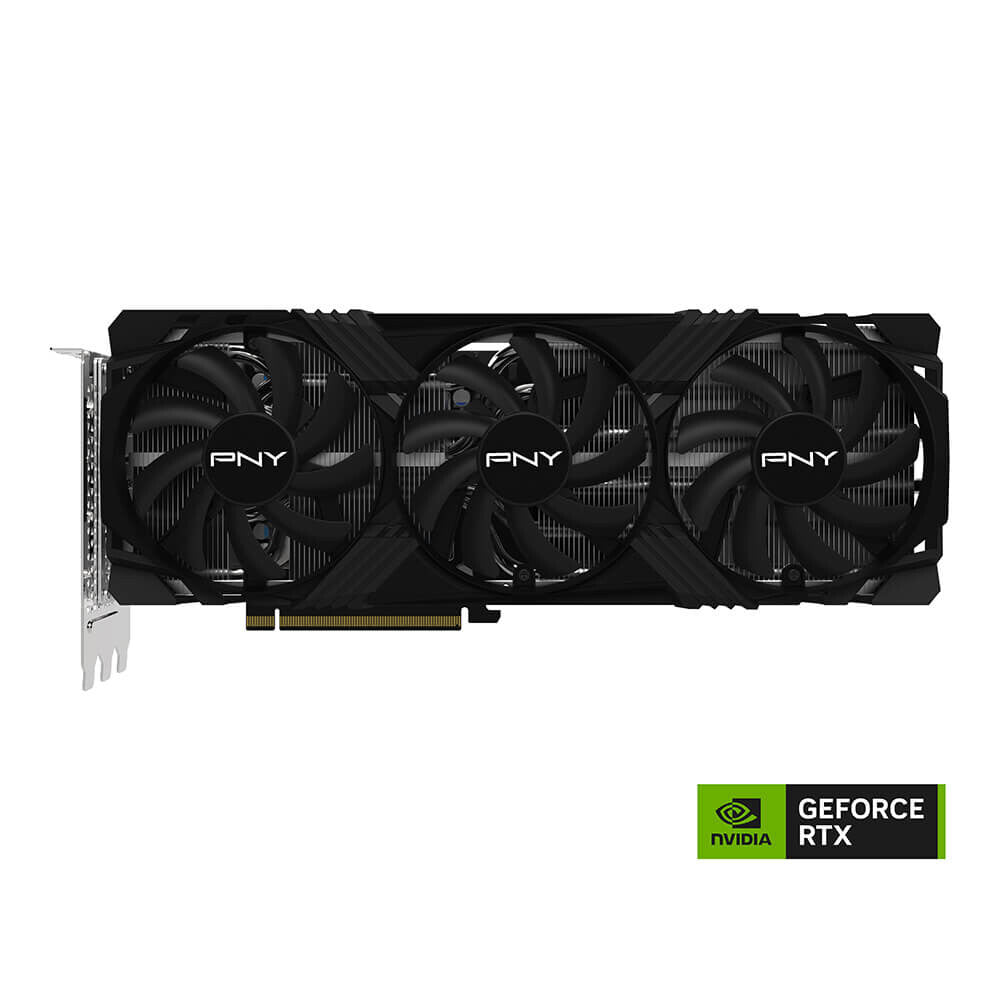

The NVIDIA® GeForce RTX® 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2520 MHz |
| Processor frequency | 2230 MHz |
| CUDA cores | 16384 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4090 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 1008 GB/s |
| Data transfer rate | 21 Gbit/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 24 GB |

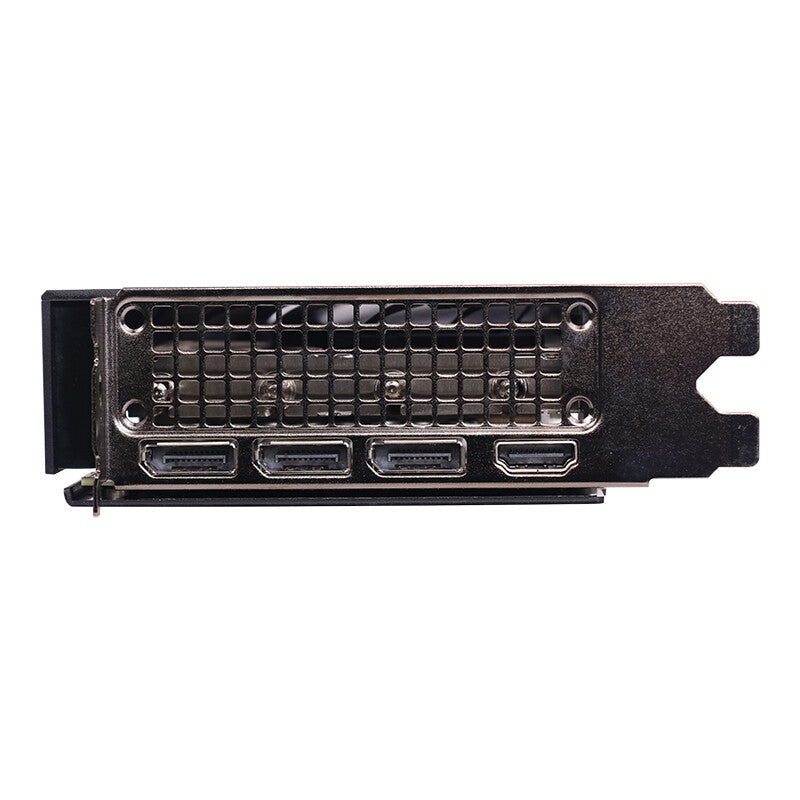

| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| PhysX | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of slots | 3.5 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 450 W |
| Minimum system power supply | 850 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Depth | 71 mm |
| Height | 137 mm |
| Length | 332 mm |
| Packaging data | |
|---|---|
| Package type | Box |

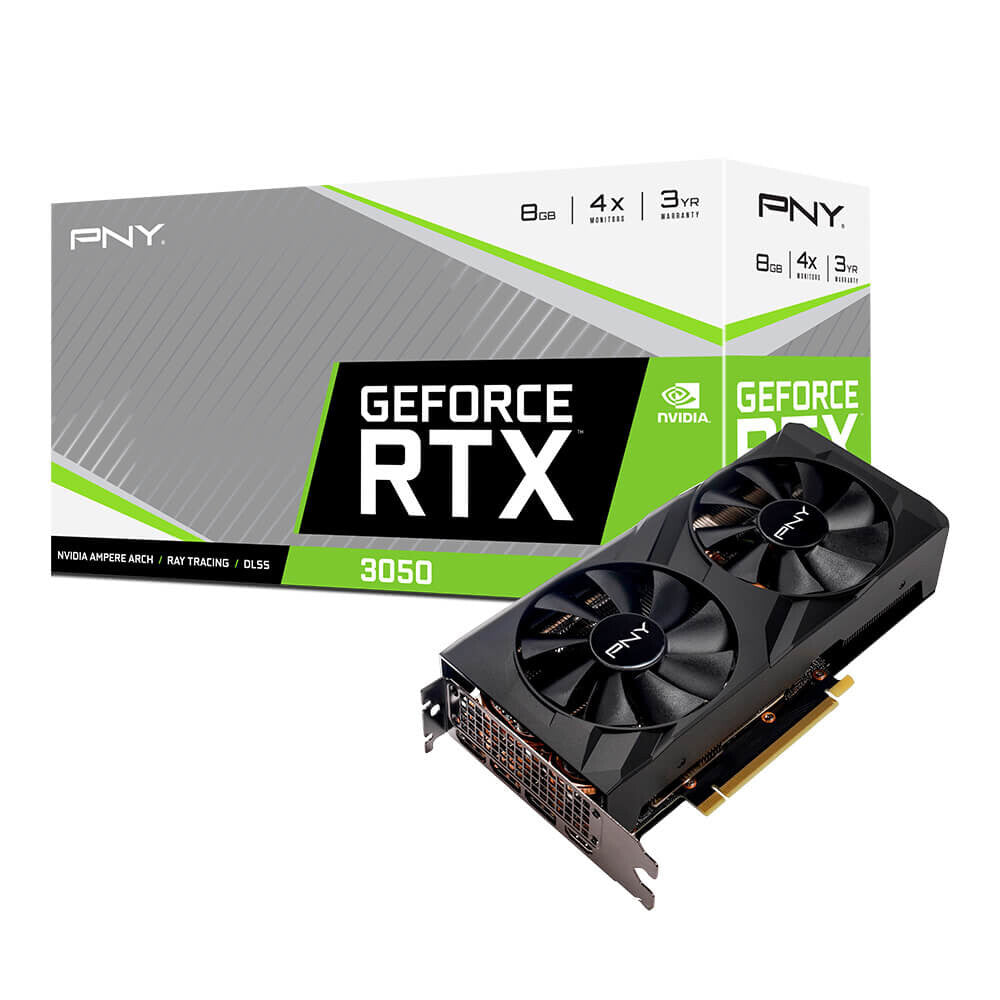

GeForce RTX™ 3050 8GB
The GeForce RTX™ 3050 is built with the powerful graphics performance of the NVIDIA Ampere architecture. It offers dedicated 2nd gen RT Cores and 3rd gen Tensor Cores, new streaming multiprocessors, and high-speed G6 memory to tackle the latest games. Step up to GeForce RTX.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 1777 MHz |
| Processor frequency | 1552 MHz |
| CUDA cores | 2560 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3050 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 224 GB/s |
| Data transfer rate | 14 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 130 W |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
|---|---|
| Depth | 44 mm |
| Height | 114 mm |
| Length | 229 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 172 mm |
| Package depth | 90 mm |
| Package width | 325 mm |
NVIDIA Ampere Streaming Multiprocessors
The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores
Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores
Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1770 MHz |
| Processor frequency | 1575 MHz |
| CUDA cores | 6144 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3070 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 608 GB/s |
| Data transfer rate | 19 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2.9 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Thermal Design Power (TDP) | 290 W |
| Minimum system power supply | 750 W |
| Weight & dimensions | |
|---|---|
| Depth | 58 mm |
| Height | 121 mm |
| Length | 306 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 90 mm |
| Package depth | 190 mm |
| Package width | 383 mm |
| Manual | Yes |

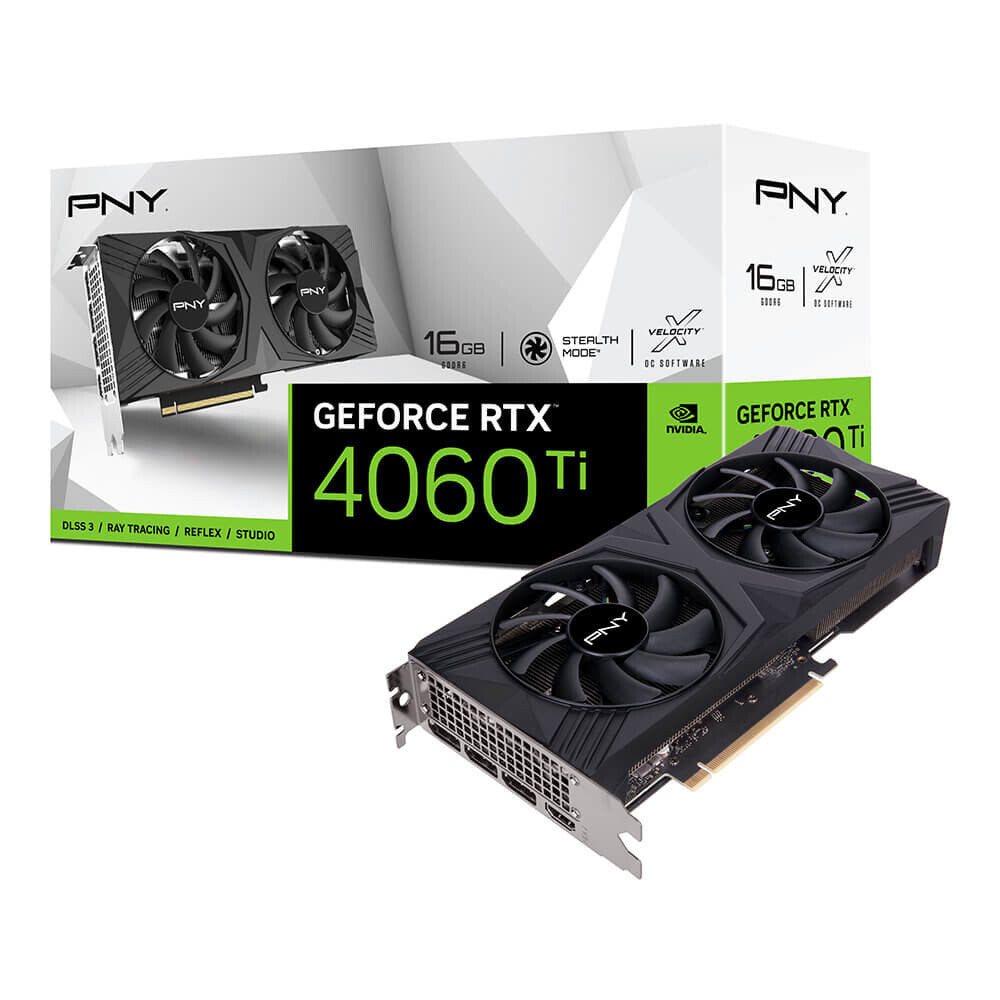

Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4060 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Ada Lovelace architecture
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2535 MHz |
| Processor frequency | 2310 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| Mini DisplayPorts quantity | 3 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| Shader model version | No |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 165 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| Weight & dimensions | |
|---|---|
| Depth | 112.6 mm |
| Height | 40 mm |
| Width | 245 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 90 mm |
| Package depth | 172 mm |
| Package width | 325 mm |

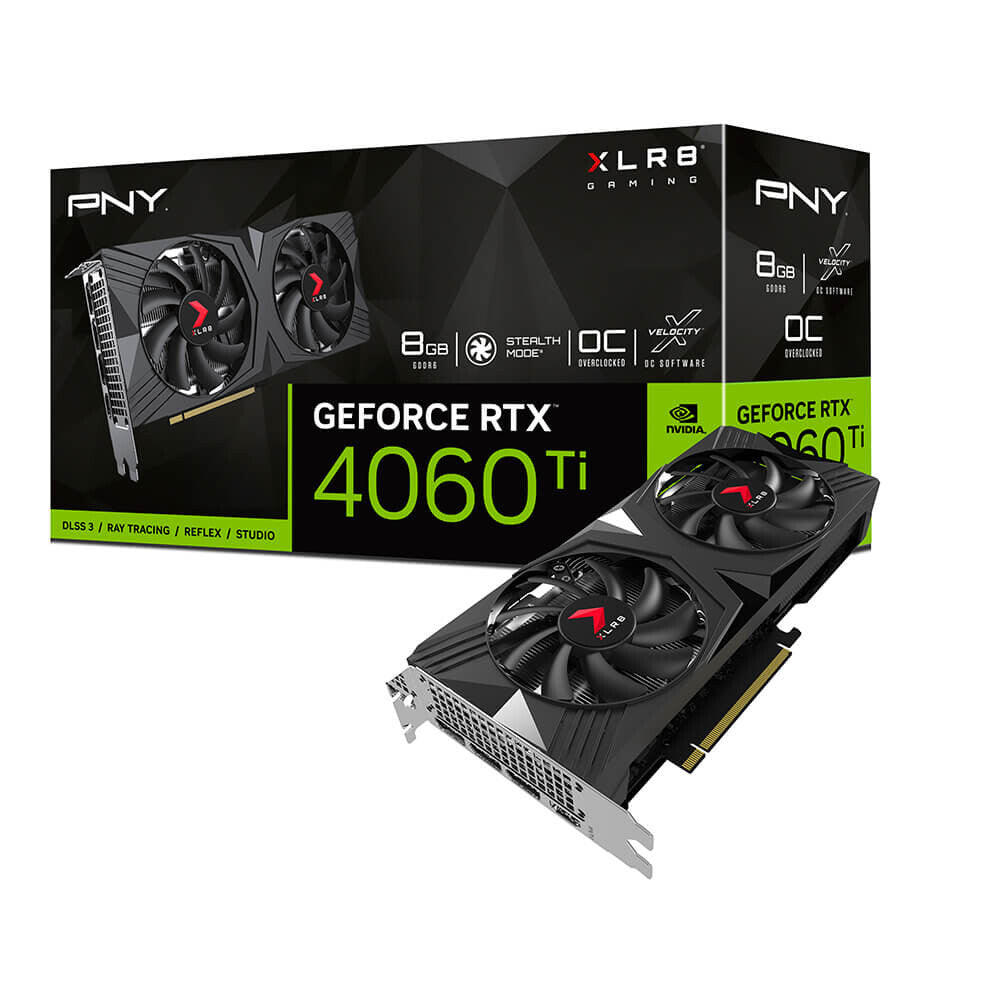

Get equipped for stellar gaming and creating with the NVIDIA GeForce RTX 4060 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Ada Lovelace architecture
The new NVIDIA Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2535 MHz |
| Processor frequency | 2310 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 160 W |
| Minimum system power supply | 550 W |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Weight & dimensions | |
|---|---|
| Depth | 245 mm |
| Height | 40 mm |
| Width | 112.6 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 172 mm |
| Package depth | 90 mm |
| Package width | 325 mm |
NVIDIA GeForce RTX 40 Series GPUs are beyond fast for gamers and creators. They're powered by the ultra-efficient NVIDIA Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds with ray tracing and ultra-high FPS gaming with the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration.
Get equipped for stellar gaming and creating with the NVIDIA GeForce RTX 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
The new NVIDIA Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It’s built on a new custom TSMC 4N process, runs with blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2475 MHz |
| Processor frequency | 1920 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 504 GB/s |
| Data transfer rate | 21 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 200 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 200 W |
| Minimum system power supply | 650 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 x64 |
| Weight & dimensions | |
|---|---|
| Depth | 40.9 mm |
| Height | 120.4 mm |
| Length | 247.4 mm |
The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world's fastest, most efficient GPU for gamers and creators. GeForce RTX™ 30 Series GPUs are powered by NVIDIA's 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
GeForce RTX™ 30 Series GPUs are powered by NVIDIA's 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1777 MHz |
| Processor frequency | 1320 MHz |
| CUDA cores | 3584 |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Bandwidth | 360 GHz |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 170 W |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 x64 |
| Weight & dimensions | |
|---|---|
| Depth | 40.6 mm |
| Height | 118.3 mm |
| Length | 243.7 mm |
NVIDIA® GeForce RTX™ 40 Series GPUs are beyond fast for gamers and creators. They're powered by the ultra-efficient NVIDIA Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds with ray tracing and ultra-high FPS gaming with the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration.
Game, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It’s built on a new custom TSMC 4N process, runs with blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2460 MHz |
| Processor frequency | 1830 MHz |
| CUDA cores | 3072 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 272 GB/s |
| Data transfer rate | 17 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 115 W |
| Minimum system power supply | 550 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
|---|---|
| Depth | 210 mm |
| Height | 225 mm |
| Width | 40 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 66 mm |
| Package depth | 181 mm |
| Package width | 321 mm |

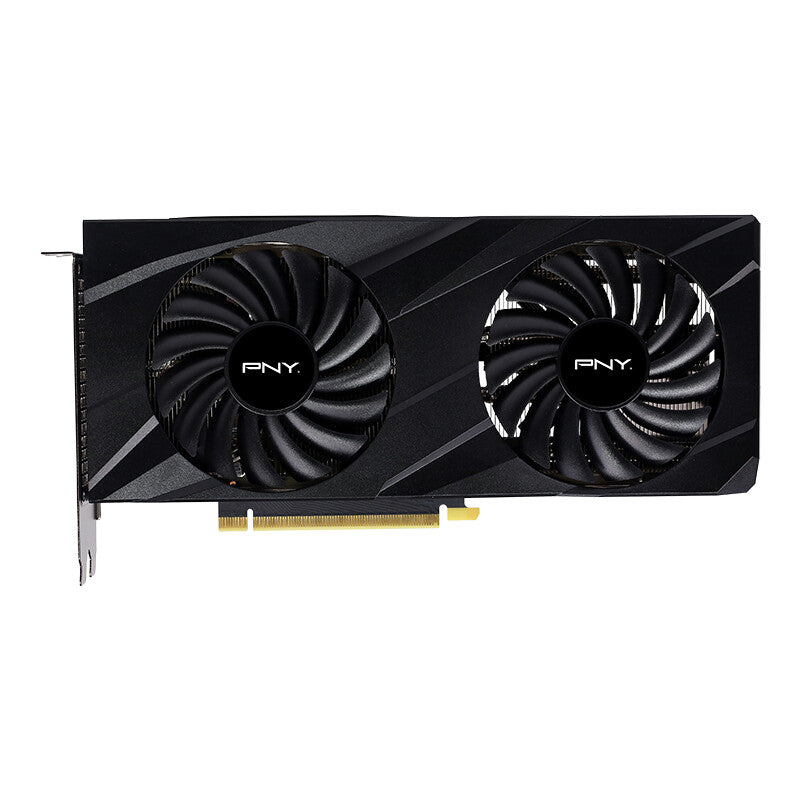

NVIDIA Ampere Streaming Multiprocessors
The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores
Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores
Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
| Processor | |
|---|---|
| Processor boost clock speed | 1665 MHz |
| Processor frequency | 1410 MHz |
| CUDA cores | 4864 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 448 GB/s |
| Data transfer rate | 14 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| Low Hash Rate (LHR) | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 600 W |
| Weight & dimensions | |
|---|---|
| Depth | 40.6 mm |
| Height | 118 mm |
| Length | 247 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 90 mm |
| Package depth | 172 mm |
| Package width | 325 mm |
PNY GeForce RTX 4070 Ti Super 16GB VERTO LED (White edition). Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 Ti SUPER, Processor frequency: 2340 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 3 fan(s)
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor frequency | 2340 MHz |
| Processor boost clock speed | 2625 MHz |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA cores | 8448 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti SUPER |
| Memory | |
| Discrete graphics card memory | 16 GB |
| Data transfer rate | 21 Gbit/s |
| Memory bandwidth (max) | 672 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Ports & interfaces | |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 3 |
| Interface type | PCI Express x16 4.0 |
| Video | |
| HDMI version | 2.1 |
| CUDA cores | 8448 |
| Performance | |
| Warranty period | 3 year(s) |
| Design | |
| Number of fans | 3 fan(s) |
| Fan diameter | 9 cm |
| Illumination | Yes |
| Cooling type | Active |
| Product colour | White |
| Number of slots | 3 |
| Power | |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 285 W |
| Weight & dimensions | |
| Number of slots | 3 |
| Height | 60.6 mm |
| Depth | 119.4 mm |
| Length | 305.1 mm |
| Technical details | |
| Cooling type | Active |
| Product colour | White |
| Warranty period | 3 year(s) |
| Packaging data | |
| Package type | Box |
| Package width | 382 mm |
| Package height | 90 mm |
| Package depth | 190 mm |

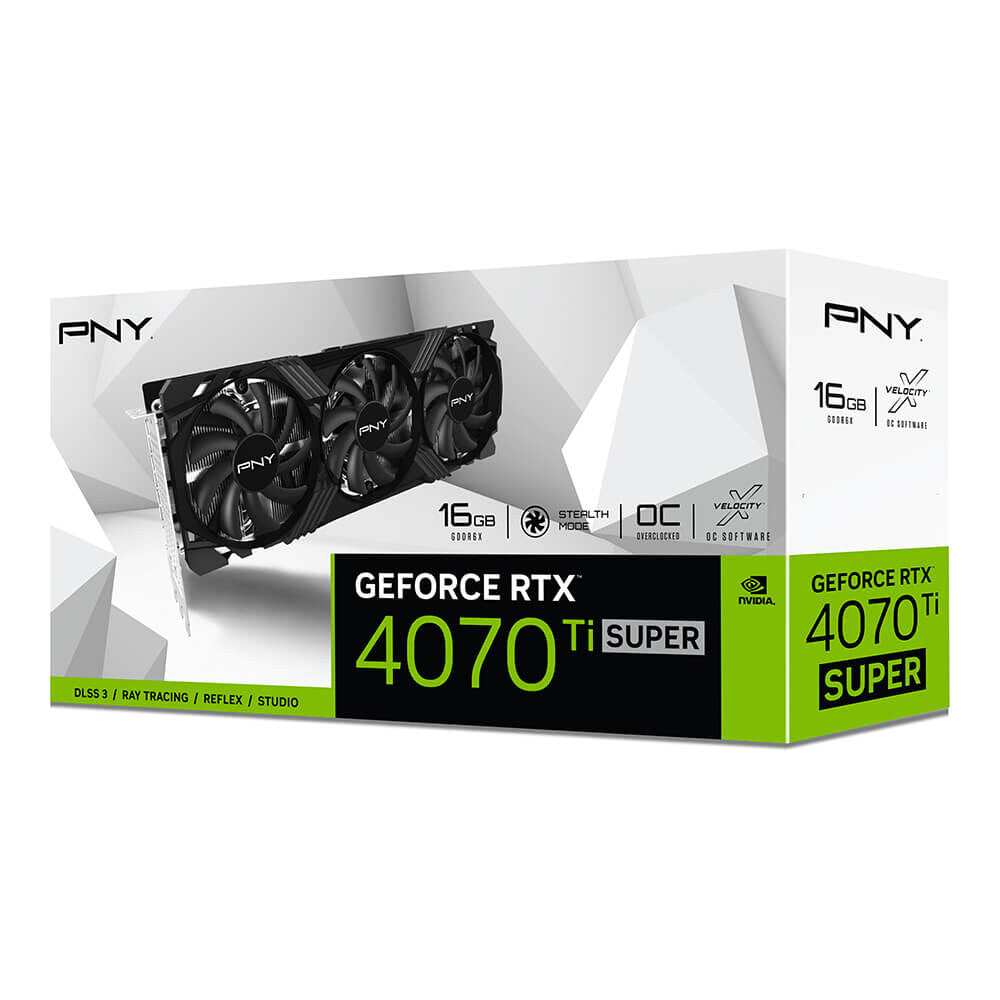

Supercharge your PC with the NVIDIA® GeForce RTX™ 4070 Ti SUPER, built with the ultra-efficient ADA Lovelace architecture and up to 16GB of superfast G6X memory. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create and much more.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2625 MHz |
| Processor frequency | 2340 MHz |
| CUDA cores | 8448 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 672 GB/s |
| Data transfer rate | 21 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 3 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 285 W |
| Minimum system power supply | 700 W |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 60.6 mm |
| Height | 119.5 mm |
| Width | 305.1 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 190 mm |
| Package depth | 90 mm |
| Package width | 382 mm |
NVIDIA® GeForce RTX™ 40 Series GPUs are beyond fast for gamers and creators. They're powered by the ultra-efficient NVIDIA Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds with ray tracing and ultra-high FPS gaming with the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration.
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It’s built on a new custom TSMC 4N process, runs with blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2610 MHz |
| Processor frequency | 2310 MHz |
| CUDA cores | 7680 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 504 GB/s |
| Data transfer rate | 21 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Illumination | Yes |
| Number of slots | 3 |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 700 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 |
| Weight & dimensions | |
|---|---|
| Depth | 61 mm |
| Height | 119.3 mm |
| Length | 305 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 90 mm |
| Package depth | 190.5 mm |
| Package width | 382 mm |
| User guide | Yes |
The new GeForce RTX™ 4080 SUPER has been supercharged. It's the perfect time to upgrade—and get superpowers. Bring your games and creative projects to life with ray tracing and AI-powered graphics. It's powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2595 MHz |
| Processor frequency | 2295 MHz |
| CUDA cores | 10240 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4080 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 736 GB/s |
| Data transfer rate | 23 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 320 W |
| Minimum system power supply | 750 W |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 71.5 mm |
| Height | 137.7 mm |
| Width | 331.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 199 mm |
| Package depth | 103 mm |
| Package width | 405 mm |

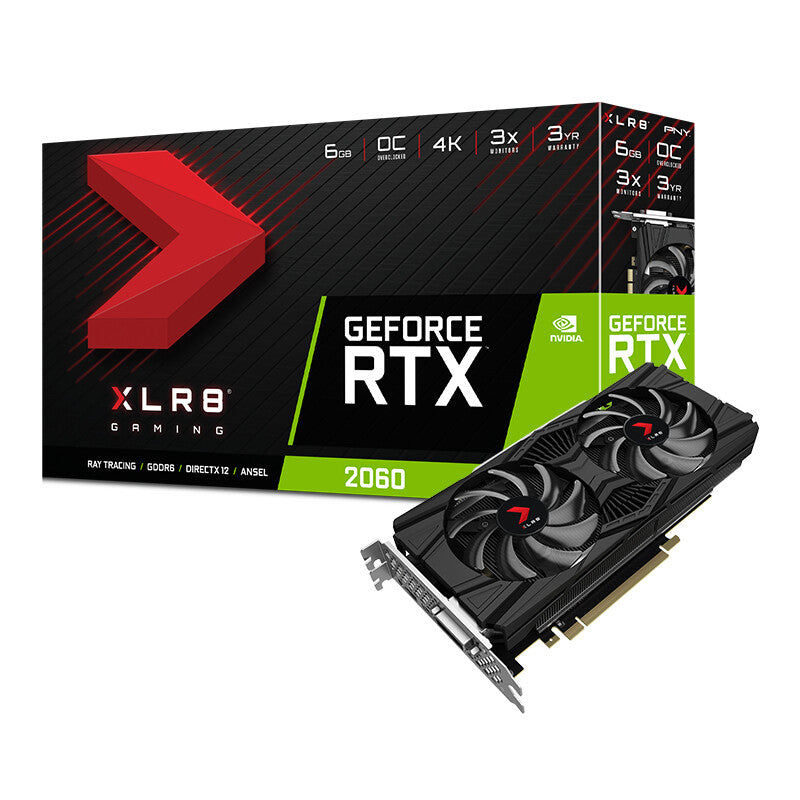

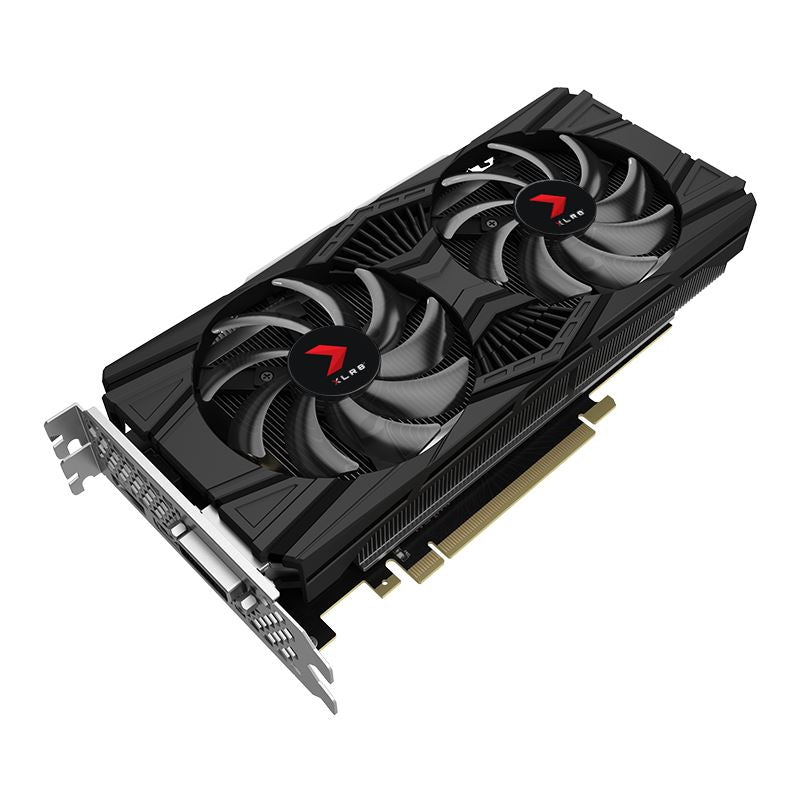

The GeForce RTX™ 2060 is powered by the NVIDIA Turing™ architecture, bringing incredible performance and the power of real-time ray tracing and AI to the latest games and every gamer. RTX. It’s On.
GeForce RTX graphics cards are powered by the Turing GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to your favorite games.
When it comes to next-gen gaming, it’s all about realism. GeForce RTX 2060 is light years ahead of other graphics cards.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| FireStream | No |
| Processor boost clock speed | 1830 MHz |
| Processor frequency | 1305 MHz |
| CUDA cores | 1920 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 2060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 336 GB/s |
| Data transfer rate | 14 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.0b |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.5 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 190 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 500 W |
| System requirements | |
|---|---|
| Minimum storage drive space | 1500 MB |
| Minimum RAM | 8000 MB |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64 |
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4060 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Ada Lovelace architecture
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics.
| Processor | |
|---|---|

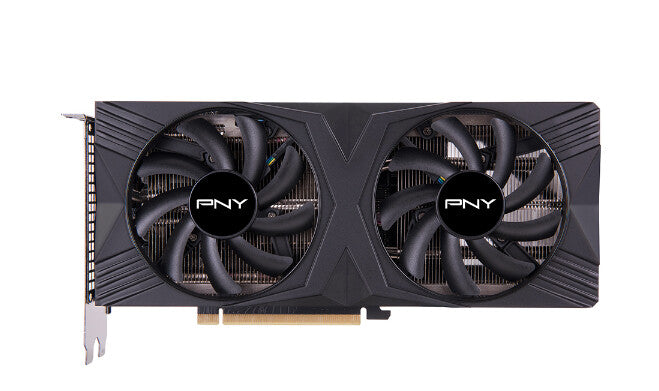

| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2550 MHz |
| Processor frequency | 2310 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 160 W |
| Minimum system power supply | 550 W |
| Weight & dimensions | |
|---|---|
| Depth | 40 mm |
| Height | 112.6 mm |
| Length | 245 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 90 mm |
| Package depth | 172 mm |
| Package width | 325 mm |
The GeForce® GTX 1660 Ti is powered by the NVIDIA Turing™ architecture, bringing incredible performance to the latest games. Get Game Ready with GTX.
GeForce GTX 1660 Ti graphics cards are advanced graphics cards designed to deliver a powerful combination of gaming innovation and next-gen graphics.
Get game ready with performance that rivals the GeForce GTX 1070 on the latest games with the GeForce GTX 1660 Ti.
| Processor | |
|---|---|
| FireStream | No |
| Processor boost clock speed | 1815 MHz |
| Processor frequency | 1500 MHz |
| CUDA cores | 1536 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce GTX 1660 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.0b |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.5 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 450 W |
| System requirements | |
|---|---|
| Minimum storage drive space | 1500 MB |
| Minimum RAM | 8000 MB |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 57.4 mm |
| Height | 181.1 mm |
| Length | 314.7 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Drivers included | Yes |
NVIDIA Ampere Streaming Multiprocessors
The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores
Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores
Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
GRAPHICS REINVENTED
The GeForce RTX™ 3070 is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, it gives you the power you need to rip through the most demanding games.
The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators.
GeForce RTX™ 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1725 MHz |
| Processor frequency | 1500 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 448 GB/s |
| Data transfer rate | 14 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Illumination | Yes |
| Illumination colour | Multi |
| Number of slots | 2.7 |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 220 W |
| Supplementary power connectors | 2x 8-pin |
| Weight & dimensions | |
|---|---|
| Depth | 55.8 mm |
| Height | 112 mm |
| Length | 294 mm |
The GeForce RTX™ 3060 is powered by the NVIDIA Ampere architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators. GeForce RTX™ 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.

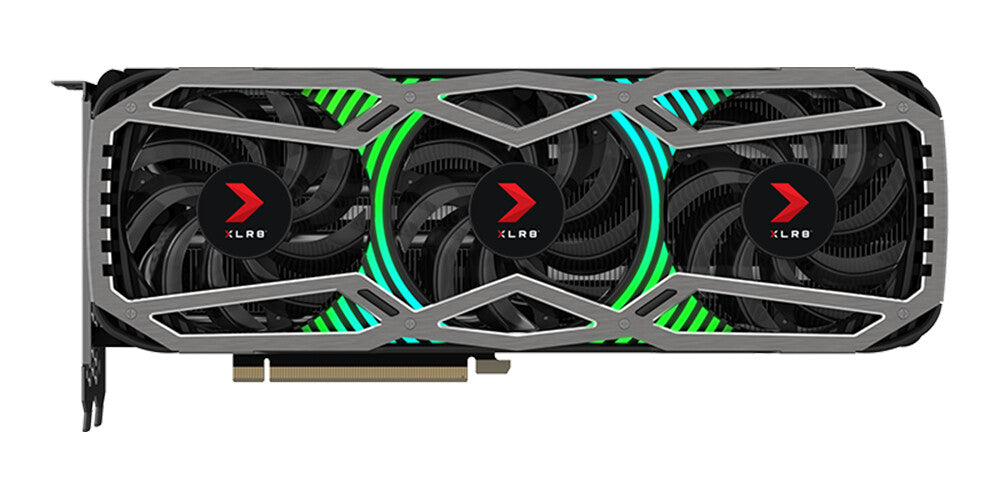

EPIC-X RGB™ offers brilliant RGB design combined with ultimate performance, taking your PC to the next level. Not only can you destroy the competition, but your system can look good while doing so.
NVIDIA Ampere Streaming Multiprocessors
The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency
2nd Generation RT Cores
Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance
3rd Generation Tensor Cores
Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1777 MHz |
| Processor frequency | 1320 MHz |
| CUDA cores | 3584 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 15 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 170 W |
| Minimum system power supply | 550 W |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 39.8 mm |
| Height | 125 mm |
| Length | 170 mm |
NVIDIA Ampere Streaming Multiprocessors
The all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores
Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores
Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
The GeForce RTX 3050 is built with the powerful graphics performance of the NVIDIA Ampere architecture. It offers dedicated 2nd gen RT Cores and 3rd gen Tensor Cores, new streaming multiprocessors, and high-speed G6 memory to tackle the latest games. Step up to GeForce RTX. The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.
GeForce RTX 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
The PNY XLR8 Gaming GeForce RTX 3050 REVEL comes equipped with EPIC-X RGB™ lighting to level up your graphics card and illuminate your system.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1777 MHz |
| Processor frequency | 1552 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3050 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 224 GB/s |
| Data transfer rate | 14 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 130 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 500 W |
| System requirements | |
|---|---|
| Minimum storage drive space | 1500 MB |
| Minimum RAM | 8192 MB |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Packaging data | |
|---|---|
| Package type | Box |
