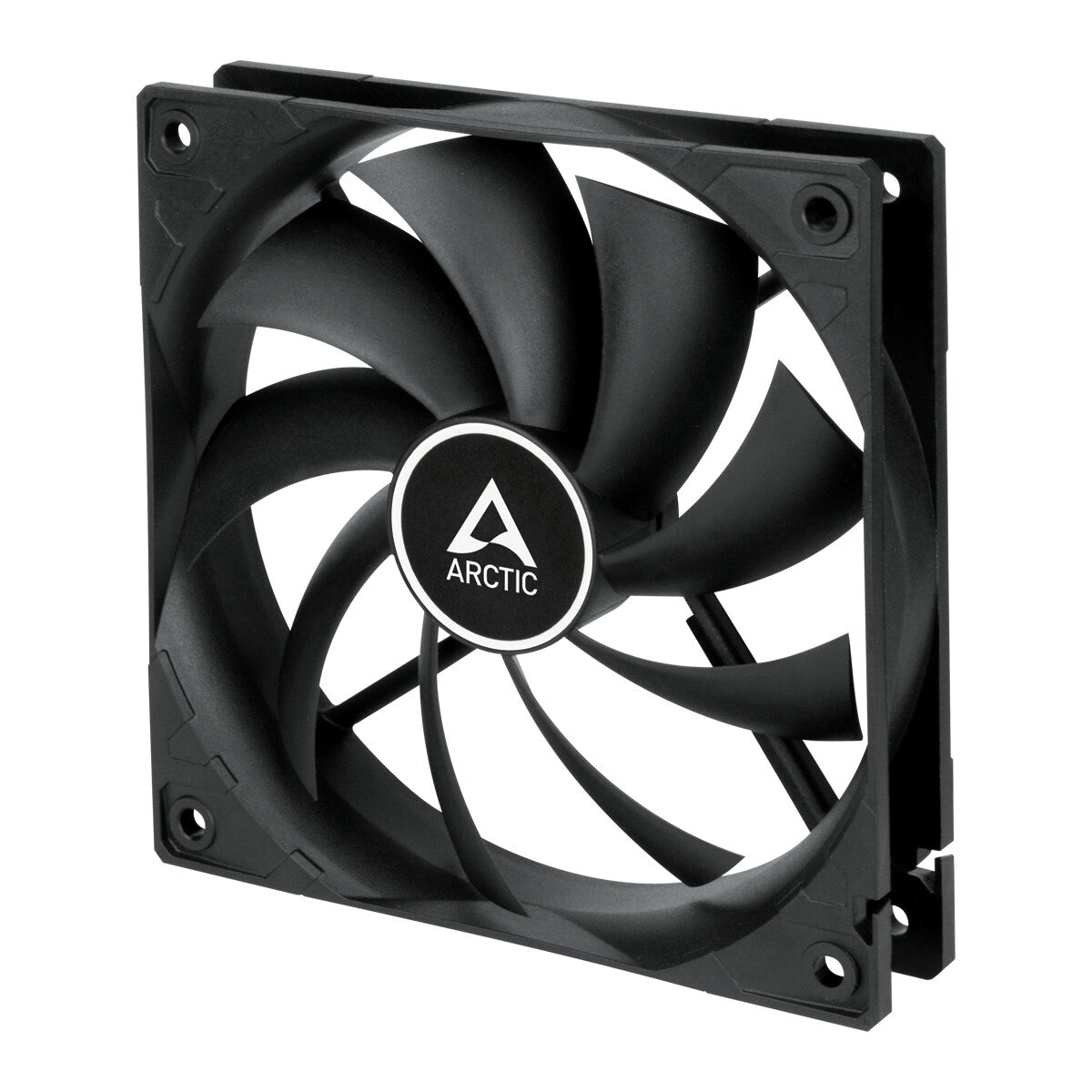

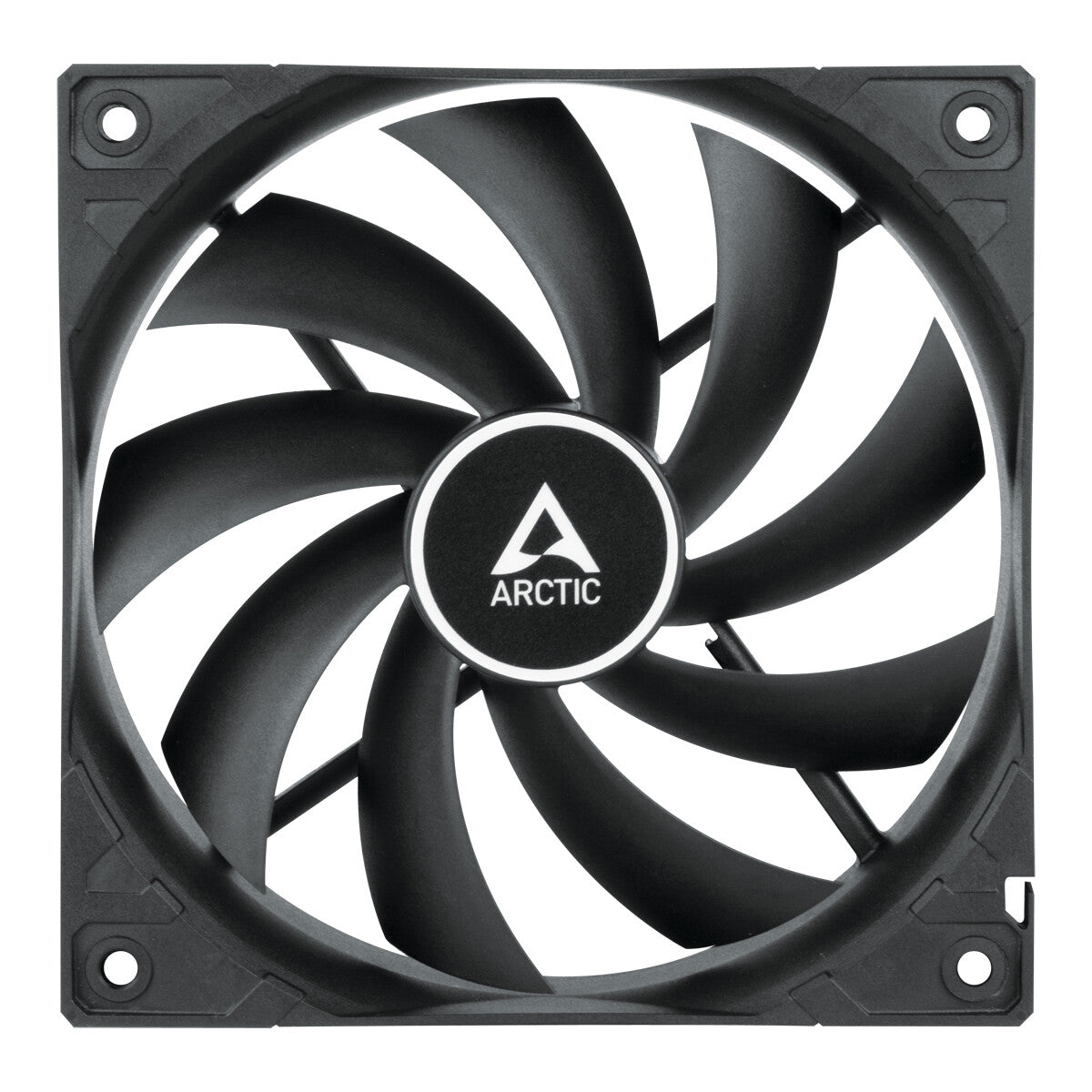

The F12 PWM PST case fans are dedicated to outperform their counterparts in terms of cooling performance and noise level.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 1 mmH2O |
| Airflow | 90.1 m³/h |
| Maximum airflow | 53 cfm |
| Noise level | 0.3 sone |
| Rotational speed (max) | 1350 RPM |
| Rotational speed (min) | 230 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin + 4-pin |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.24 A |
| Starting voltage | 6 V |
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 130 g |
| Package height | 123 mm |
| Package depth | 27 mm |
| Package width | 123 mm |
| Cable length | 0.4 m |
| Weight | 109 g |
| Height | 25 mm |
| Depth | 120 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
