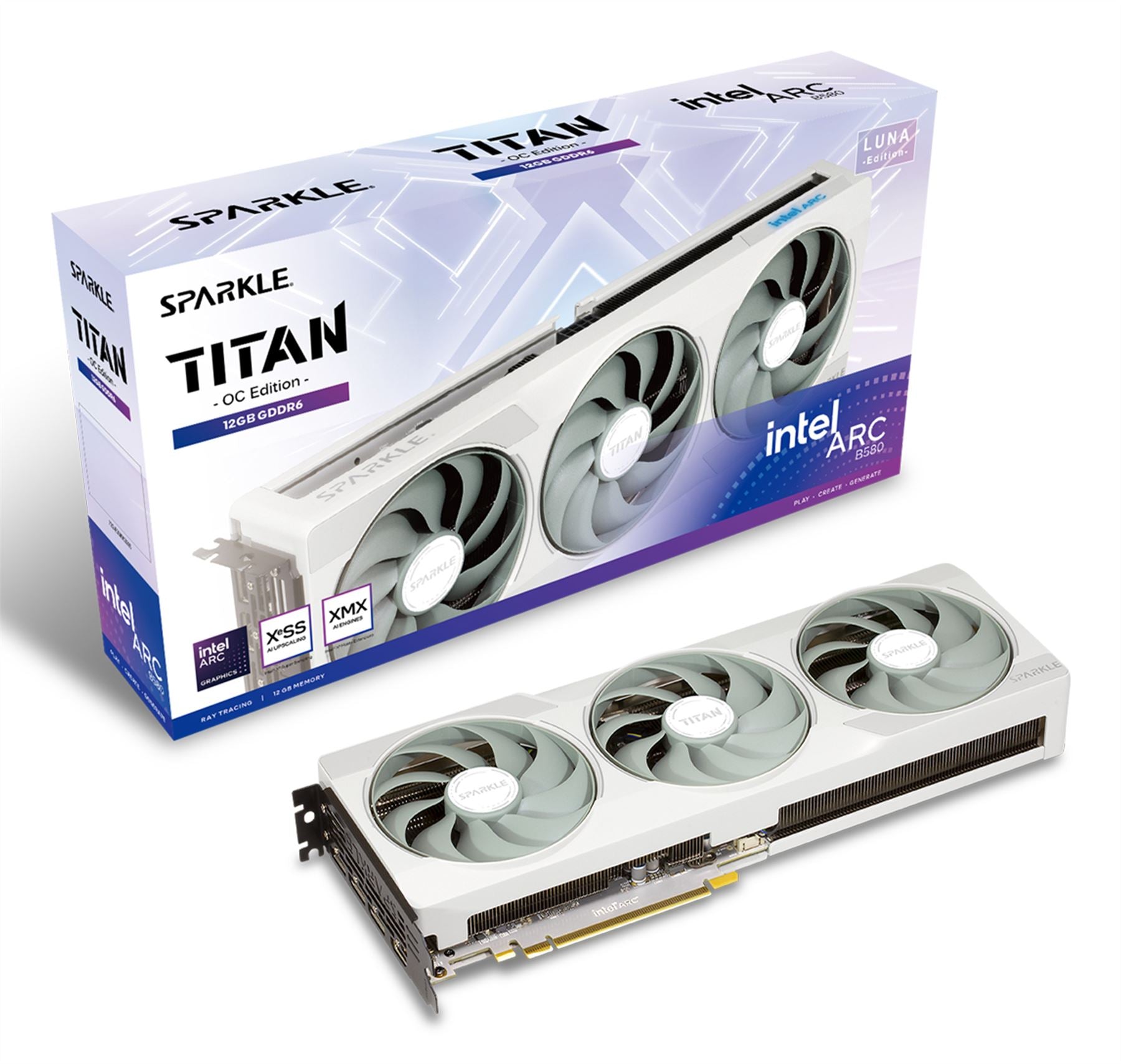

The SPARKLE Intel® Arc™ B580 TITAN Luna OC Graphics Card, offers high-resolution gaming with Intel. XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground.
New TITAN series equipped TORN 2.0 Cooling with triple customized AXL fans, 2.2-slot design and fullmetal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
Processor | |
---|---|
Graphics processor family | Intel |
Processor frequency | 2740 MHz |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
CUDA | No |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | Arc B580 |
Ray accelerators | 20 |
Memory | |
Discrete graphics card memory | 12 GB |
Memory bandwidth (max) | 456 GB/s |
Memory bus | 192 bit |
Graphics card memory type | GDDR6 |
Ports & interfaces | |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
DisplayPort version | 2.1 |
DisplayPorts quantity | 3 |
Interface type | PCI Express x8 4.0 |
Video | |
OpenCL version | 3.0 |
DirectX version | 12 Ultimate |
OpenGL version | 4.6 |
HDMI | Yes |
HDMI version | 2.1 |
Dual Link DVI | No |
Performance | |
OpenCL version | 3.0 |
DirectX version | 12 Ultimate |
OpenGL version | 4.6 |
Dual Link DVI | No |
TV tuner integrated | No |
Intel® Xe Matrix Extensions (Intel® XMX) Engines | 160 |
Xe-cores | 20 |
NPU performance up to | 233 TOPs |
Design | |
Number of fans | 3 fan(s) |
Cooling type | Active |
Number of slots | 2.2 |
Software | |
Windows operating systems supported | Windows 10, Windows 11 |
Power | |
Supplementary power connectors | 1x 8-pin |
Power consumption (typical) | 200 W |
Minimum system power supply | 600 W |
Power supply location | Top |
Weight & dimensions | |
Number of slots | 2.2 |
Weight | 954 g |
Height | 117 mm |
Depth | 44 mm |
Length | 315 mm |
Technical details | |
Cooling type | Active |
TV tuner integrated | No |
System requirements | |
Windows operating systems supported | Windows 10, Windows 11 |
Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
Minimum system power supply | 600 W |
Minimum RAM | 8000 MB |
Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
Packaging data | |
Package type | Box |
Other features | |
HDMI | Yes |
