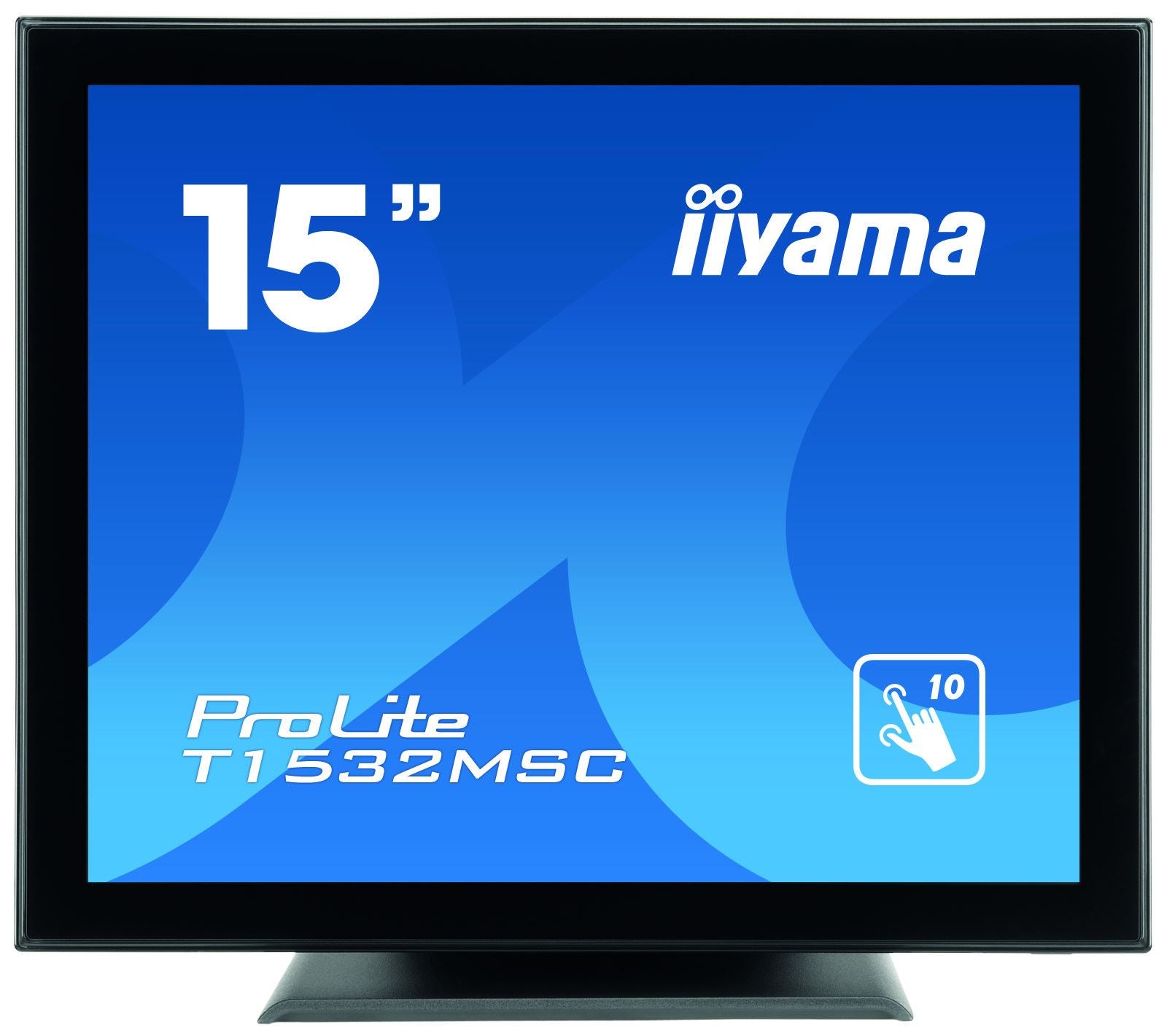

The ProLite T1532MSC 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. AG COATING The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks. IP54 The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water. SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. SPEAKERS This LED monitor is equipped with two high quality stereo speakers.
Display | |
---|---|
HDCP | Yes |
Screen shape | Flat |
Display number of colours | 16.2 million colours |
Native aspect ratio | 4:3 |
Display technology | LED |
Viewing angle, horizontal | 170° |
Viewing angle, vertical | 160° |
Pixel pitch | 0.297 x 0.297 mm |
Horizontal scan range | 31.4 - 60 kHz |
Vertical scan range | 56 - 75 Hz |
Aspect ratio | 4:3 |
Separate H/V sync | Yes |
Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA) |
Display resolution | 1024 x 768 pixels |
Response time | 8 ms |
Display diagonal | 38.1 cm (15") |
Contrast ratio (typical) | 700:1 |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Display diagonal (metric) | 38 cm |
Touchscreen technology | Projected capacitive system |
Display brightness | 315 cd/m² |
Audio | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Performance | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
OmniTapps Multitouch compatibility | No |
Management features | |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Multimedia | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Design | |
Certification | CB, CE, TÜV, CU, cULus, VCCI |
Product colour | Black |
International Protection (IP) code | IP54 |
Ports & interfaces | |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDCP | Yes |
Audio input | 3.5mm |
HDMI | Yes |
USB Touch ports quantity | 1 |
USB Touch port | Yes |
Technical details | |
Cable lock slot | Yes |
HDMI | Yes |
Display viewable area (HxV) | 304.1 x 228.1 mm |
Product colour | Black |
Power supply type | AC |
Weight (with stand) | 4.5 kg |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Software | |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
Tilt angle range | -5 - 90° |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Cable lock slot type | Kensington |
Tilt adjustment | Yes |
Power | |
Power supply type | AC |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (standby) | 2 W |
Power consumption (typical) | 16 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 10 kWh |
Power management | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Packaging content | |
Quick start guide | Yes |
Cables included | AC, Audio (3.5mm), DisplayPort, HDMI, USB |
Weight & dimensions | |
Width (with stand) | 351 mm |
Depth (with stand) | 202 mm |
Height (with stand) | 306.5 mm |
Weight (with stand) | 4.5 kg |
Packaging data | |
Quick start guide | Yes |
Cables included | AC, Audio (3.5mm), DisplayPort, HDMI, USB |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Quick start guide | Yes |
HDMI | Yes |
Energy efficiency scale | A to G |
Power supply type | AC |
Display viewable area (HxV) | 304.1 x 228.1 mm |
Power management | Yes |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Certificates | |
Certification | CB, CE, TÜV, CU, cULus, VCCI |
