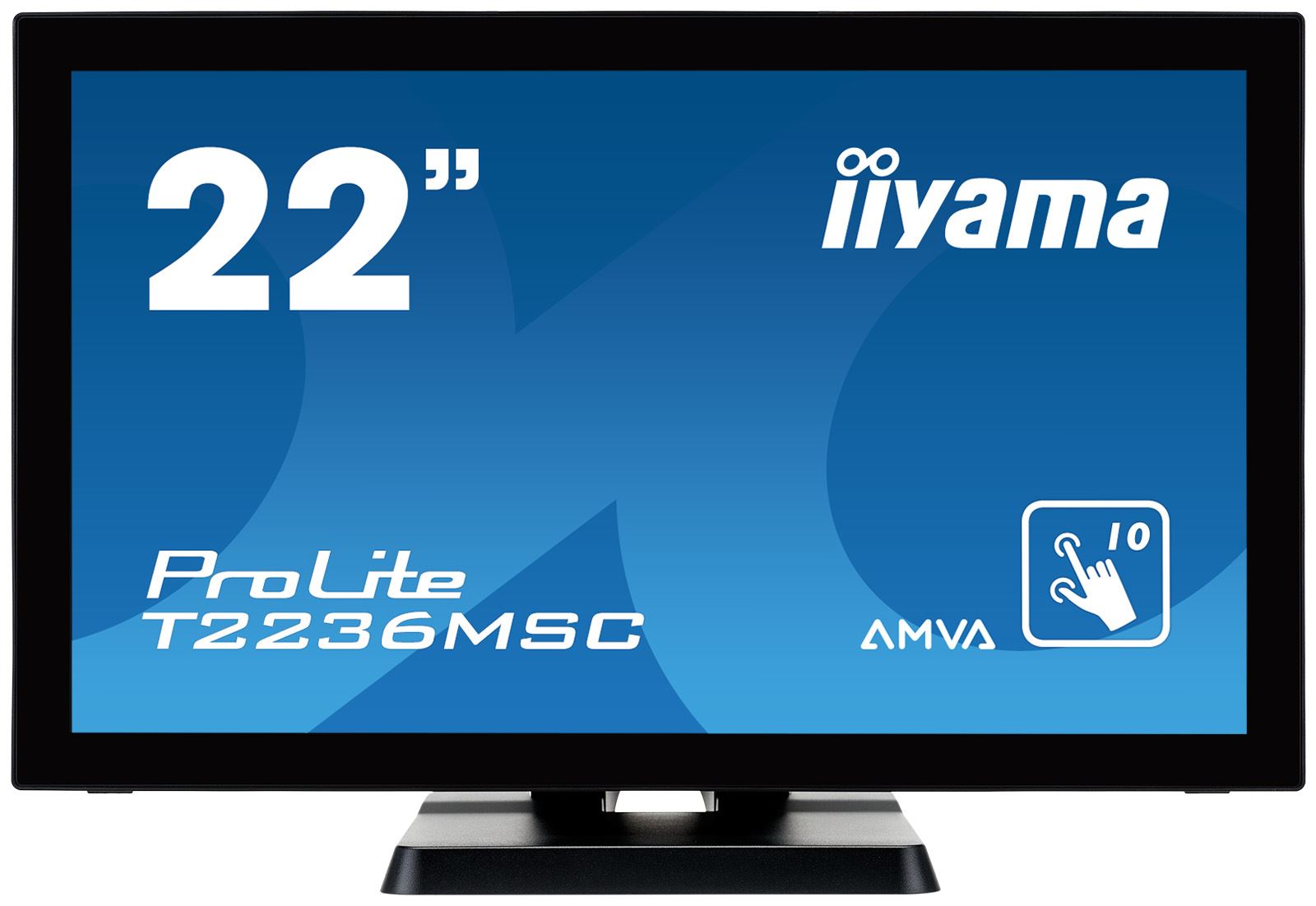

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2236MSC delivers seamless and accurate touch response. The AMVA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2236MSC is the ideal screen for a great Windows8 touch-experience.
Audio | |
---|---|
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
Performance | |
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Number of simultaneous touchpoints (Windows 7) | 10 |
Display | |
Screen shape | Flat |
Display number of colours | 16.78 million colours |
Native aspect ratio | 16:9 |
Display technology | LED |
Contrast ratio (dynamic) | 12000000:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Pixel pitch | 0.248 x 0.248 mm |
Horizontal scan range | 30 - 80 kHz |
Vertical scan range | 55 - 75 Hz |
Aspect ratio | 16:9 |
Viewable size diagonal | 55 cm |
Display resolution | 1920 x 1080 pixels |
Response time | 8 ms |
Display diagonal | 54.6 cm (21.5") |
Contrast ratio (typical) | 3000:1 |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Display diagonal (metric) | 55 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 215 cd/m² |
Management features | |
Number of OSD languages | 9 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
Multimedia | |
Number of speakers | 2 |
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
Design | |
Certification | CE, TÜV-Bauart, CU |
Ports & interfaces | |
Built-in USB hub | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Number of upstream ports | 1 |
USB Type-A downstream ports quantity | 4 |
DVI port | Yes |
VGA (D-Sub) ports quantity | 1 |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
Technical details | |
Height (without stand) | 31.6 cm |
Depth (without stand) | 5.7 cm |
Width (without stand) | 52.2 cm |
Cable lock slot | Yes |
HDMI | Yes |
Display viewable area (HxV) | 476.6 x 268.1 mm |
Weight (with stand) | 5.8 kg |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
LED indicators | Yes |
Tilt angle range | -5 - 90° |
Number of OSD languages | 9 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
Tilt adjustment | Yes |
Power | |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 23 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | F |
Energy consumption (SDR) per 1000 hours | 19 kWh |
Power management | Yes |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Packaging content | |
Cables included | AC, Audio (3.5mm), DVI, VGA |
Weight & dimensions | |
Height (without stand) | 31.6 cm |
Depth (without stand) | 5.7 cm |
Width (without stand) | 52.2 cm |
Width (with stand) | 522.5 mm |
Depth (with stand) | 254 mm |
Height (with stand) | 367 mm |
Weight (with stand) | 5.8 kg |
Indication | |
LED indicators | Yes |
Packaging data | |
Cables included | AC, Audio (3.5mm), DVI, VGA |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Height (without stand) | 31.6 cm |
Depth (without stand) | 5.7 cm |
Width (without stand) | 52.2 cm |
HDMI | Yes |
Energy efficiency scale | A to G |
Dimensions (W x D x H) with stand | 522.5 x 254 x 367 mm |
Display viewable area (HxV) | 476.6 x 268.1 mm |
Power management | Yes |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Certificates | |
Certification | CE, TÜV-Bauart, CU |
