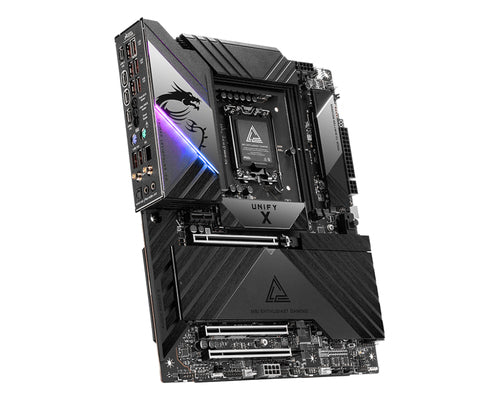

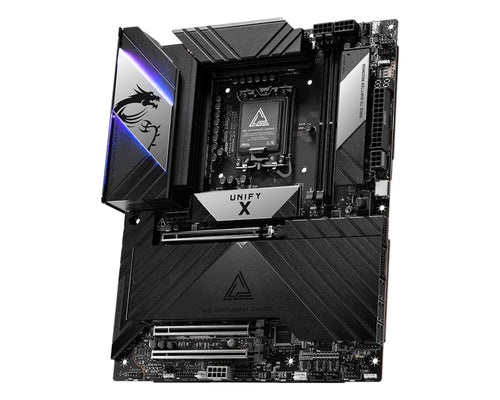

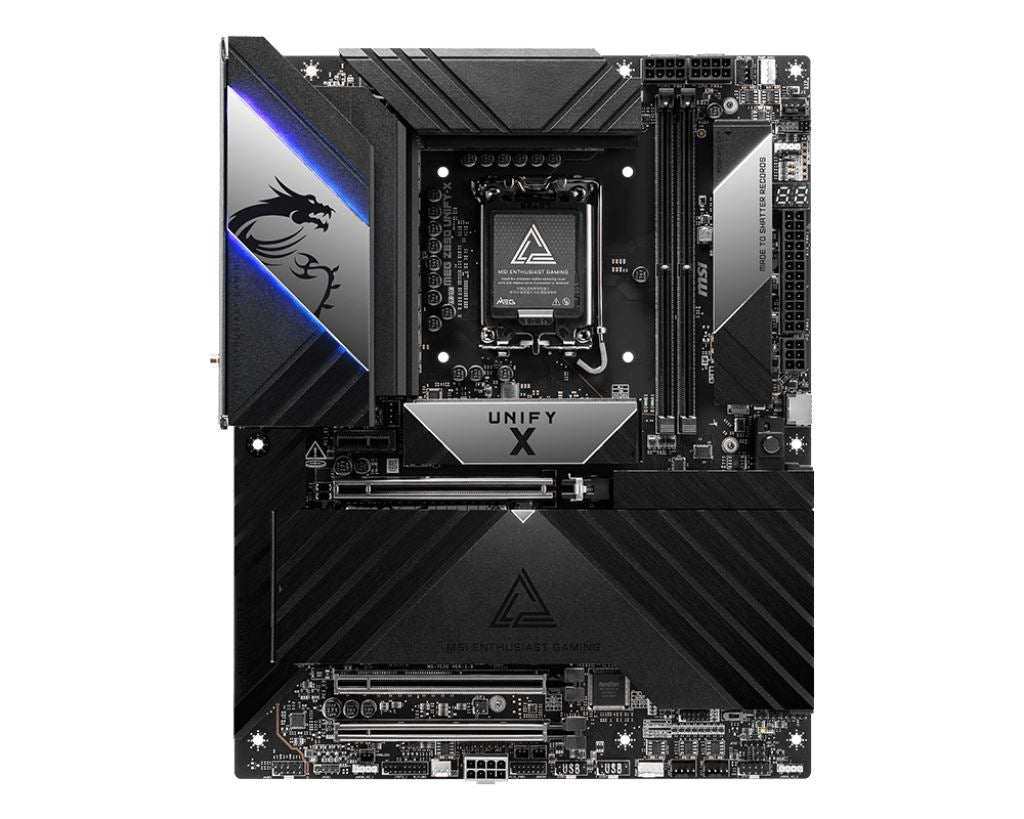

The V power makes the MEG Z890 UNIFY-X motherboard defeating all challenges among Z890 motherboards. Employing AI server-grade TLVR inductor to enhance overall efficiency and provide the extreme performance. It also equips all the latest technology such as DDR5, PCIe 5.0, Killer Wi-fi 7 and 5G LAN, Thunderbolt 4, and all the EZ DIY features and Supplemental PCIe Power, ready for all challenges of gaming and AI.
The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of.
With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Tuning Controller is an exclusive accessory designed for overclocking enthusiasts. It allows users to fine-tune overclocking parameters easily with just one click. Featuring multiple shortcut buttons, the Tuning Controller simplifies the complex overclocking process, making it more accessible for power users aiming to optimize system performance with precision.
ULTRA PERFORMANCE
DIRECT 20+2+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 20+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 UNIFY-X is ready for the challenge of high-end processors.
Internal I/O | |
---|---|
Number of M.2 (M) slots | 6 |
Total number of SATA connectors | 6 |
Supported storage drive interfaces | M.2, SATA III |
USB 2.0 connectors | 4 |
Number of SATA connectors | 0 |
Number of SATA III connectors | 6 |
Number of SATA II connectors | 0 |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Number of EPS power connectors (8-pin) | 1 |
Technical details | |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z890 |
Supported processor sockets | Intel LGA1851 |
On-board graphics card | No |
Motherboard form factor | ATX |
Component for | PC |
Total number of SATA connectors | 6 |
Maximum internal memory supported by processor | 128 GB |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Supported storage drive types | HDD & SSD |
Windows operating systems supported | Windows 11 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z890 |
RAID levels | 0, 5, 10 |
Supported processor sockets | Intel LGA1851 |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Maximum internal memory supported by processor | 128 GB |
Compatible processor series | Intel Core Ultra (Series 2) |
Supported processor sockets | Intel LGA1851 |
Processor socket | LGA 1851 (Socket V1) |
Memory | |
Number of memory slots | 2 |
Memory slots type | DIMM |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Supported memory clock speeds | 4800,6400 MHz |
Maximum internal memory | 128 GB |
Supported memory clock speed (max) | 9600 MHz |
ECC сompatibility | Non-ECC |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 0, 5, 10 |
Number of storage drives supported | 6 |
RAID support | Yes |
Graphics | |
On-board graphics card | No |

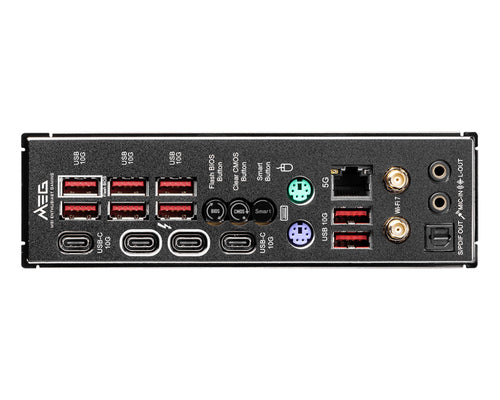

Rear panel I/O ports | |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
USB 2.0 ports quantity | 4 |
VGA (D-Sub) ports quantity | 0 |
Thunderbolt ports quantity | 2 |
HDMI ports quantity | 0 |
Ethernet LAN (RJ-45) ports | 1 |
DVI-D ports quantity | 0 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
Ethernet interface type | 5 Gigabit Ethernet |
Bluetooth | Yes |
Bluetooth version | 5.4 |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Features | |
Windows operating systems supported | Windows 11 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel Z890 |
Supported processor sockets | Intel LGA1851 |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Audio chip | Realtek ALC4080 |
Product colour | Black |
Expansion slots | |
Number of M.2 (M) slots | 6 |
PCI Express x1 slots | 1 |
PCI Express x16 (Gen 5.x) slots | 3 |
Software | |
Windows operating systems supported | Windows 11 |
Weight & dimensions | |
Width | 243.8 mm |
Depth | 304.8 mm |
