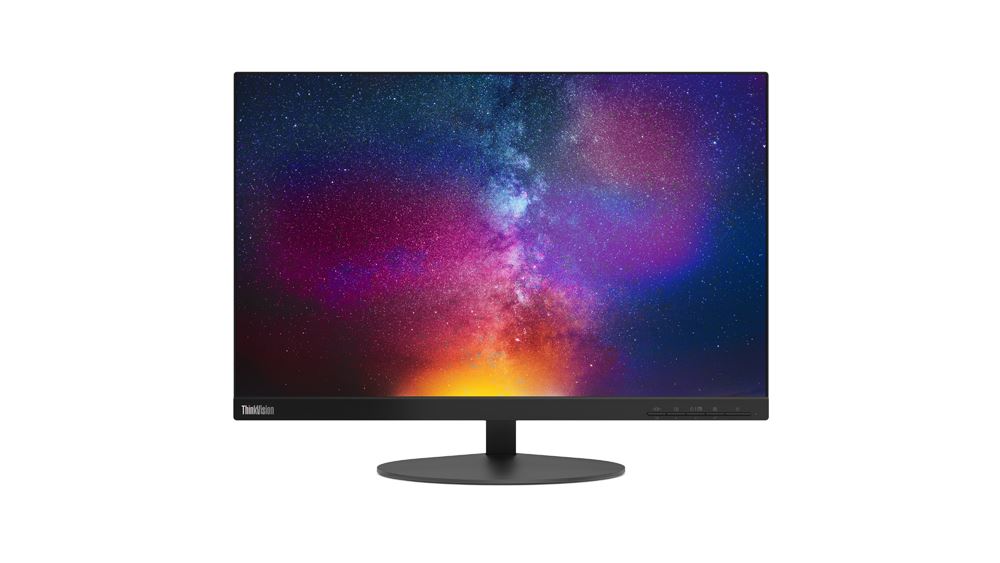

The Lenovo ThinkVision T23d-10 is a superior monitor that is meant to take your efficiency to new heights. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23d-10 lets you perform to your full potential.
The 16:10 aspect ratio of the T23d-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel of the bright WUXGA monitor and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4 ms response time, the anti-glare display minimises motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23d-10 has a range of ports such as VGA, DP and HDMI to boost productivity.
| Display | |
|---|---|
| Quantum dot color technology | Yes |
| 3D | No |
| Colour gamut | 72% |
| Viewable size, vertical | 31.4 cm |
| Viewable size, horizontal | 49.6 cm |
| Pixel pitch | 0.25 x 0.25 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Screen shape | Flat |
| Response time | 6 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | TFT/IPS |
| HD type | WUXGA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:10 |
| Display resolution | 1920 x 1200 pixels |
| Display diagonal | 57.1 cm (22.5") |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Certification | TCO 7.0, DDC2B/CI, ISO 9241-307, FCC Class B, TCO Certified Edge 2.0, WEEE |
| Detachable stand | Yes |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Network | |
|---|---|
| Ethernet LAN | No |
| Bluetooth | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 30° |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Pivot angle | 0 - 90° |
| Pivot | Yes |
| Height adjustment | 11 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power consumption (max) | 18 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 15 W |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Energy efficiency class (SDR) | D |
| Packaging content | |
|---|---|
| Power cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Bezel width (side) | 2.3 mm |
| Weight (with stand) | 4.85 kg |
| Height (with stand) | 491.9 mm |
| Depth (with stand) | 251.9 mm |
| Width (with stand) | 501.2 mm |
| Packaging data | |
|---|---|
| VGA cable length | 1.8 m |
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| General | |
|---|---|
| Product Family | ThinkVision |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| TV tuner integrated | No |
| On/off switch | Yes |
| AC adapter included | Yes |
